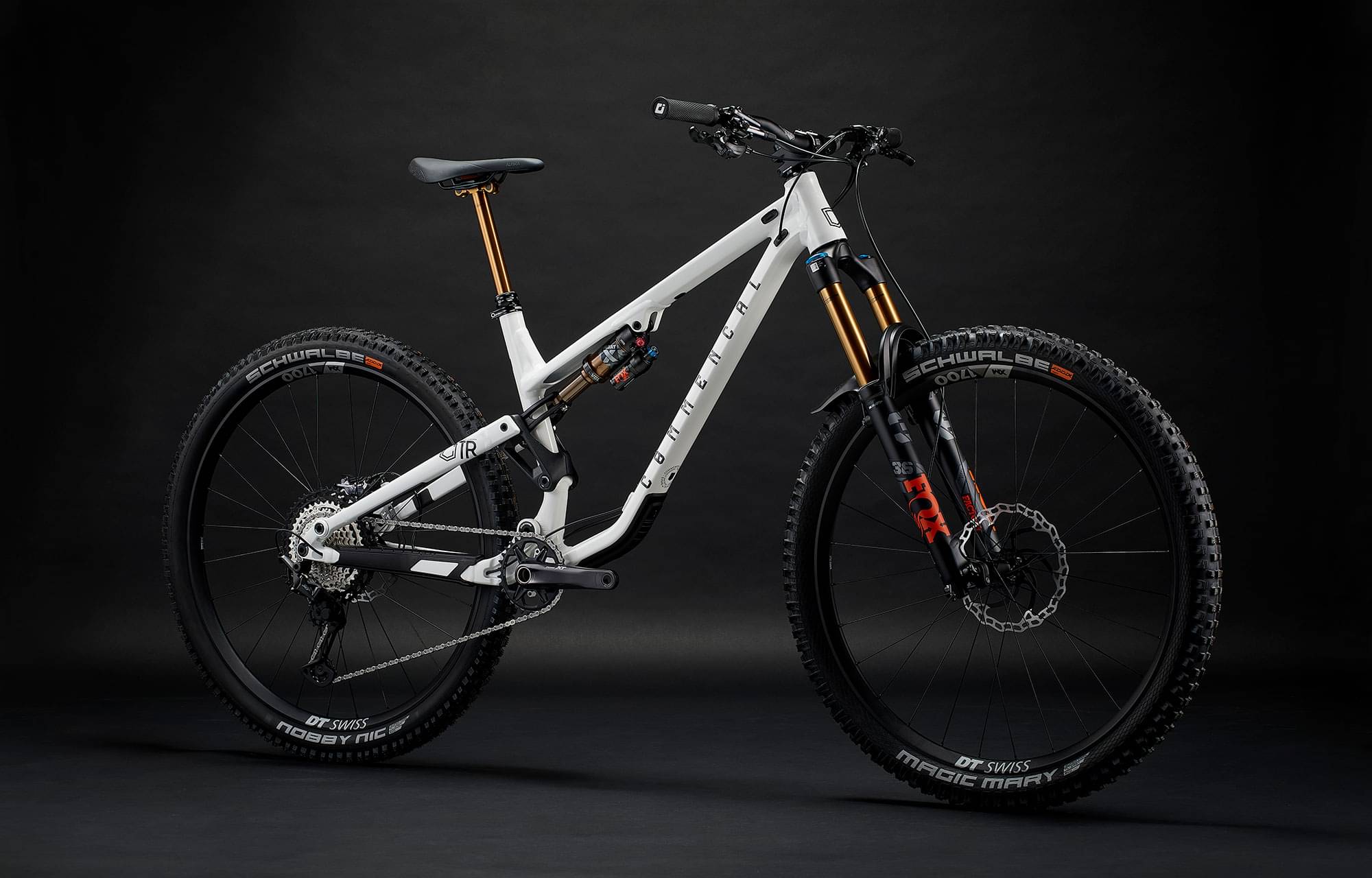

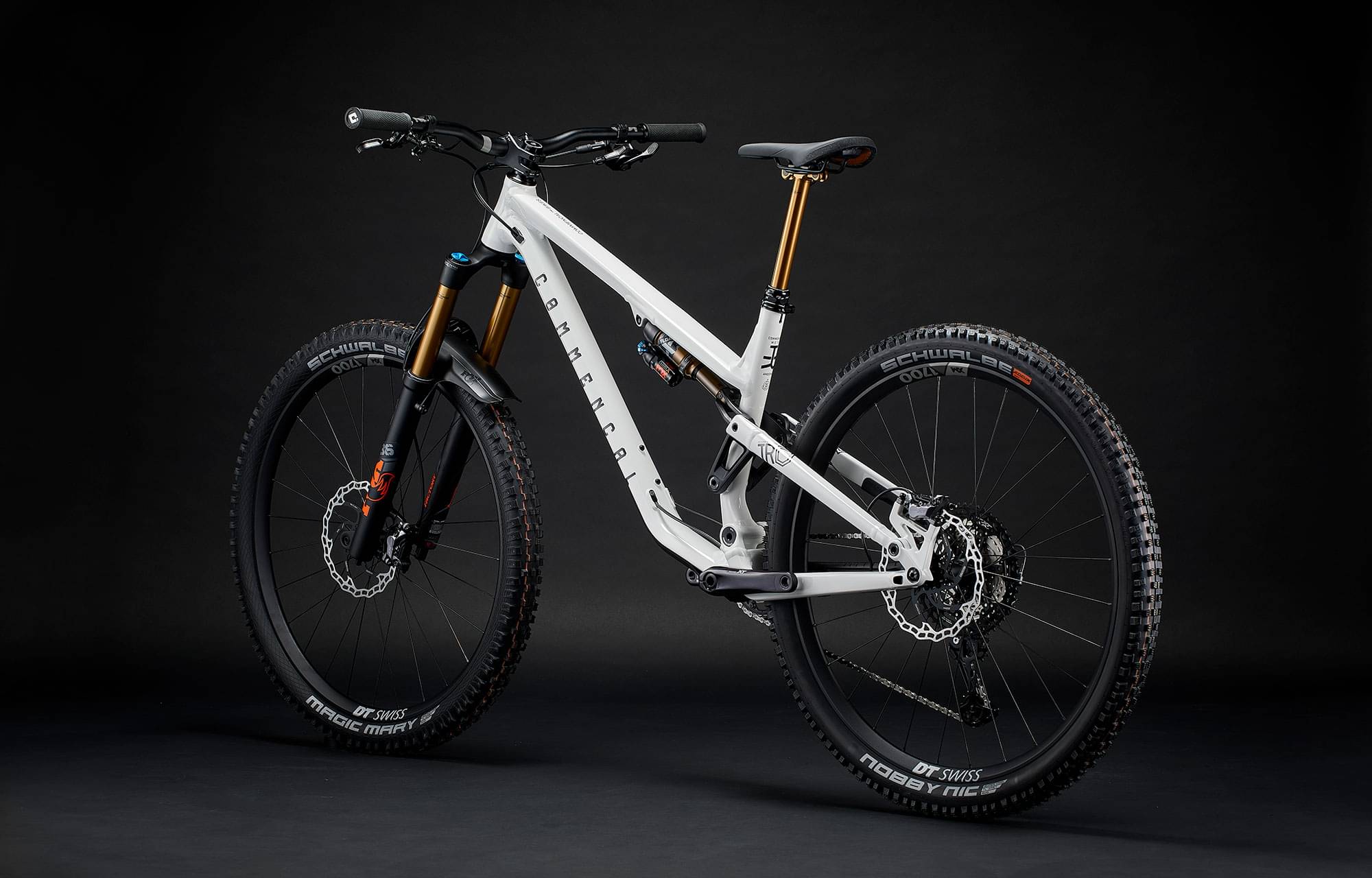

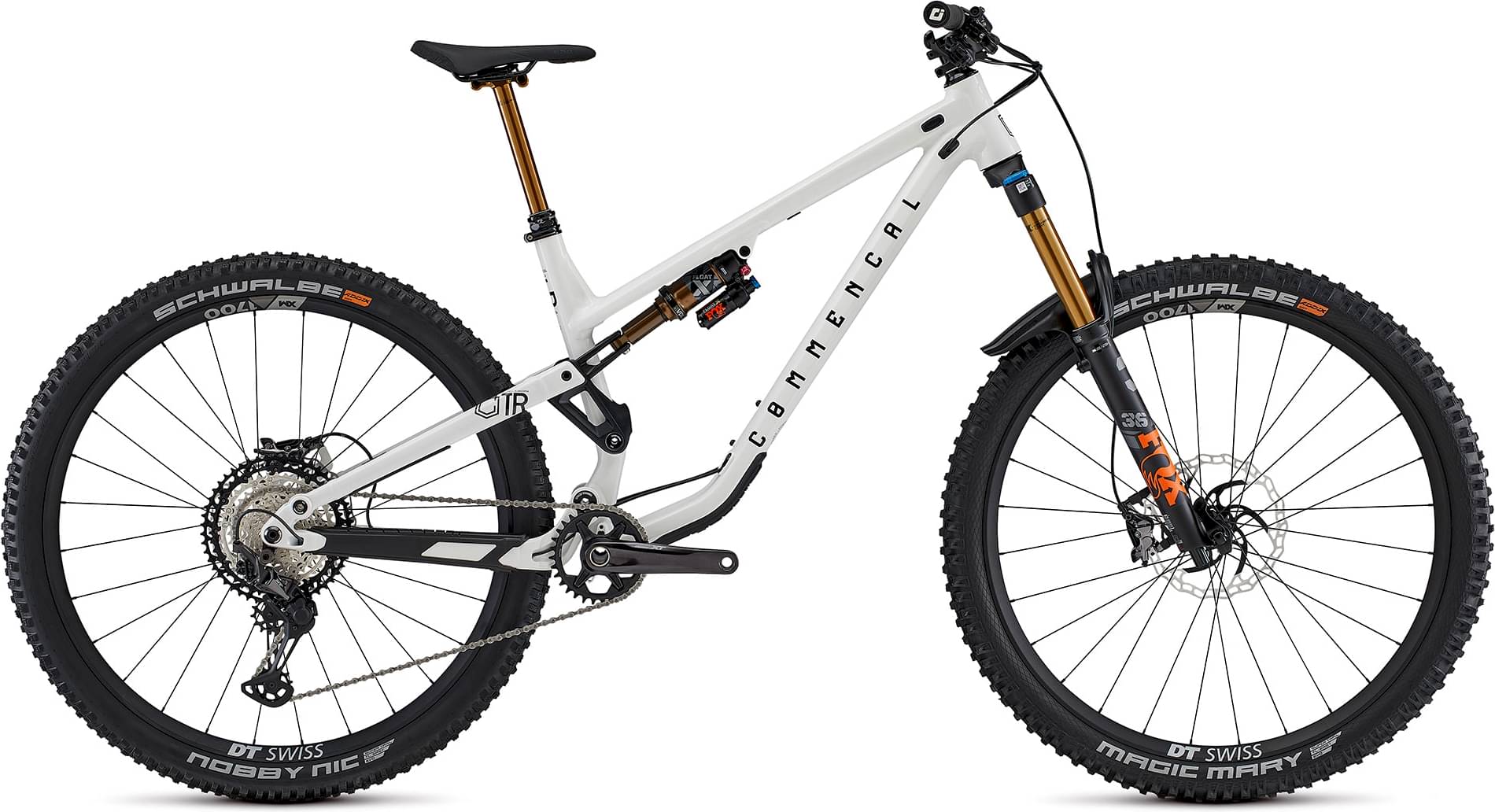

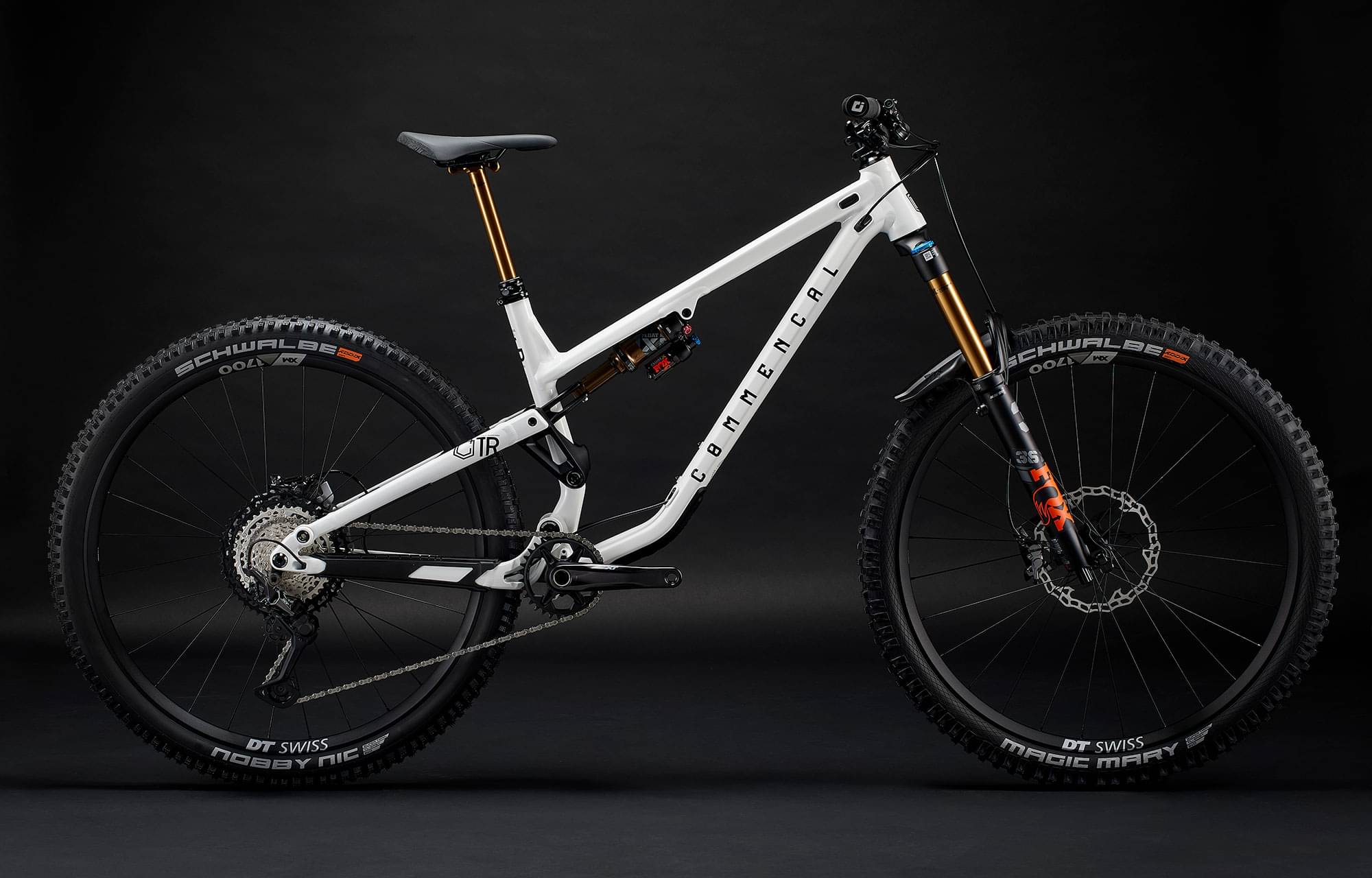

Commençal META TR V4 SIGNATURE 2024
2024 Mountain
Estimate price |
6,255$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
META TR, 140 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

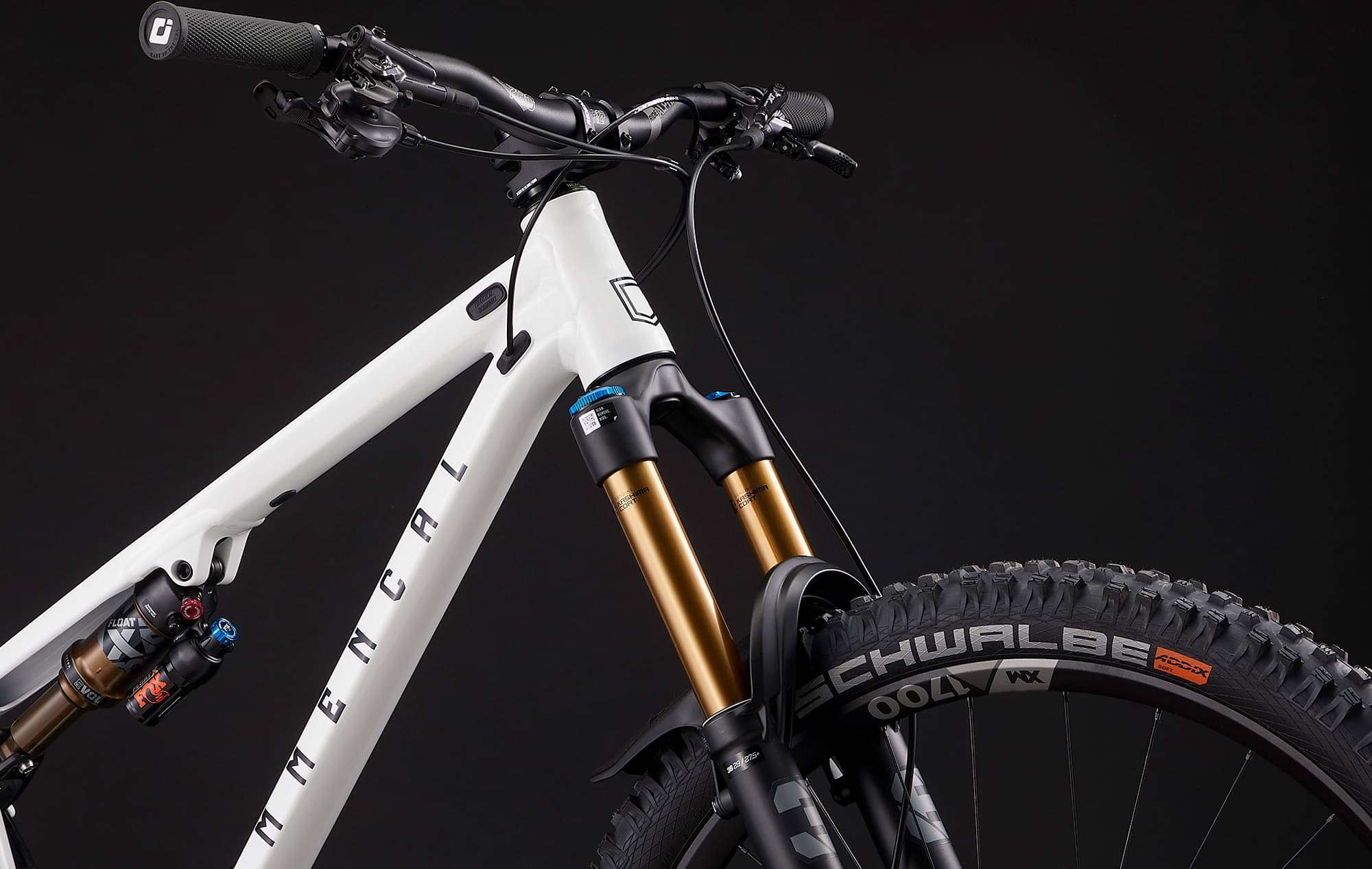

Suspension Fork
FOX 36 Factory, 160 mm travel, 29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 1 Token

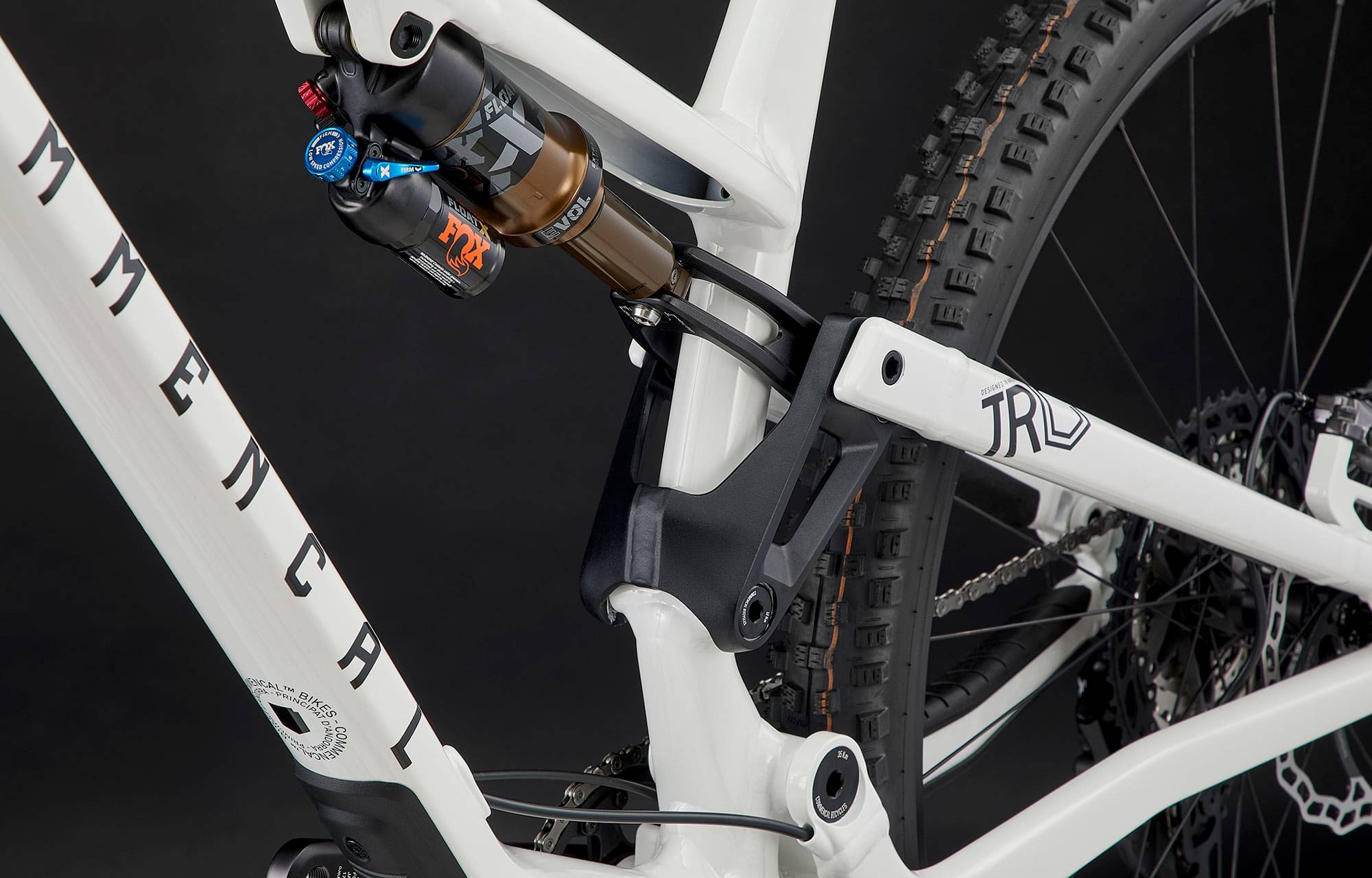

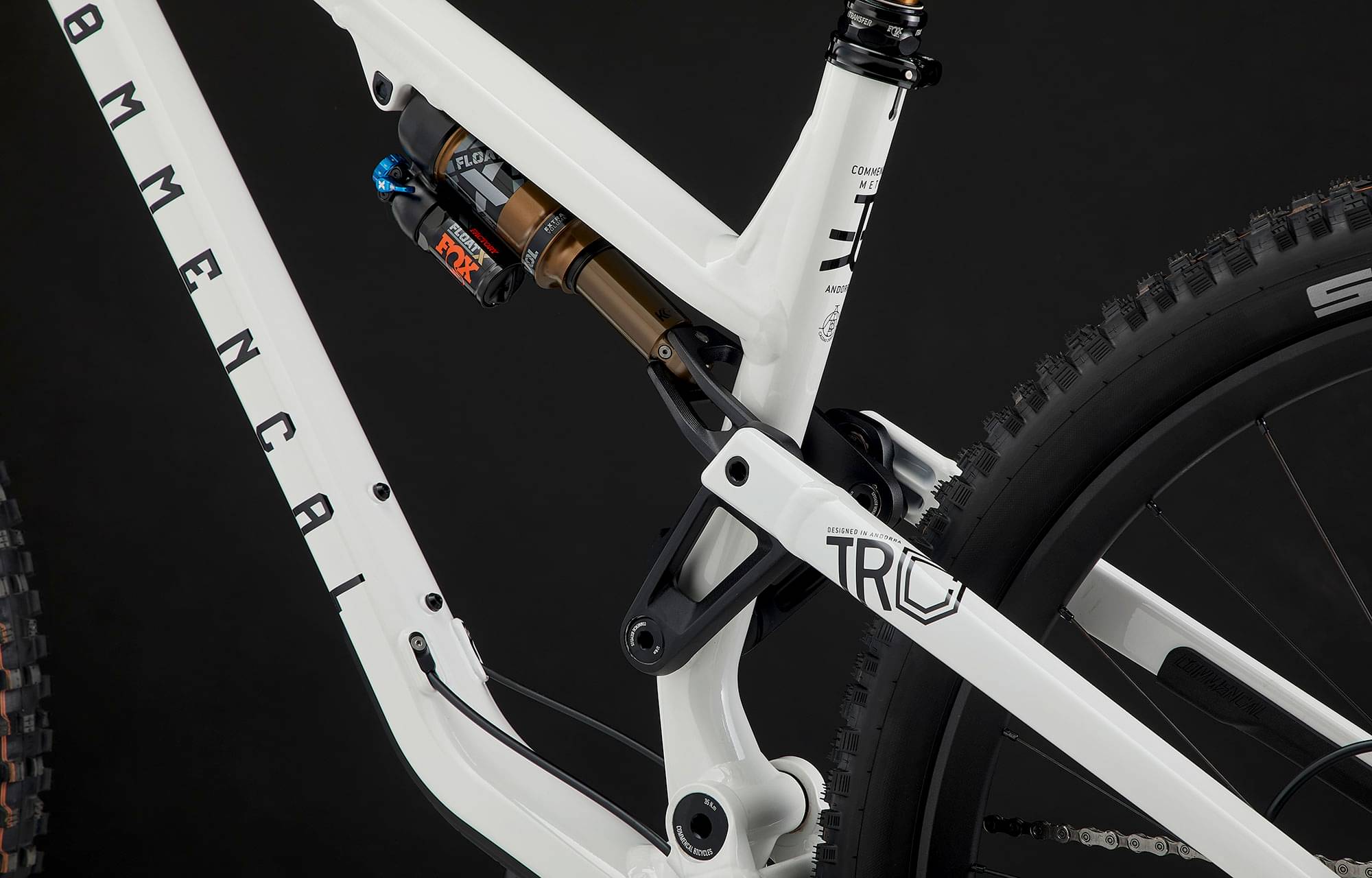

Rear Shock
FOX Float X Factory, 210 x 55 mm, LSC, LSR, 2-position adjustment

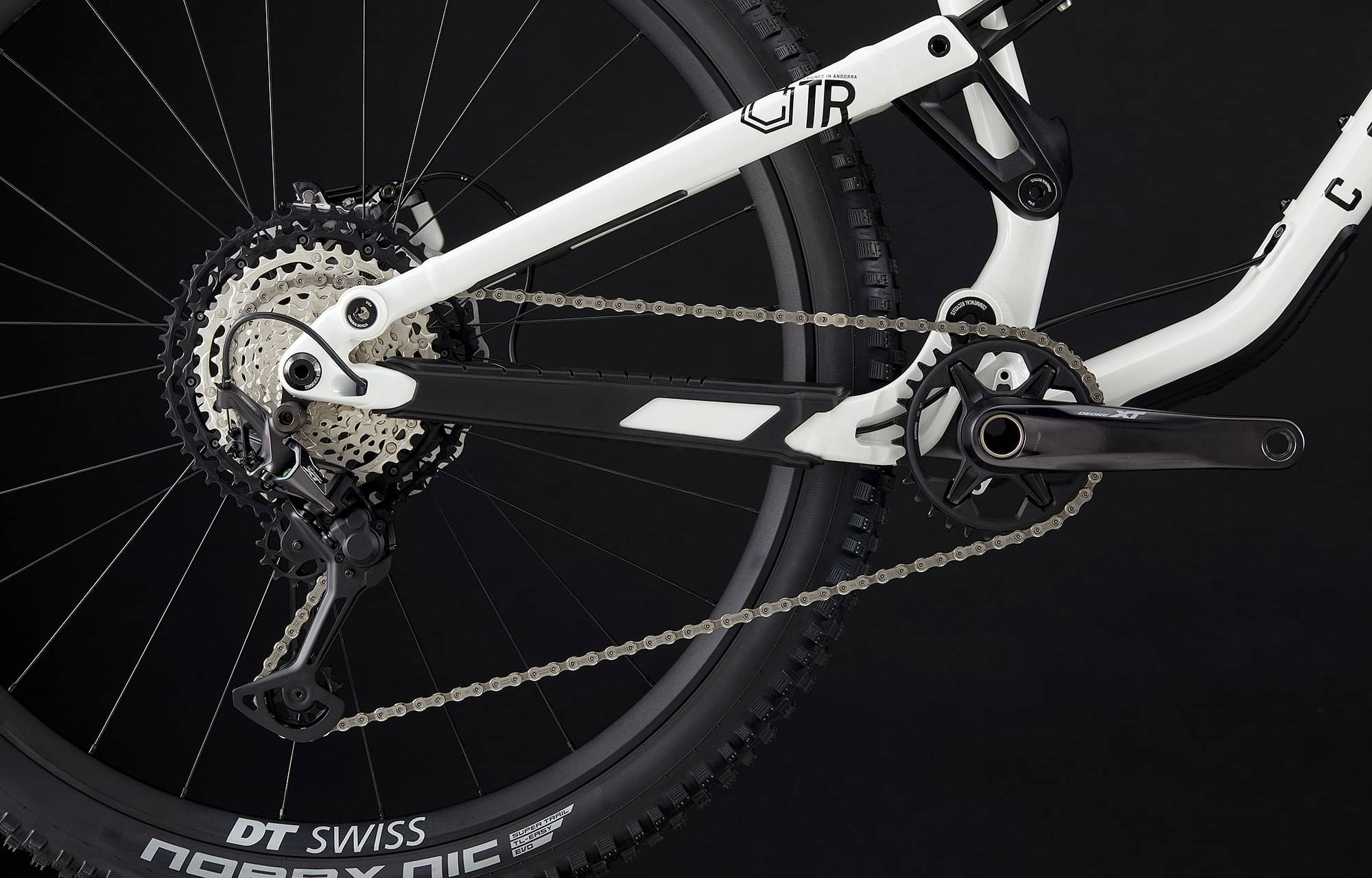

Drivetrain
Rear Derailleur
SHIMANO XT, 12s
Shift Levers
SHIMANO XT, 12s
Cassette
SHIMANO XT, 12s, 10-51t
Crank
SHIMANO XT, 170 mm crank arms, Boost, Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + Technology
Bottom Bracket
BB92
Chain
SHIMANO XT, 12s
Wheels
Front Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 28h, sealed bearings, 12 x 148 mm, Micro Spline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black
Rear Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 28h, sealed bearings, 12 x 148 mm, Micro Spline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black
Rims
DT SWISS XM 1700, 29'', 28h, 30mm inner width
Tires
Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary, Rear: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy
Brakes
Brakes
SHIMANO XT, 4 pistons, I-Spec EV compatible, Rotors: Galfer Disc Wave 203mm, 6-bolt

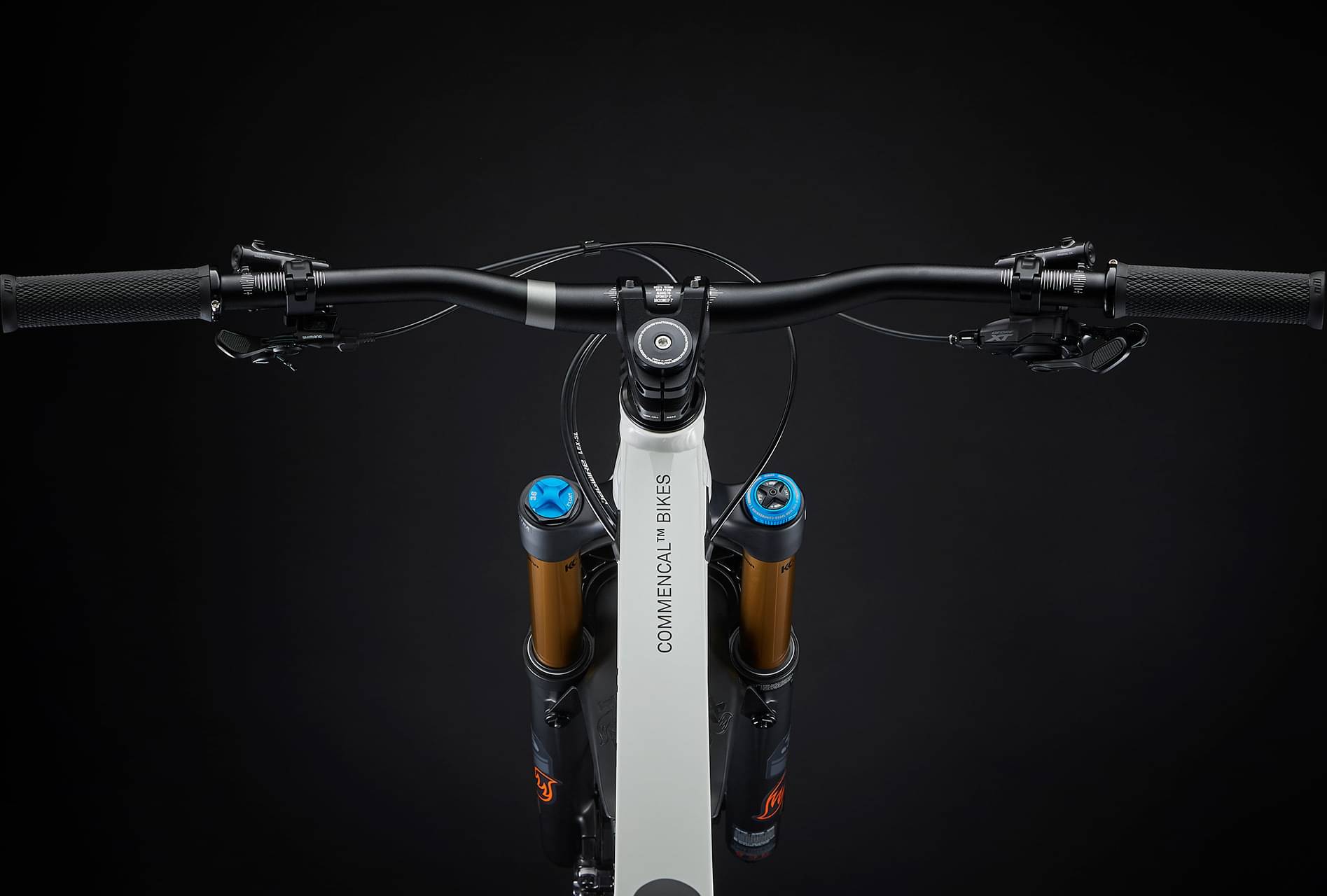

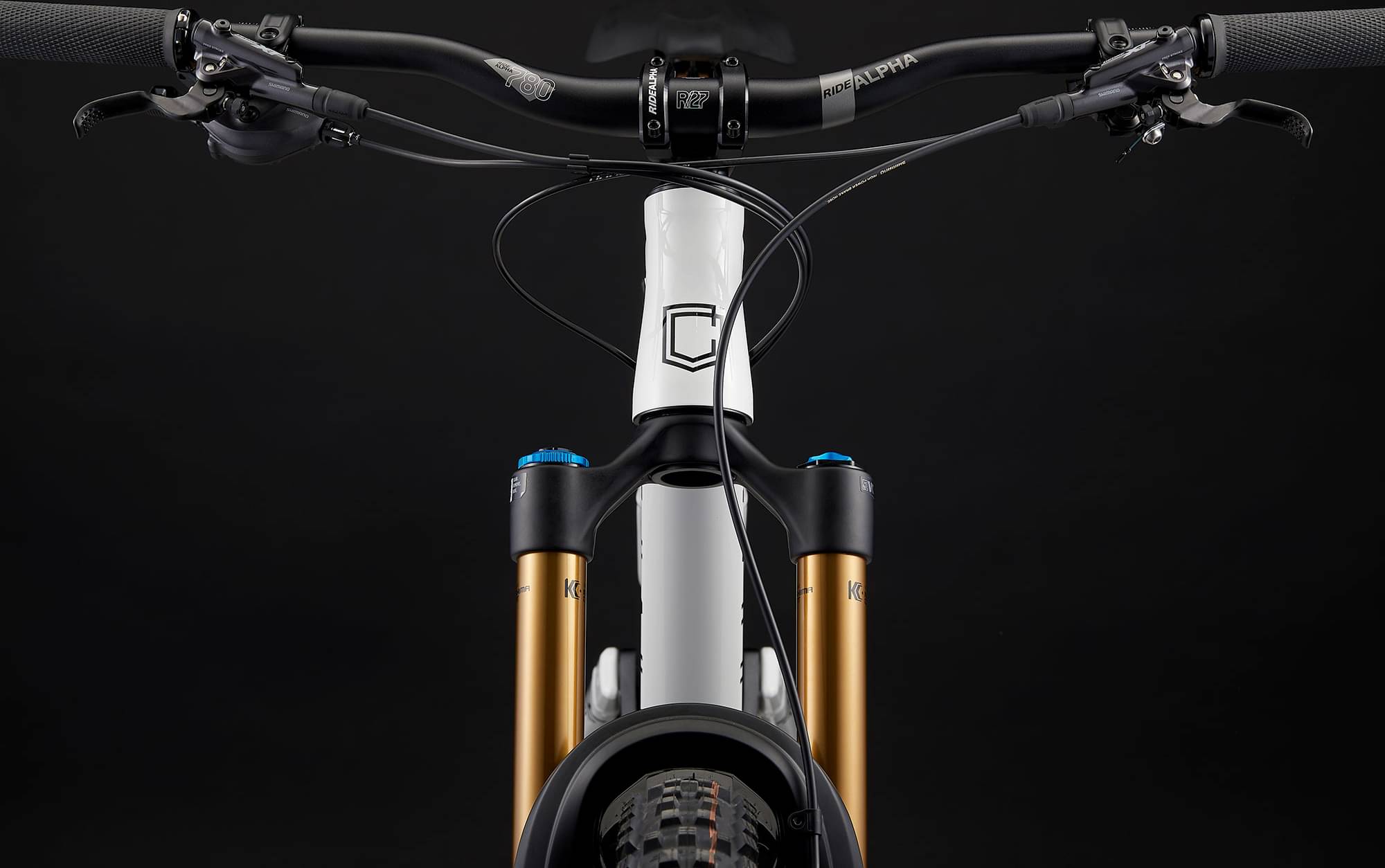

Cockpit
Stem
RIDE ALPHA Freeride 40, 40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion, Soft pro compound, single clamp, black
Headset
ACROS ZS44 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Terra Alpaca X5, 145 mm width, S-alloy rails
Seatpost
FOX Transfer Factory, 31.6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.423 mm | 1.337 mm | 1.355 mm | 1.277 mm | 1.294 mm | 1.224 mm | 1.239 mm |
| Bottom Bracket Height | 345 mm | 341 mm | 345 mm | 341 mm | 345 mm | 341 mm | 345 mm | 341 mm |
| Front Center | 770 mm | 770 mm | 796 mm | 797 mm | 823 mm | 824 mm | 850 mm | 851 mm |
| Rake | 43 mm | 42 mm | 44 mm | 42 mm | 44 mm | 42 mm | 44 mm | 42 mm |
| Trail | 127 mm | 132 mm | 126 mm | 132 mm | 126 mm | 132 mm | 126 mm | 132 mm |
| Stack | 623 mm | 626 mm | 627 mm | 630 mm | 631 mm | 634 mm | 635 mm | 638 mm |
| Reach | 444 mm | 440 mm | 469 mm | 465 mm | 494 mm | 490 mm | 519 mm | 515 mm |
| Top Tube Length | 565 mm | 566 mm | 591 mm | 592 mm | 617 mm | 618 mm | 643 mm | 644 mm |
| Seat Tube Angle | 79 ° | 78.6 ° | 79 ° | 78.6 ° | 79 ° | 78.6 ° | 79 ° | 78.6 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 420 mm | 440 mm | 440 mm | 460 mm | 460 mm |
| Head Tube Angle | 65 ° | 64.5 ° | 65 ° | 64.5 ° | 65 ° | 64.5 ° | 65 ° | 64.5 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 115 mm | 120 mm | 120 mm | 125 mm | 125 mm |
| Chainstay Length | 434 mm | 435 mm | 434 mm | 435 mm | 434 mm | 435 mm | 434 mm | 435 mm |
| Wheelbase | 1202 mm | 1203 mm | 1229 mm | 1230 mm | 1256 mm | 1257 mm | 1283 mm | 1284 mm |
| Bottom Bracket Drop | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
