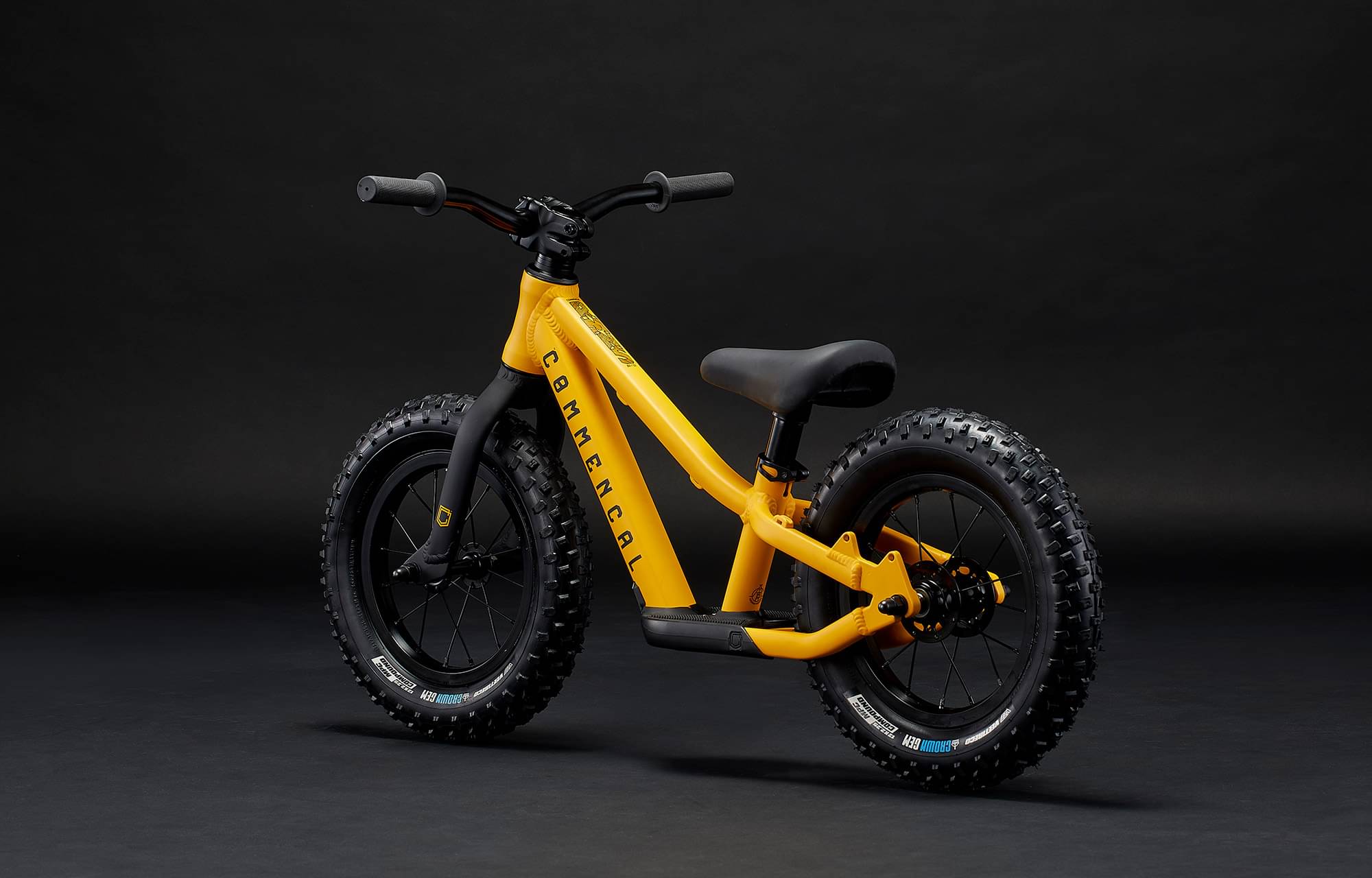

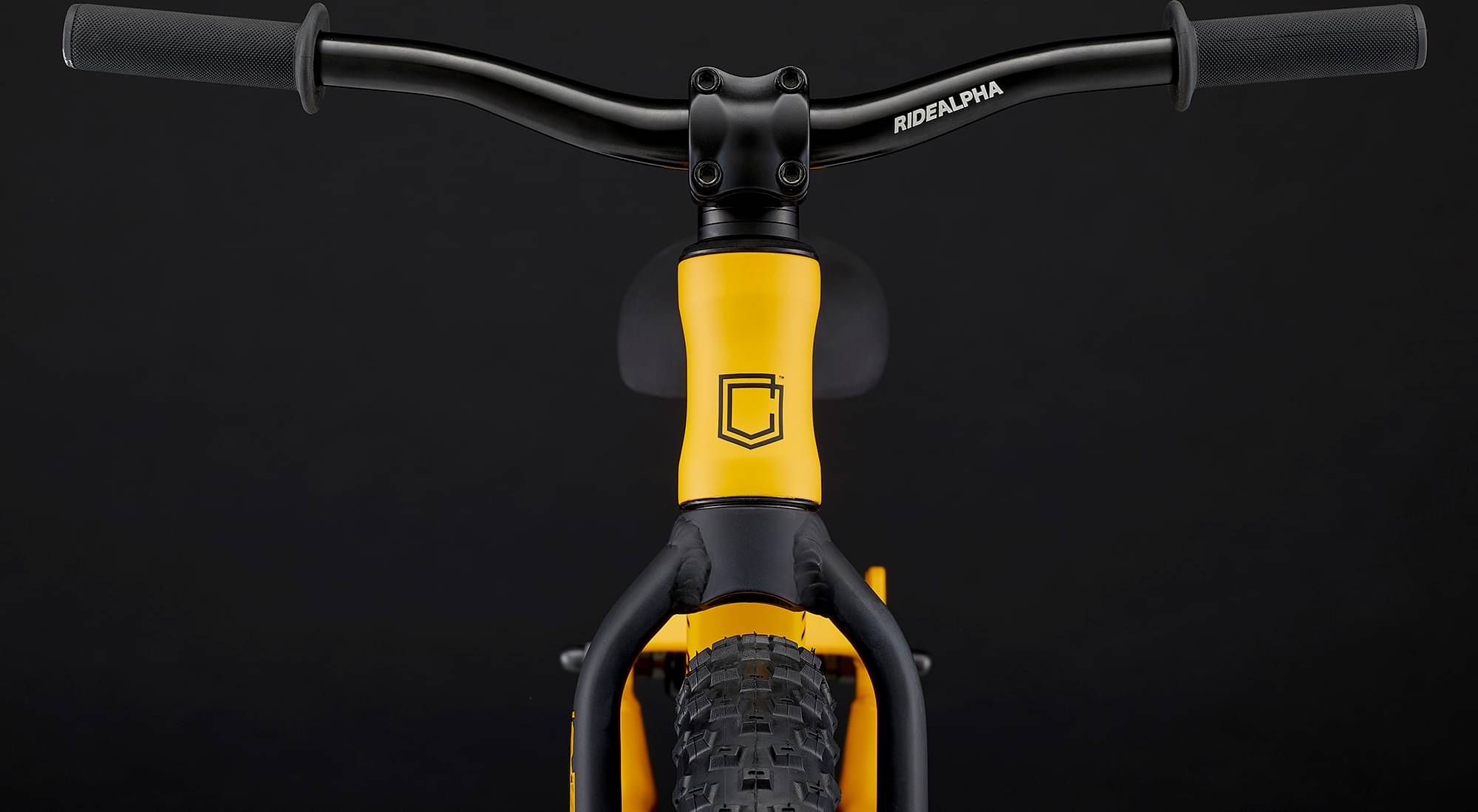

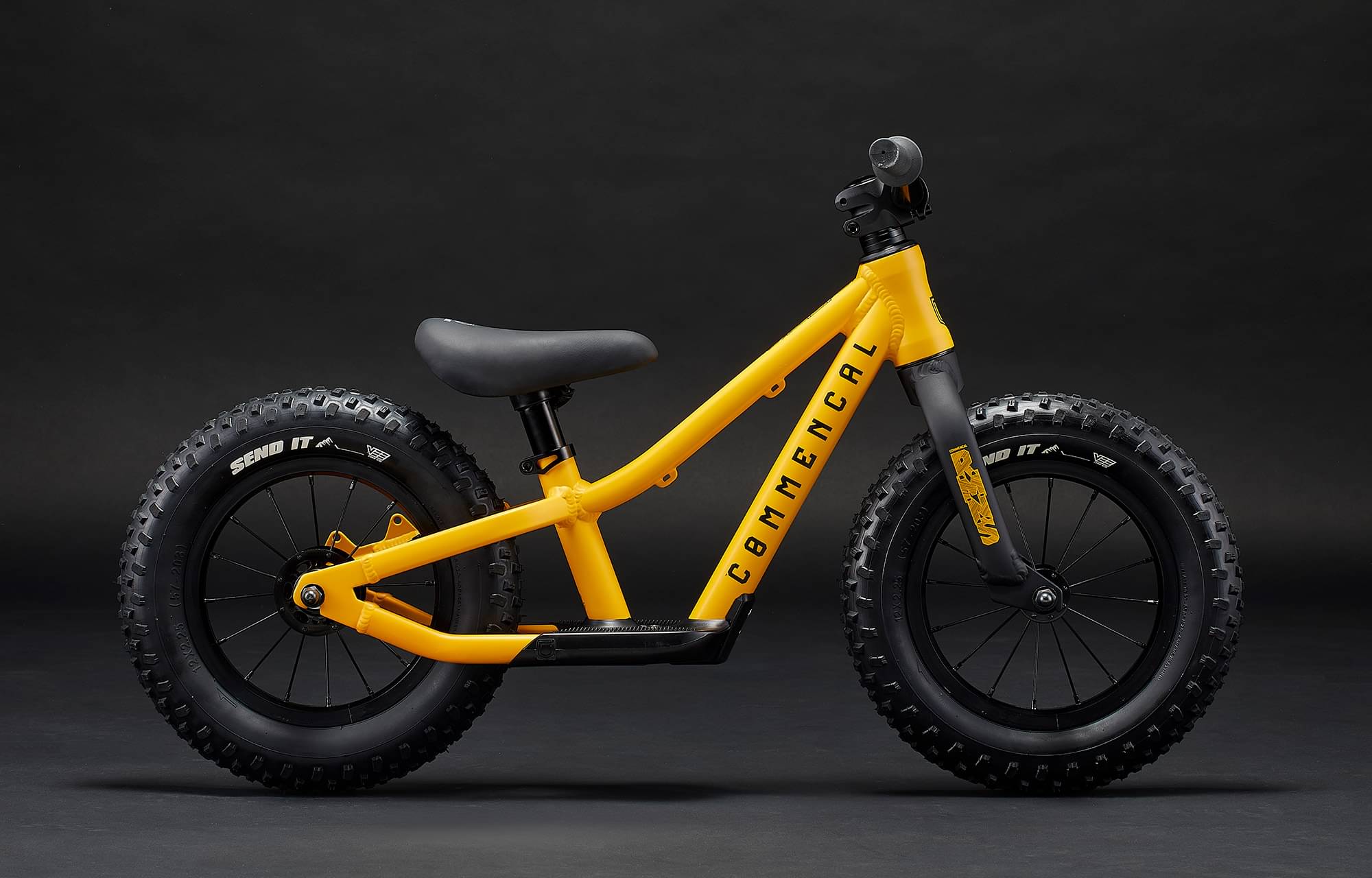

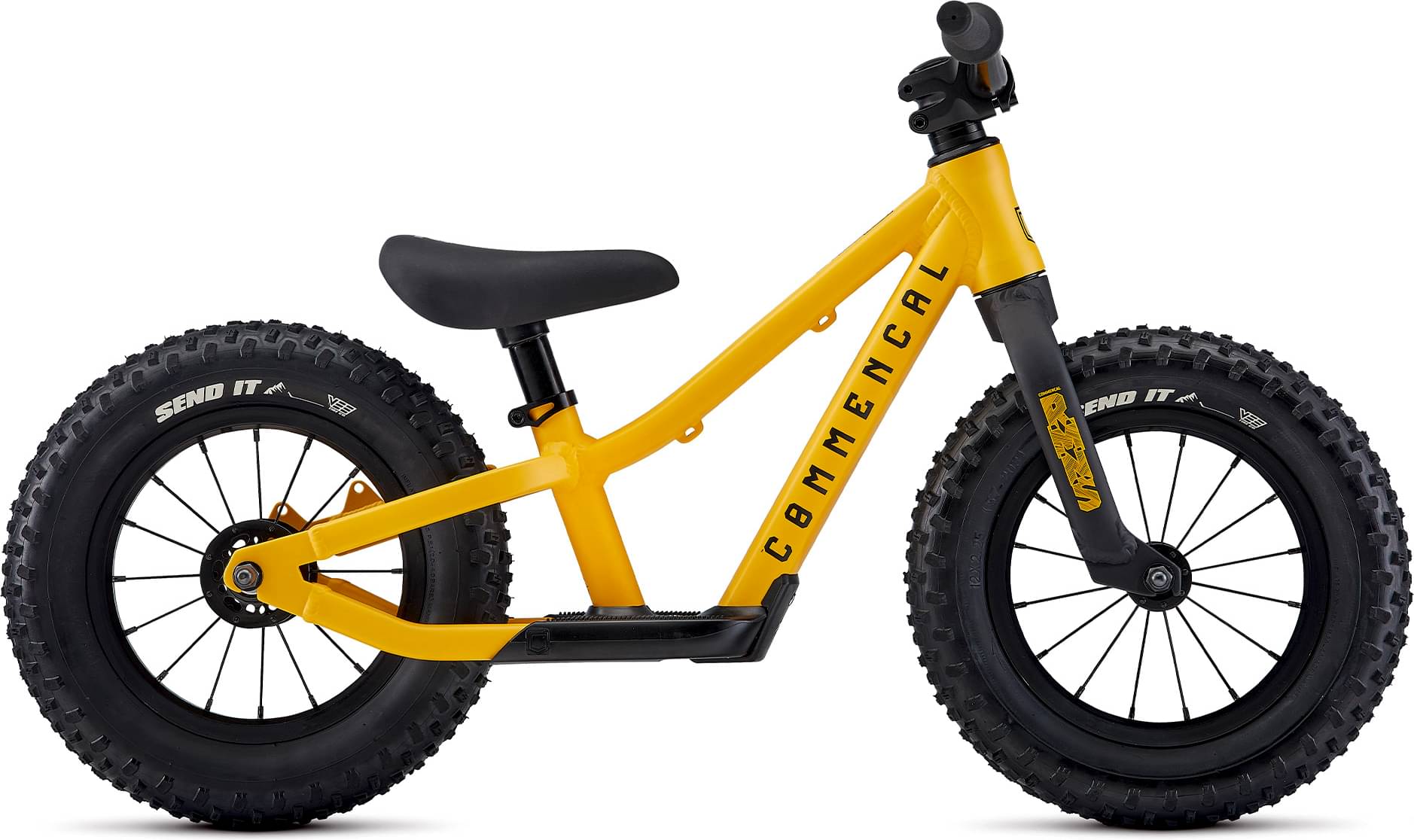

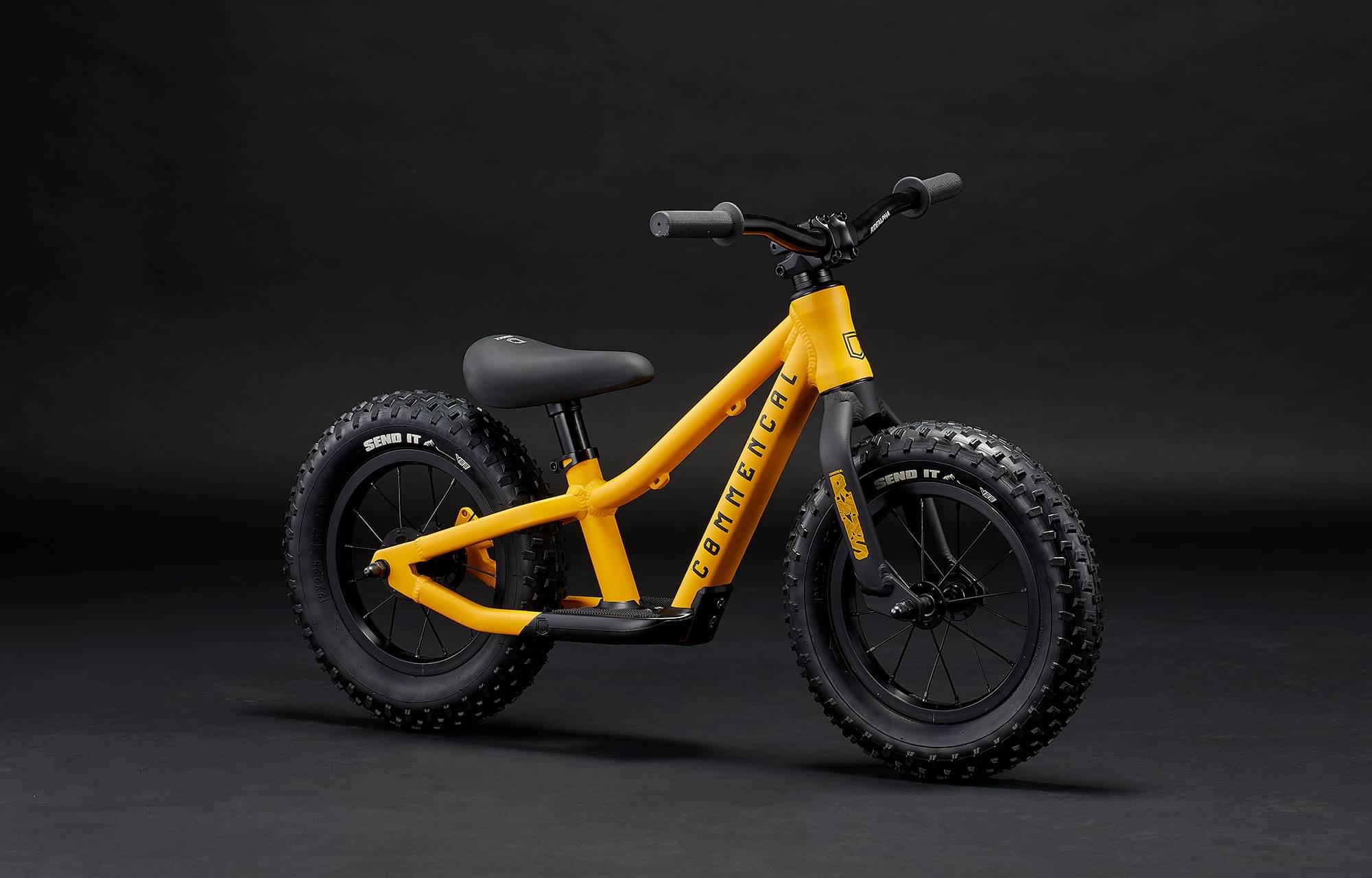

Commençal RAMONES 12 PUSH BIKE OHLINS 2025
2025 Youth
Estimate price |
230$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
12"
90cm - 105cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAMONES 12, Alloy 6061, extra-wide rubber platform, disc brake ready
Suspension Fork
RAMONES 12, 12", alloy 6061
Wheels
Front Hub
Rear: COMMENCAL - Front: COMMENCAL, Rear: 16h, loose balls, 3/8’’ x 104 mm, for 6-bolt rotors - Front: 16h, loose balls, 3/8’’ x 100 mm
Rear Hub
Rear: COMMENCAL - Front: COMMENCAL, Rear: 16h, loose balls, 3/8’’ x 104 mm, for 6-bolt rotors - Front: 16h, loose balls, 3/8’’ x 100 mm
Rims
COMMENCAL 12'', 12’’, 16h, Alloy 6063
Tires
Rear: VEE TIRE CO. CrownGem - Front: VEE TIRE CO. CrownGem, Rear: 12'' x 2.25'', MPC Compound, Custom "Send It" patch - Front: 12'' x 2.25'', MPC Compound, Custom "Send It" patch
Brakes
Brakes
IS 140 mm
Cockpit
Stem
COMMENCAL Alloy, 30 mm, 30 mm extension, 25,4 mm
Handlebar
RIDE ALPHA Kids, 25.4 mm, 460 mm width, 20 mm rise, Alloy 6061
Grips
COMMENCAL Kids, 90 mm, kids hands specific
Headset
NECO H-148, ZS44 / ZS44, alloy cups, semi-integrated
Seat
Saddle
COMMENCAL Kids, 115 mm width, soft padding, integrated handle
Seatpost
COMMENCAL, 27,2 mm, 150 mm length, integrated saddle, Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 12" |
|---|---|
| Stack Reach Ratio | 1.431 mm |
| Front Center | 348 mm |
| Rake | 26 mm |
| Stack | 309 mm |
| Reach | 216 mm |
| Top Tube Length | 322.5 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 156 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 85 mm |
| Chainstay Length | 245 mm |
| Wheelbase | 586 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 328 mm |
| Wheels | 12" |
| Rider Min Height | 90 cm |
| Rider Max Height | 105 cm |
