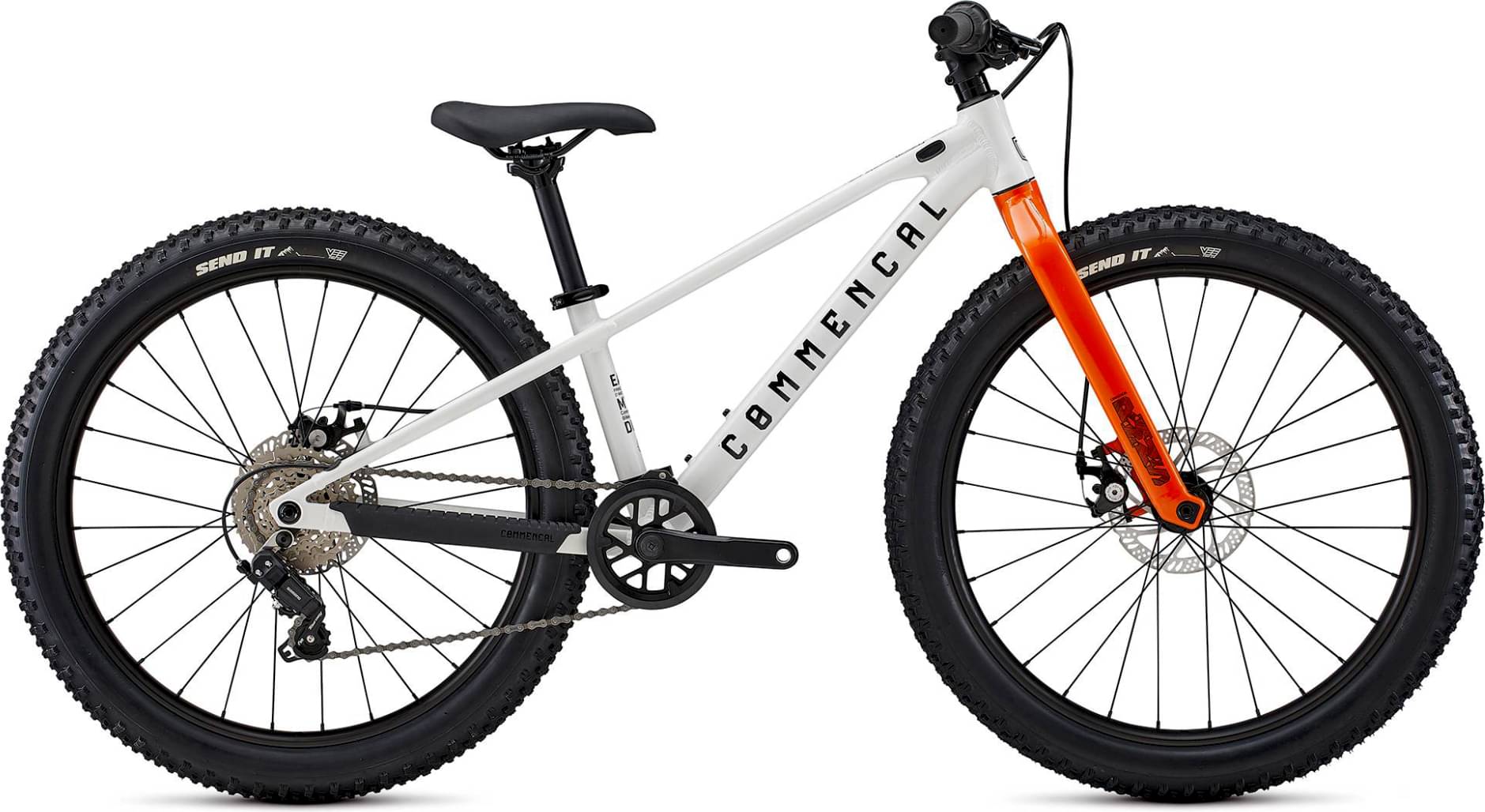

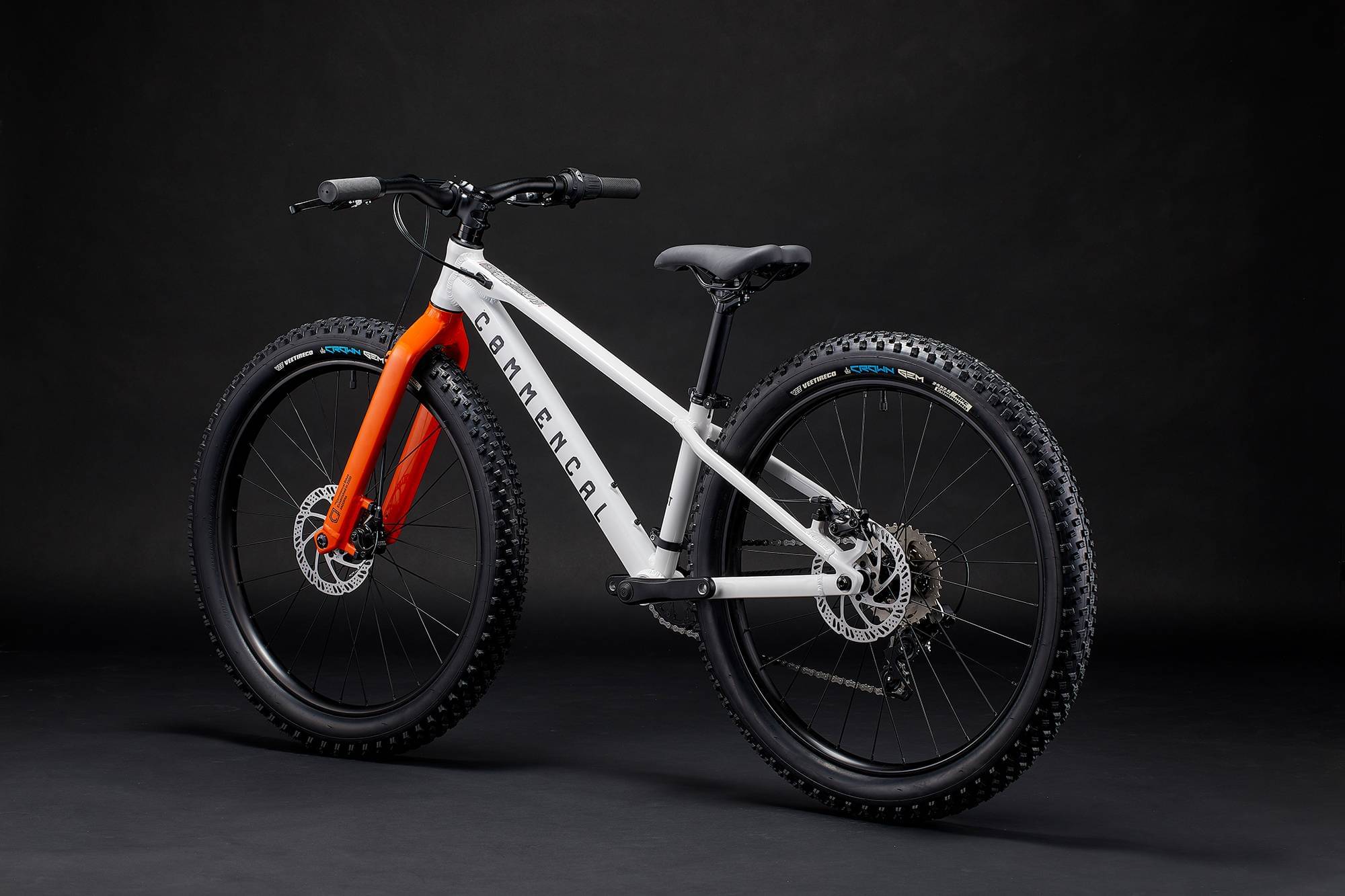

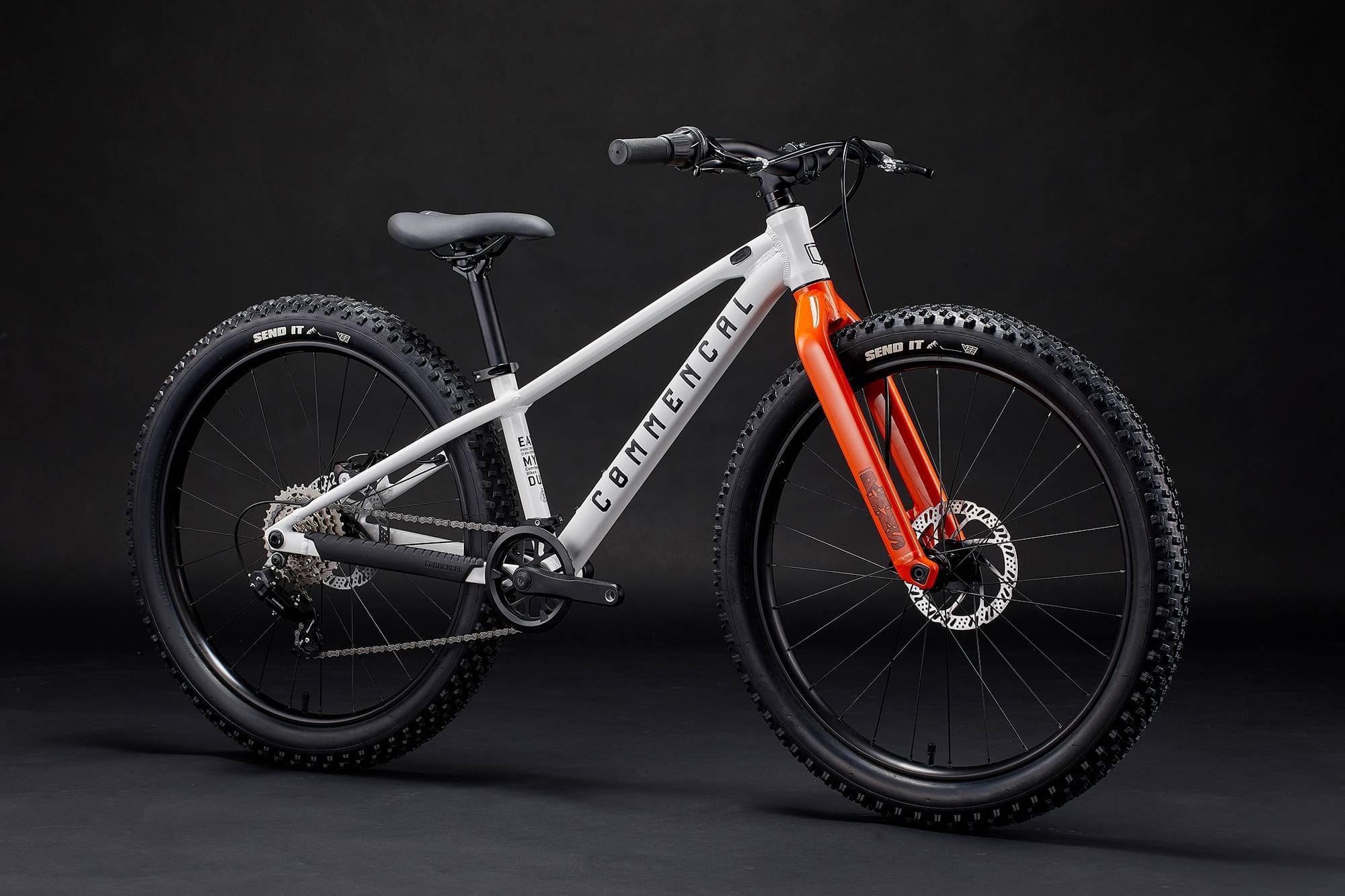

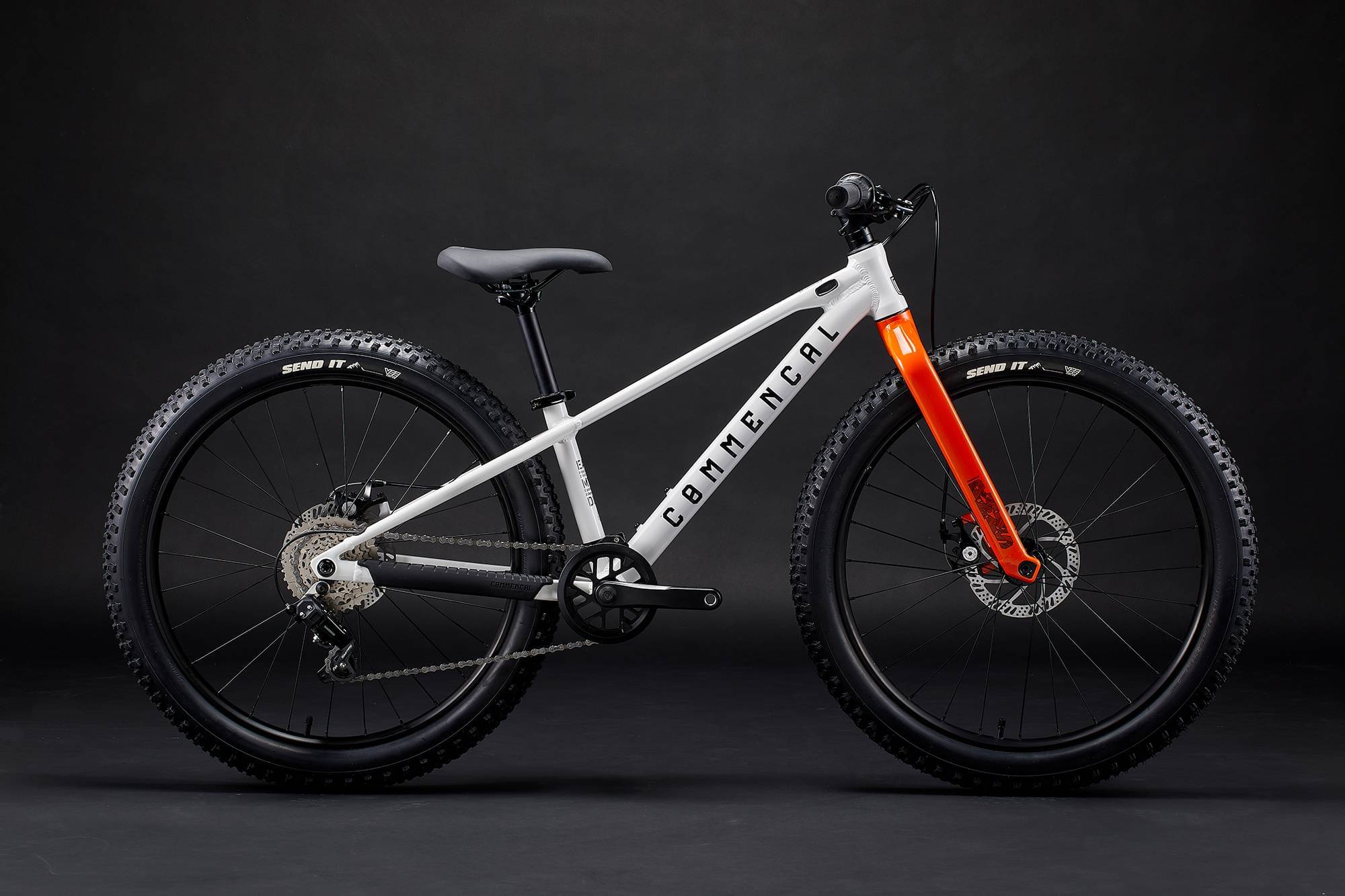

Commençal RAMONES 24 REVOSHIFT 2024
2024 Youth
Estimate price |
669$
Weight | 11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
24"
125cm - 140cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL 6061 T4, T6
Suspension Fork
RAMONES 24, 24", Alloy 6061
Drivetrain
Rear Derailleur
SHIMANO Tourney, 7s, short cage

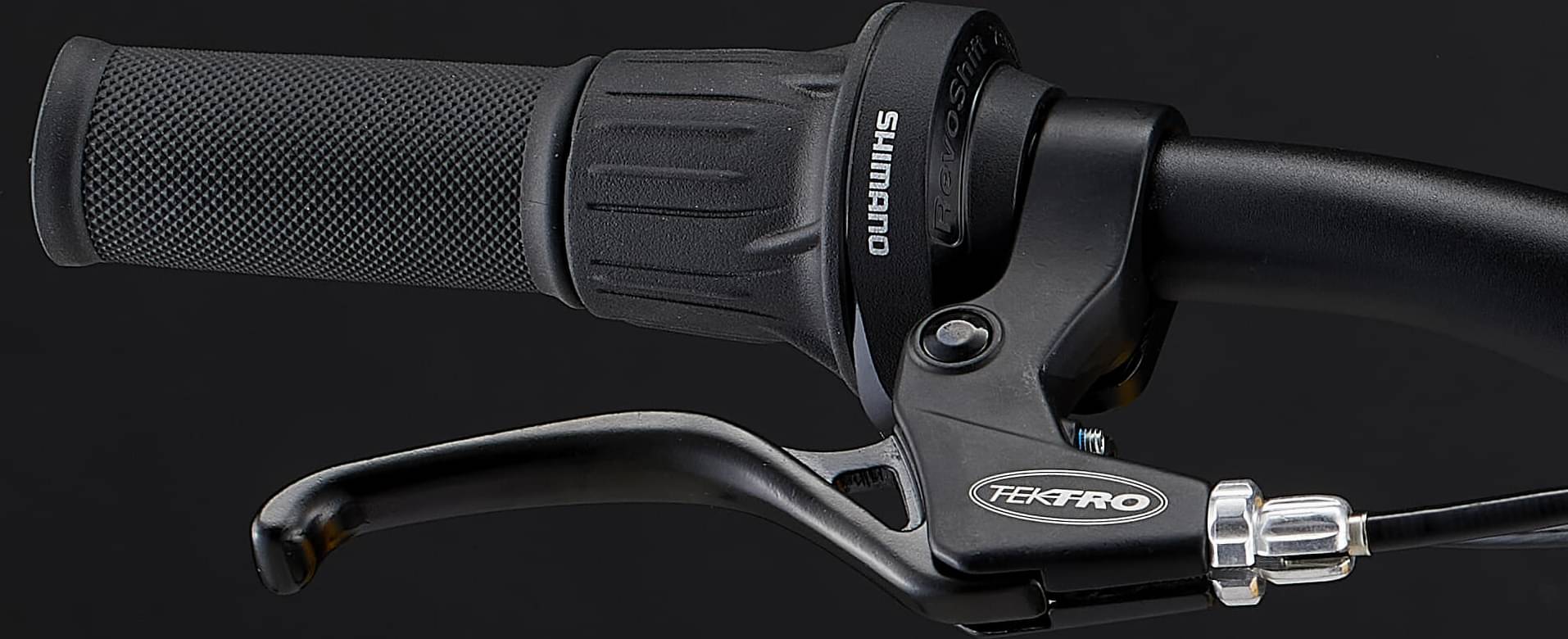

Shift Levers
SHIMANO Tourney, 7s, Revo Shifter
Cassette
S-RIDE CS-M200, 7s, 11-34t, with spoke protector
Crank
COMMENCAL Kids, 140 mm crank arms, Chainring: 30t, External chainguard
Bottom Bracket
BSA 68 mm
Chain
KMC Z7, 7s
Wheels
Front Hub
Rear: FASTACE - Front: FASTACE DA201FS05, Rear: 28h, sealed bearings, 12 x 142 mm, for 6-bolt rotors - Front: 28h, sealed bearings, 15 x 100 mm, disc ready for 6-bolt rotors
Rear Hub
Rear: FASTACE - Front: FASTACE DA201FS05, Rear: 28h, sealed bearings, 12 x 142 mm, for 6-bolt rotors - Front: 28h, sealed bearings, 15 x 100 mm, disc ready for 6-bolt rotors
Rims
COMMENCAL 24'', 24’’, 28h, 30 mm inner width, Alloy 6061
Tires
VEE TIRE CO. CrownGem, 24''x2.6'', MPC Compound, Custom "Send It" patch
Brakes
Brakes
Post mount 160 mm
Cockpit
Stem
COMMENCAL Alloy, 40 mm, 40 mm extension, 31.8mm, -5º

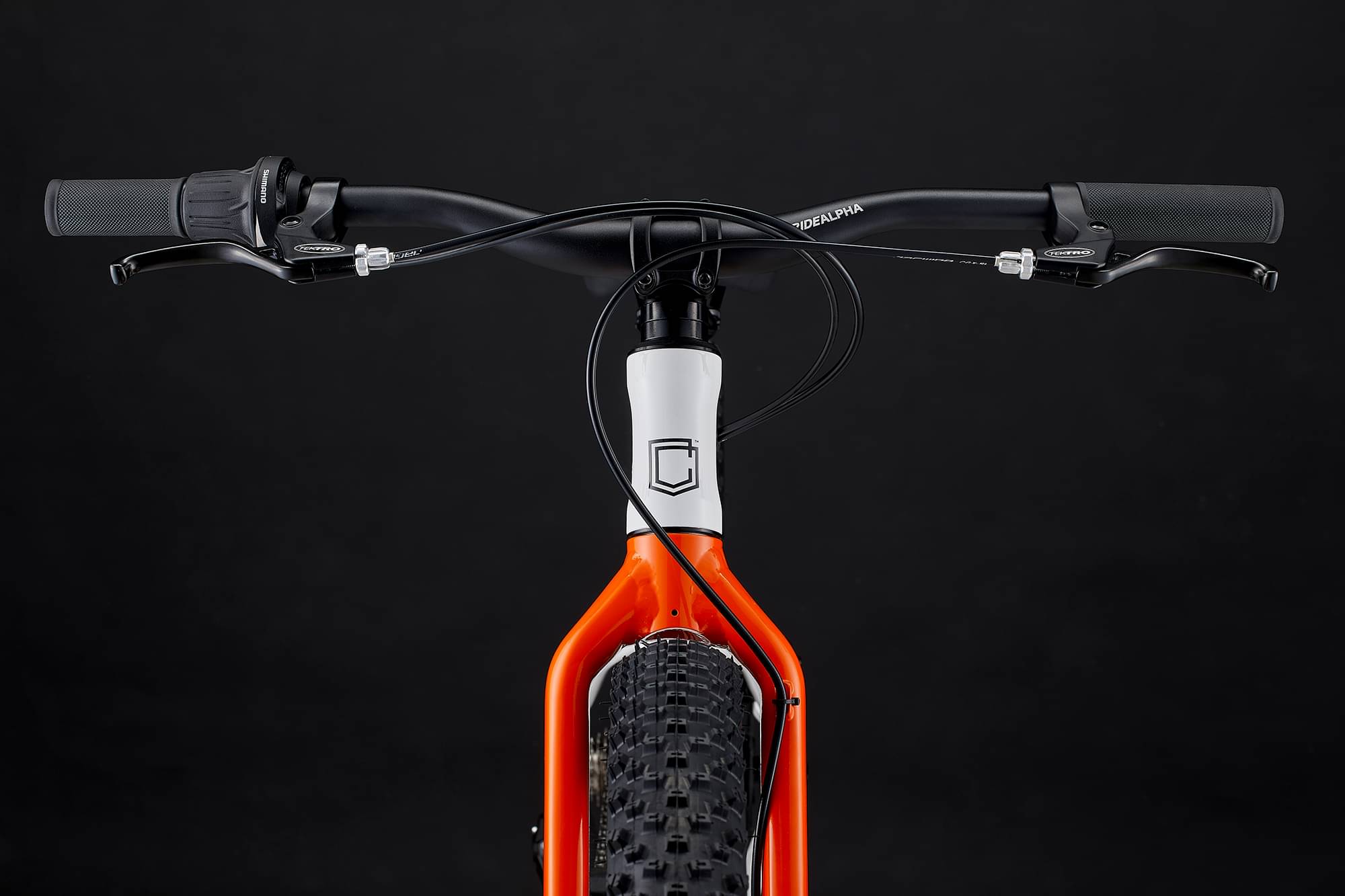

Handlebar
RIDE ALPHA, 31.8 mm, 640 mm width, 25 mm rise, Alloy 6061
Grips
COMMENCAL, 115 mm
Headset
NECO H-125, ZS44 / ZS44, alloy cups, semi-integrated
Seat
Saddle
COMMENCAL Kids, 130 mm width, soft padding
Seatpost
27,2 mm - 31,8 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.227 mm |
| Front Center | 571 mm |
| Rake | 57 mm |
| Stack | 429.6 mm |
| Reach | 350 mm |
| Top Tube Length | 489 mm |
| Seat Tube Angle | 73.5 ° |
| Seat Tube Length | 280 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 380 mm |
| Wheelbase | 947 mm |
| Bottom Bracket Drop | 40 mm |
| Wheels | 24" |
| Rider Min Height | 125 cm |
| Rider Max Height | 140 cm |
