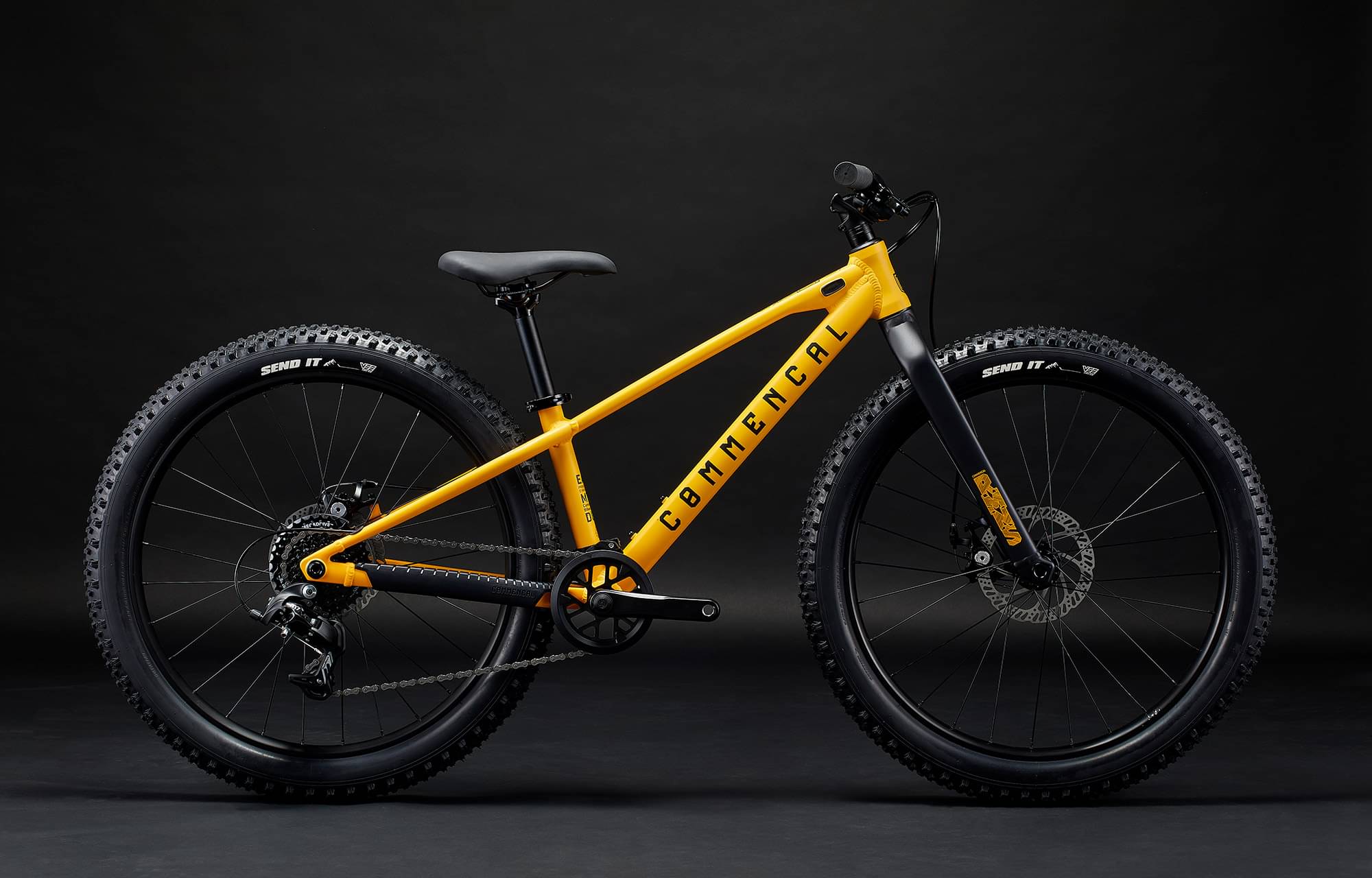

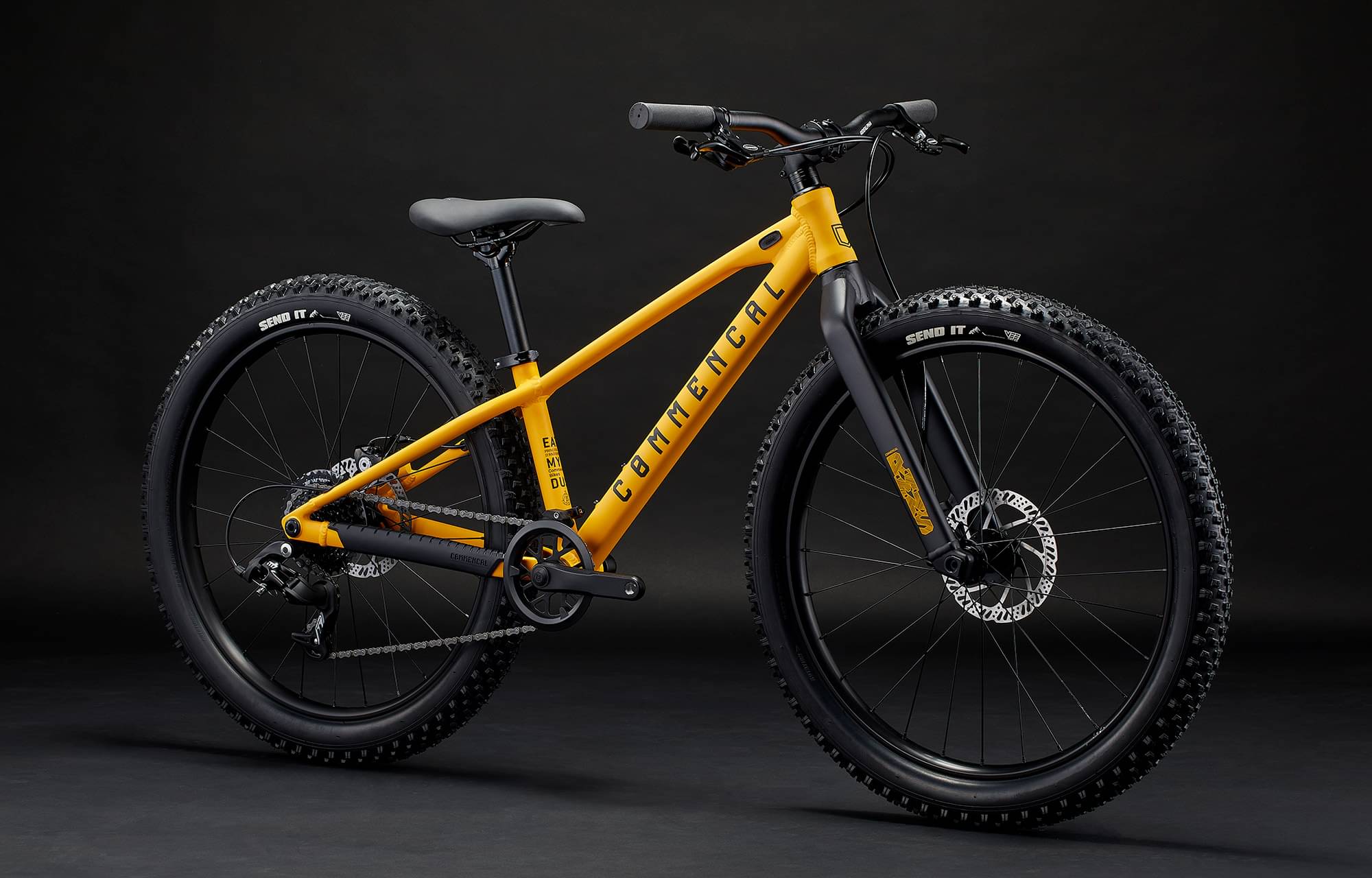

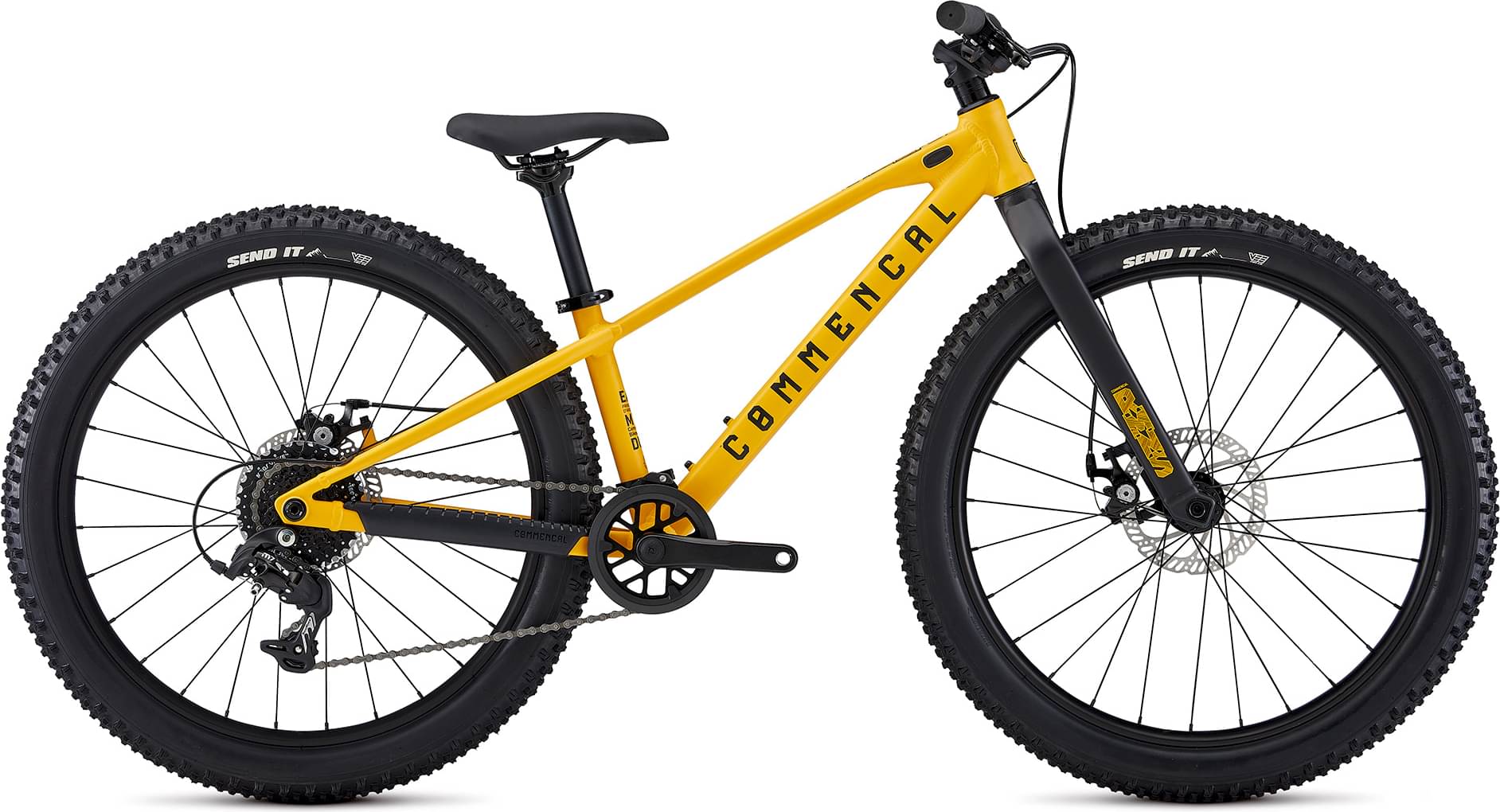

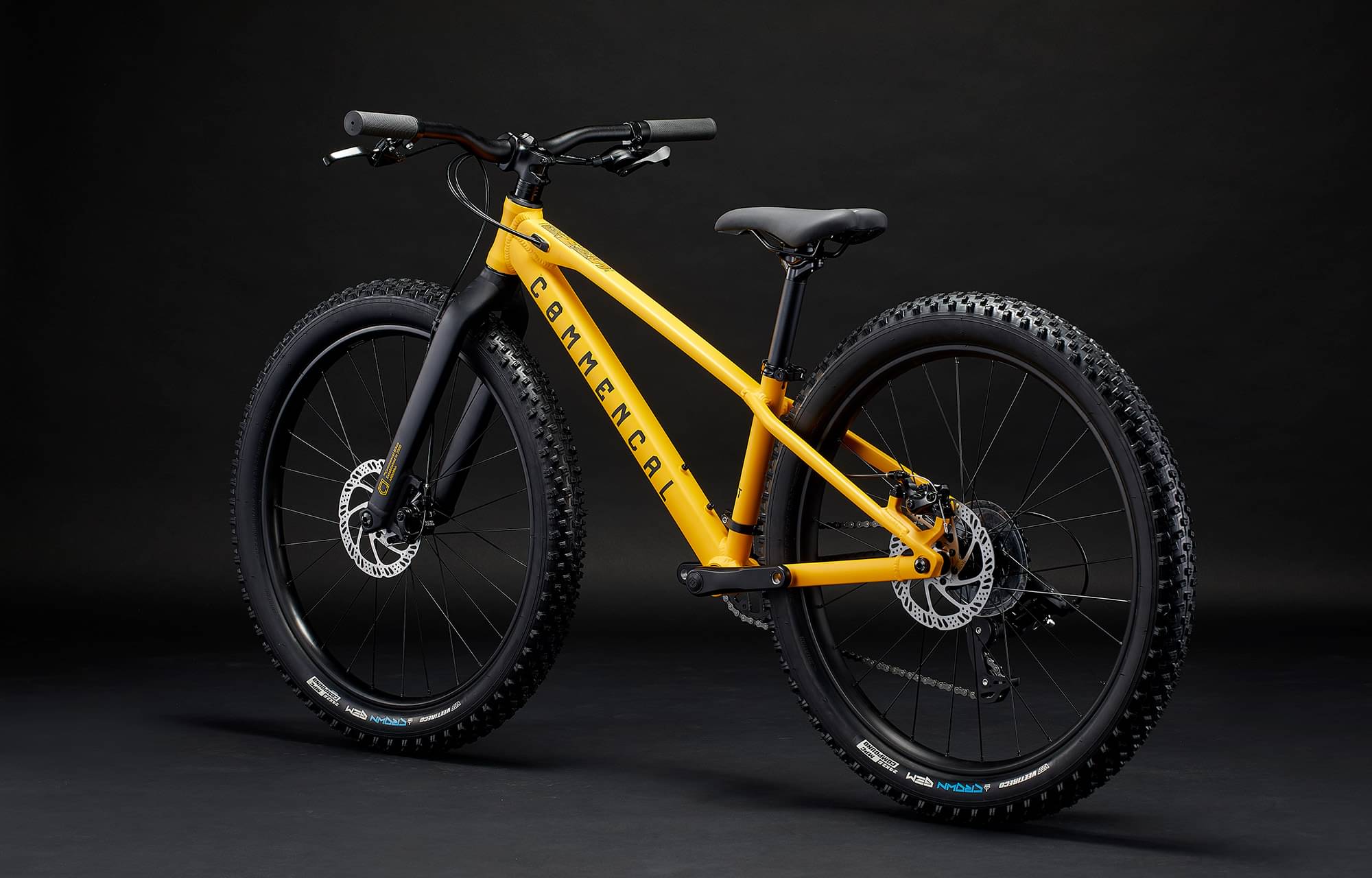

Commençal RAMONES 24 TRIGGER SHIFTER OHLINS 2025
2025 Youth
Estimate price |
536$
Weight | 11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset SunRace -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
24"
125cm - 140cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAMONES 24, Alloy 6061
Suspension Fork
RAMONES 24, 24", Alloy 6061
Drivetrain
Rear Derailleur
SUNRACE RDM73, 7s, short cage

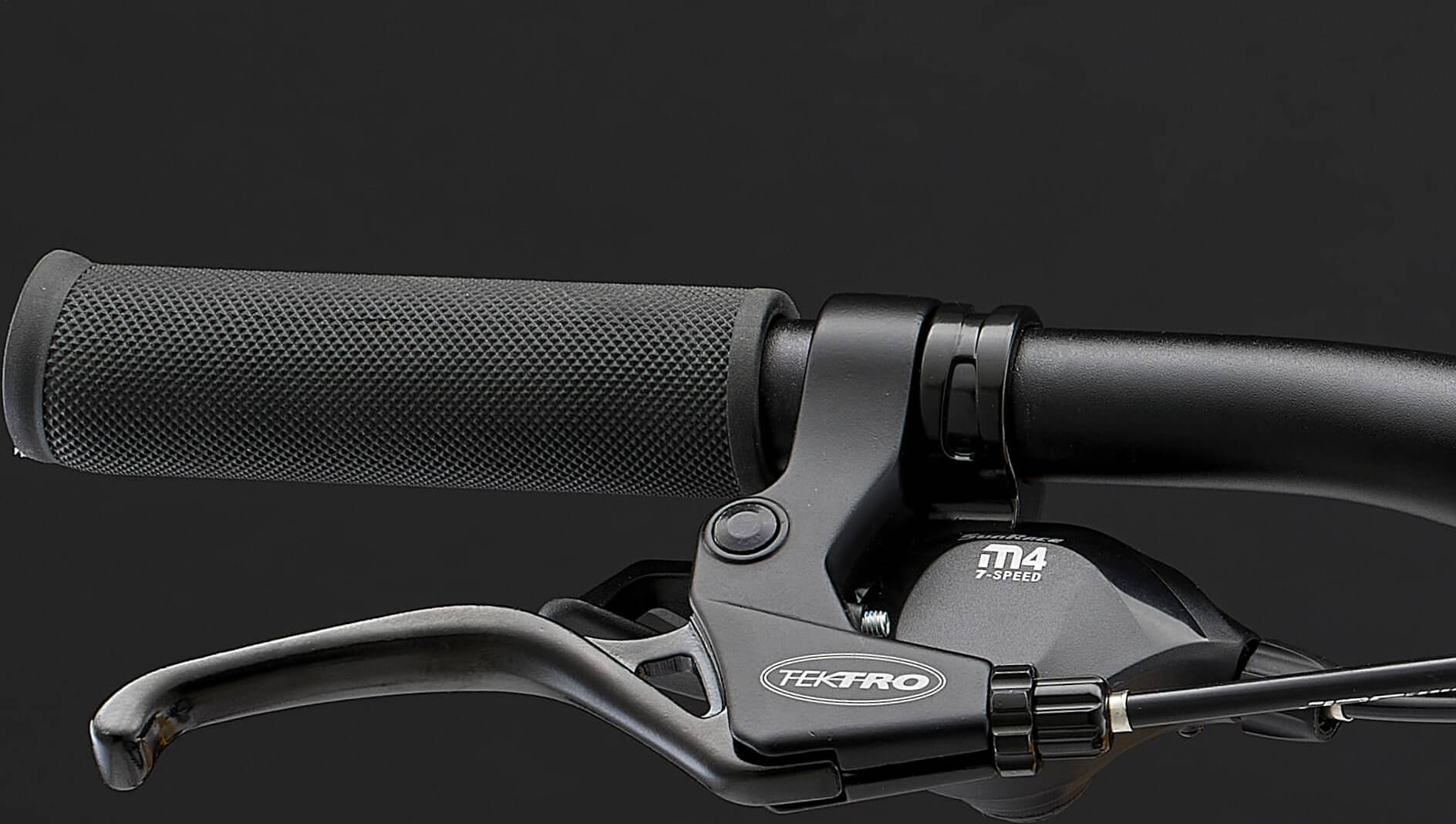

Shift Levers
SUNRACE DLM403, 7s, Trigger
Cassette
SUNRACE MFM300, 7s, 13-34t, with spoke protector
Crank
COMMENCAL Kids, 140 mm crank arms, Chainring: 30t, External chainguard
Bottom Bracket
BSA 68 mm
Chain
KMC Z7, 7s
Wheels
Front Hub
Rear: FASTACE - Front: FASTACE DA201FS05, Rear: 28h, sealed bearings, 12 x 142 mm, for 6-bolt rotors - Front: 28h, sealed bearings, 15 x 100 mm, for 6-bolt rotors
Rear Hub
Rear: FASTACE - Front: FASTACE DA201FS05, Rear: 28h, sealed bearings, 12 x 142 mm, for 6-bolt rotors - Front: 28h, sealed bearings, 15 x 100 mm, for 6-bolt rotors
Rims
COMMENCAL 24'', 24", 28h, 30 mm inner width, Alloy 6061
Tires
Rear: VEE TIRE CO. CrownGem - Front: VEE TIRE CO. CrownGem, Rear: 24''x2.6'', MPC Compound, Custom "Send It" patch - Front: 24''x2.6'', MPC Compound, Custom "Send It" patch
Brakes
Brakes
TEKTRO Aries, Mechanical disc brakes, 2 pistons, with kids specific Tektro levers and Jagwire cables, Rotors: TEKTRO 160 mm, 6-bolt
Cockpit
Stem
COMMENCAL Alloy, 40 mm, 40 mm extension, 31.8 mm, -5º

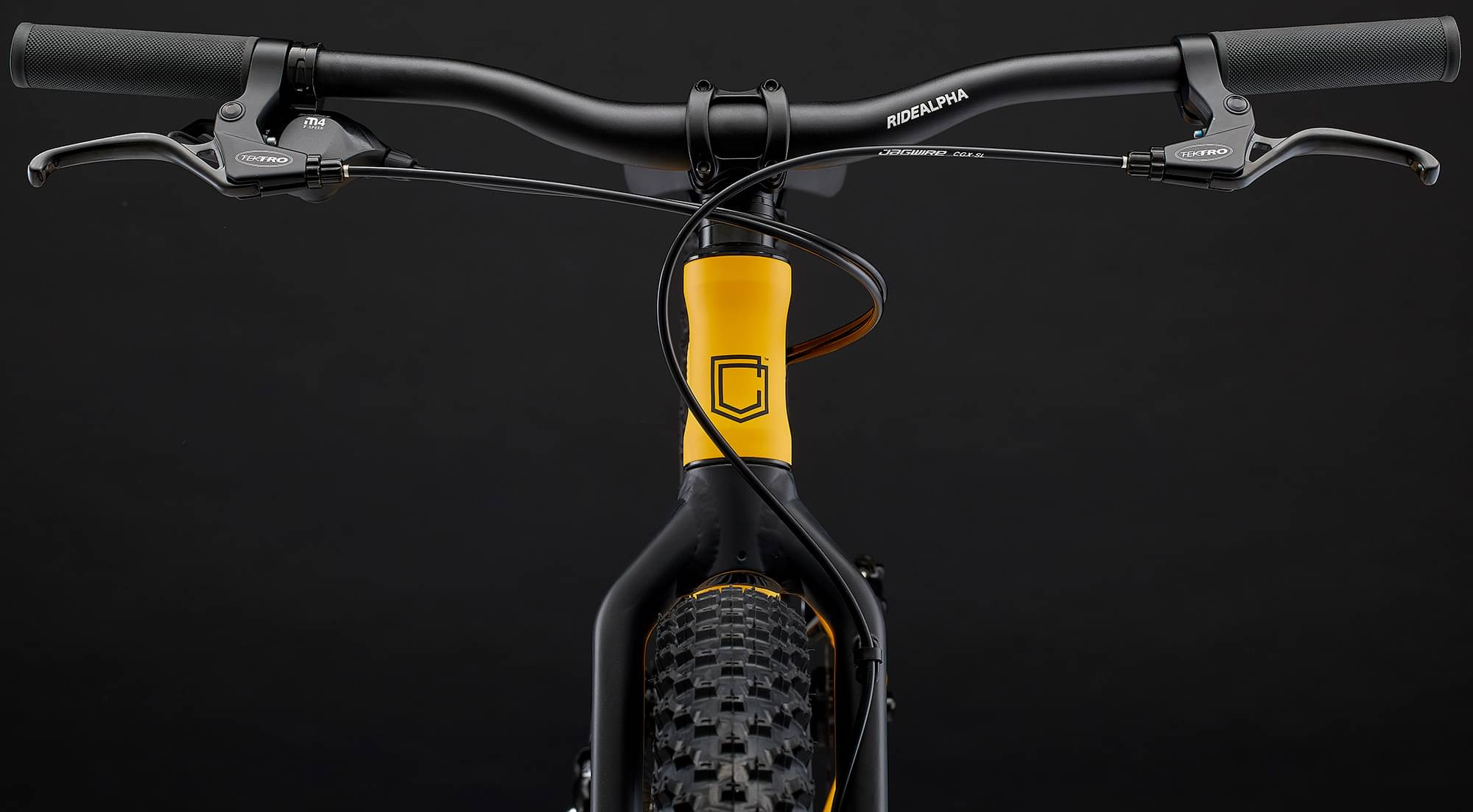

Handlebar
RIDE ALPHA, 31.8 mm, 640 mm width, 25 mm rise, Alloy 6061
Grips
COMMENCAL, 115 mm
Headset
NECO H-125, ZS44 / ZS44, alloy cups, semi-integrated
Seat
Saddle
COMMENCAL Kids, 130 mm width, soft padding
Seatpost
COMMENCAL, 27,2 mm, 300 mm length, Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.227 mm |
| Front Center | 571 mm |
| Rake | 57 mm |
| Stack | 429.6 mm |
| Reach | 350 mm |
| Top Tube Length | 489 mm |
| Seat Tube Angle | 73.5 ° |
| Seat Tube Length | 280 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 380 mm |
| Wheelbase | 947 mm |
| Bottom Bracket Drop | 40 mm |
| Wheels | 24" |
| Rider Min Height | 125 cm |
| Rider Max Height | 140 cm |
