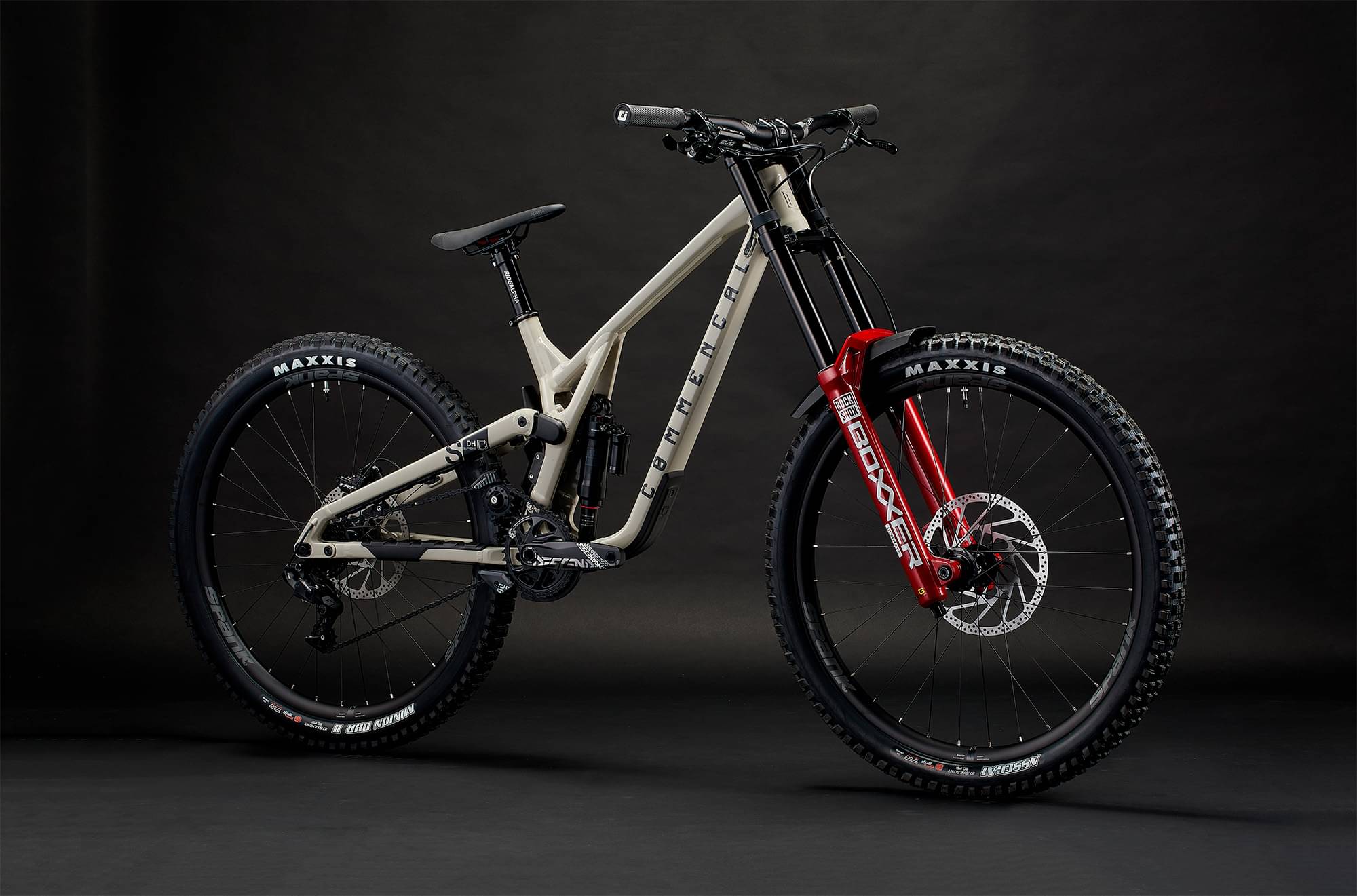

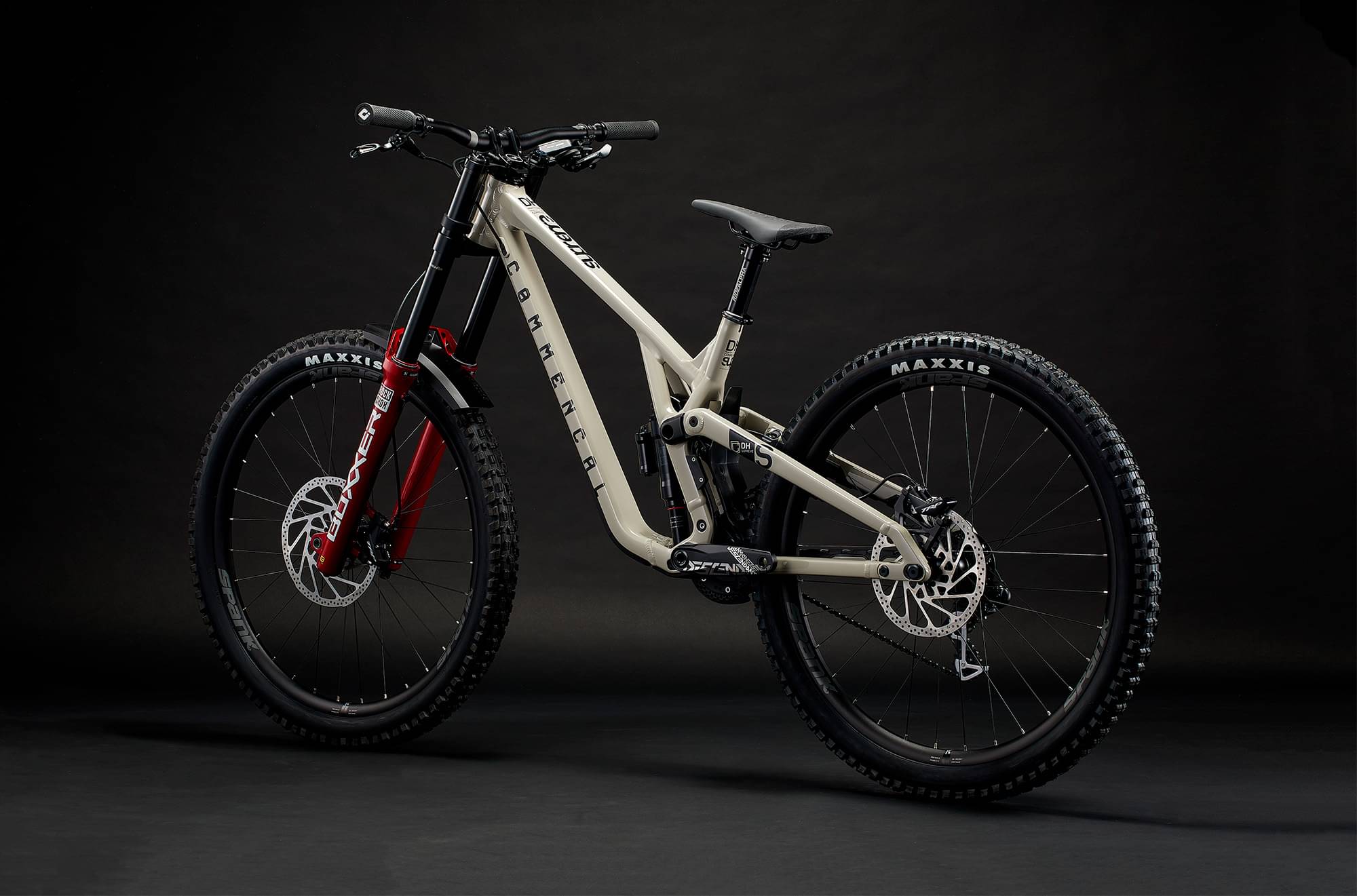

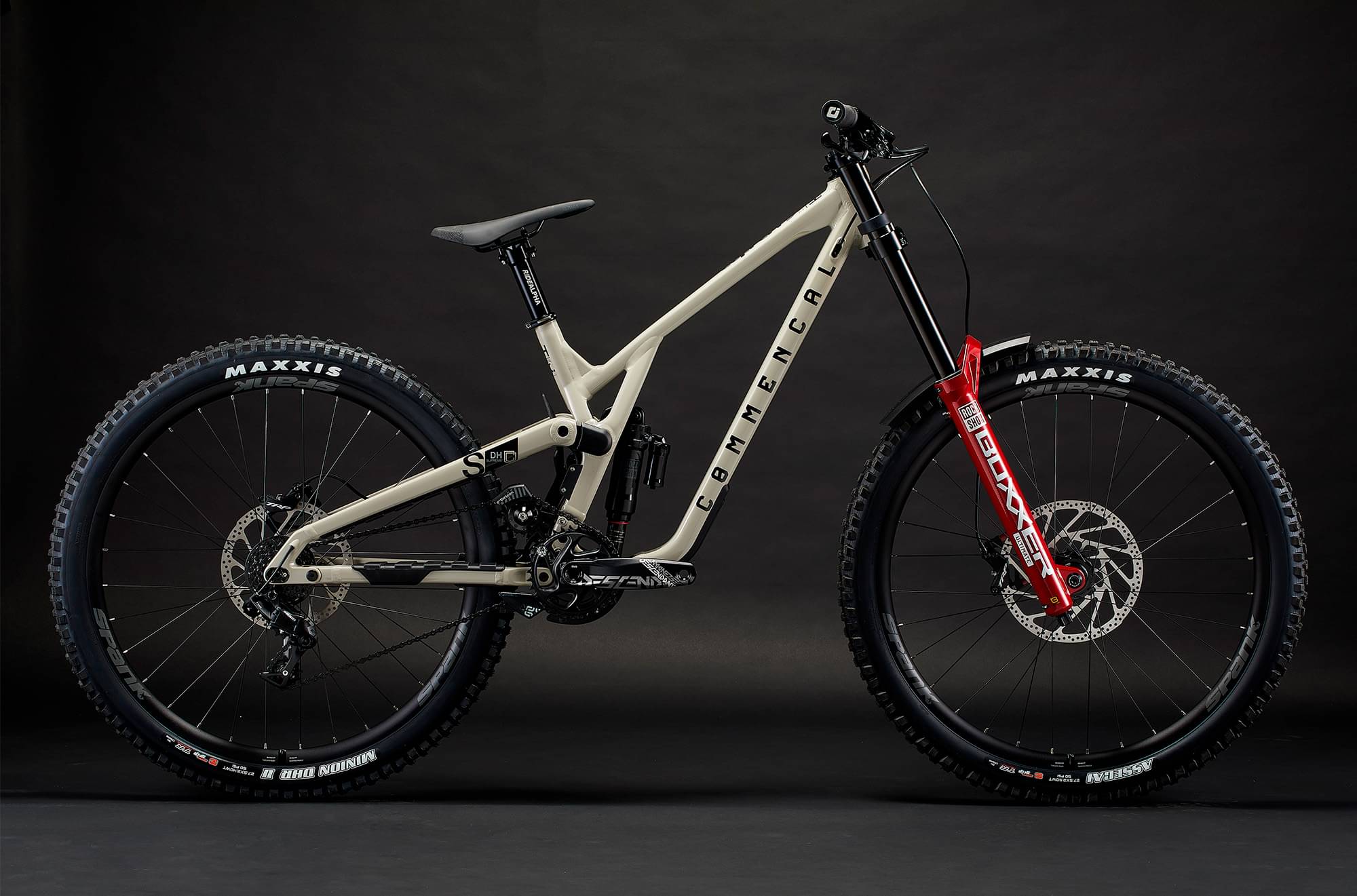

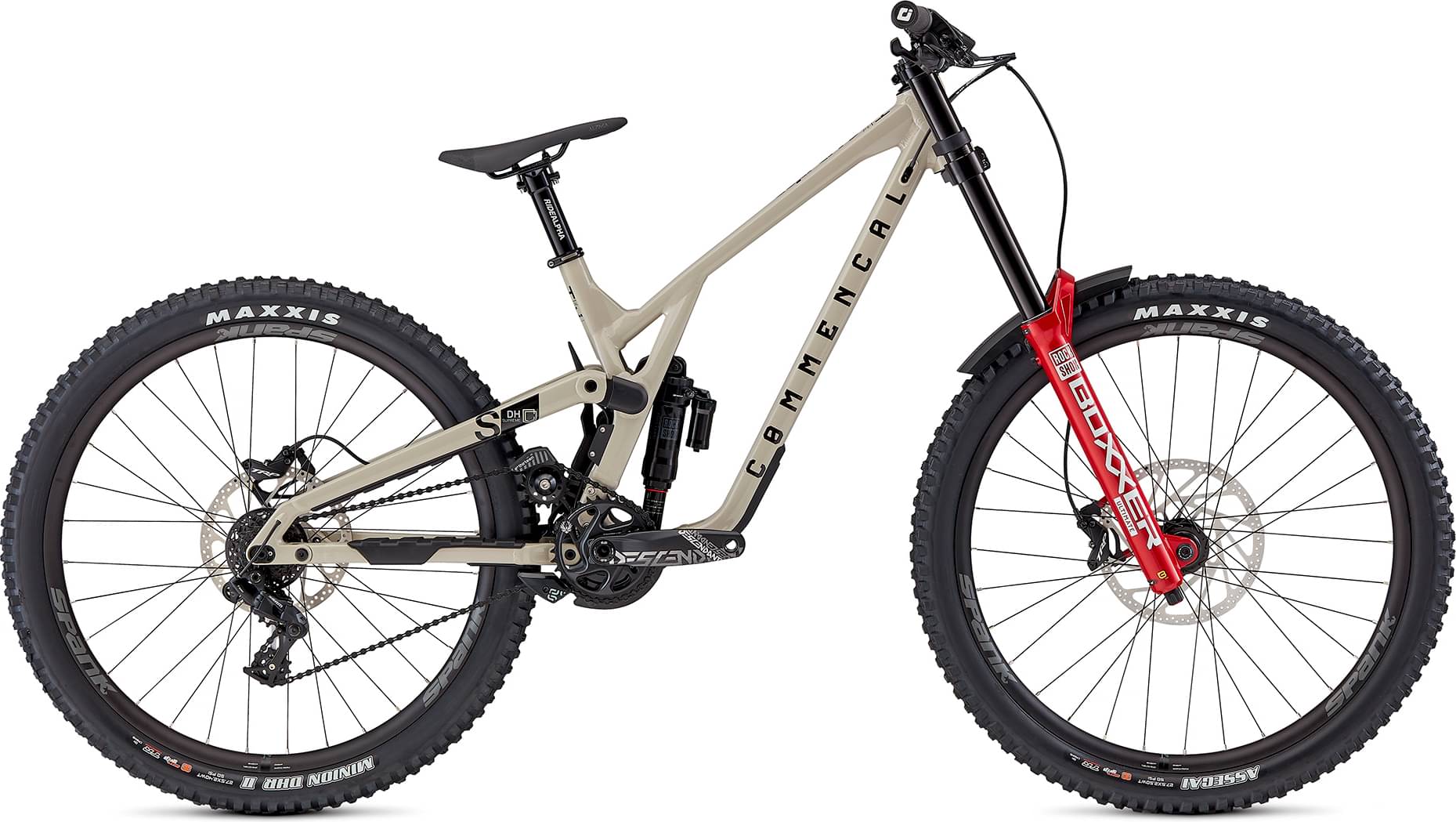

Commençal SUPREME DH V5 XS ROCKSHOX 2024
2024 Mountain
Estimate price |
7,152$
Weight | 5.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 200mm -
Travel Rear 220mm -
Fork RockShox BoXXer Ultimate
-
Groupset Truvativ Descendant, GX -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SUPREME DH V5 27'', 220 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

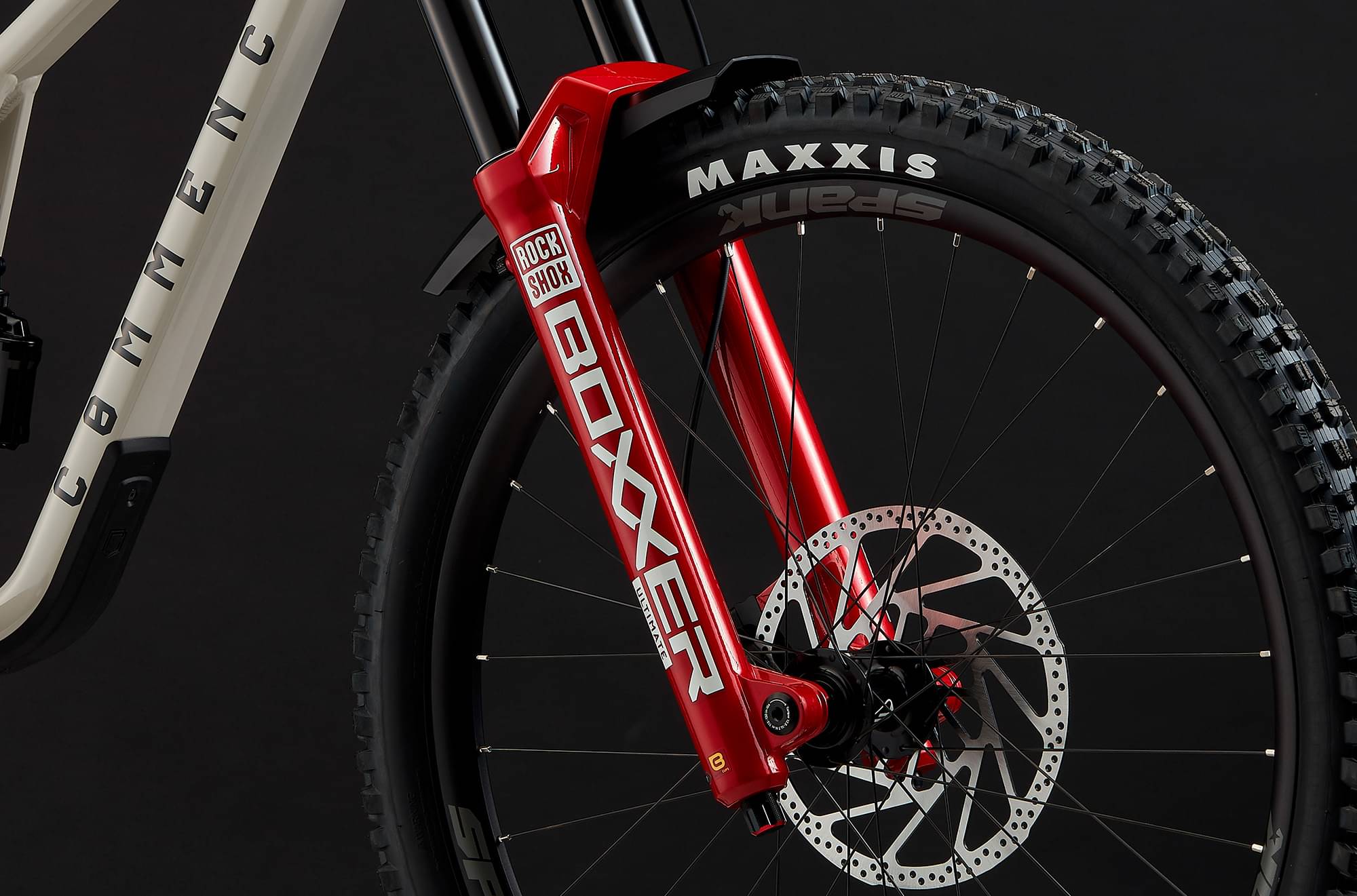

Suspension Fork
ROCKSHOX Boxxer Ultimate, 200 mm travel, 27.5", Charger 3 RC2 damper W/ButterCups, DebonAir+ W/ButterCups, HSC, LSC, rebound, Boost (20 x 110 mm), 48 mm offset, 0 Token

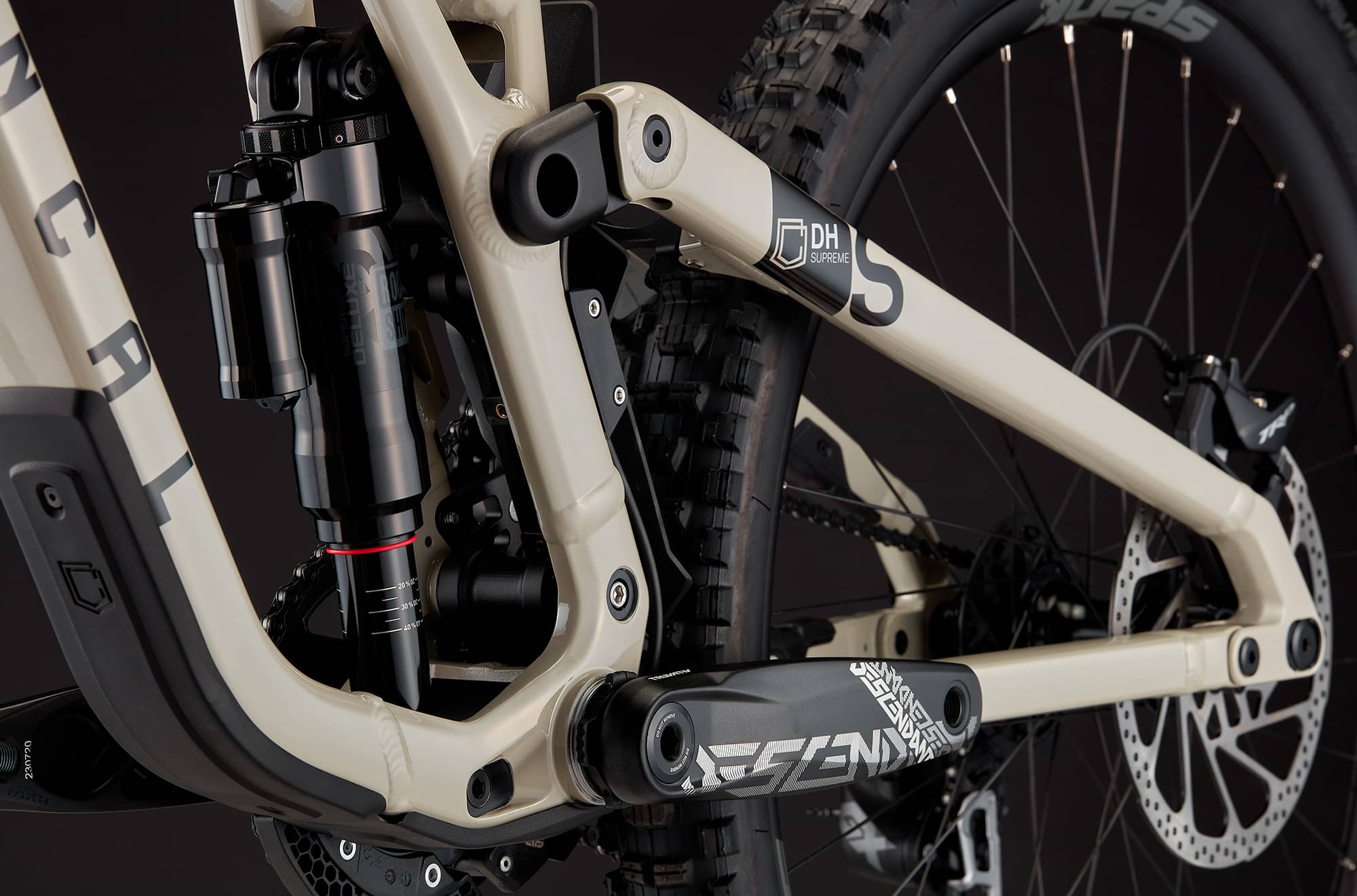

Rear Shock
ROCKSHOX SuperDeluxe Select R, 250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 1 Token pos.

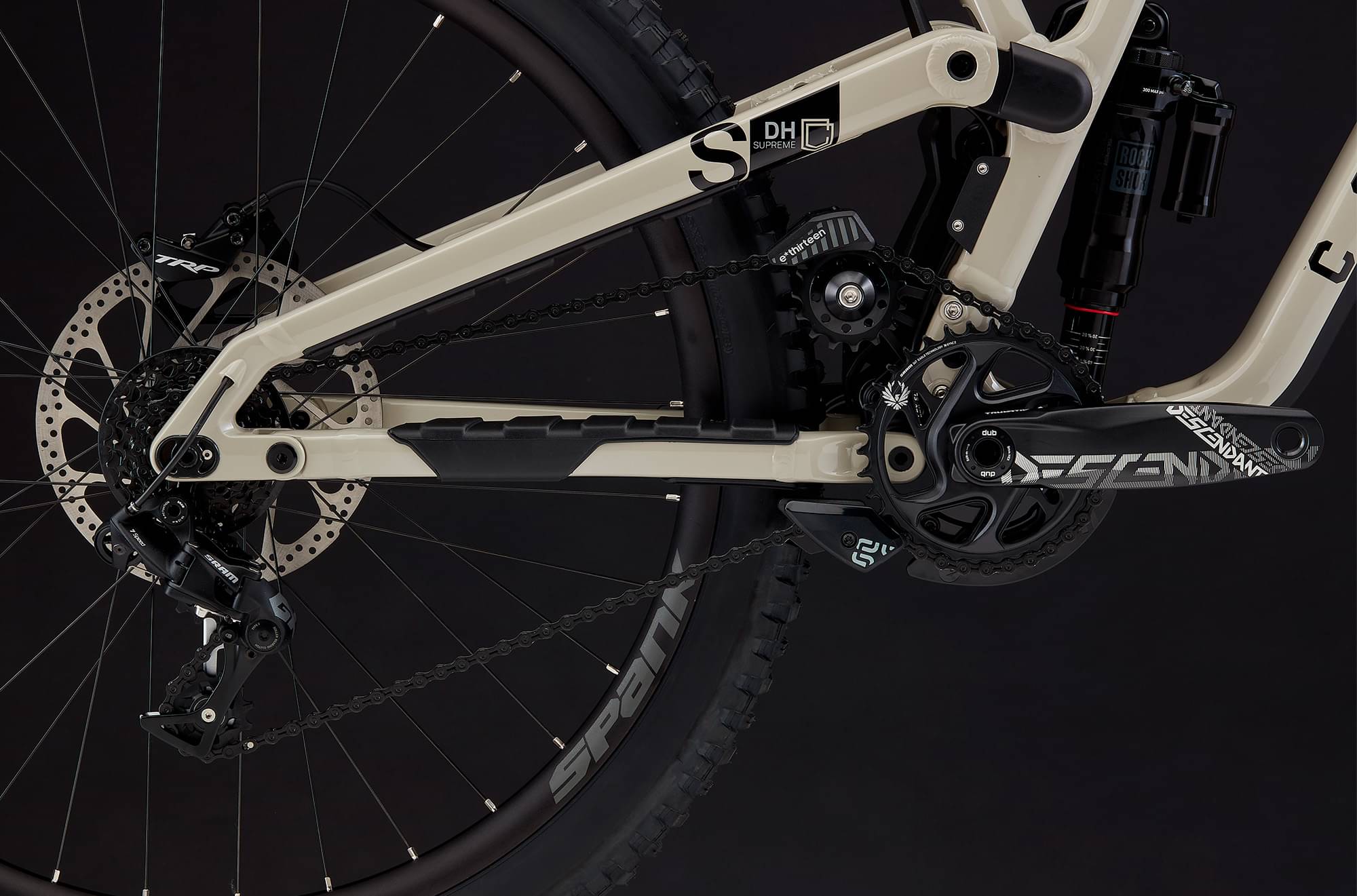

Drivetrain
Rear Derailleur
SRAM GX DH, 7 sp
Shift Levers
SRAM PG-720, 7 sp
Cassette
SRAM GX DH, 7 sp, 11-25t
Crank
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t

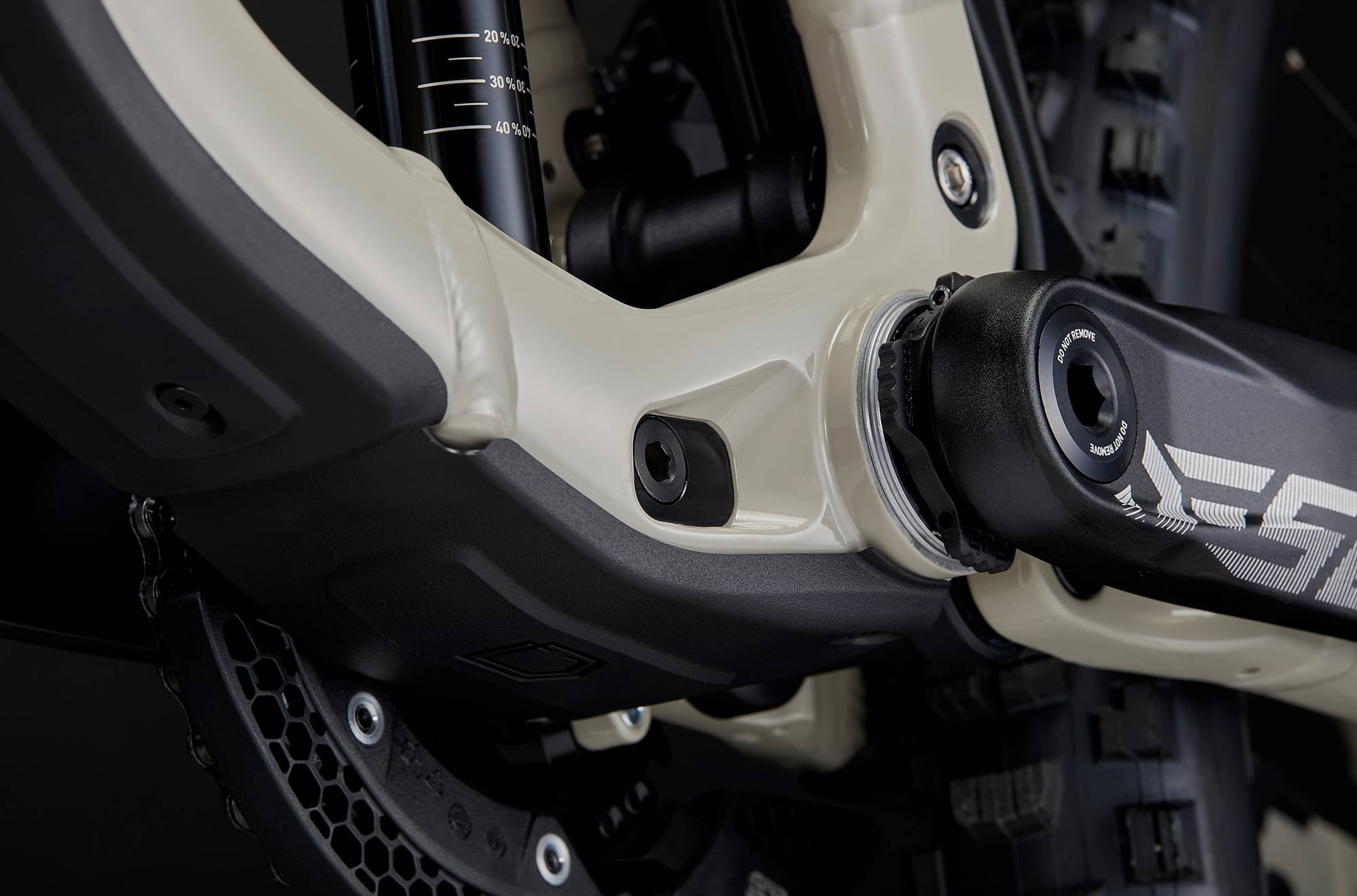

Bottom Bracket
Press Fit BB 107
Chain
KMC X11EL, Black
Chain Guide
E13 LG1 + Bottom Guide, 32-34t
Wheels
Front Hub
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93, Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rear Hub
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93, Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rims
SPANK Spike Race 33, 27.5'', 32h, 28 mm inner width, tubeless ready
Tires
Rear: MAXXIS DHR II - Front: MAXXIS Assegai, REAR: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - FRONT: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready

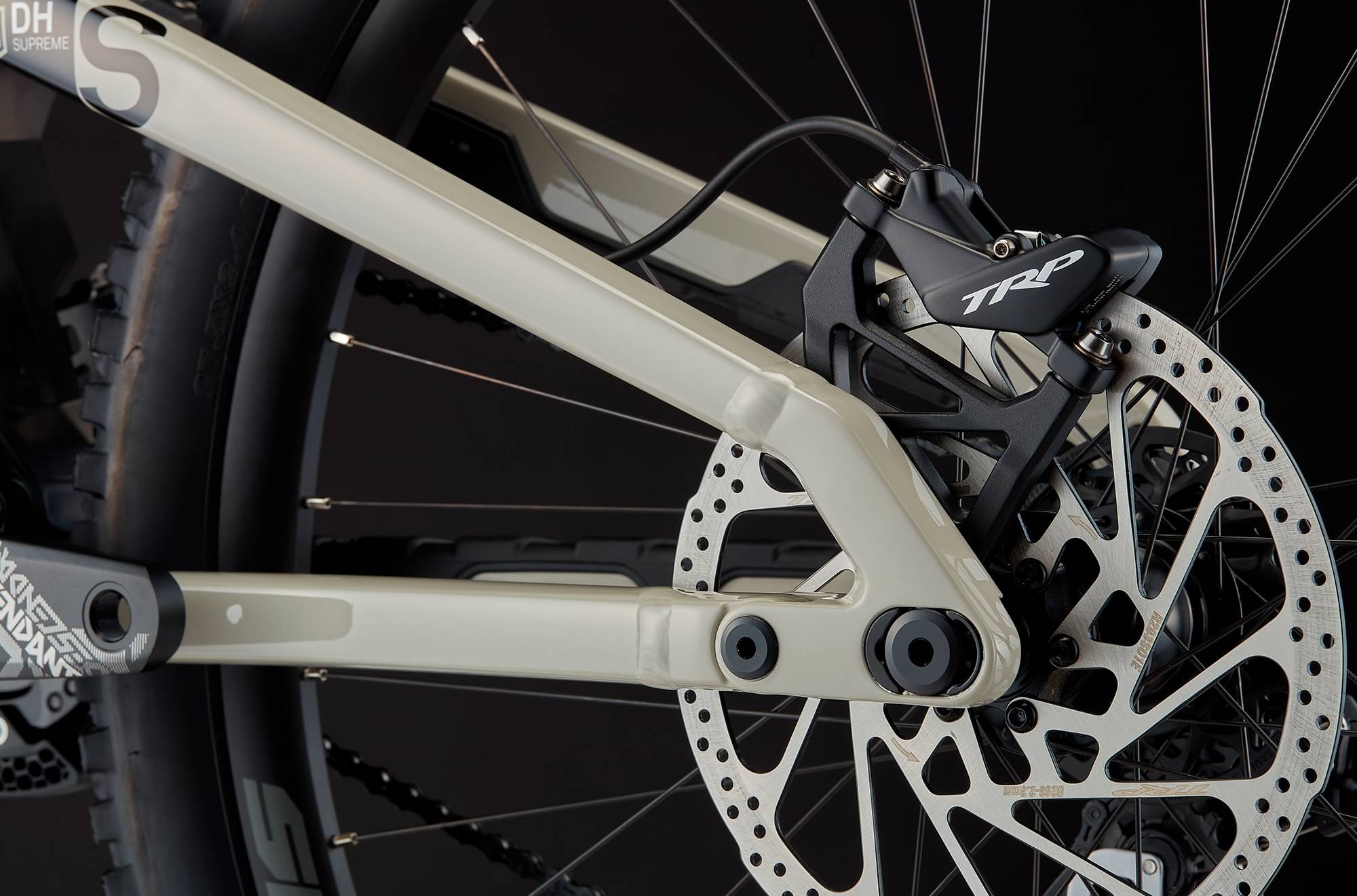

Brakes
Brakes
TRP DH-R Evo, 4 pistons, resin pads, Rotors: TRP R1 223/203 mm, 6-bolt, 2.3 mm width

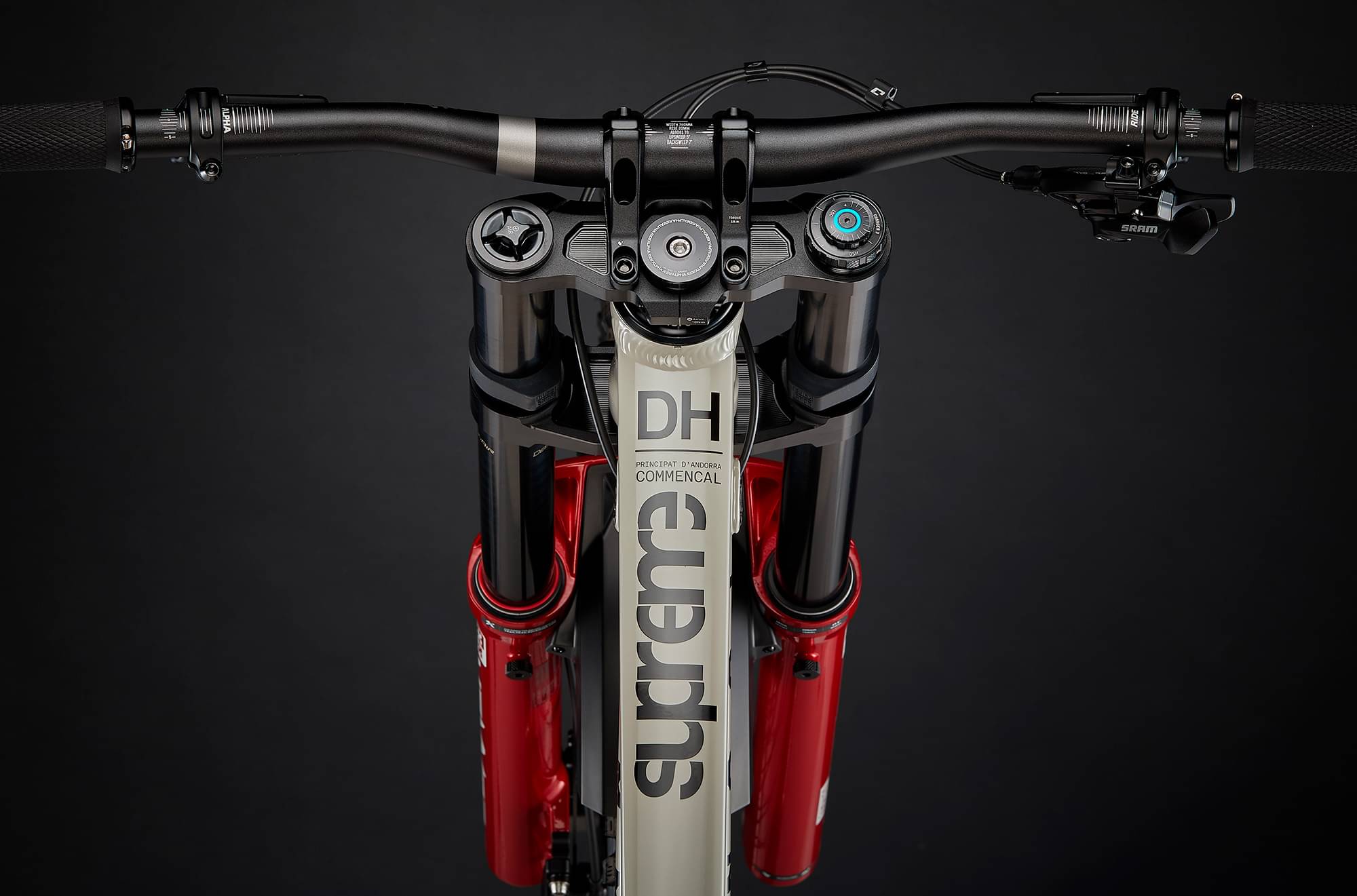

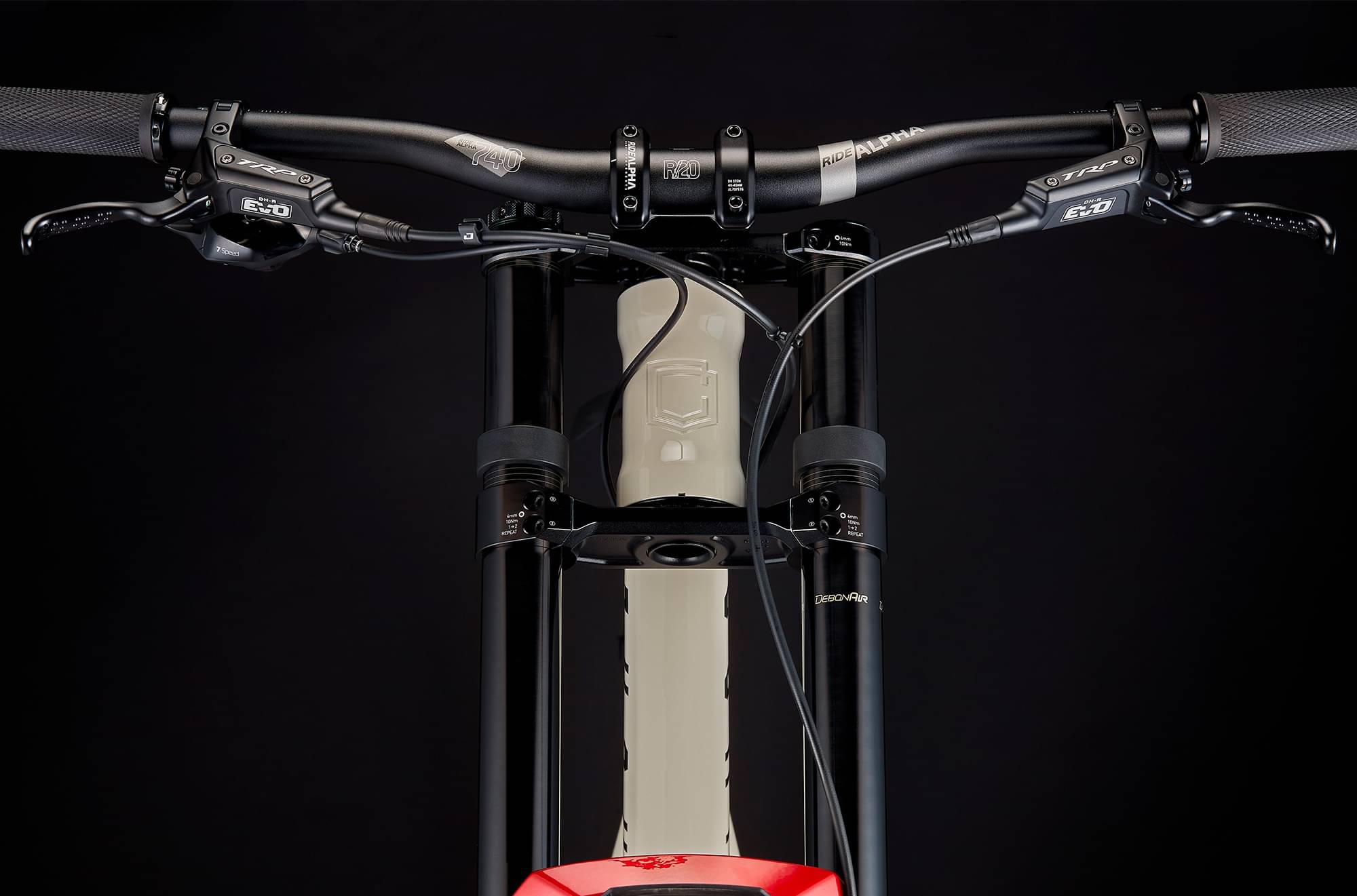

Cockpit
Stem
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm
Handlebar
RIDE ALPHA R20, 31.8 mm, 740 mm width, 20 mm rise, Alloy 6061
Grips
ODI Elite Motion, Soft pro compound, single clamp, black
Headset
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails
Seatpost
RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low |
|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.509 mm |
| Bottom Bracket Height | 352 mm | 354 mm |
| Front Center | 754 mm | 754 mm |
| Rake | 52 mm | 52 mm |
| Trail | 110 mm | 116 mm |
| Stack | 602.5 mm | 605 mm |
| Reach | 405 mm | 401 mm |
| Top Tube Length | 546 mm | 548 mm |
| Seat Tube Angle | 67.5 ° | 67.1 ° |
| Seat Tube Length | 370 mm | 370 mm |
| Head Tube Angle | 64.3 ° | 63.9 ° |
| Head Tube Length | 112 mm | 112 mm |
| Chainstay Length | 440 mm | 442 mm |
| Wheelbase | 1194 mm | 1196 mm |
| Bottom Bracket Drop | 3 mm | 1 mm |
| Wheels | 27" | 27" |
