Commençal T.E.M.P.O. T-TYPE UNIQUE 2024
2024 Mountain
Estimate price |
5,734$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes TRP DH-R EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 180cm
LG
178cm - 190cm
XL
188cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
2023 TEMPO, 130mm travel, 29'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings
Suspension Fork
FOX 36 Factory, 150mm travel, 29", Float, Grip 2 damper, HSR/LSR, HSC/LSC, Boost (15x110mm), 51mm offset

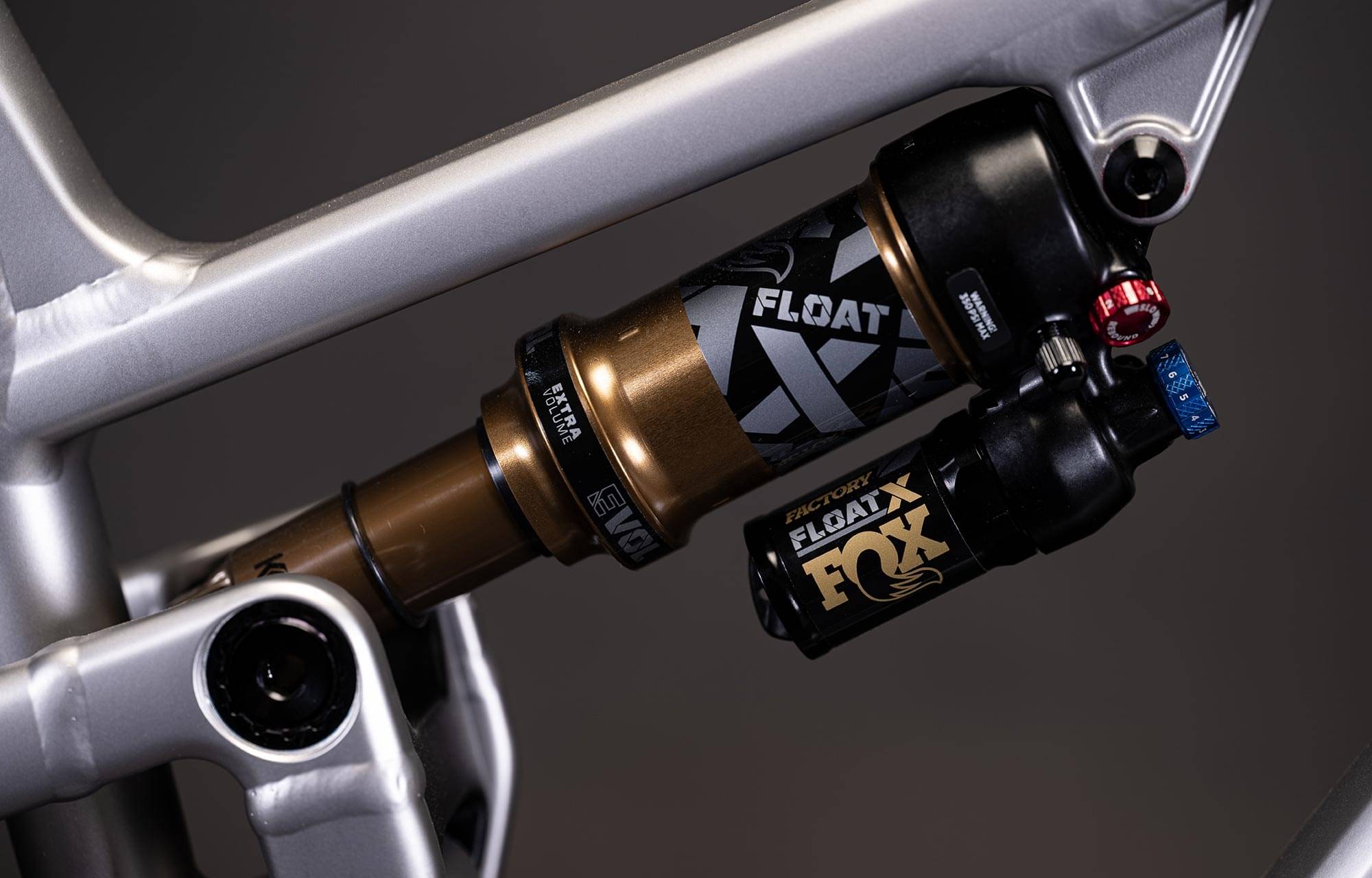

Rear Shock
FOX Float X Factory, 210x50mm, HSC, LSC, HSR,LSR, 2-postion adjustment
Drivetrain
Rear Derailleur
SRAM AXS GX T-Type, 12s
Shift Levers
SRAM AXS T-Type, 12s

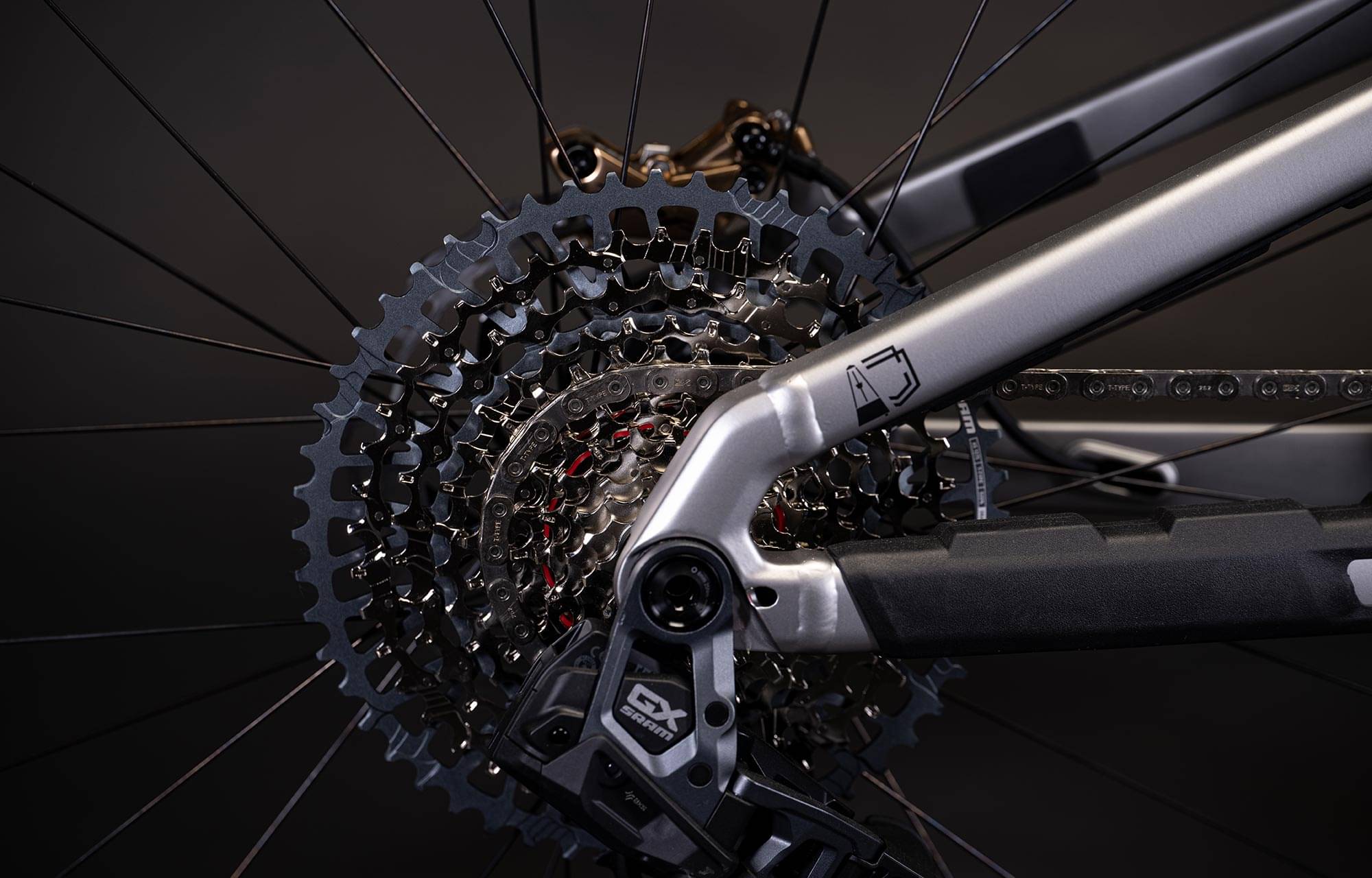

Cassette
CS 1275 Eagle T-TYPE, 12s, 10-52t

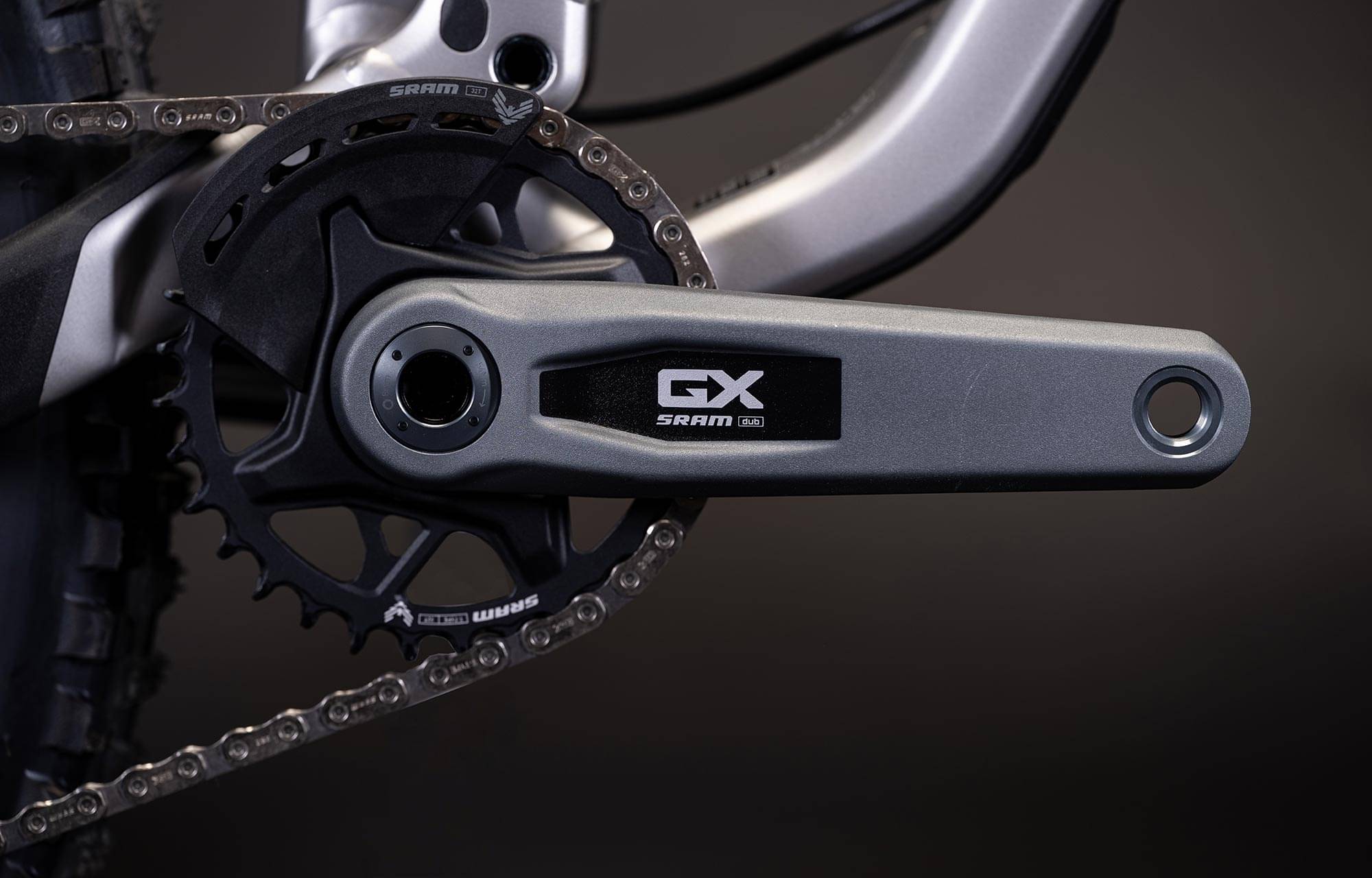

Crank
SRAM GX T-Type, 170mm crank arms
Bottom Bracket
BB92 Press Fit
Chain
SRAM GX T-Type - Chainring: SRAM GX T-Type, 12s, Flattop chain - 32t, Narrow-Wide
Wheels
Front Hub
DT SWISS 350, Rear: 28h, sealed bearings, 12x148mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15x110mm, black
Rear Hub
DT SWISS 350, Rear: 28h, sealed bearings, 12x148mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15x110mm, black
Rims
DT SWISS EX511 29'', 29'', 28h, 30mm inner width
Tires
MAXXIS DHR II, 29"x2.4" WT, EXO+, 3C, Tubeless Ready
Brakes
Brakes
TRP DH-R Evo - Rotors: Galfer Wave 2.0, 4 pistons, Gold - Rotors: 6-bolt, 180mm rear, 203mm front

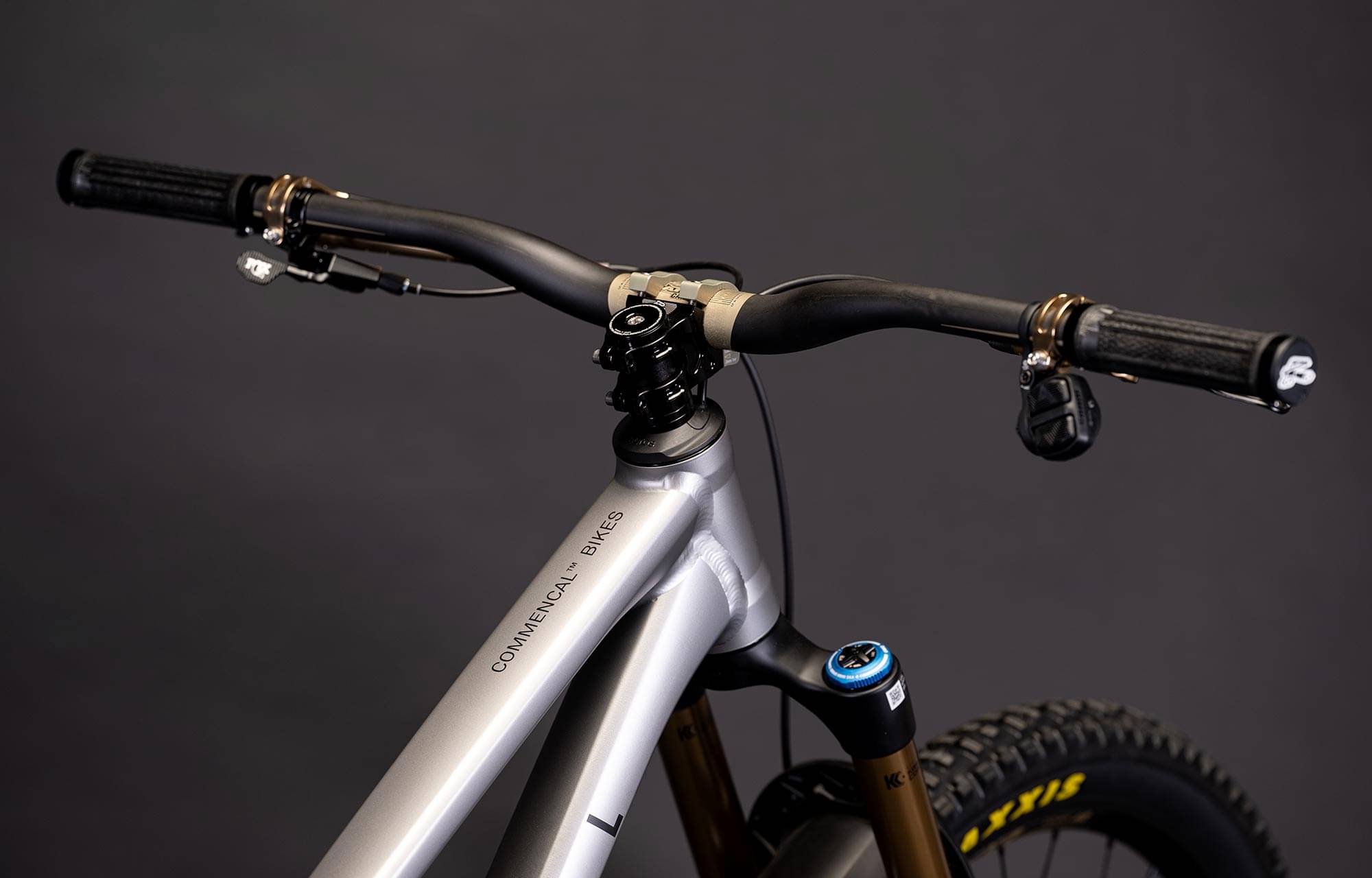

Cockpit
Stem
RENTHAL Apex, 40mm extension, 31.8mm
Handlebar
RENTHAL Fatbar Carbon, 31.8mm, 800mm width, 30mm rise,carbon
Grips
RENTHAL Traction Lock-on, Ultra Tacky compound, black
Headset
ACROS ZS56/ZS56, 29", Float, Grip 2 damper, HSR/LSR, HSC/LSC, Boost (15x110mm), 51mm offset
Seat
Saddle
SDG Bel Air, 145mm width, S-alloy rails
Seatpost
FOX Transfer Factory Kashima, 31.6mm,175mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.397 mm | 1.347 mm | 1.301 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 757 mm | 779 mm | 801 mm | 823 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 112 mm | 114 mm | 114 mm | 112 mm |
| Stack | 624 mm | 628.5 mm | 633 mm | 637.5 mm |
| Reach | 430 mm | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 579 mm | 600 mm | 621.5 mm | 642.9 mm |
| Seat Tube Angle | 76.6 ° | 76.6 ° | 76.6 ° | 76.6 ° |
| Seat Tube Length | 380 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 440 mm | 440 mm |
| Wheelbase | 1190 mm | 1211 mm | 1238 mm | 1261 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 210 cm |
