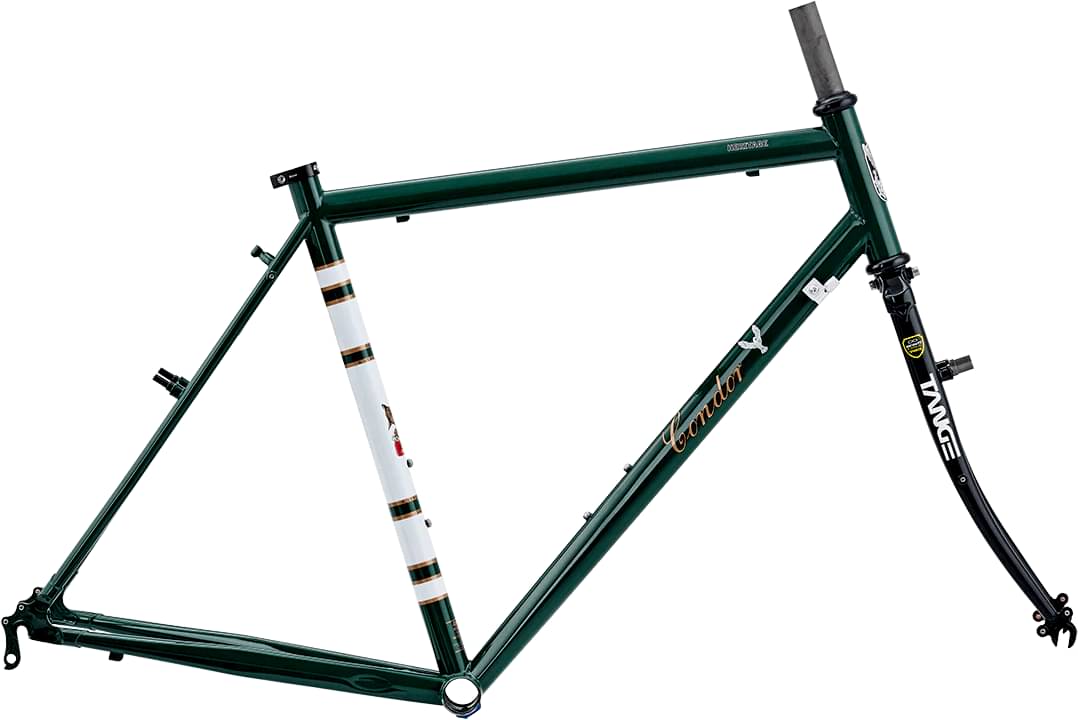

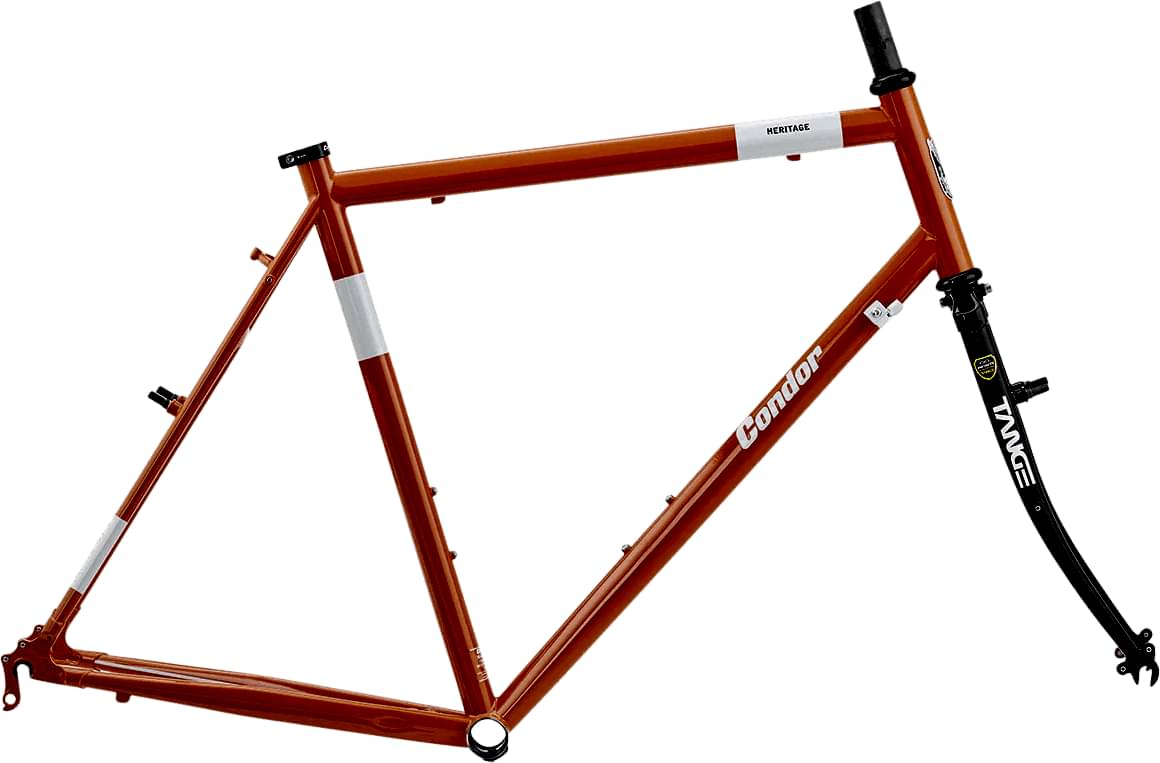

condor Heritage Frameset 2024

2024 Road

Estimate price | 1,745$

Open compare Use advisor

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Gravel
Frame Steel
Suspension Rigid

Sizing

Recommended size guide.

46cm
150cm - 160cm
52cm
169cm - 175cm
55cm
176cm - 185cm
58cm
186cm - 193cm
61cm
194cm - 200cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Dedacciai SAT 14.5 triple-butted steel, 2200g

Suspension Fork

Tange Infinity steel, 1160g

Fit data

Geometry

Numbers for sizing and ride feel.

Size	46cm	49cm	52cm	55cm	58cm	61cm	64cm
Stack Reach Ratio	1.45 mm	1.468 mm	1.488 mm	1.529 mm	1.574 mm	1.674 mm	1.701 mm
Bottom Bracket Height	265 mm	265 mm	265 mm	265 mm	265 mm	265 mm	265 mm
Rake	48 mm	48 mm	48 mm	48 mm	48 mm	48 mm	48 mm
Stack	525 mm	530 mm	549 mm	578 mm	606 mm	636 mm	653 mm
Reach	362 mm	361 mm	369 mm	378 mm	385 mm	380 mm	384 mm
Top Tube Length	513 mm	518 mm	537 mm	555 mm	570 mm	580 mm	590 mm
Seat Tube Angle	74 °	73.5 °	73 °	73 °	73 °	72.5 °	72.5 °
Seat Tube Length	420 mm	450 mm	480 mm	510 mm	540 mm	570 mm	600 mm
Head Tube Angle	71.5 °	71.5 °	71.5 °	71.5 °	71.5 °	71.5 °	71.5 °
Head Tube Length	100 mm	105 mm	125 mm	155 mm	185 mm	215 mm	235 mm
Chainstay Length	445 mm	445 mm	445 mm	445 mm	445 mm	450 mm	450 mm
Bottom Bracket Drop	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm
Wheels	700	700	700	700	700	700	700
Rider Min Height	150 cm	cm	169 cm	176 cm	186 cm	194 cm	201 cm
Rider Max Height	160 cm	cm	175 cm	185 cm	193 cm	200 cm	cm
