Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Suspension Rigid
Sizing
Recommended size guide.
46cm
150cm - 160cm
52cm
169cm - 175cm
55cm
176cm - 185cm
58cm
186cm - 193cm
61cm
194cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components

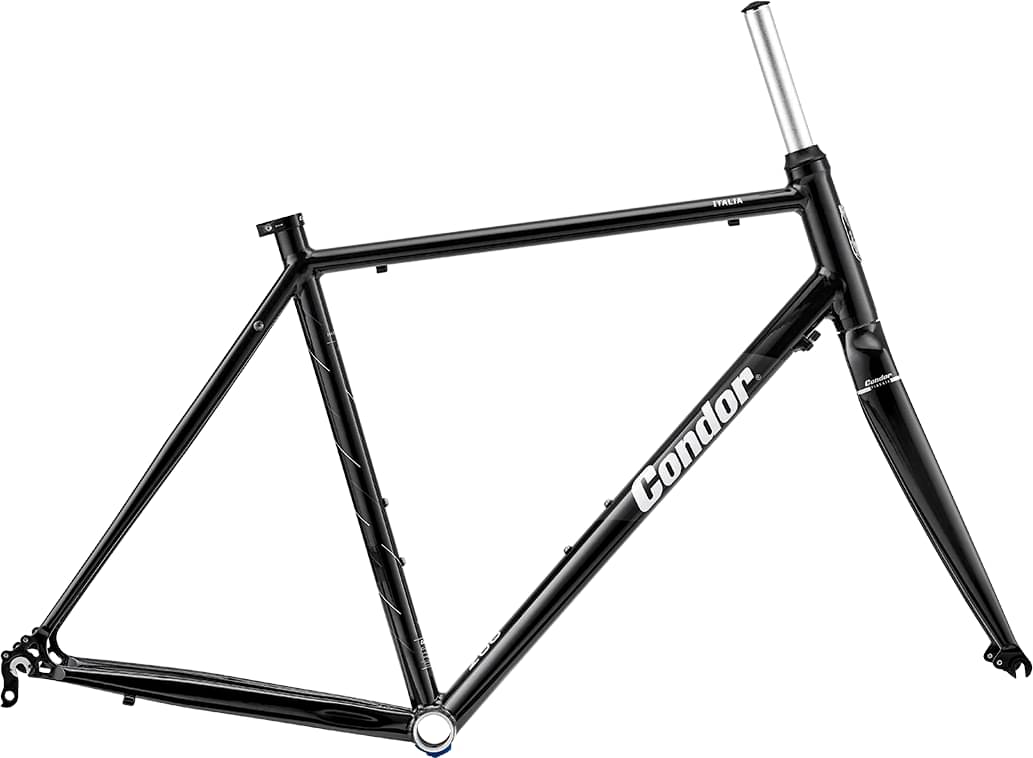

Frame
Frame

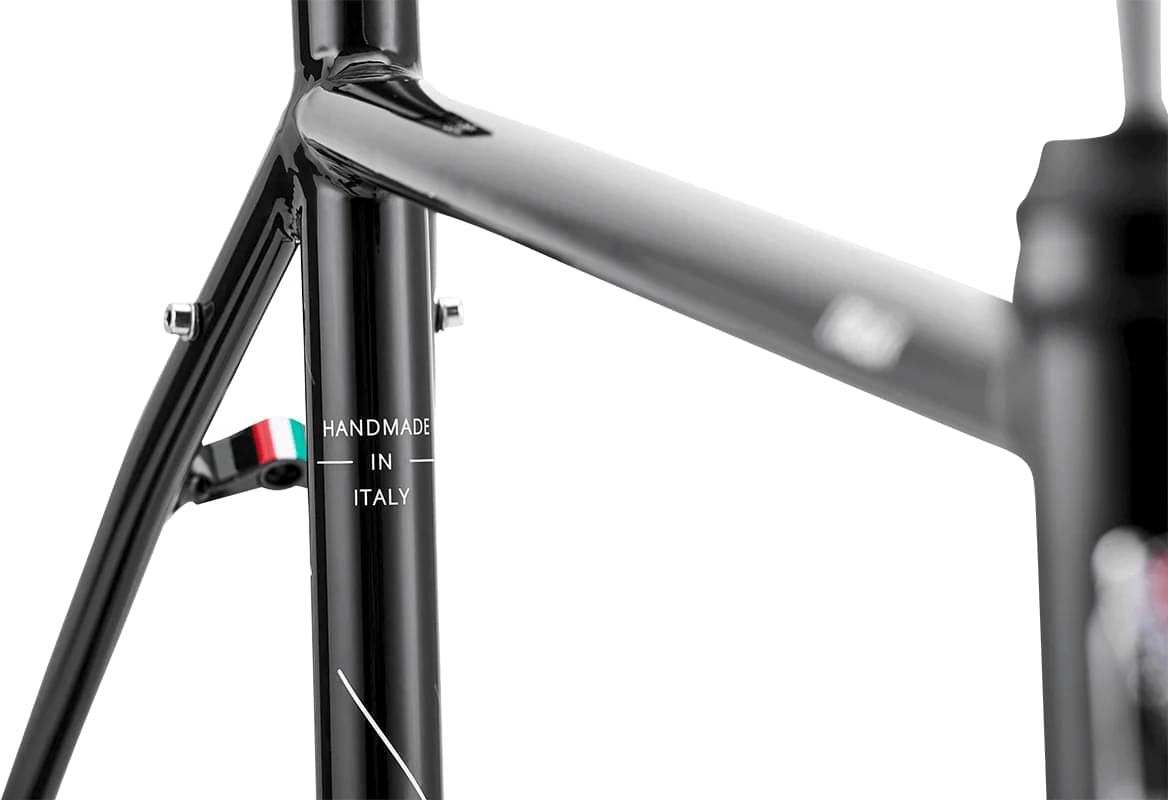

Condor 7000 series aluminium, 1450g
Suspension Fork
Condor Pioggia full carbon monocoque, 420g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.445 mm | 1.466 mm | 1.543 mm | 1.619 mm | 1.718 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 518 mm | 529 mm | 554 mm | 588 mm | 617 mm | 646 mm |
| Reach | 374 mm | 366 mm | 378 mm | 381 mm | 381 mm | 376 mm |
| Top Tube Length | 513 mm | 518 mm | 537 mm | 555 mm | 570 mm | 580 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 110 mm | 120 mm | 145 mm | 175 mm | 205 mm | 235 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 430 mm | 430 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | cm | 169 cm | 176 cm | 186 cm | 194 cm |
| Rider Max Height | 160 cm | cm | 175 cm | 185 cm | 193 cm | 200 cm |
