Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Suspension Rigid
Sizing
Recommended size guide.
46cm
150cm - 160cm
52cm
169cm - 175cm
55cm
176cm - 185cm
58cm
186cm - 193cm
61cm
194cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components

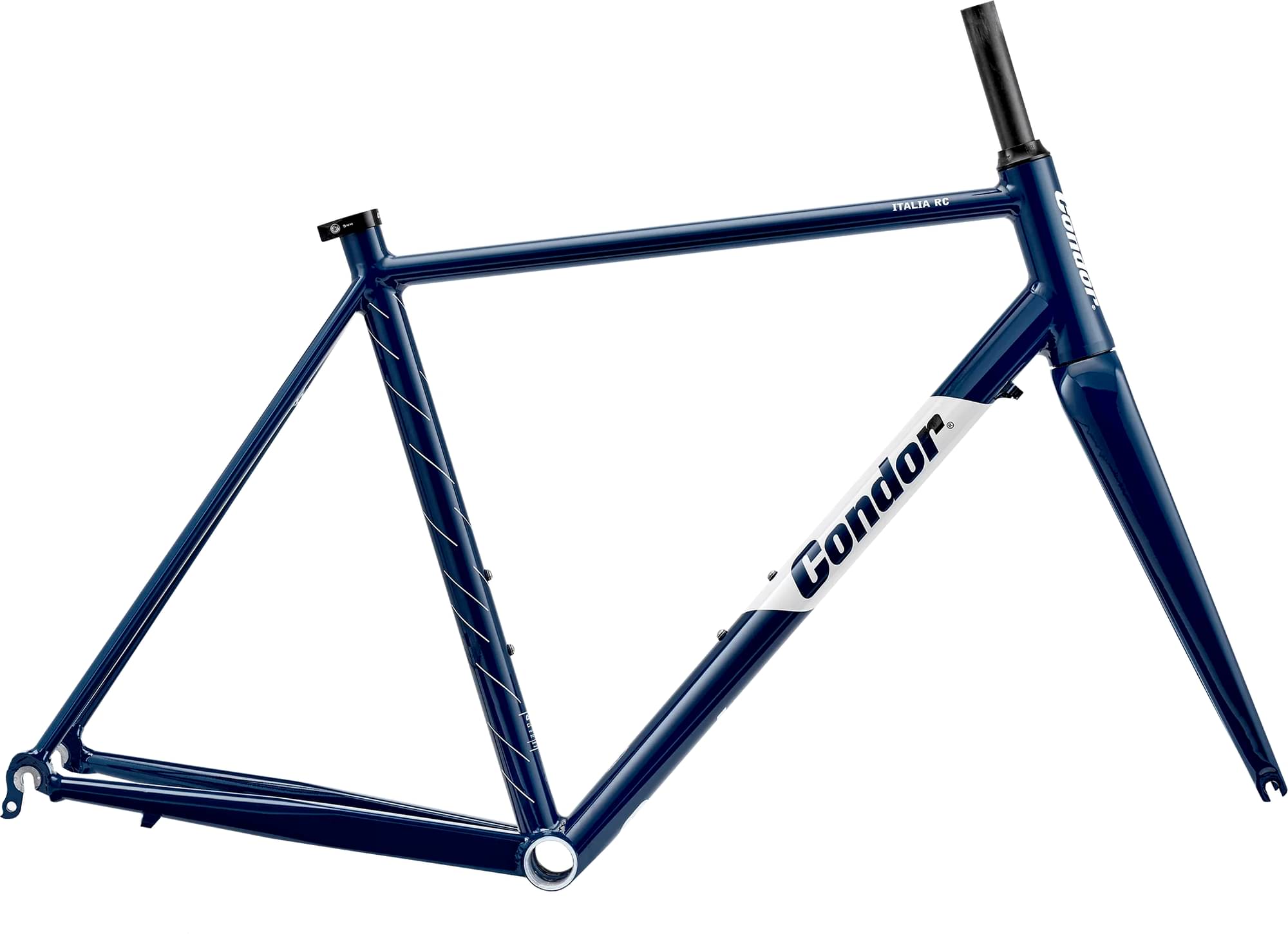

Frame
Frame
Condor 7000 series performance aluminium, 1450g
Suspension Fork
Condor straight bladed full carbon monocoque, 350g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.342 mm | 1.397 mm | 1.388 mm | 1.463 mm | 1.543 mm | 1.618 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 506 mm | 517 mm | 533 mm | 566 mm | 597 mm | 623 mm |
| Reach | 377 mm | 370 mm | 384 mm | 387 mm | 387 mm | 385 mm |
| Top Tube Length | 513 mm | 518 mm | 537 mm | 555 mm | 570 mm | 580 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 165 mm | 195 mm | 222 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 408 mm | 410 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | cm | 169 cm | 176 cm | 186 cm | 194 cm |
| Rider Max Height | 160 cm | cm | 175 cm | 185 cm | 193 cm | 200 cm |
