condor Leggero Frameset 2024

2024 Road

Estimate price | 6,922$

Open compare Use advisor

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Race
Frame Carbon
Suspension Rigid

Parts list

Components

Main components, grouped by system.

Bike components

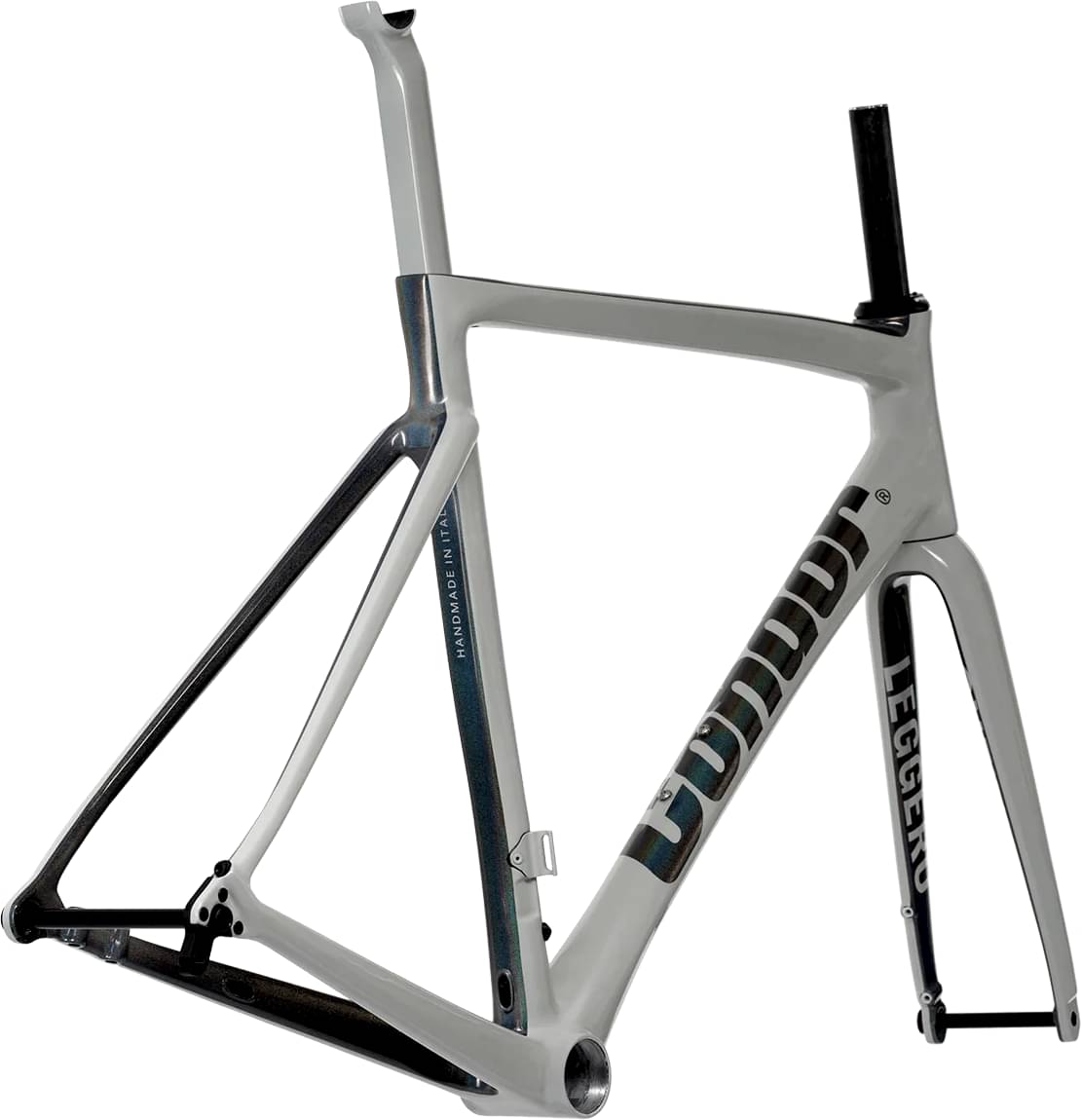

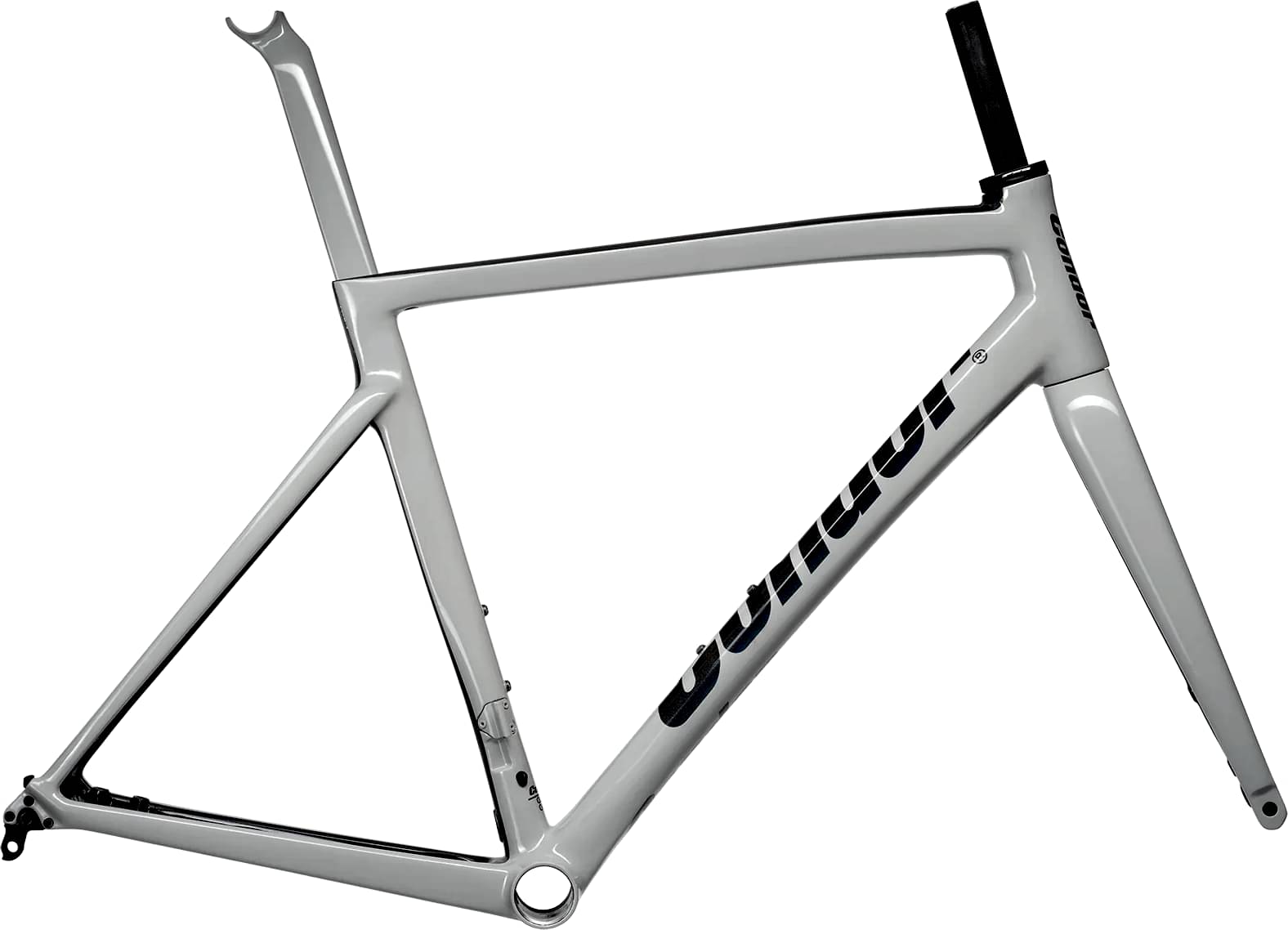

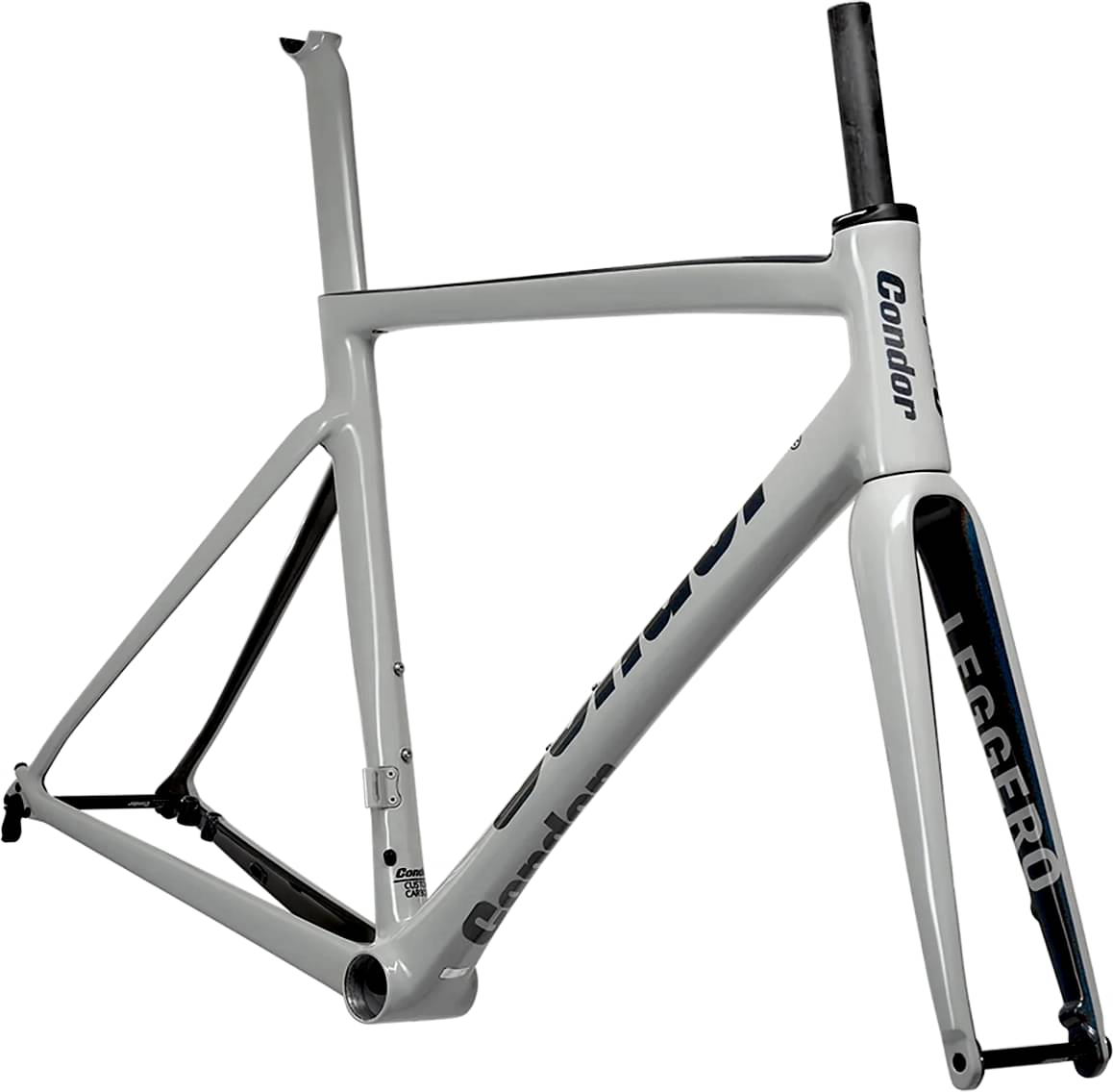

Frame

Frame

Handmade with high modulus carbon from Japan with nano resins, 1100g

Suspension Fork

Condor straight bladed full carbon monocoque, 350g

Fit data

Geometry

Numbers for sizing and ride feel.

Size	46cm	49cm	52cm	55cm	58cm	61cm
Stack Reach Ratio	1.342 mm	1.397 mm	1.388 mm	1.463 mm	1.543 mm	1.618 mm
Bottom Bracket Height	265 mm	265 mm	265 mm	265 mm	265 mm	265 mm
Rake	43 mm	43 mm	43 mm	43 mm	43 mm	43 mm
Stack	506 mm	517 mm	533 mm	566 mm	597 mm	623 mm
Reach	377 mm	370 mm	384 mm	387 mm	387 mm	385 mm
Top Tube Length	513 mm	518 mm	537 mm	555 mm	570 mm	580 mm
Seat Tube Angle	75 °	74 °	74 °	73.5 °	73 °	72.5 °
Seat Tube Length	410 mm	440 mm	470 mm	500 mm	530 mm	560 mm
Head Tube Angle	71 °	71.5 °	72 °	73.5 °	74 °	74 °
Head Tube Length	110 mm	120 mm	135 mm	165 mm	195 mm	222 mm
Chainstay Length	405 mm	405 mm	405 mm	405 mm	408 mm	410 mm
Bottom Bracket Drop	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm
Wheels	700	700	700	700	700	700
