Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid
Sizing
Recommended size guide.
46cm
149cm - 161cm
49cm
159cm - 169cm
52cm
166cm - 177cm
55cm
174cm - 184cm
58cm
181cm - 192cm
61cm
189cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

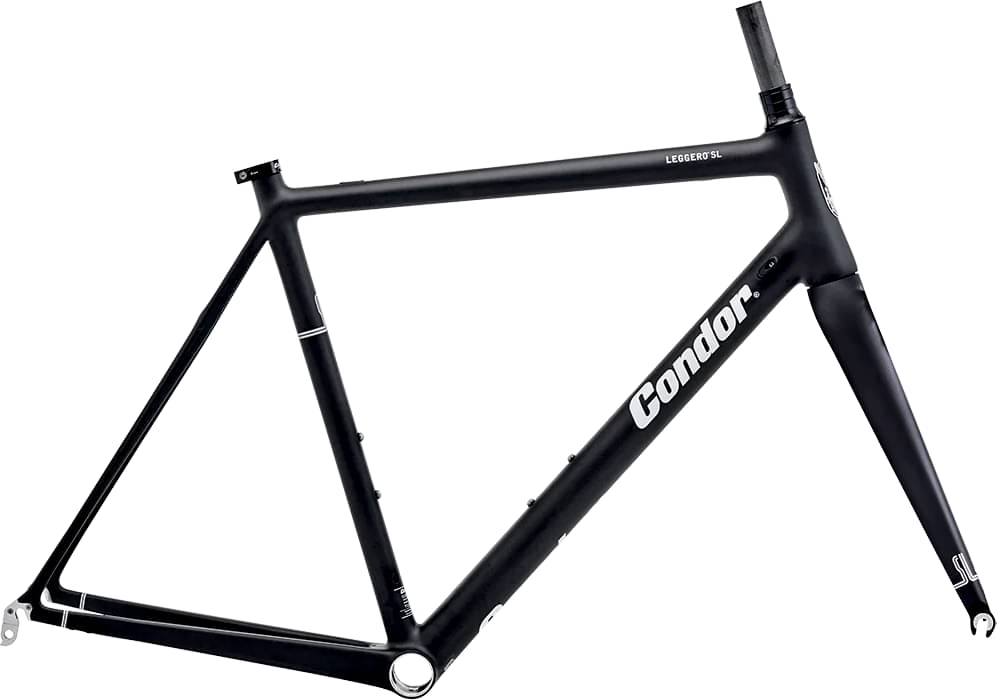

Frame
Frame
Hand selected high modulus carbon from Japan with nano resins, 900g
Suspension Fork
Condor straight bladed full carbon monocoque, 350g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.342 mm | 1.397 mm | 1.388 mm | 1.463 mm | 1.543 mm | 1.618 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 506 mm | 517 mm | 533 mm | 566 mm | 597 mm | 623 mm |
| Reach | 377 mm | 370 mm | 384 mm | 387 mm | 387 mm | 385 mm |
| Top Tube Length | 513 mm | 518 mm | 537 mm | 555 mm | 570 mm | 580 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 165 mm | 195 mm | 222 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 408 mm | 410 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 149 cm | 159 cm | 166 cm | 174 cm | 181 cm | 189 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 192 cm | 198 cm |
