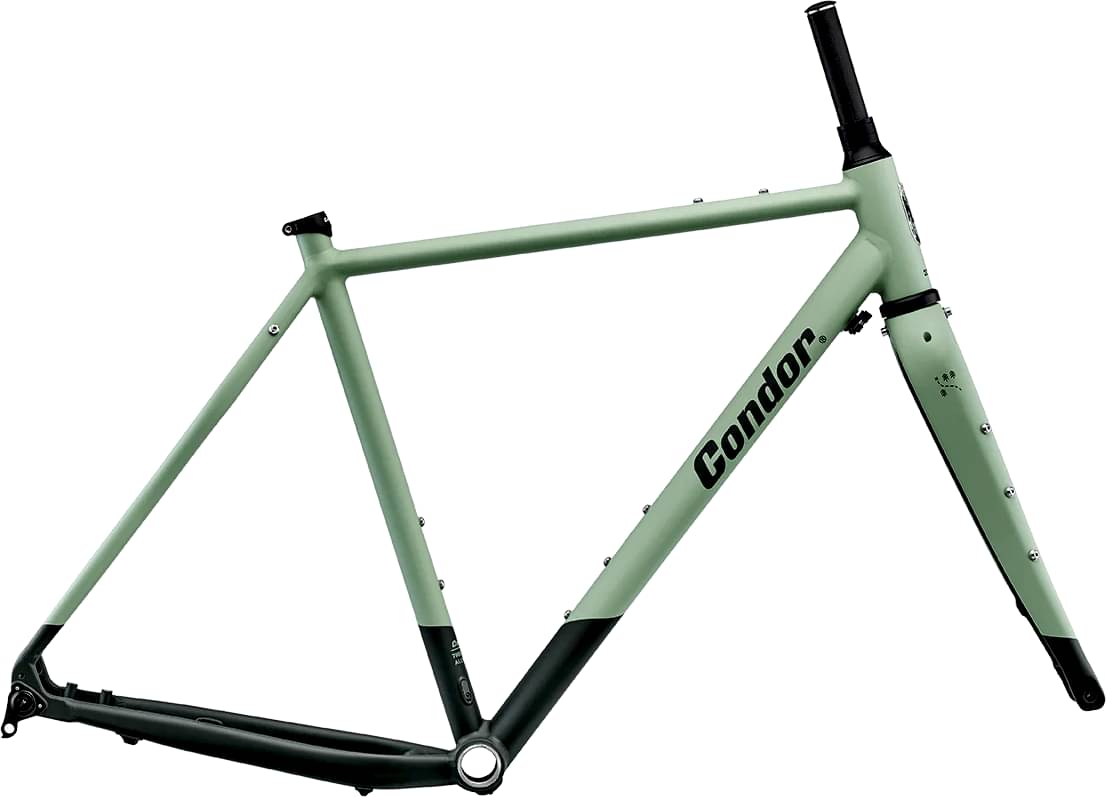

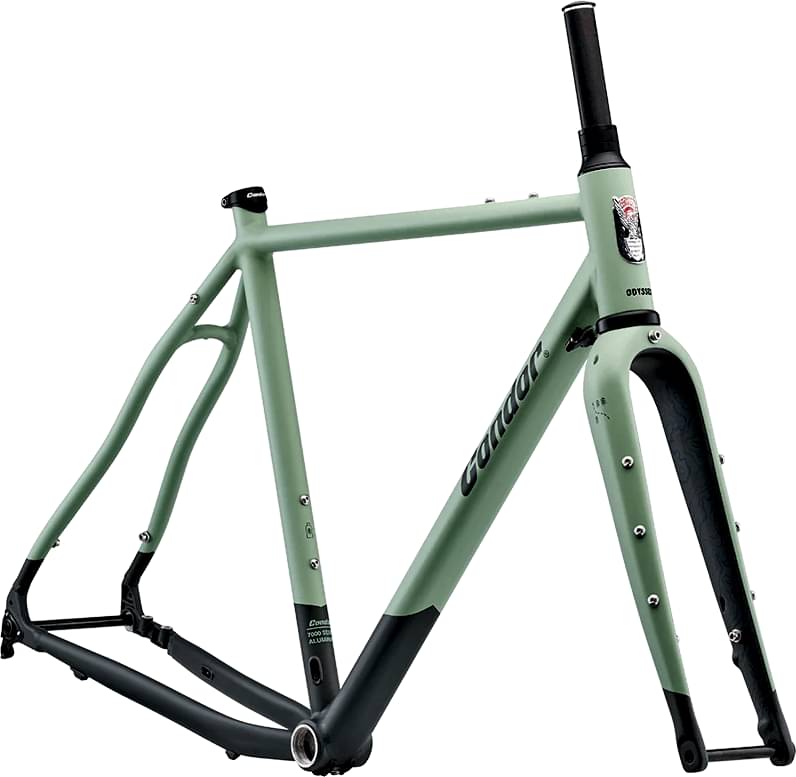

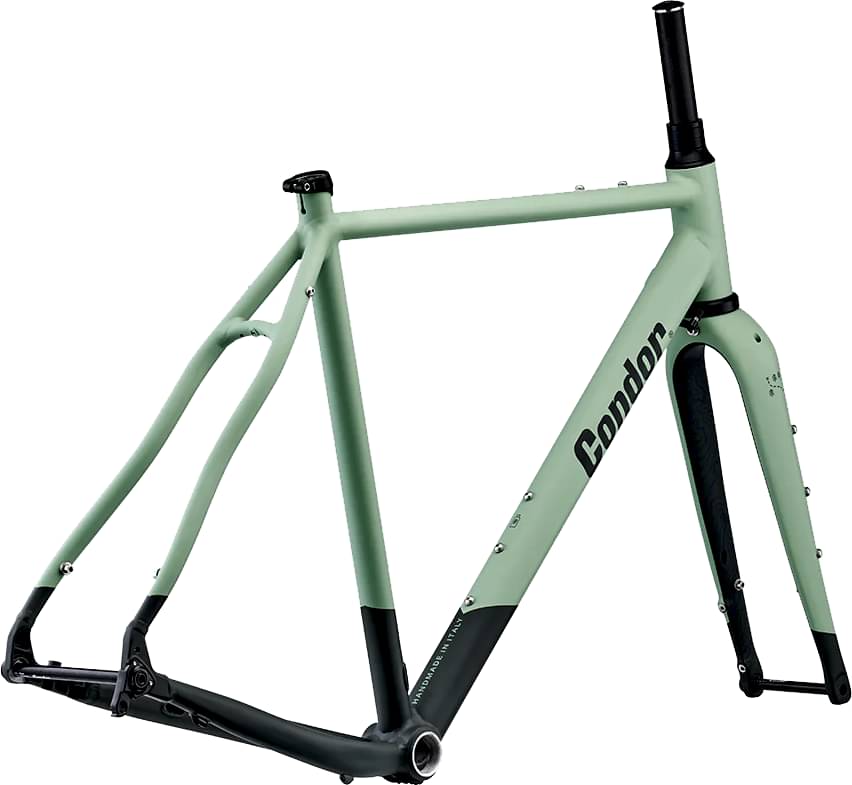

condor Odyssey Gravel Frameset 2024
2024 Road
Estimate price |
2,294$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
46cm
150cm - 160cm
52cm
169cm - 175cm
55cm
176cm - 185cm
58cm
186cm - 193cm
61cm
194cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Condor 7000 series performance aluminium, 1500g
Suspension Fork
Condor Gravel full carbon monocoque, 450g
Brakes
Brakes
Flat Mount disc with thru axles
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.431 mm | 1.428 mm | 1.48 mm | 1.513 mm | 1.569 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 516 mm | 521 mm | 534 mm | 564 mm | 593 mm | 623 mm |
| Reach | 365 mm | 364 mm | 374 mm | 381 mm | 392 mm | 397 mm |
| Top Tube Length | 513 mm | 518 mm | 537 mm | 555 mm | 570 mm | 580 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm | 135 mm | 165 mm | 195 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 435 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | cm | 169 cm | 176 cm | 186 cm | 194 cm |
| Rider Max Height | 160 cm | cm | 175 cm | 185 cm | 193 cm | 200 cm |
