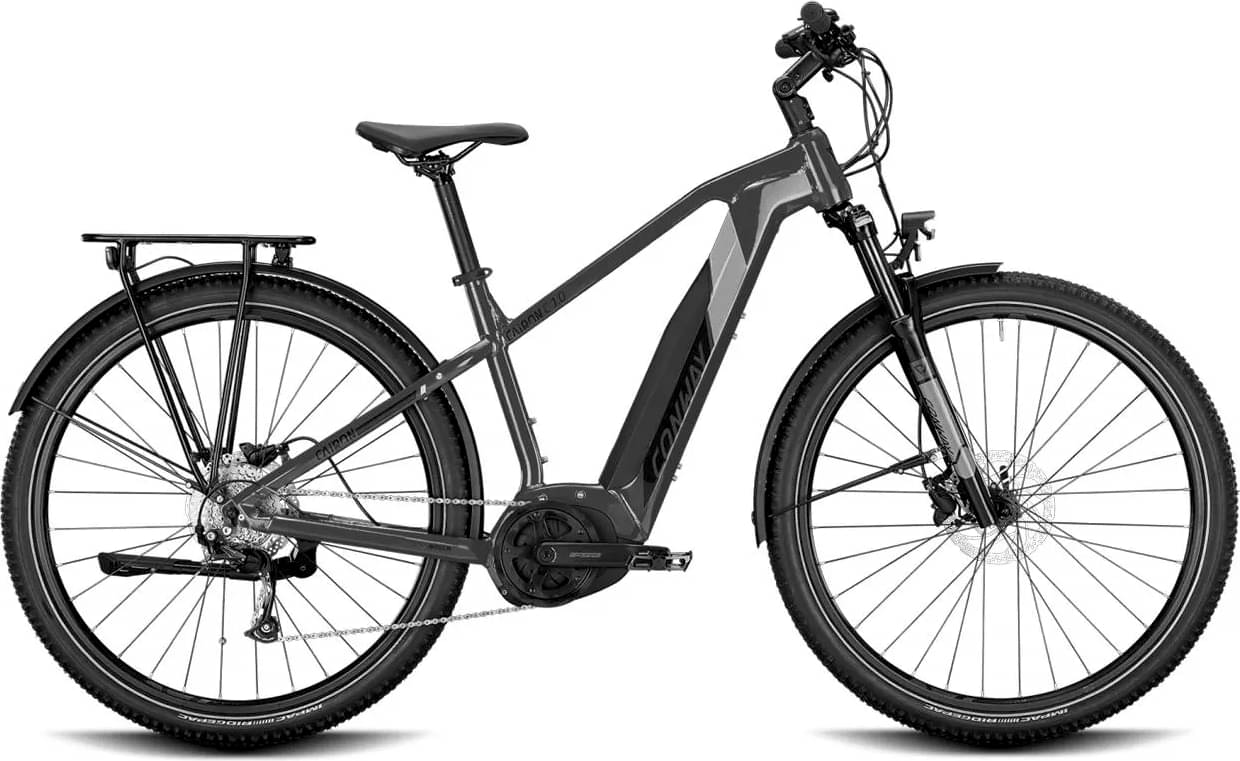

Conway Cairon C 1.0 diamond 2022
2022 E-bike
Estimate price |
2,981$
Weight | 26.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RST BLAZE
-
Groupset Tektro, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH "Powerpack 500", Lithium-Ionen mit BMS, 500 Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Bosch, Alu
Suspension Fork
RST "Blaze MLO", 120 mm
Drivetrain
Rear Derailleur
TEKTRO "RD-T 350-E", 8speed
Shift Levers
TEKTRO "SL-M330"
Cassette
TEKTRO "CS-M330", 11-42 Z.
Crank
FSA "CK-200", 170 mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-506"
Wheels
Front Hub
CONWAY "Alloy" QR front
Rear Hub
CONWAY "Alloy" QR rear
Rims
RODI "Tryp 30"
Spokes
Niro
Tires
CONTINENTAL "Ruban", 58-584, Reflex
Brakes
Brakes
SHIMANO "BR-MT200"
Brake Levers
SHIMANO "BL-MT200"
Cockpit
Stem
LEVEL 9 "Adjustable", 90 mm
Handlebar
LEVEL 9 "Low Riser", Ø 31,8, 720 mm
Grips
CONWAY "Sport"
Headset
ZS44 / ZS56, Reduzierkonus
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", He
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
Battery
BOSCH "Powerpack 500", Lithium-Ionen mit BMS, 500 Wh
Charger
Bosch 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.532 mm | 1.579 mm | 1.537 mm | 1.469 mm |
| Stack | 616 mm | 649 mm | 658 mm | 658 mm |
| Reach | 402 mm | 411 mm | 428 mm | 448 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 470 mm | 485 mm | 485 mm | 485 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
