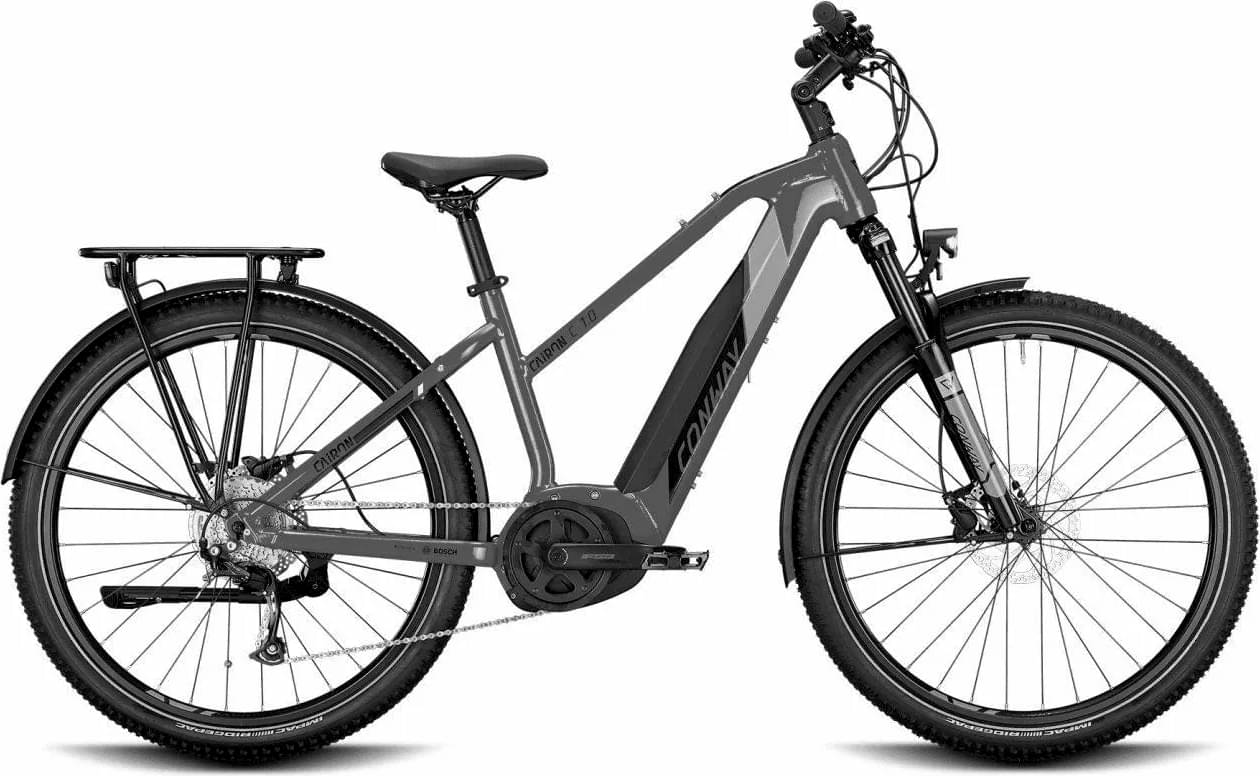

Conway Cairon C 1.0 trapeze 2022
2022 E-bike
Estimate price |
2,981$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RST BLAZE
-
Groupset Tektro, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH "Powerpack 500", Lithium-Ionen mit BMS, 500 Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Bosch, Alu
Suspension Fork
RST "Blaze MLO", 120 mm
Drivetrain
Rear Derailleur
TEKTRO "RD-T 350-E", 8speed
Shift Levers
TEKTRO "SL-M330"
Cassette
TEKTRO "CS-M330", 11-42 Z.
Crank
FSA "CK-200", 170 mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-506"
Wheels
Front Hub
CONWAY "Alloy" QR front
Rear Hub
CONWAY "Alloy" QR rear
Rims
RODI "Tryp 30"
Spokes
Niro
Tires
CONTINENTAL "Ruban", 58-584, Reflex
Brakes
Brakes
SHIMANO "BR-MT200"
Brake Levers
SHIMANO "BL-MT200"
Cockpit
Stem
LEVEL 9 "Adjustable", 90 mm
Handlebar
LEVEL 9 "Low Riser", Ø 31,8, 720 mm
Grips
CONWAY "Sport"
Headset
ZS44 / ZS56, Reduzierkonus
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Da
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
Battery
BOSCH "Powerpack 500", Lithium-Ionen mit BMS, 500 Wh
Charger
Bosch 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.613 mm | 1.532 mm | 1.492 mm | 1.42 mm |
| Stack | 616 mm | 616 mm | 625 mm | 625 mm |
| Reach | 382 mm | 402 mm | 419 mm | 440 mm |
| Top Tube Length | 555 mm | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 140 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
