Conway Cairon C 2.0 625 diamond 2022
2022 E-bike
Estimate price |
3,605$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RST BLAZE
-
Groupset Altus -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
RST "Blaze ML", 120 mm

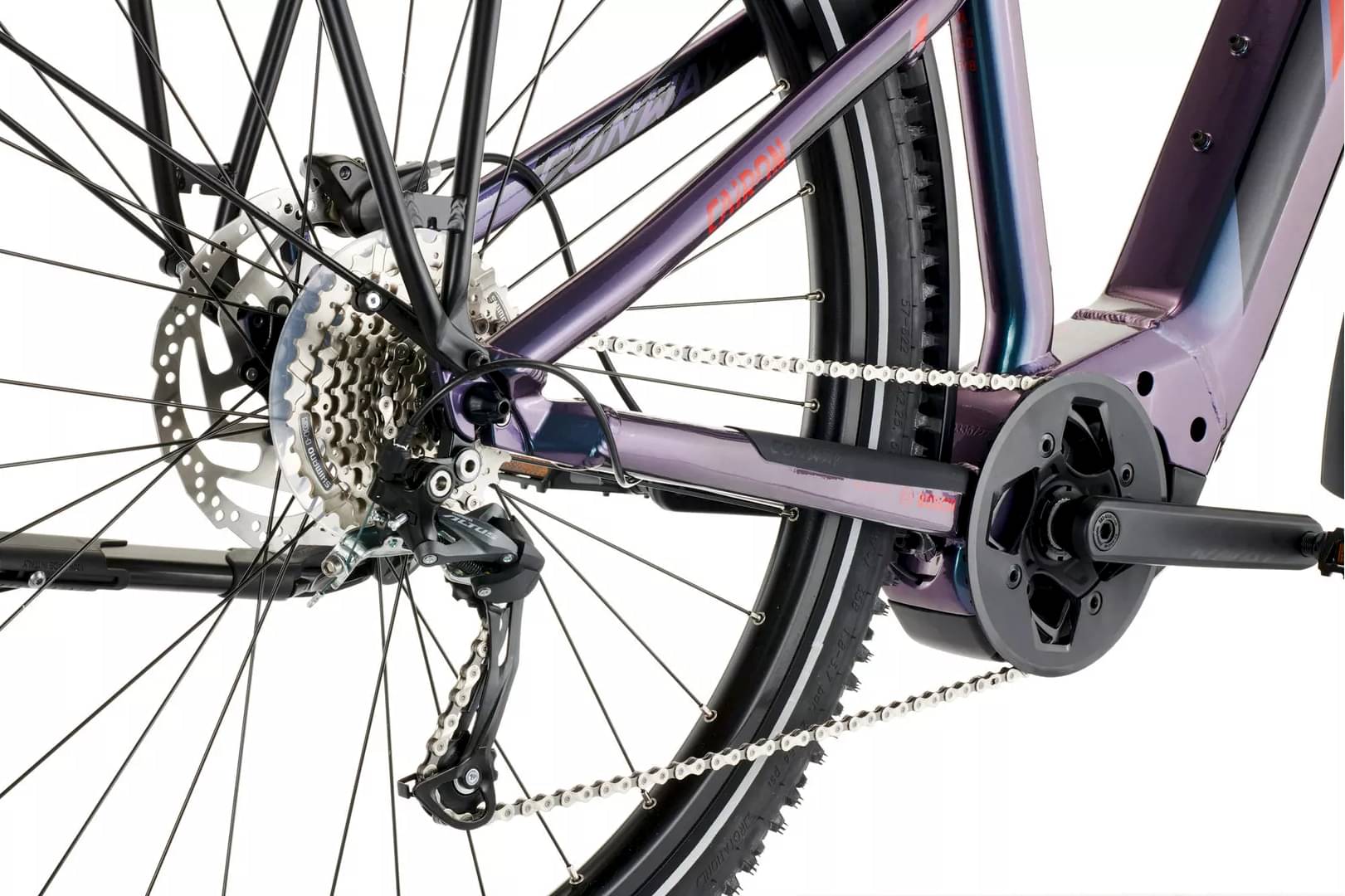

Drivetrain
Rear Derailleur
SHIMANO "Altus RD-M2000", 9speed
Shift Levers
SHIMANO "Altus SL-M2000"
Cassette
SHIMANO "HG200", 11-36 Z.
Crank
MIRANDA "PSI", 170 mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-506"
Wheels
Front Hub
CONWAY "Alloy" QR front
Rear Hub
CONWAY "Alloy" QR rear
Rims
CONWAY Hohlkammer "X17", Disc
Spokes
Niro
Tires
SCHWALBE "Smart Sam", 57-584, Reflex
Brakes
Brakes
TEKTRO "HD-T280"
Brake Levers
TEKTRO "HD-T280"

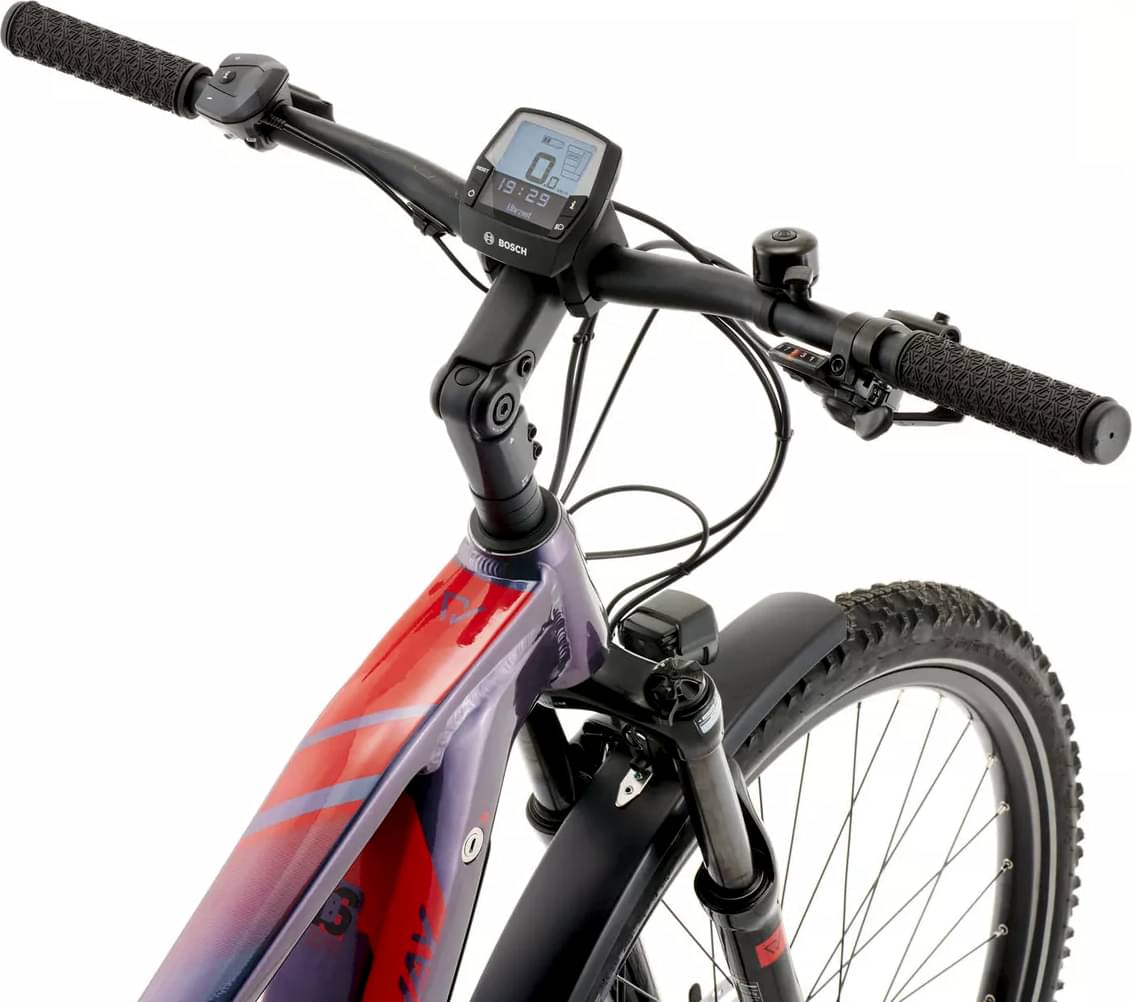

Cockpit
Stem
LEVEL 9 "Adjustable", 90 mm
Handlebar
LEVEL 9 "Low Riser", Ø 31,8, 720 mm
Grips
CONWAY "Sport"
Headset
ZS44 / ZS56, Reduzierkonus
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", He
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery

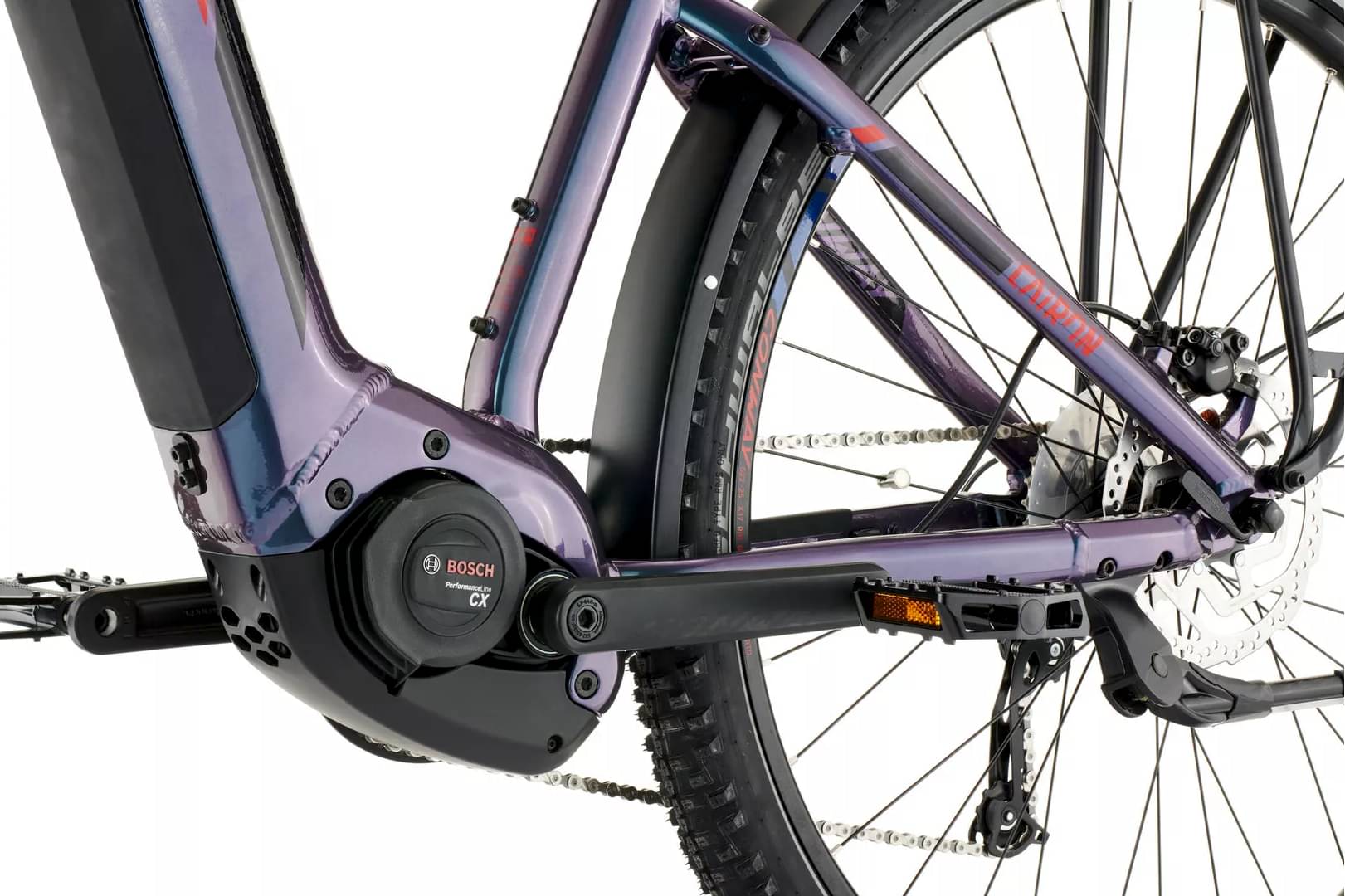

Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Charger
Bosch 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.514 mm | 1.549 mm | 1.52 mm | 1.456 mm |
| Stack | 616 mm | 649 mm | 658 mm | 658 mm |
| Reach | 407 mm | 419 mm | 433 mm | 452 mm |
| Top Tube Length | 578 mm | 598 mm | 618 mm | 638 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 445 mm | 460 mm | 460 mm | 460 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
