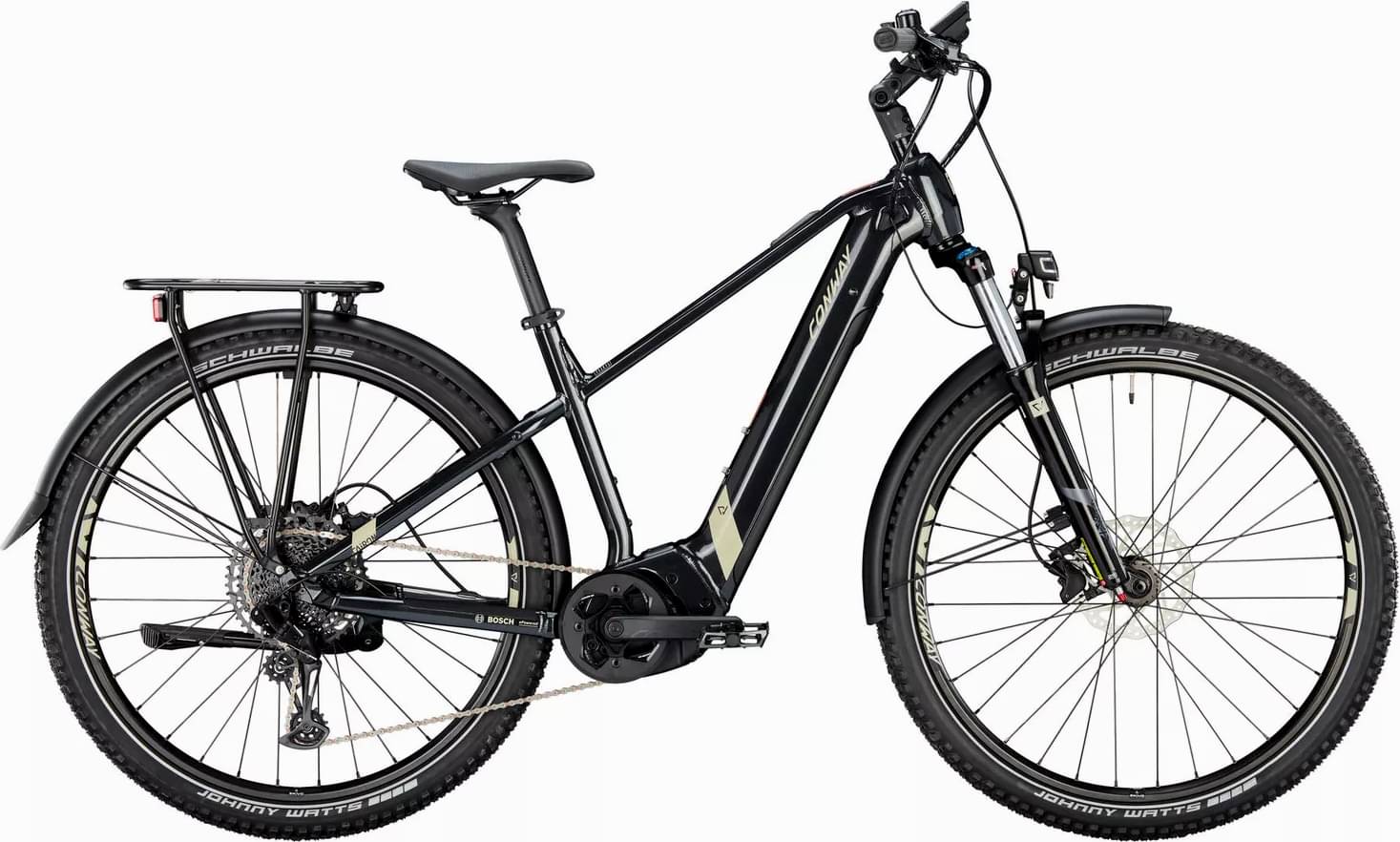

Conway Cairon C 3.0 diamond 2024
2024 E-bike
Estimate price |
4,472$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
SUNTOUR "XCM34 LOR", 120 mm
Drivetrain
Rear Derailleur
SRAM "SX Eagle", 12speed
Shift Levers
SRAM "SX Eagle Trigger", single click
Cassette
SRAM "PG 1210 Eagle", 11-50 Z.
Crank
MIRANDA "Classic Gen4", 165 mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-506"
Wheels
Front Hub
FORMULA "DC 511", 15 x 110 mm
Rear Hub
FORMULA "eHL-135 S", QR
Rims
MACH1 "MAXX"
Spokes
Niro
Tires
SCHWALBE "Johnny Watts", 60-584, Reflex
Brakes
Brakes
TEKTRO "HD-T390"
Brake Levers
TEKTRO "HD-T390"

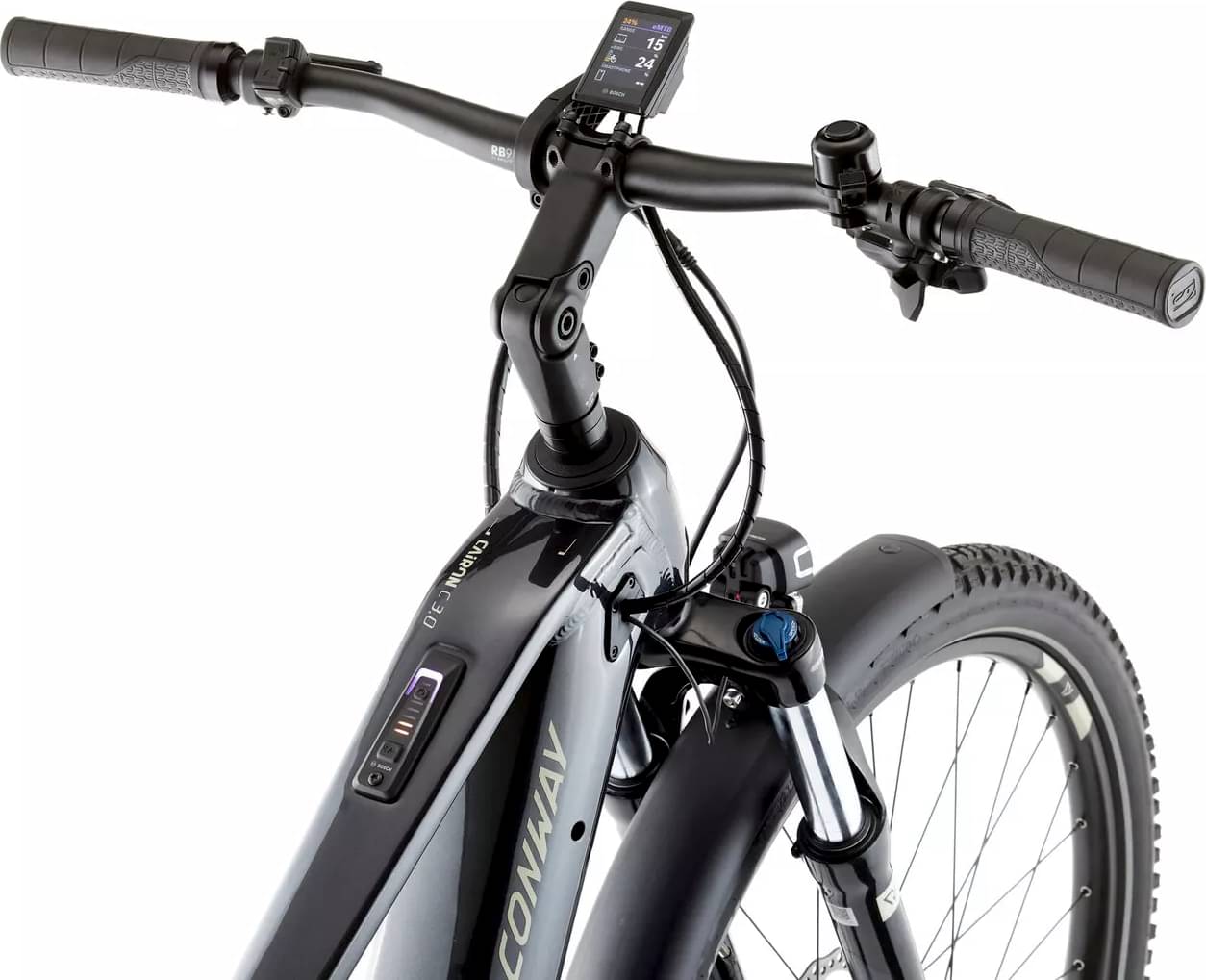

Cockpit
Stem
LEVEL 9 "Adjustable", 65mm
Handlebar
CONWAY "Riser", Ø 31,8, 720 mm
Grips
CONTEC "MERGE Mountain Straight"
Headset
ZS56 / ZS56, Blocklock
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", He
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery

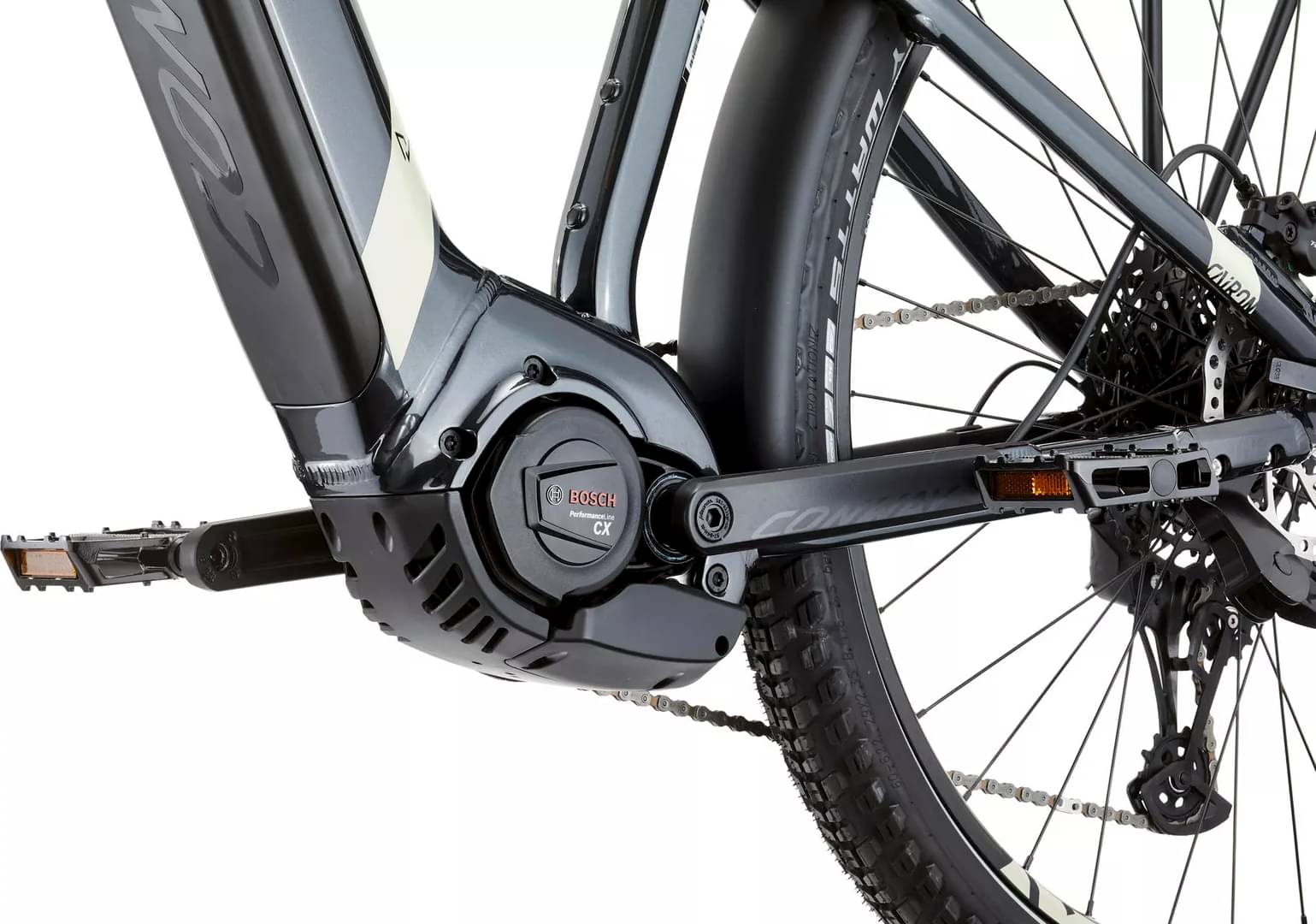

Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Remote
BOSCH "BRC3300"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.544 mm | 1.523 mm | 1.479 mm | 1.406 mm | 1.37 mm |
| Stack | 619 mm | 649 mm | 658 mm | 658 mm | 667 mm |
| Reach | 401 mm | 426 mm | 445 mm | 468 mm | 487 mm |
| Top Tube Length | 575 mm | 600 mm | 620 mm | 640 mm | 660 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
