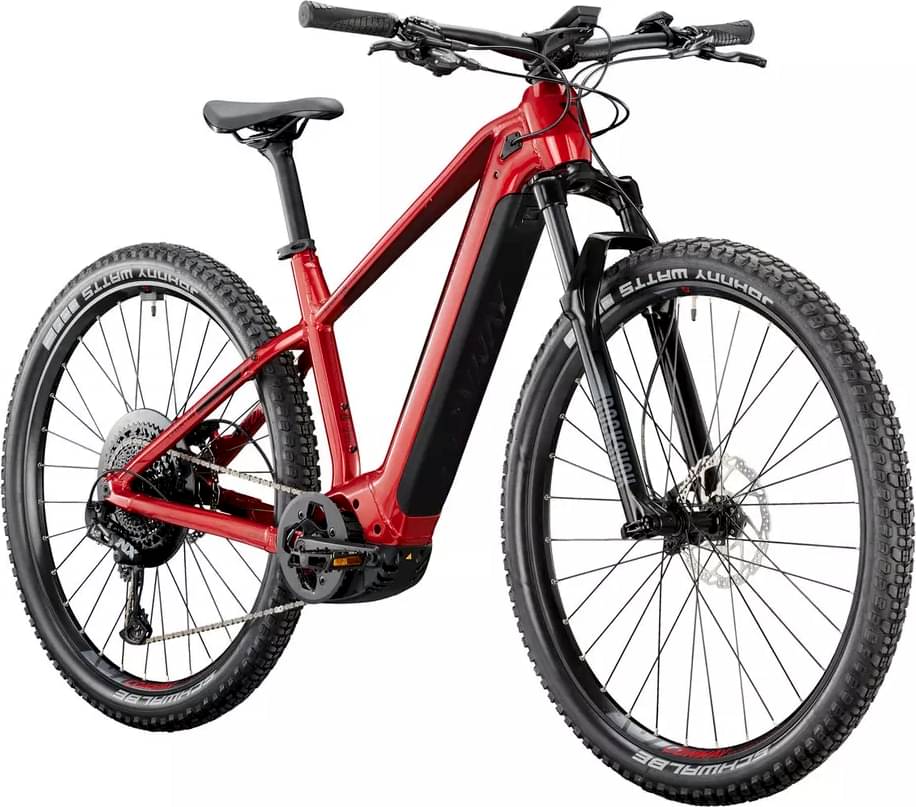

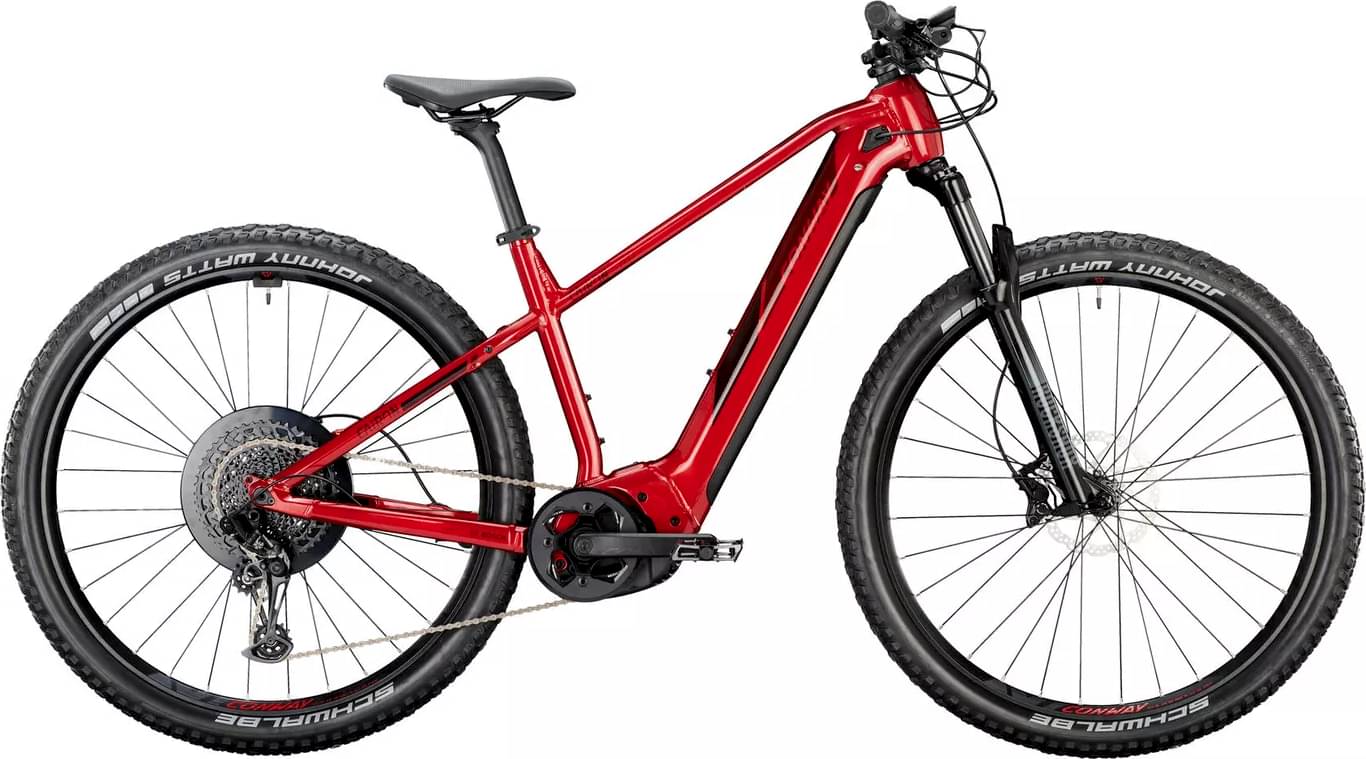

Conway Cairon S 6.0 Hardtail, diamond 2022
2022 E-bike
Estimate price |
4,587$
Weight | 25.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
ROCKSHOX "Recon Silver RL", 120 mm

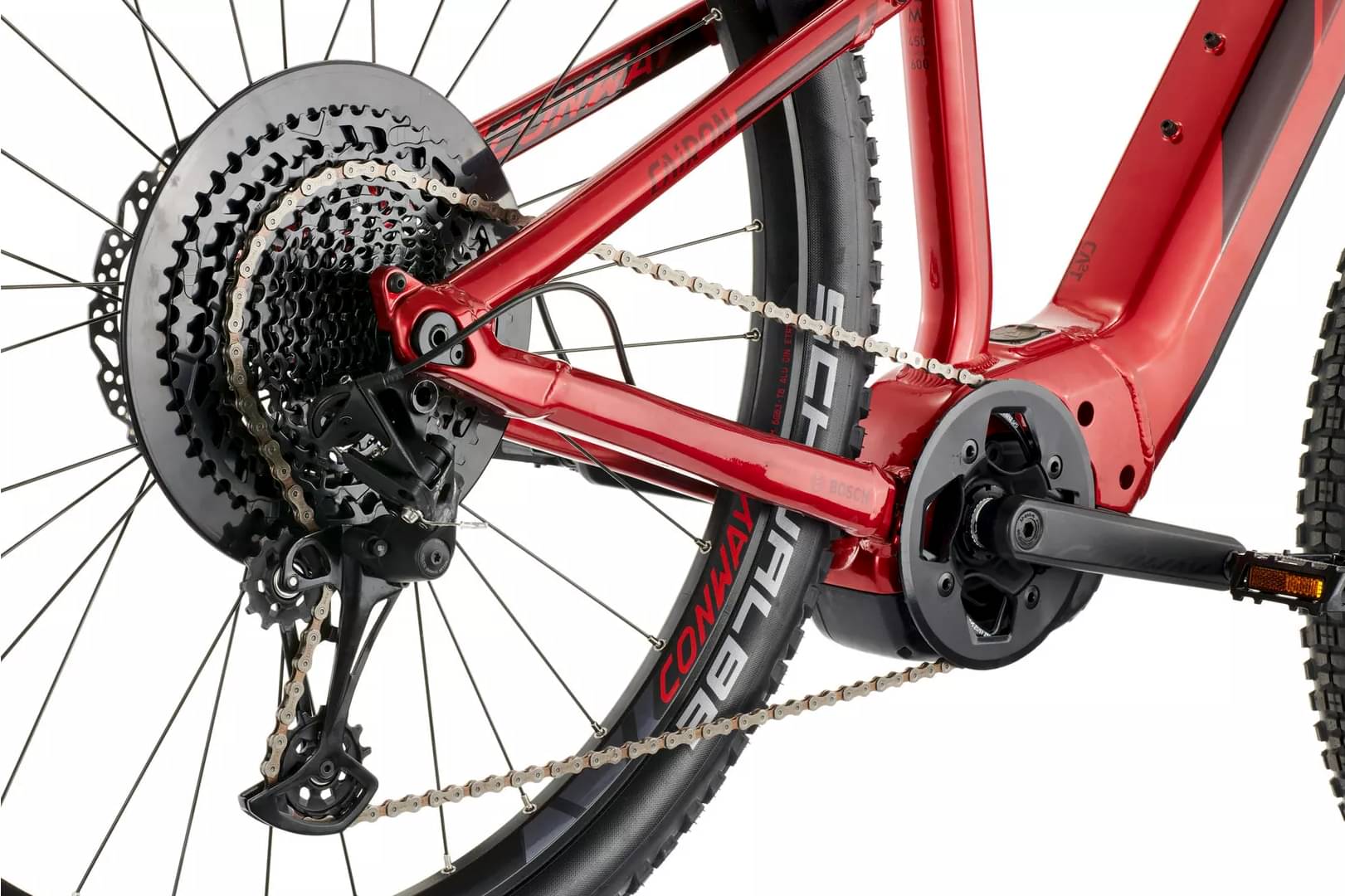

Drivetrain
Rear Derailleur
SRAM "NX Eagle", 12speed
Shift Levers
SRAM "SX Eagle Trigger", single click
Cassette
SRAM "PG 1230 Eagle", 11-50 Z.
Crank
MIRANDA "PSI", 170 mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-506"
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110mm
Rear Hub
SHIMANO "FH-MT400B", 12x148 mm
Rims
CONWAY Hohlkammer "X18", Disc
Spokes
Niro
Tires
SCHWALBE "Johnny Watts", 65-622
Brakes
Brakes
SHIMANO "BR-MT420", "BR-MT410"
Brake Levers
SHIMANO "BL-M4100"

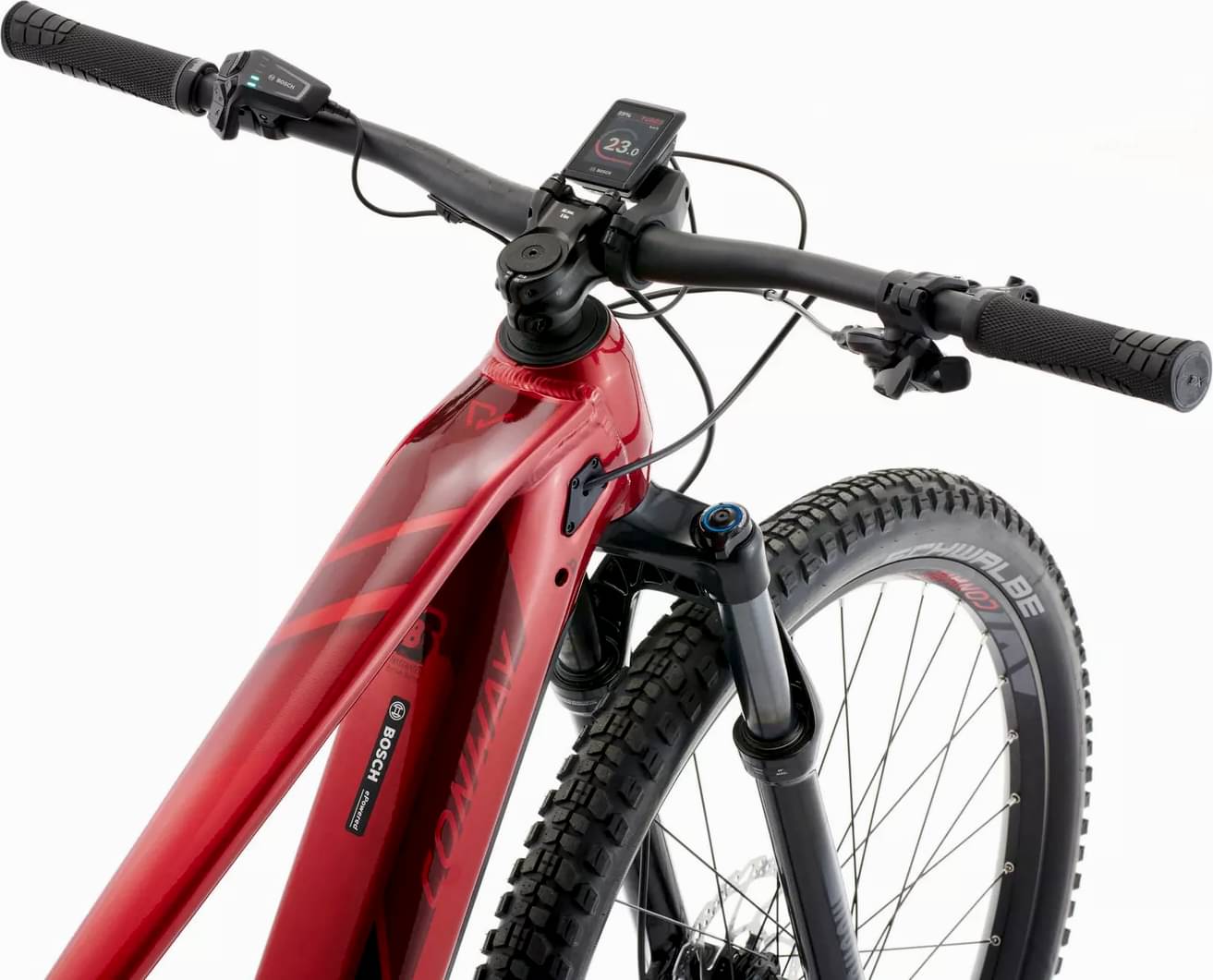

Cockpit
Stem
LEVEL 9 "Team A-Head", 31,8 mm, 40 mm
Handlebar
LEVEL 9 "Race Riser", Ø 31,8, 780 mm
Grips
SQLAB "70X"
Headset
ZS56 / ZS56, Blocklock
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", He
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery

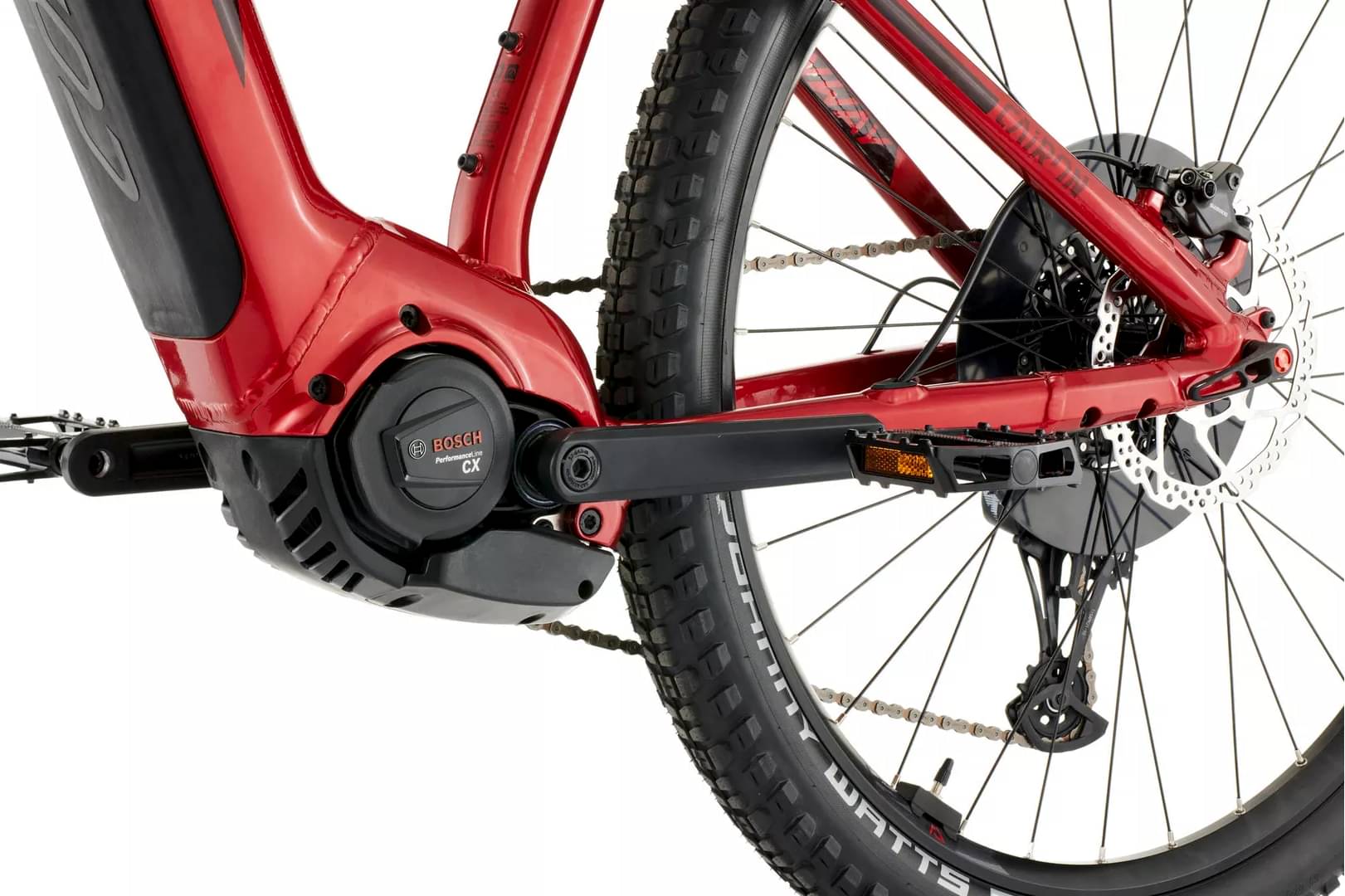

Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3600"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.523 mm | 1.479 mm | 1.406 mm | 1.37 mm |
| Stack | 649 mm | 649 mm | 658 mm | 658 mm | 667 mm |
| Reach | 403 mm | 426 mm | 445 mm | 468 mm | 487 mm |
| Top Tube Length | 585 mm | 600 mm | 620 mm | 640 mm | 660 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
