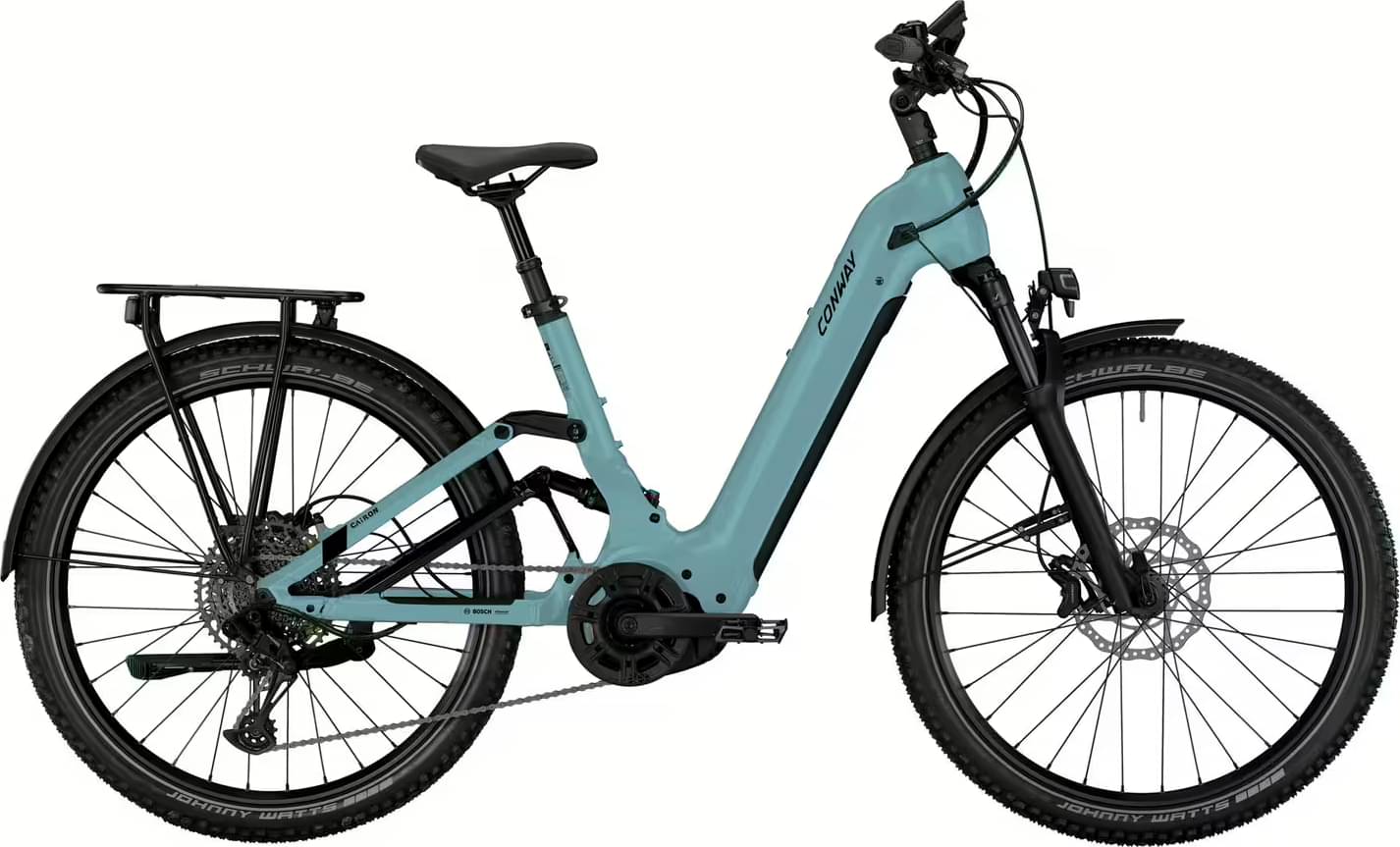

Conway Cairon SUV FS 4.0 wave 2024
2024 E-bike
Estimate price |
5,350$
Weight | 28.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh, horizontal -
Drivetrain 1 × 12 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Wave Fully Bosch, Alu
Suspension Fork
SUNTOUR "Mobie 34", 120 mm
Rear Shock
FOX "Float DPS" 100 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M6100, 12speed
Shift Levers
SHIMANO "Deore SL-M6100"
Cassette
SHIMANO "CS-M6100", 10-51 Z.
Crank
MIRANDA "Classic Gen. 4", 165 mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-527"
Wheels
Front Hub
SHIMANO "HB-TC500", 15 x 110 mm
Rear Hub
SHIMANO "FH-TC500", 12 x 148 mm
Rims
RODI "TRYP 30"
Spokes
MACH 1 "PRO"
Tires
SCHWALBE "Smart Sam", 60-584, Reflex
Brakes
Brakes
TEKTRO "HD-M530", 4/2-Kolben
Brake Levers
TEKTRO "HD-M530"
Cockpit
Stem
LEVEL 9 "Adjustable", 31,8mm, 65mm
Handlebar
LEVEL 9 "Low Riser", 31,8, 720 mm
Grips
CONTEC "MERGE Mountain Comfort"
Headset
ZS56 / ZS56, Block Lock
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Damen
Seatpost
LIMOTEC "D1", 30,9 mm, 75 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh, horizontal
Remote
BOSCH "BRC3600"
Charger
Bosch 2 A, BES3
Fit data
Geometry
