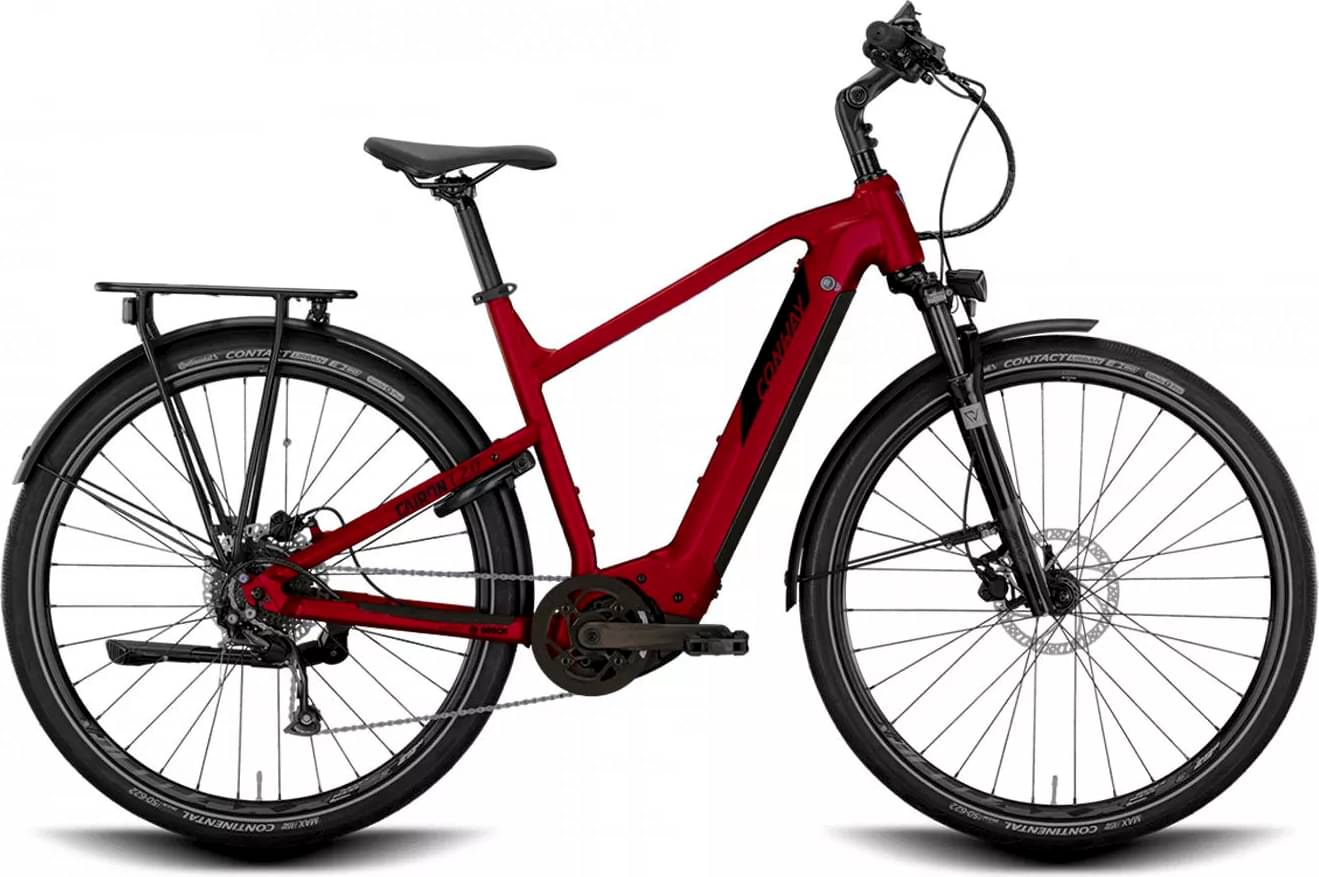

Conway Cairon T 2.0 625 diamond 2022
2022 E-bike
Estimate price |
3,497$
Weight | 27.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork RST BLAZE
-
Groupset Tektro EDRIVE 9, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
RST "Blaze ML", 80 mm
Drivetrain
Rear Derailleur
TEKTRO "RD-M350", 9speed
Shift Levers
TEKTRO "SL-M350R"
Cassette
TEKTRO "CS-M350", 11-46 Z.
Crank
FSA "CK-200", 170 mm
Bottom Bracket
BOSCH
Pedals
Marwie "SP 827"
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "FH-TX505" QR
Rims
CONWAY Hohlkammer "X17", Disc
Spokes
Niro
Tires
CONTINENTAL "Contact Urban", 50-622, Reflex
Brakes
Brakes
TEKTRO "HD-T280"
Brake Levers
TEKTRO "HD-T280"
Cockpit
Stem
HUMPERT "Ergotec Octopus", Adjustable, 90 mm
Handlebar
HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
Grips
CONWAY "Sport"
Headset
ZS44 / ZS56, Reduzierkonus
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", He
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Charger
Bosch 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.648 mm | 1.595 mm | 1.615 mm | 1.565 mm |
| Stack | 628 mm | 630 mm | 651 mm | 651 mm |
| Reach | 381 mm | 395 mm | 403 mm | 416 mm |
| Top Tube Length | 570 mm | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 130 mm | 150 mm | 150 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
