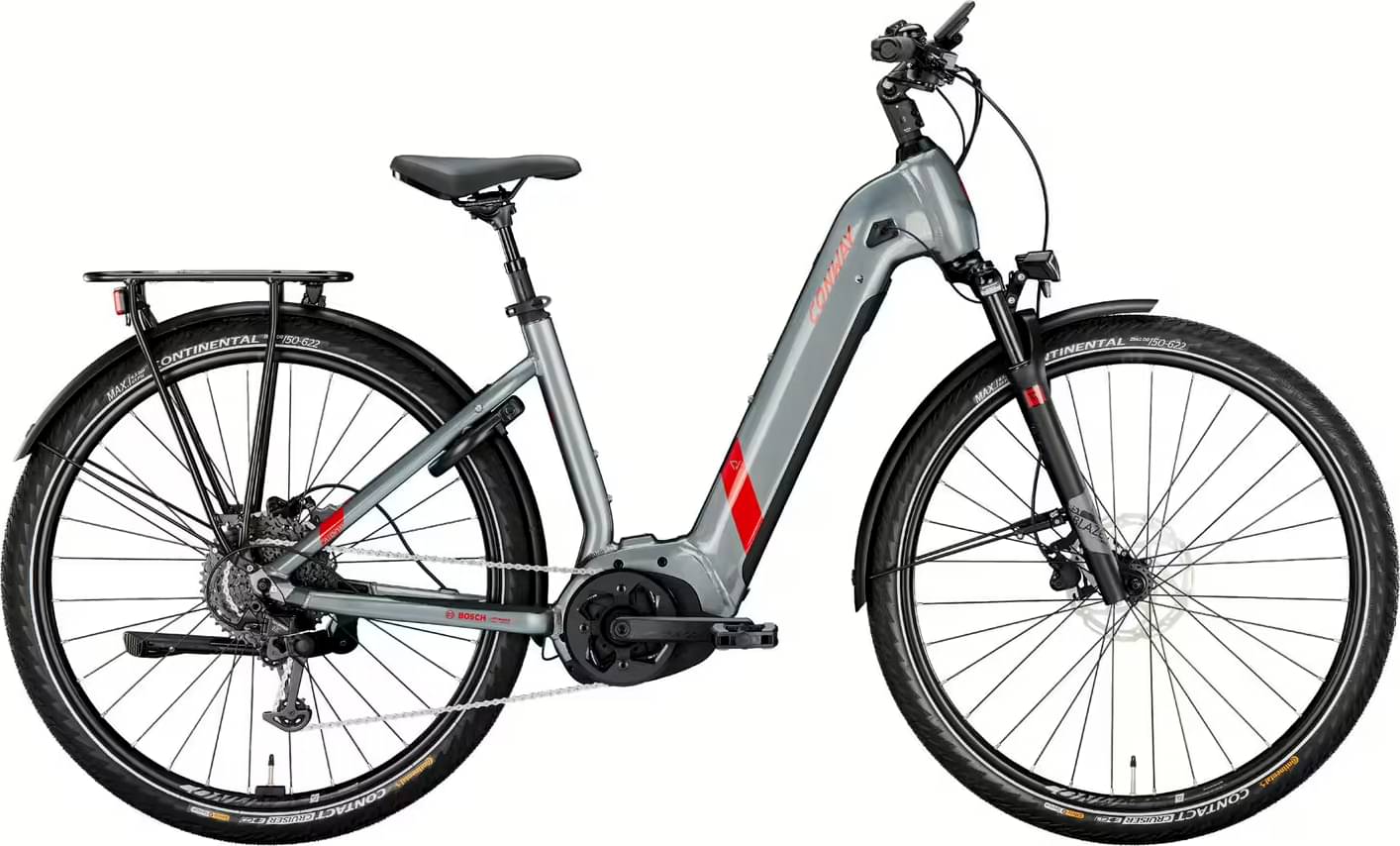

Conway Cairon T 2.0 625 SE wave 2024
2024 E-bike
Weight | 28.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork RST BLAZE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh, horizontal -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
RST "Blaze ML", 80 mm
Drivetrain
Rear Derailleur
SHIMANO "Cues RD-U4000", 9-speed
Shift Levers
SHIMANO "CUES SL-U4000-9R"
Cassette
SHIMANO "CS-LG300-9", 11-46 Z.
Crank
MIRANDA "Classic Gen3", 165 mm
Bottom Bracket
BOSCH
Chain Guide
HESLING "Move"
Pedals
Marwi "SP 827"
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "FH-TX505" QR
Rims
RODI "Blackrock 25"
Spokes
MACH 1
Tires
CONTINENTAL "Contact Cruiser", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200"
Brake Levers
SHIMANO "BL-MT200"
Cockpit
Stem
LEVEL 9 "Adjustable", 65mm
Handlebar
LEVEL 9 "Low Riser", 31,8, 720 mm
Grips
HERRMANS "DD37"
Headset
ZS56 / ZS56, Blocklock
Seat
Saddle
SELLE ROYAL "Vivo Moderat Ergo", Da
Seatpost
HUMPERT "Ergotec SP10", 350 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh, horizontal
Remote
BOSCH "BRC3600"
Charger
Bosch 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Top Tube Length | 560 mm | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 67 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 150 mm | 150 mm | 170 mm | 170 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
