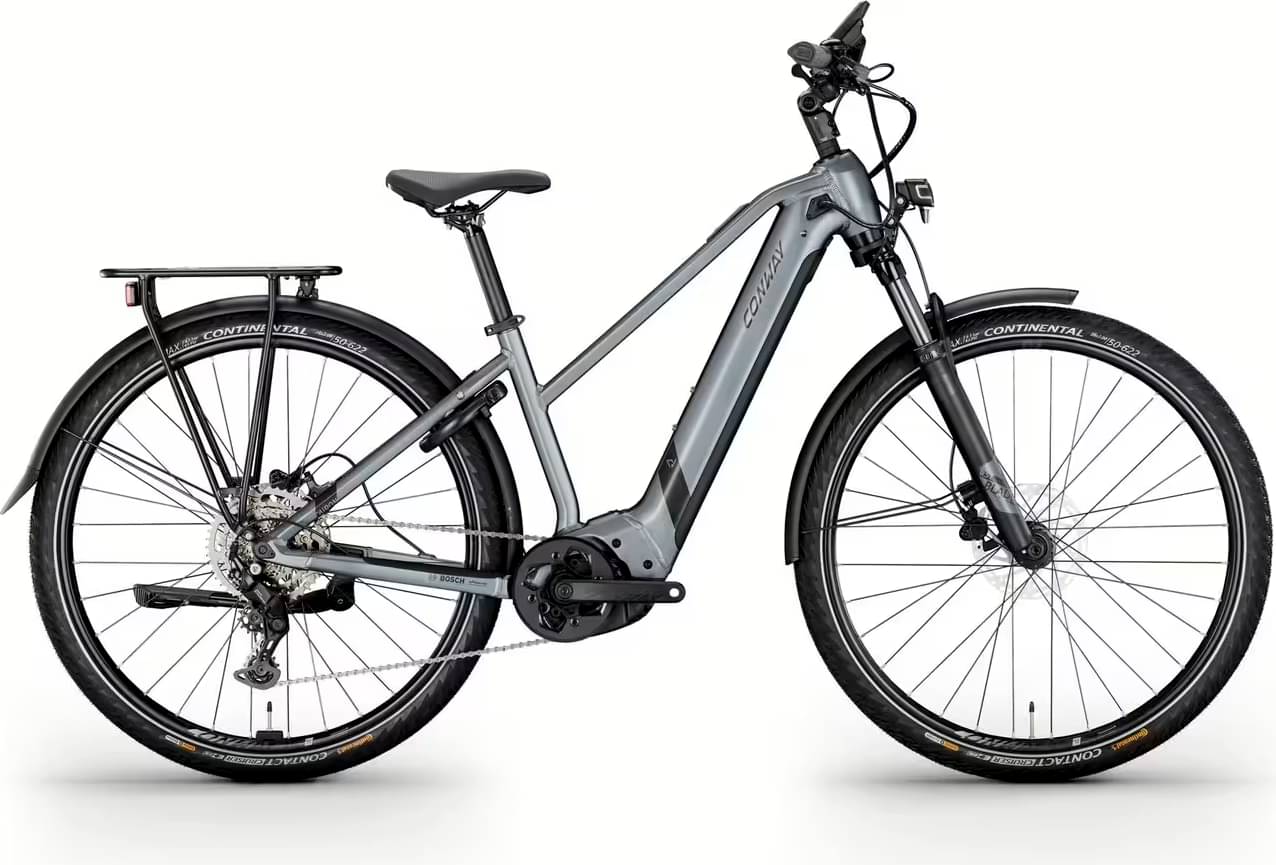

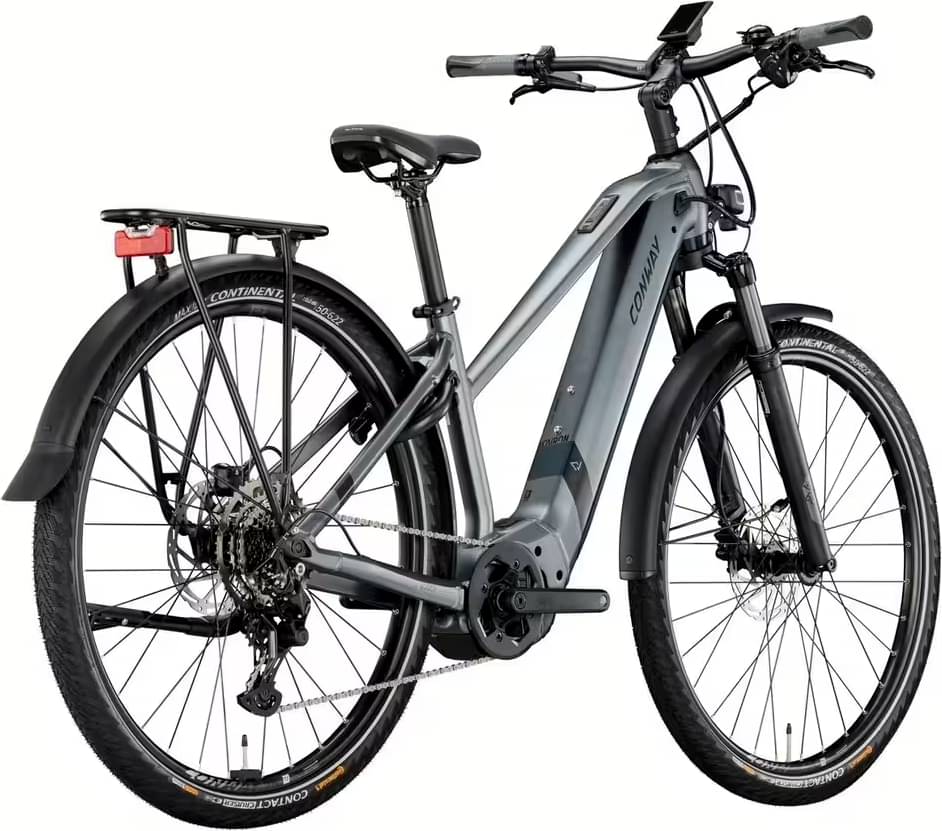

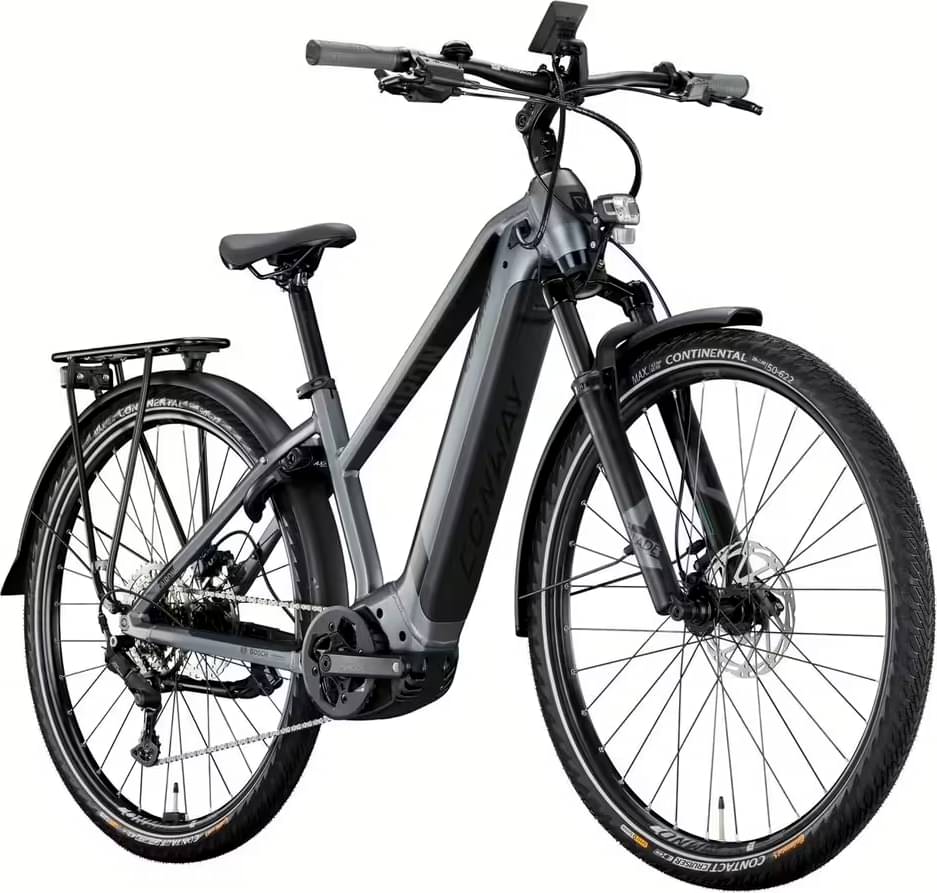

Conway Cairon T 3.0 750 SE trapeze 2024
2024 E-bike
Weight | 27.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RST BLADE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh, horizontal -
Drivetrain 1 × 9 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
RST "Blade Coil", 100 mm
Drivetrain
Rear Derailleur
SHIMANO "Cues RD-U4000", 9-speed
Shift Levers
SHIMANO "CUES SL-U4000-9R"
Cassette
SHIMANO "CS-LG300-9", 11-46 Z.
Crank
MIRANDA "Classic Gen4", 165 mm
Bottom Bracket
BOSCH
Chain Guide
HESLING "Move"
Pedals
Marwi "SP 827"
Wheels
Front Hub
FORMULA "DC 511", 15 x 110 mm
Rear Hub
FORMULA "eHL-148 S", 12 x 148 mm
Rims
RODI "Blackrock 25"
Spokes
MACH 1
Tires
CONTINENTAL "Contact Cruiser", 50-622, Reflex
Brakes
Brakes
TEKTRO "HD-T280"
Brake Levers
TEKTRO "HD-T280"
Cockpit
Stem
LEVEL 9 "Adjustable", 65 mm
Handlebar
LEVEL 9 "Low Riser", 31,8, 720 mm
Grips
CONTEC "MERGE Mountain Comfort"
Headset
ZS56 / ZS56, 20mm Stack
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Da
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh, horizontal
Remote
BOSCH "BRC3300"
Charger
Bosch 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.582 mm | 1.523 mm | 1.479 mm | 1.406 mm |
| Stack | 647 mm | 649 mm | 658 mm | 658 mm |
| Reach | 409 mm | 426 mm | 445 mm | 468 mm |
| Top Tube Length | 585 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
