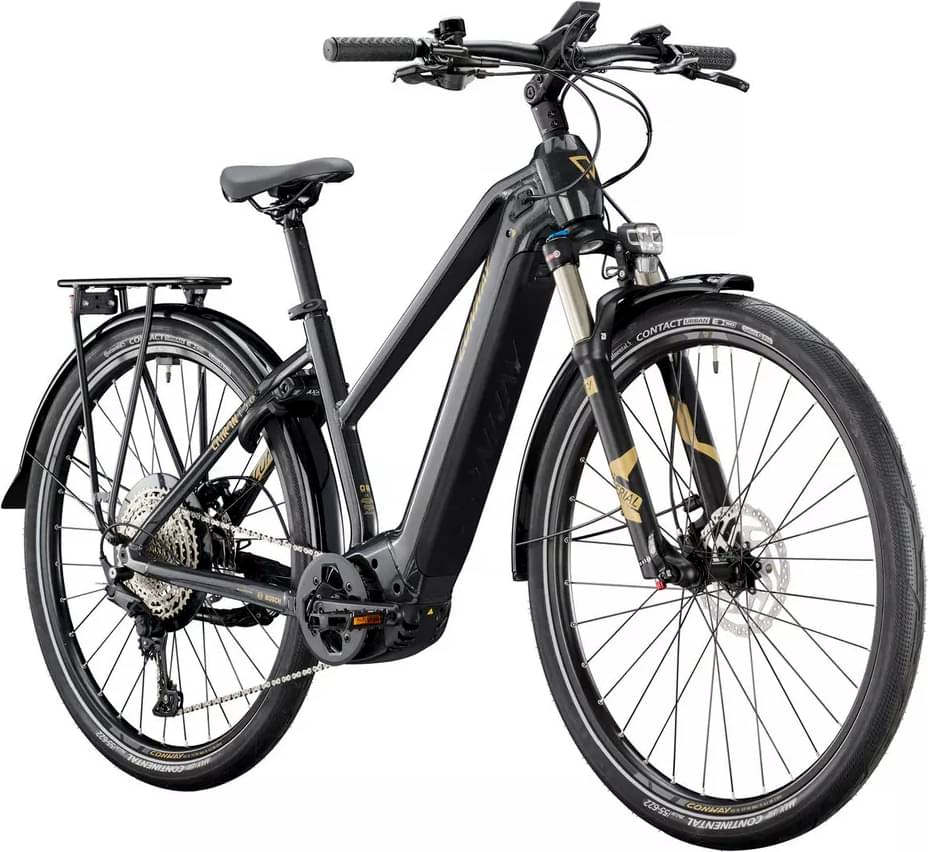

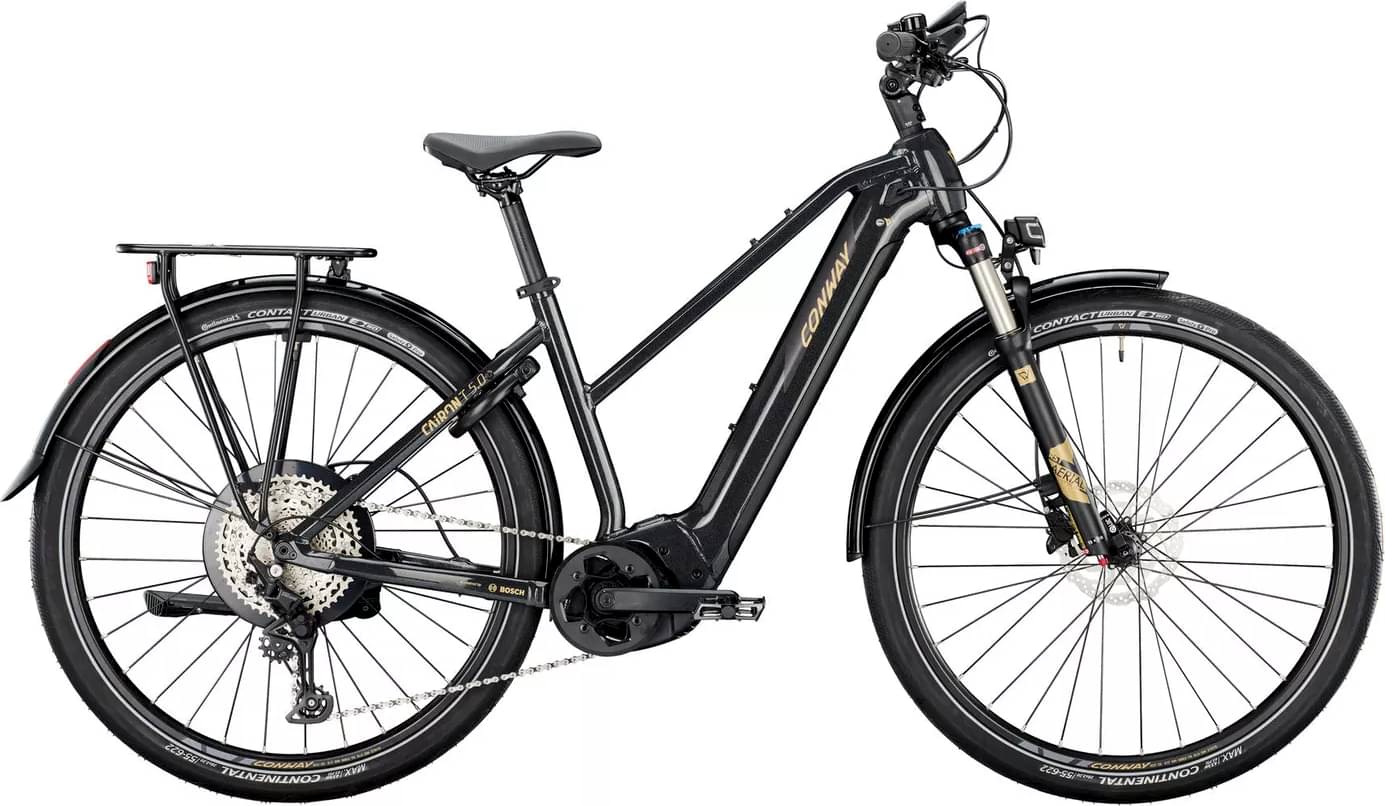

Conway Cairon T 5.0 trapeze 2022
2022 E-bike
Estimate price |
4,472$
Weight | 27.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork RST AERIAL
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
RST "Aerial Air TNL", 100 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M5100 Shadow Plus", 11speed
Shift Levers
SHIMANO "Deore SL-M5100"
Cassette
SHIMANO "CS-M5100", 11-42 Z.
Crank
MIRANDA "PSI", 170 mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-506"
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110mm
Rear Hub
SHIMANO "FH-MT400B", 12x148 mm
Rims
CONWAY Hohlkammer "X17", Disc
Spokes
Niro
Tires
CONTINENTAL "Contact Urban", 55-622, Reflex
Brakes
Brakes
TEKTRO "HD-T280"
Brake Levers
TEKTRO "HD-T280"
Cockpit
Stem
LEVEL 9 "Adjustable", 65 mm
Handlebar
LEVEL 9 "Low Riser", Ø 31,8, 720 mm
Grips
CONWAY "Sport"
Headset
ZS56 / ZS56, 20mm Stack
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Da
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3600"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.582 mm | 1.523 mm | 1.479 mm | 1.406 mm |
| Stack | 647 mm | 649 mm | 658 mm | 658 mm |
| Reach | 409 mm | 426 mm | 445 mm | 468 mm |
| Top Tube Length | 585 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
