Conway Cairon T 6.0 wave 2024
2024 E-bike
Estimate price |
5,390$
Weight | 28.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork RockShox Recon Silver RL
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
ROCKSHOX "Recon Silver RL", 80 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore XT RD-M8130 Shadow Plus", 11speed
Shift Levers
SHIMANO "Deore XT SL-M8130"
Cassette
SHIMANO "CS-LG600", 11-50 Z.
Crank
MIRANDA "Classic Gen4", 165 mm
Bottom Bracket
BOSCH
Chain Guide
HESLING “Move”
Pedals
VP "VPE-506"
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110mm
Rear Hub
SHIMANO "FH-MT400B", 12x148 mm
Rims
MACH1 "MAXX"
Spokes
Niro
Tires
CONTINENTAL "Contact Cruiser", 50-622, Reflex
Brakes
Brakes
SHIMANO "Deore BR-M6120", "Deore BR-M6100"
Brake Levers
SHIMANO "Deore BL-M6100"
Cockpit
Stem
LEVEL 9 "Adjustable", 65 mm
Handlebar
LEVEL 9 "Trekking", Ø 31,8, 660 mm
Grips
CONTEC "MERGE Mountain Comfort"
Headset
ZS56 / ZS56, Blocklock
Seat
Saddle
SELLE ROYAL "Vivo Moderat Ergo", Da
Seatpost
HUMPERT "Ergotec SP10", 350 mm
Motor & Battery
Motor

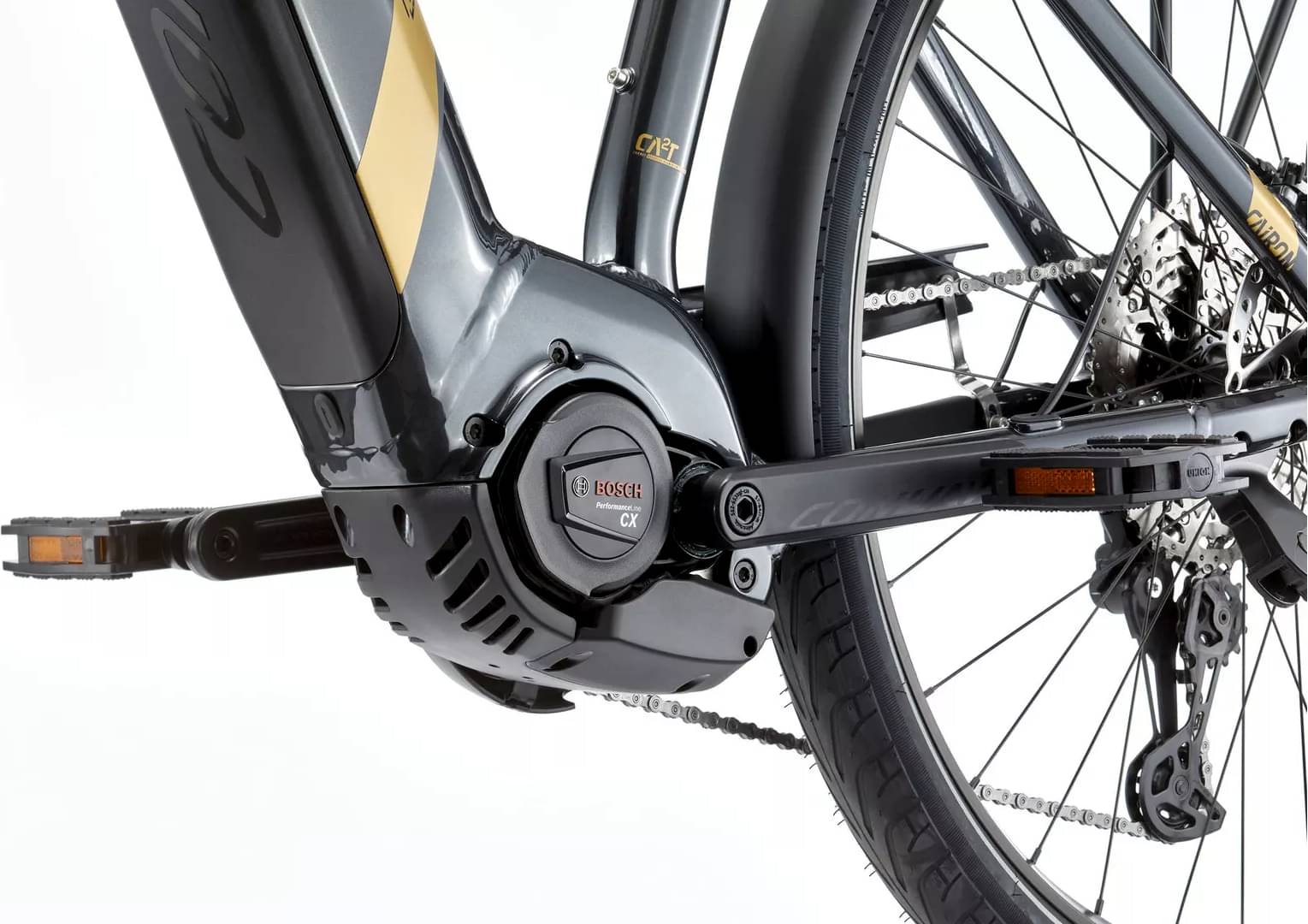

BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3600"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.694 mm | 1.627 mm | 1.586 mm | 1.515 mm |
| Stack | 671 mm | 675 mm | 685 mm | 685 mm |
| Reach | 396 mm | 415 mm | 432 mm | 452 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 165 mm | 150 mm | 160 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
