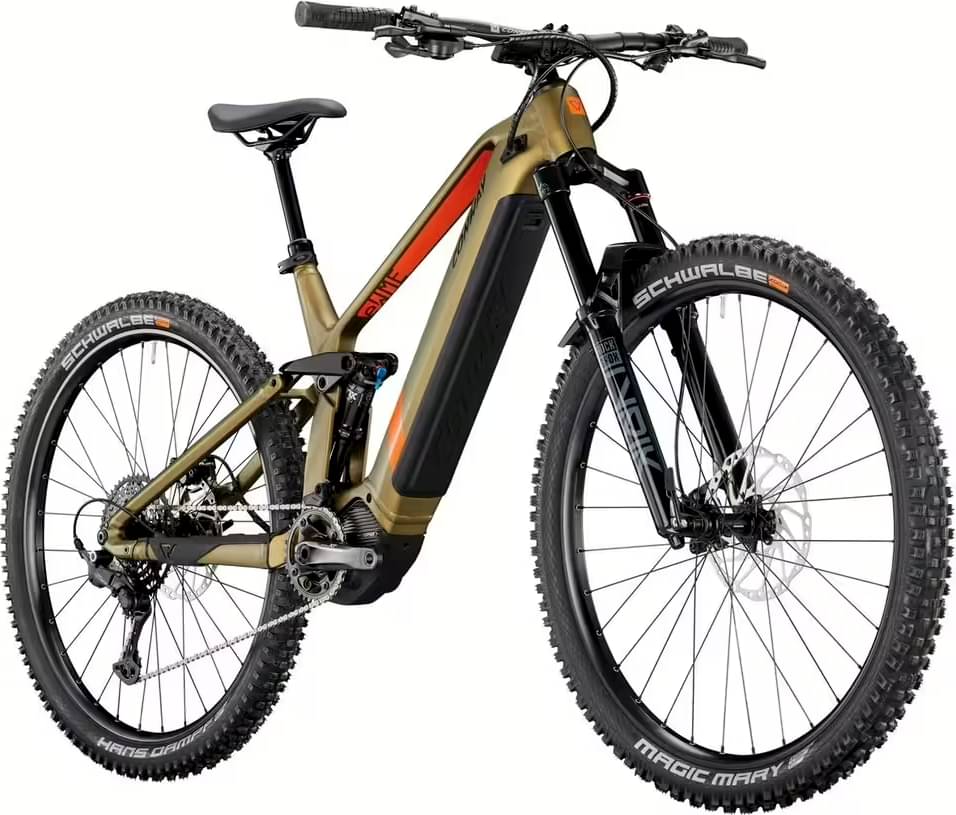

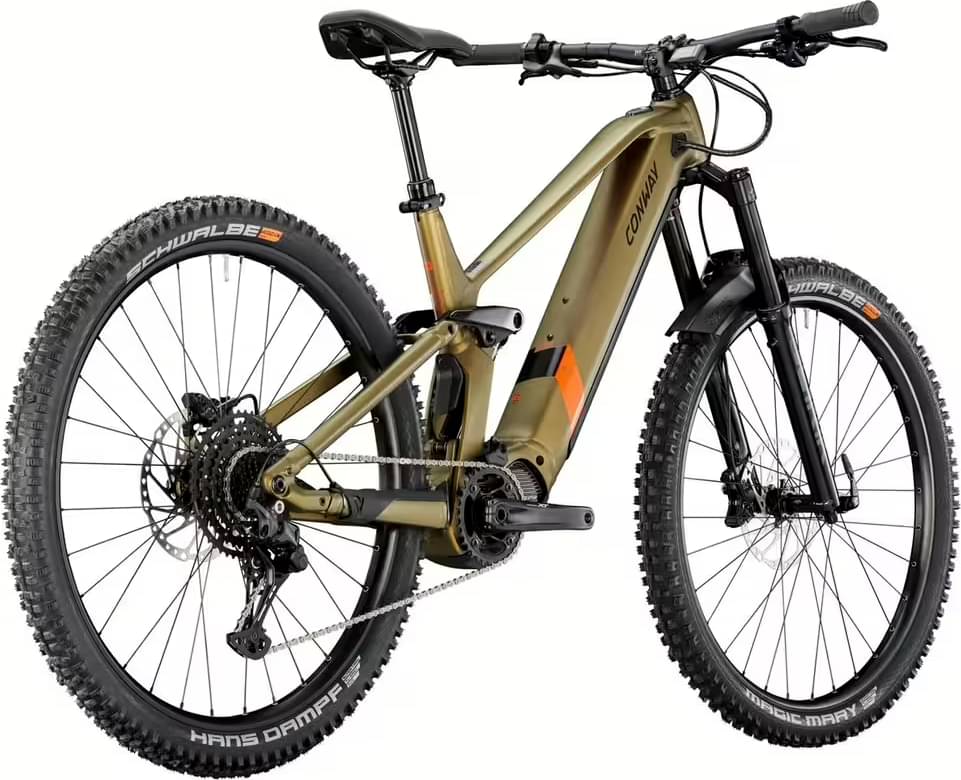

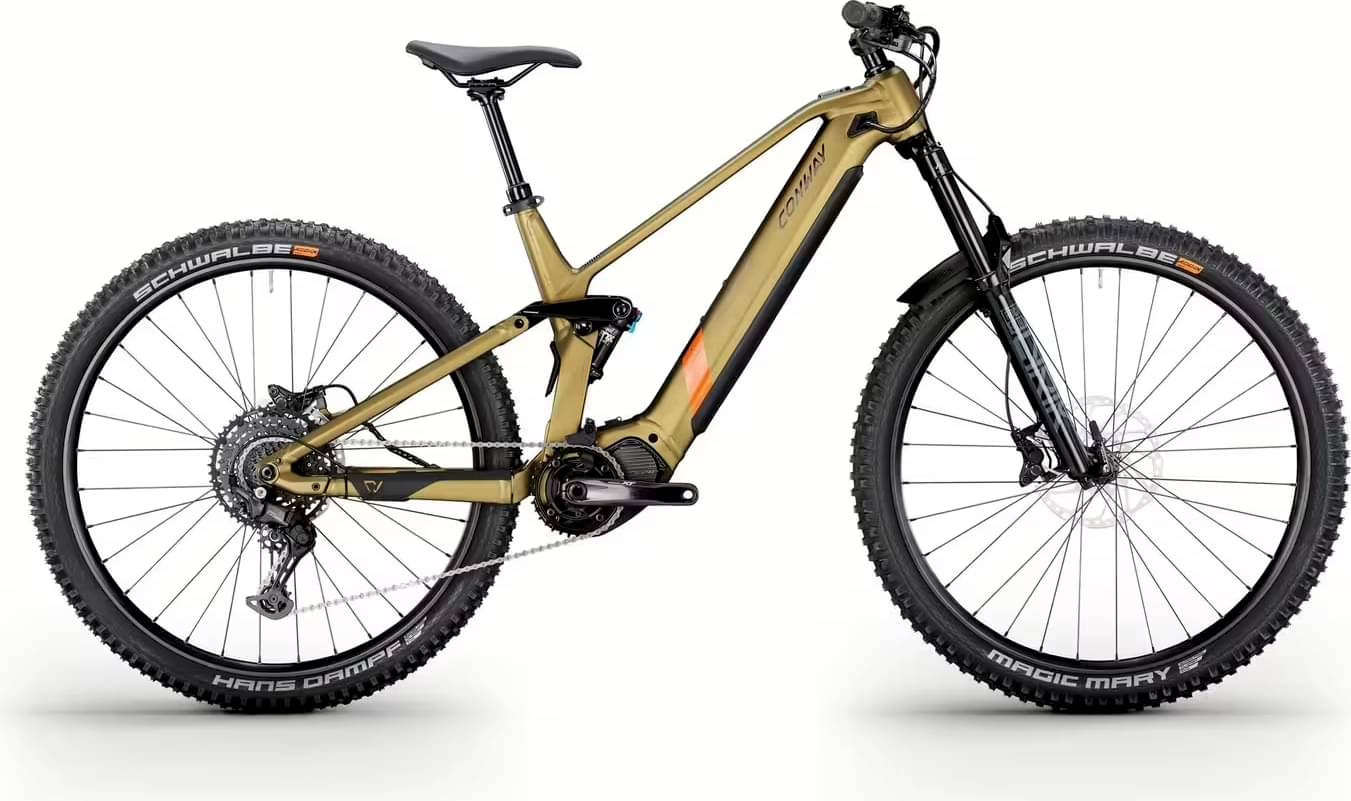

Conway eWME 2.0 Full Suspension 2024
2024 E-bike
Estimate price |
4,587$
Weight | 25.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 155mm -
Fork RockShox Lyrik
-
Groupset XT, CUES -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon "Intube 720", Lithium-Ionen mit BMS, 720 Wh -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Intube EP8, Alu
Suspension Fork
ROCKSHOX "Lyrik Base", 160 mm

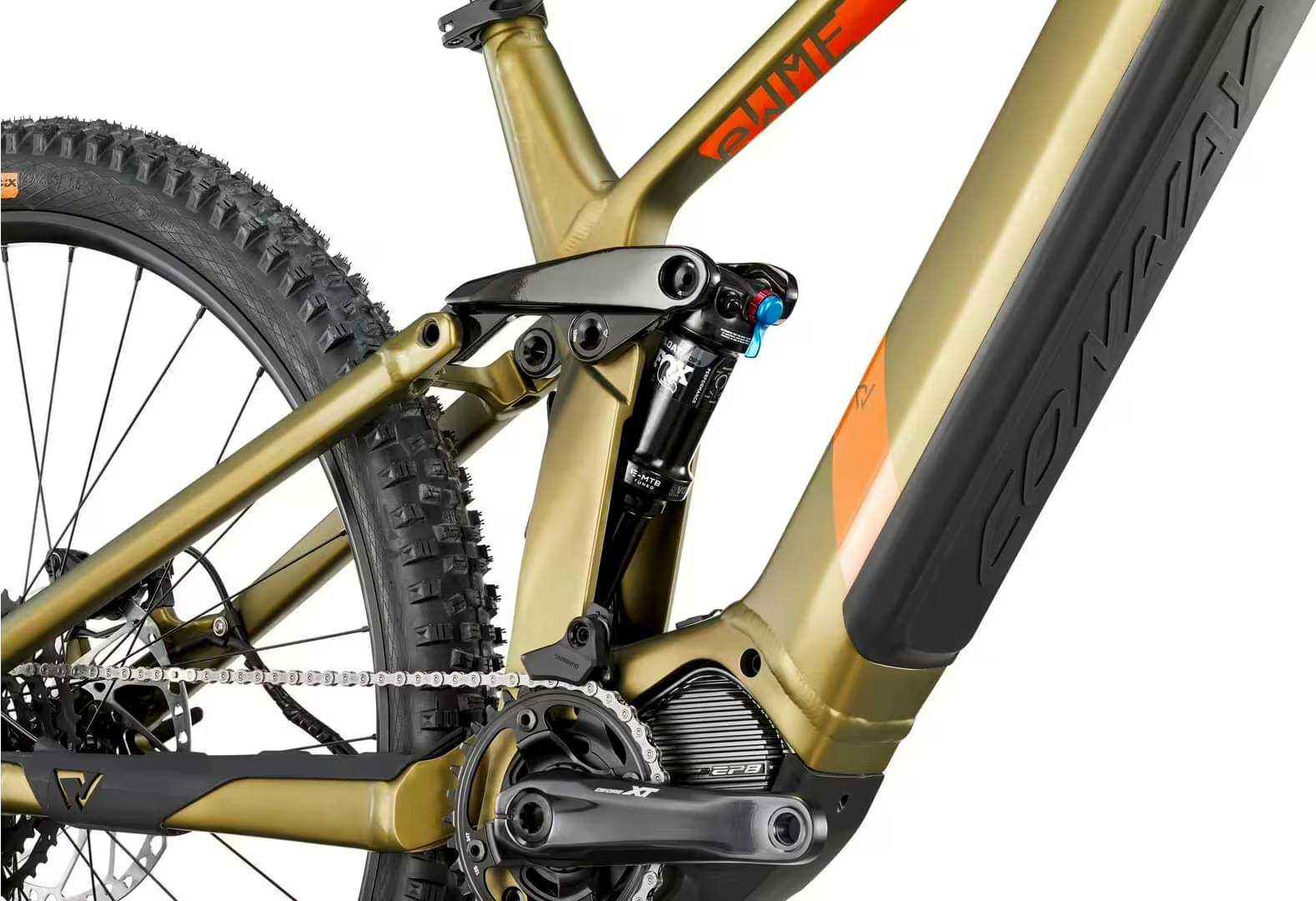

Rear Shock
FOX "Float DPS" 155 mm
Drivetrain
Rear Derailleur
SHIMANO "Cues RD-U6000", 10speed
Shift Levers
SHIMANO " Cues SL-U6000-10R"
Cassette
SHIMANO "CS-LG300", 11-48 Z.
Crank
SHIMANO "Deore XT FC-M8150", 165 mm
Bottom Bracket
SHIMANO
Wheels
Front Hub
SHIMANO "HB-TC500", 15 x 110 mm
Rear Hub
SHIMANO "FH-TC500", 12 x 148 mm
Rims
VELOTEC "VR21", 30 mm
Spokes
MACH 1 "PRO"
Tires
SCHWALBE "Magic Mary" 62-622
Brakes
Brakes
SHIMANO "BR-MT420", 4-Kolben
Brake Levers
SHIMANO "BL-M4100"

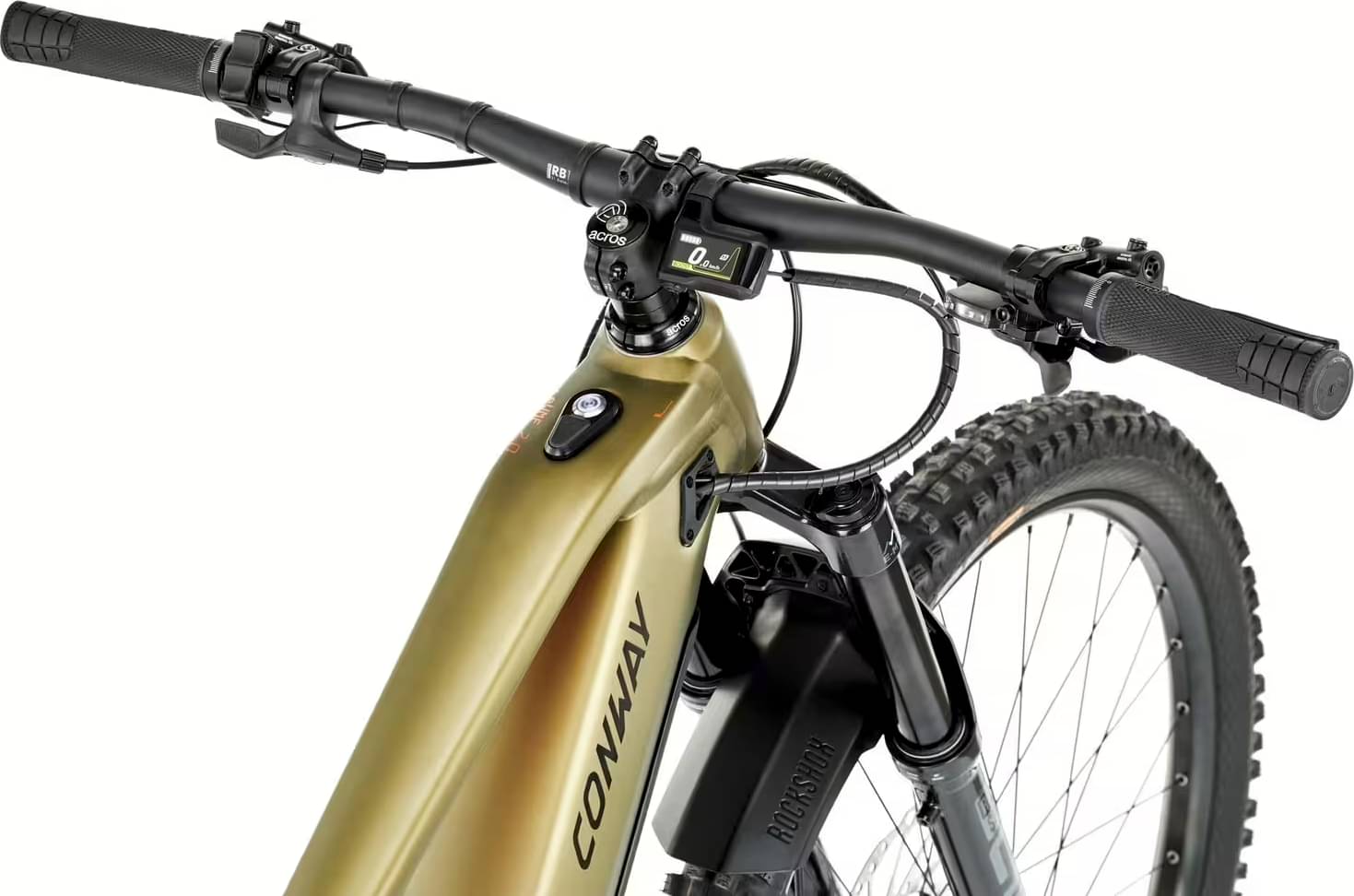

Cockpit
Stem
LEVEL 9, "Race A-Head", 31,8 mm, 35 mm
Handlebar
LEVEL 9 "Low Riser", 31,8, 780 mm
Grips
SQLAB "70X"
Headset
ZS44 / ZS56, Blocklock
Seat
Saddle
SELLE ROYAL "2315"
Seatpost
LIMOTEC "D1", 31,6 mm, 100 mm
Motor & Battery

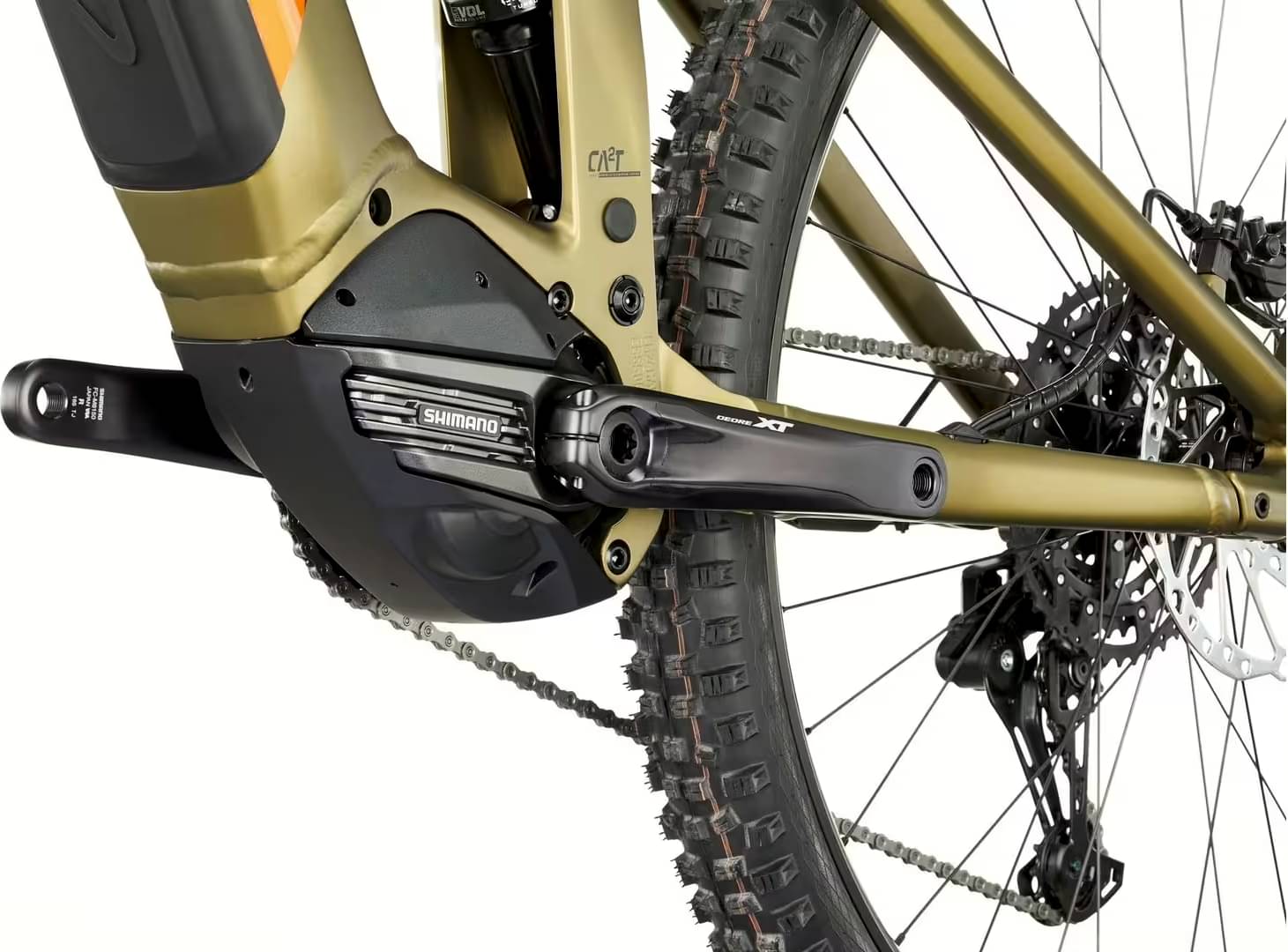

Motor
SHIMANO Mittelmotor "EP800", 250 W Nenn-Dauerleistung
Battery
Darfon "Intube 720", Lithium-Ionen mit BMS, 720 Wh
Remote
SHIMANO "SW-EM800"
Charger
Darfon 4-5,6 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.454 mm | 1.389 mm | 1.352 mm | 1.317 mm |
| Stack | 628 mm | 628 mm | 638 mm | 648 mm |
| Reach | 432 mm | 452 mm | 472 mm | 492 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
