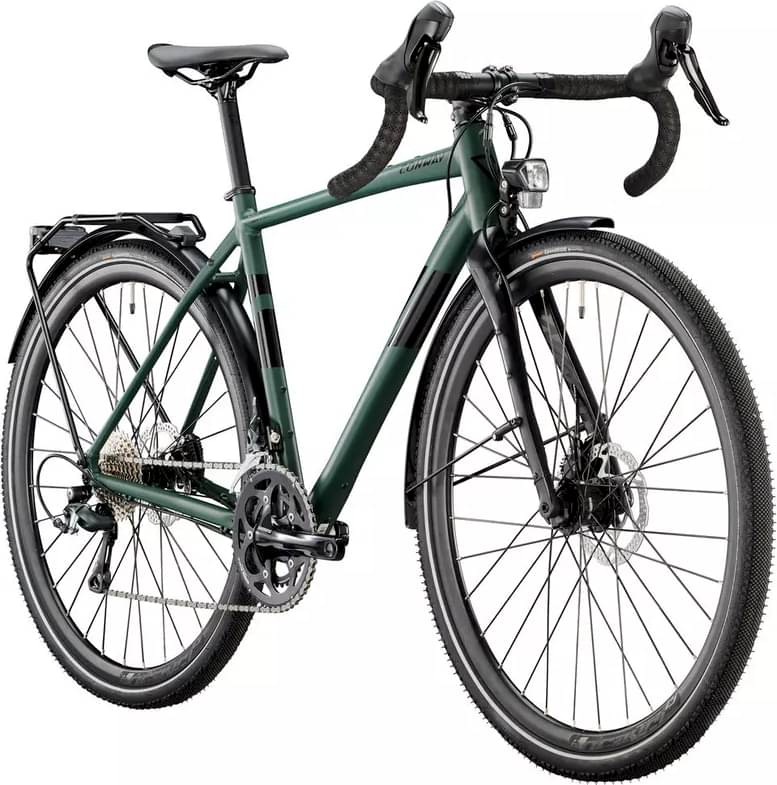

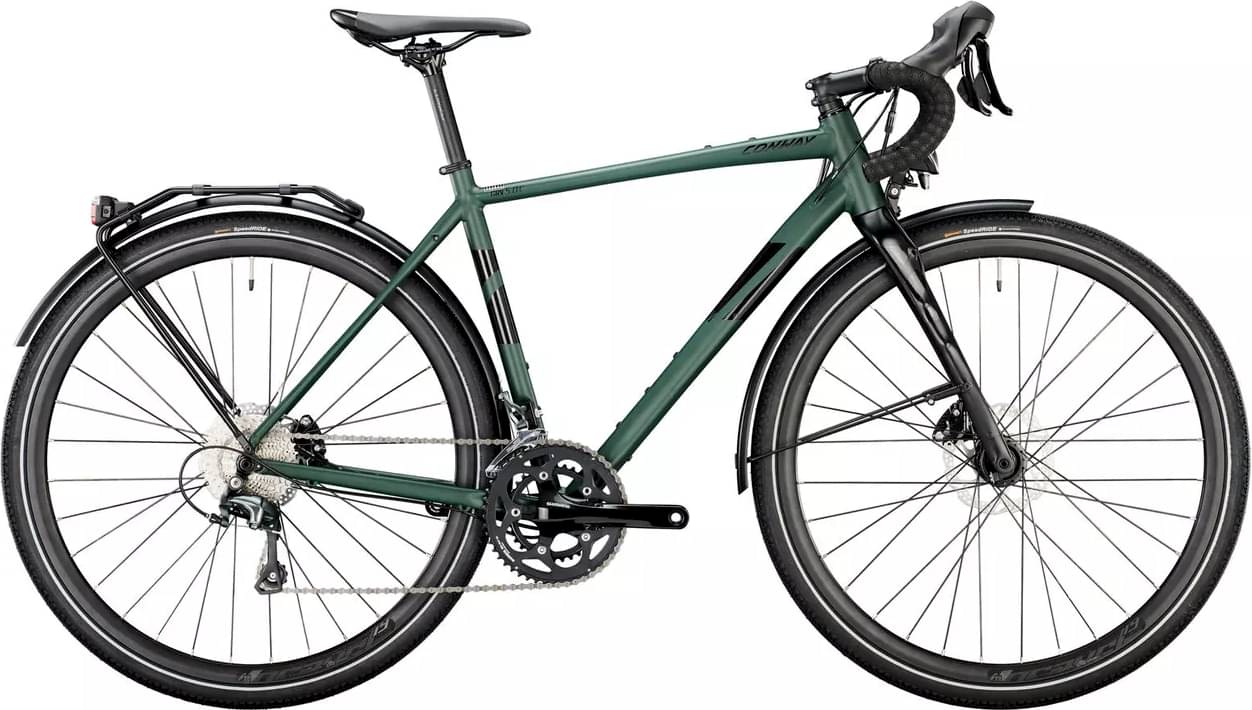

Conway GRV 5.0 C Gravel Bike 2024
2024 Road
Estimate price |
2,093$
Weight | 12.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Gravel, Alu Light
Suspension Fork
CARBON "Disc"

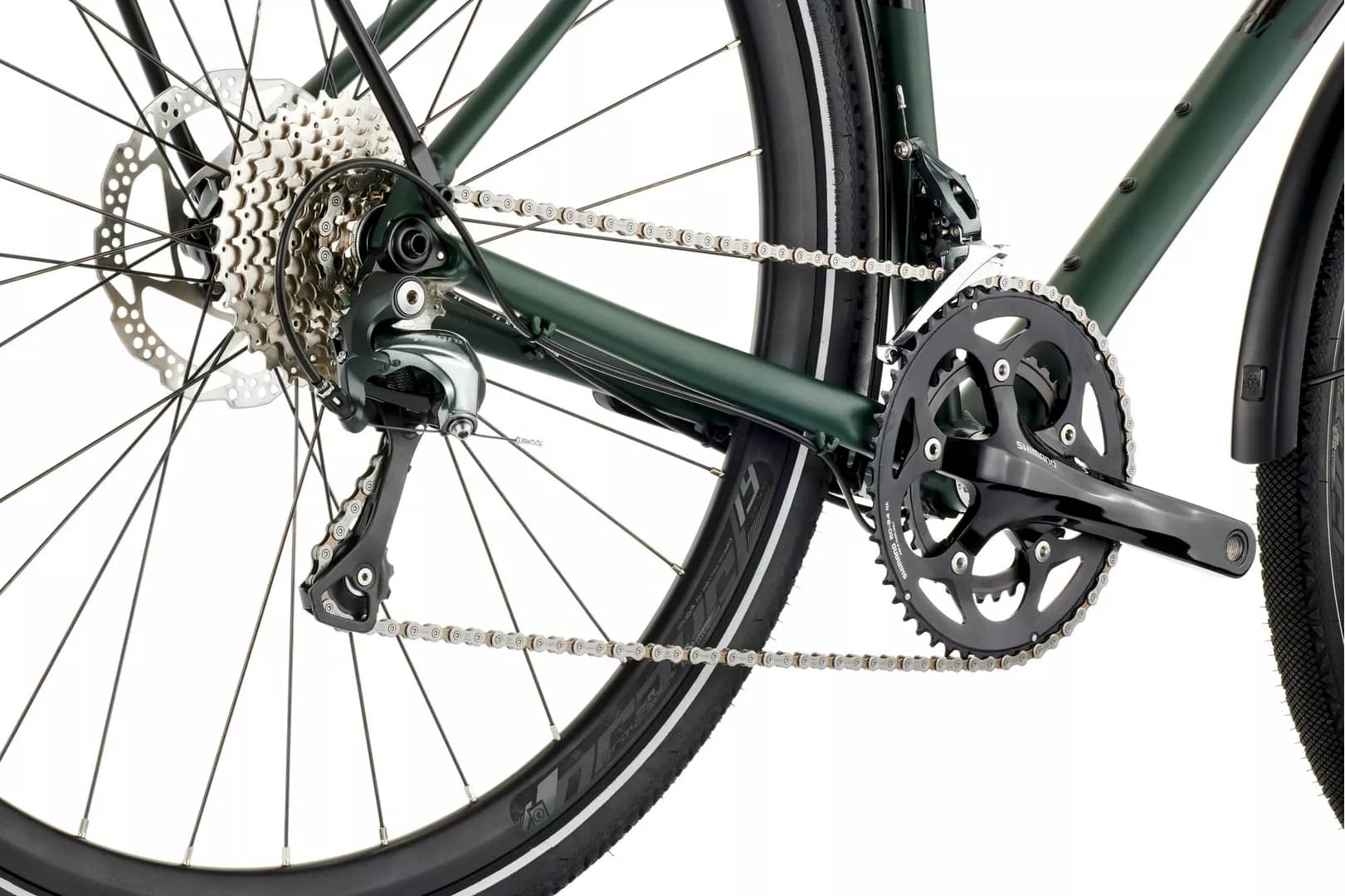

Drivetrain
Rear Derailleur
SHIMANO "Tiagra RD-4700", 10speed
Front Derailleur
SHIMANO "Tiagra FD-4700"
Shift Levers
SHIMANO "Tiagra ST-4720"
Cassette
SHIMANO "HG500", 11-34 Z.
Crank
SHIMANO "FC-RS400", 34/50 Z. 170mm
Bottom Bracket
SHIMANO "BSA"
Wheels
Front Hub
SHIMANO "DH-UR705",12 x 100mm
Rear Hub
SHIMANO "FH-RS470", 12 x 142 mm
Rims
MACH1 "Gravel 19"
Spokes
Niro
Tires
CONTINENTAL "Speed Ride", 42-622, Reflex
Brakes
Brakes
SHIMANO "Tiagra BR-4770"
Brake Levers
SHIMANO "Tiagra ST-4720"

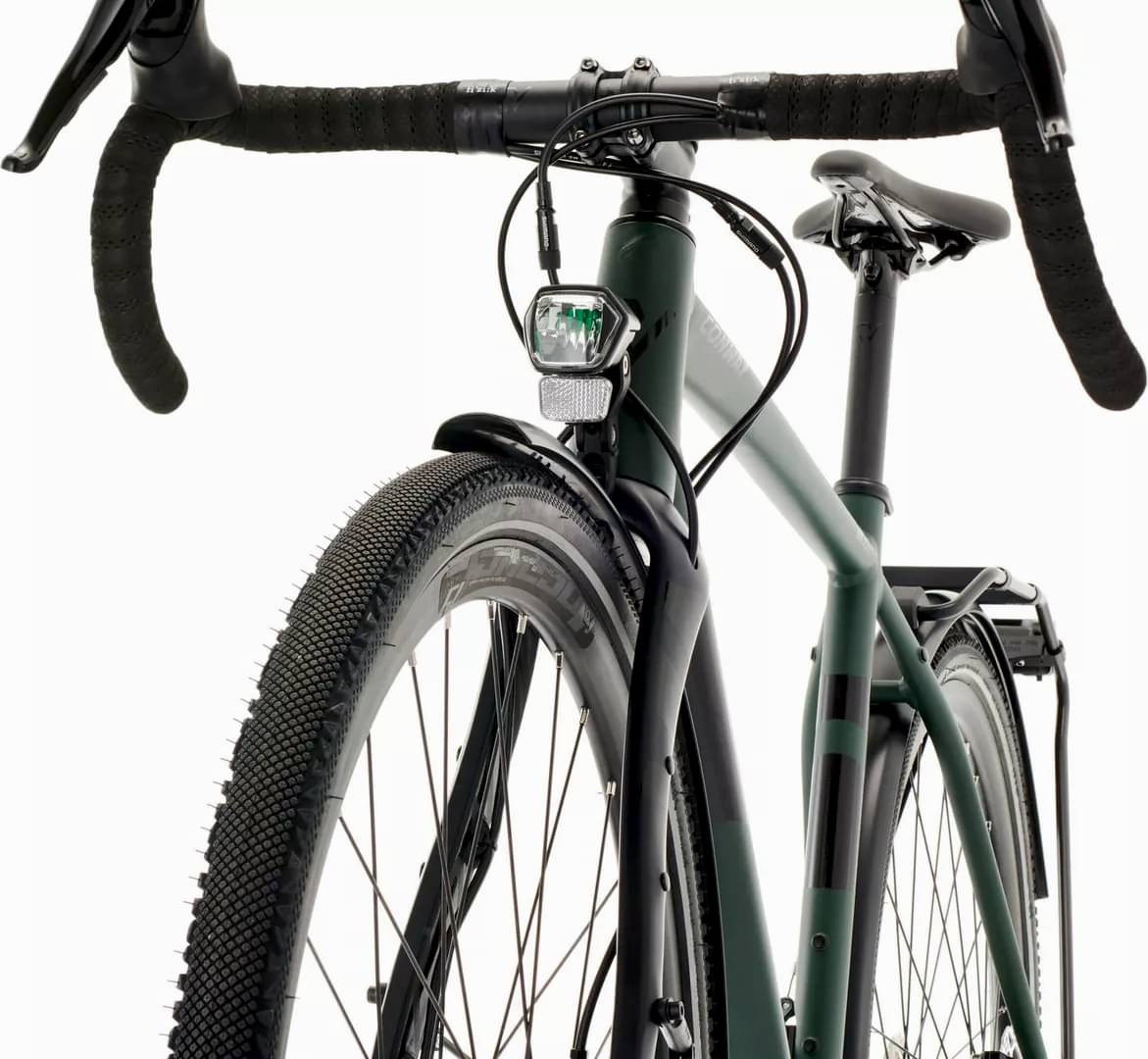

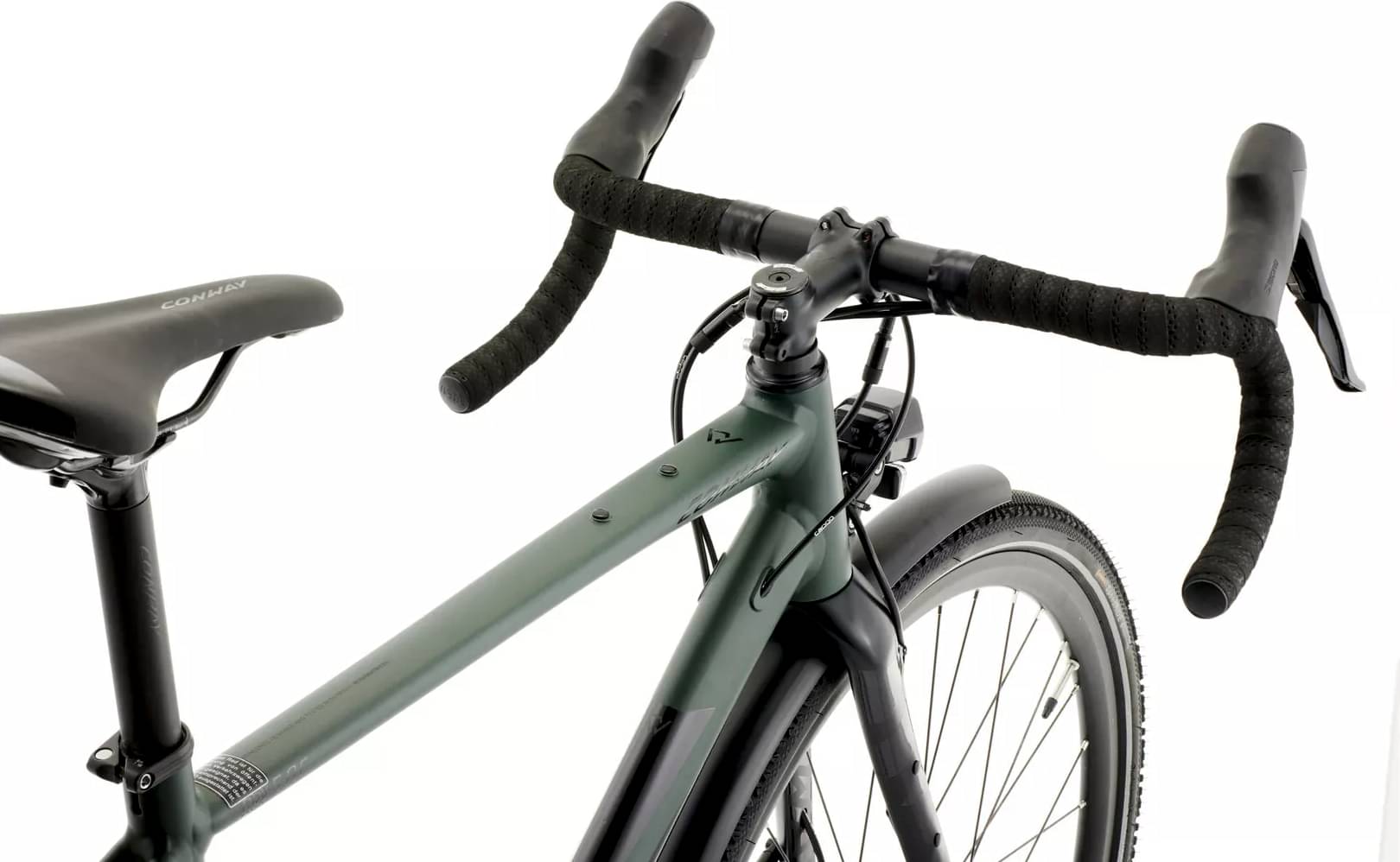

Cockpit
Stem
CONWAY "GRV A-Head 80", 31,8mm
Handlebar
CONWAY "GRV Bar 400"
Grips
FIZIK "Bar Tape"
Headset
IS42 / IS52
Seat
Saddle
SELLE ROYAL "1220"
Seatpost
CONWAY Patent, 27,2 mm, 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.456 mm | 1.433 mm | 1.448 mm | 1.45 mm |
| Stack | 549 mm | 563 mm | 588 mm | 609 mm |
| Reach | 377 mm | 393 mm | 406 mm | 420 mm |
| Top Tube Length | 535 mm | 555 mm | 575 mm | 595 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 145 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
