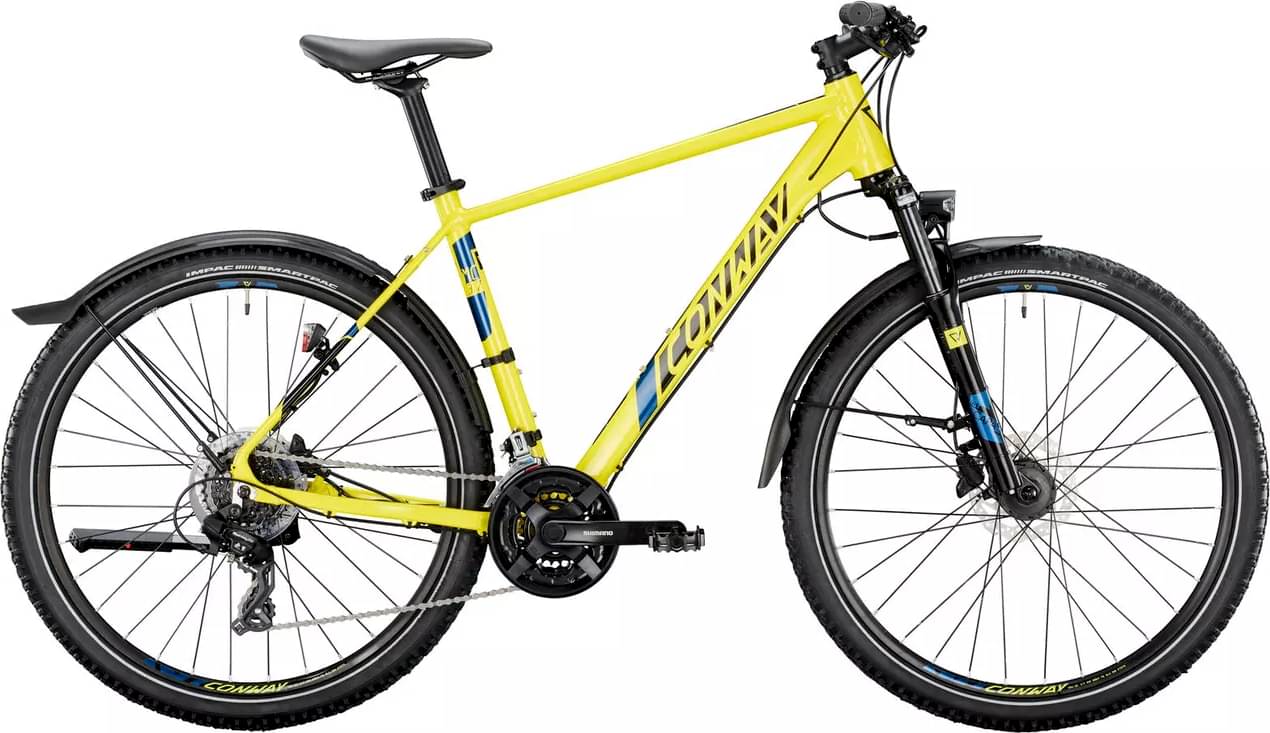

Conway MC 3.7 Hardtail 2022

2022 Mountain
Estimate price | 813$
Weight | 15.7 kg
Open compare Use advisor
Conway Mc 3.7 Hardtail 2022

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 27.5"
  • Travel Front 100mm
  • Fork RST GILA
  • Groupset Tourney, Altus
  • Suspension Hardtail
  • Drivetrain 3 × 7
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • XS

    151cm - 164cm

  • SM

    159cm - 170cm

  • MD

    165cm - 177cm

  • LG

    171cm - 184cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

CONWAY, Alu

Suspension Fork

RST "Gila", 100 mm

Drivetrain

Rear Derailleur

SHIMANO "RD-TX800", 7speed

Front Derailleur

SHIMANO "Altus FD-M313"

Shift Levers

SHIMANO "SL-M315"

Cassette

SHIMANO "CS-HG200", 12-32 Z.

Crank

SHIMANO "FC-TY301", 24/34/42 Z. 170 mm

Bottom Bracket

SHIMANO "BB-UN100"

Pedals

Welgo "C280DU" 1-piece

Wheels

Front Hub

SHIMANO Nabendynamo "DH3D37", QR

Rear Hub

SHIMANO "FH-TX505" QR

Rims

CONWAY Hohlkammer

Spokes

Stahl schwarz

Tires

IMPAC "Smartpac", 54-584, Reflex

Brakes

Brakes

TEKTRO "HD-M275"

Brake Levers

TEKTRO "HD-M275"

Cockpit

Stem

CONWAY, 31,8, 50 mm

Handlebar

CONWAY Riser, Ø 31,8, 720 mm

Grips

CONWAY "Sport"

Headset

ZS44 / ZS56, Reduzierkonus

Seat

Saddle

SELLE ROYAL "Vivo Athletic Ergo", He

Seatpost

CONWAY Patent, 31,6 mm, 300 mm

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLG
Stack Reach Ratio
1.546 mm1.531 mm1.519 mm1.479 mm
Stack
589 mm600 mm612 mm621 mm
Reach
381 mm392 mm403 mm420 mm
Top Tube Length
550 mm570 mm590 mm610 mm
Seat Tube Angle
74 °74 °73 °73 °
Seat Tube Length
355 mm406 mm457 mm508 mm
Head Tube Angle
70 °71 °71 °71 °
Head Tube Length
110 mm120 mm130 mm140 mm
Chainstay Length
435 mm435 mm435 mm435 mm
Wheelbase
715 mm753 mm789 mm823 mm
Wheels27"27"27"27"
Rider Min Height151 cm159 cm165 cm171 cm
Rider Max Height164 cm170 cm177 cm184 cm
