Conway MS 6.9 Hardtail 2024
2024 Mountain
Estimate price |
1,046$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST BLAZE
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY, Alu
Suspension Fork
RST "Blaze RLO" 100 mm

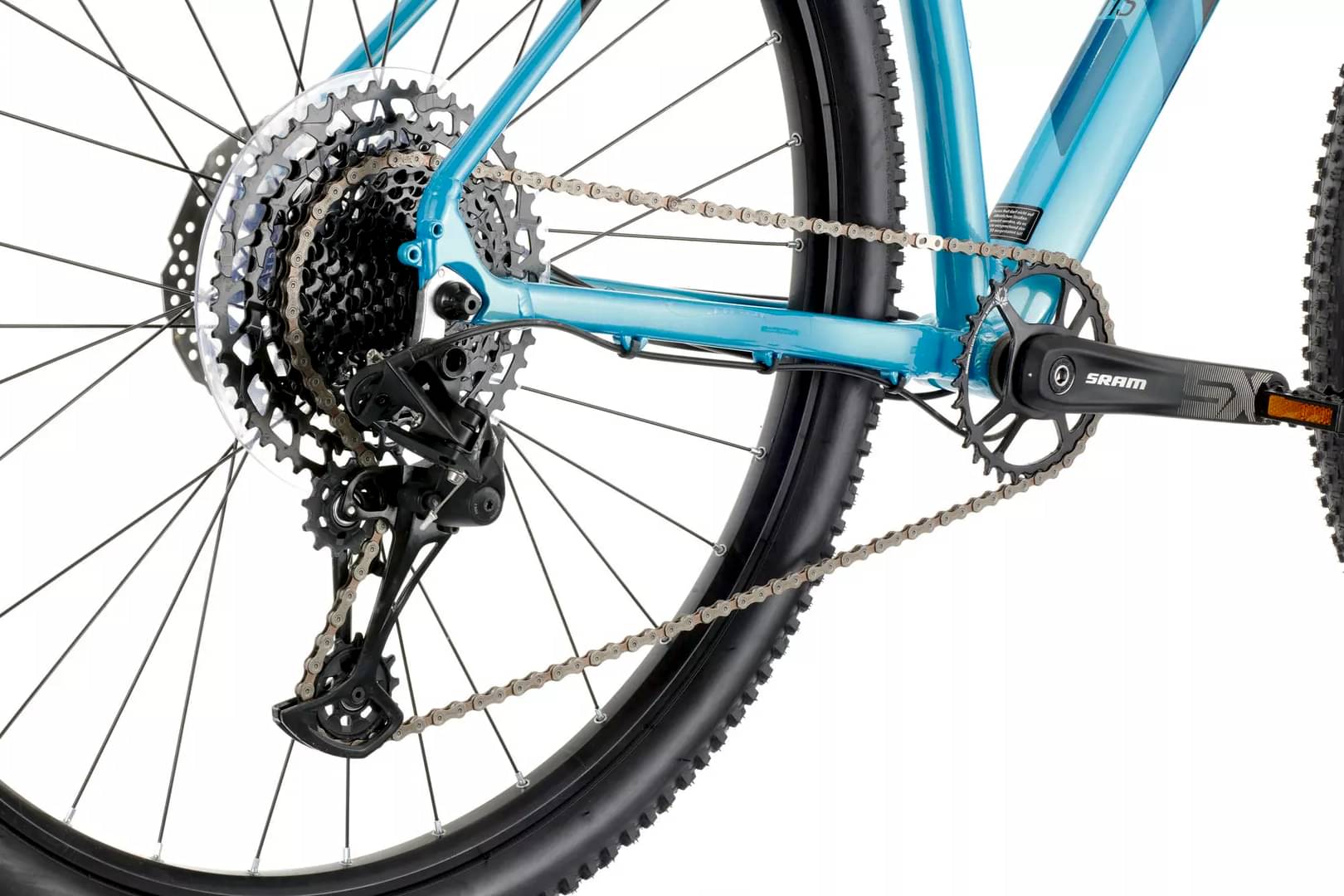

Drivetrain
Rear Derailleur
SRAM "SX Eagle", 12speed
Shift Levers
SRAM "SX Eagle Trigger"
Cassette
SRAM "PG 1210 Eagle", 11-50 Z.
Crank
SRAM "SX Eagle" 32 Z. 175 mm
Bottom Bracket
SRAM "Powerspline", 118/73
Pedals
Welgo "C280DU" 1-piece
Wheels
Front Hub
CONWAY "Alloy" QR
Rear Hub
CONWAY "Alloy" QR
Rims
RODI "Blackrock 23"
Spokes
Stahl schwarz
Tires
WTB "Ranger", 57-622
Brakes
Brakes
TEKTRO "HD-M280"
Brake Levers
TEKTRO "HD-M280"
Cockpit
Stem
CONWAY, 31,8, 70 mm
Handlebar
CONWAY Riser, Ø 31,8, 720 mm
Grips
CONWAY "Sport"
Headset
ZS44 / ZS56, Reduzierkonus
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", He
Seatpost
CONWAY Patent, 31,6 mm, 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.718 mm | 1.63 mm | 1.55 mm | 1.541 mm |
| Stack | 634 mm | 634 mm | 634 mm | 652 mm |
| Reach | 369 mm | 389 mm | 409 mm | 423 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 771 mm | 800 mm | 829 mm | 865 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
