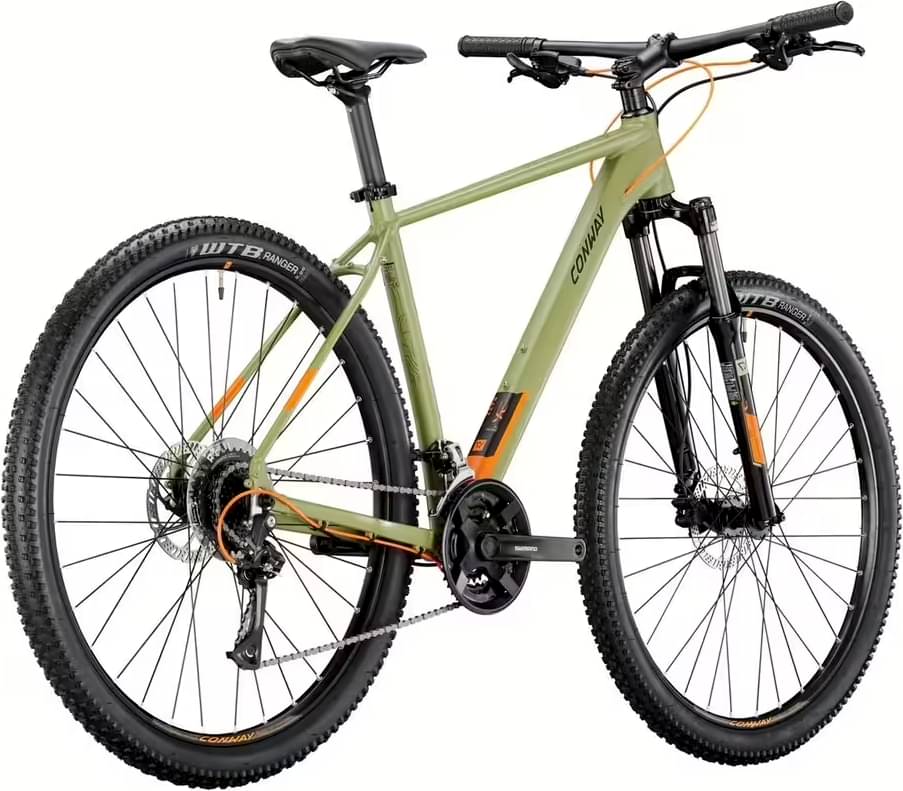

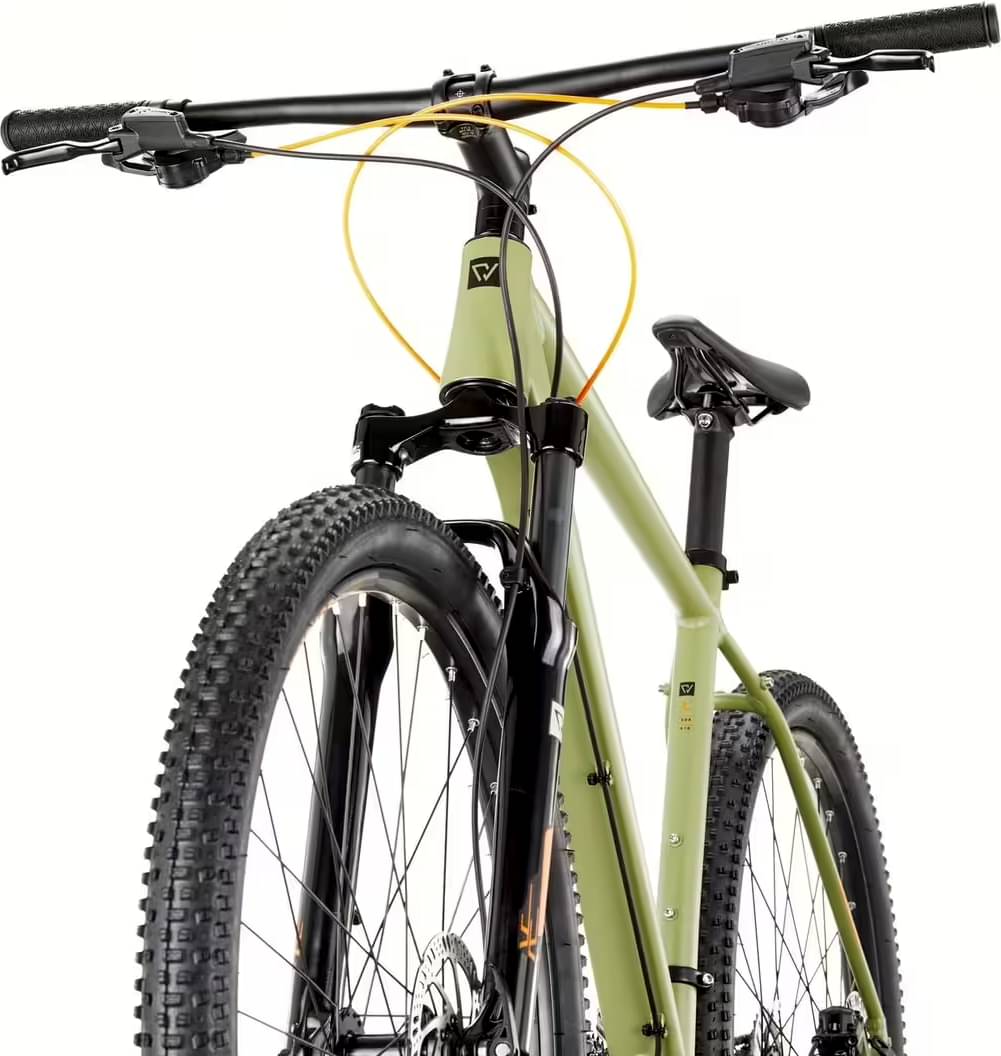

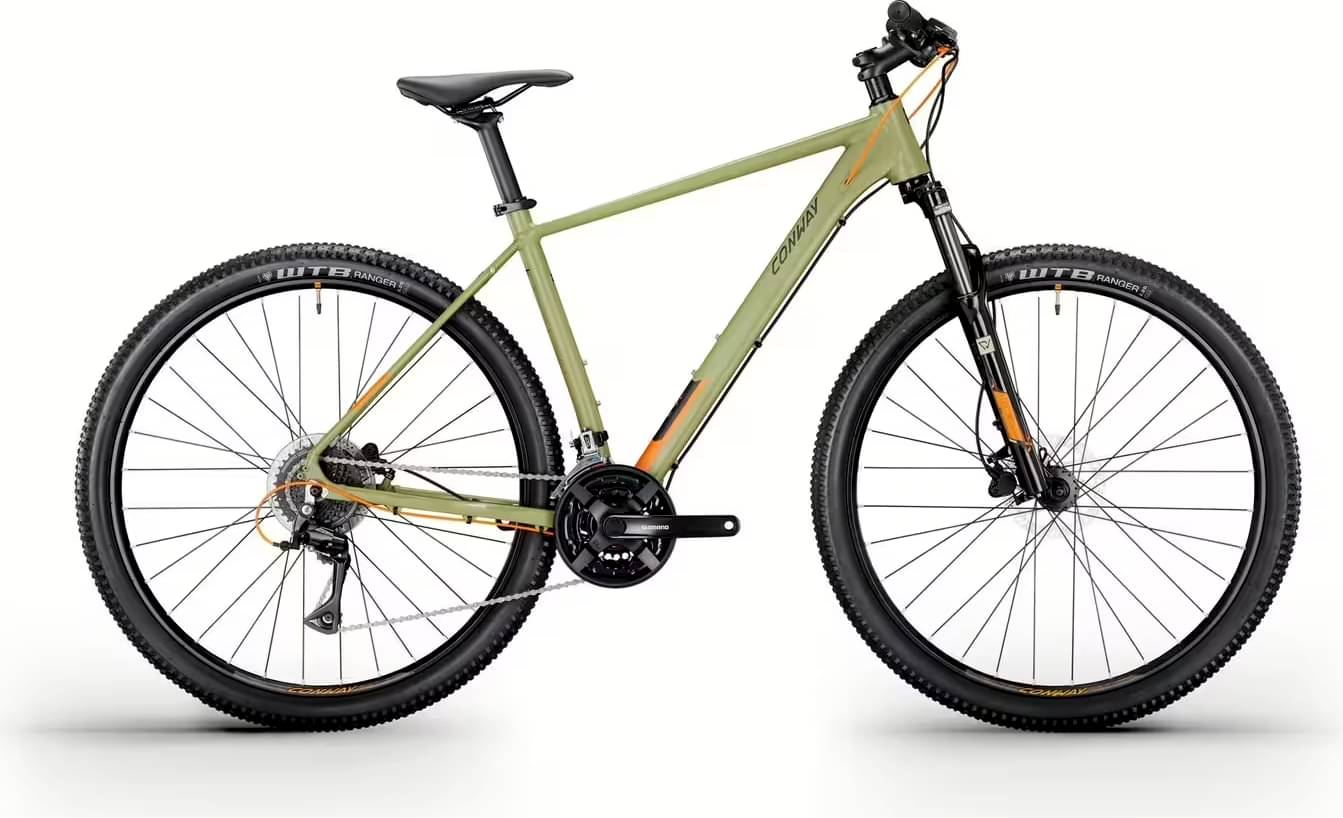

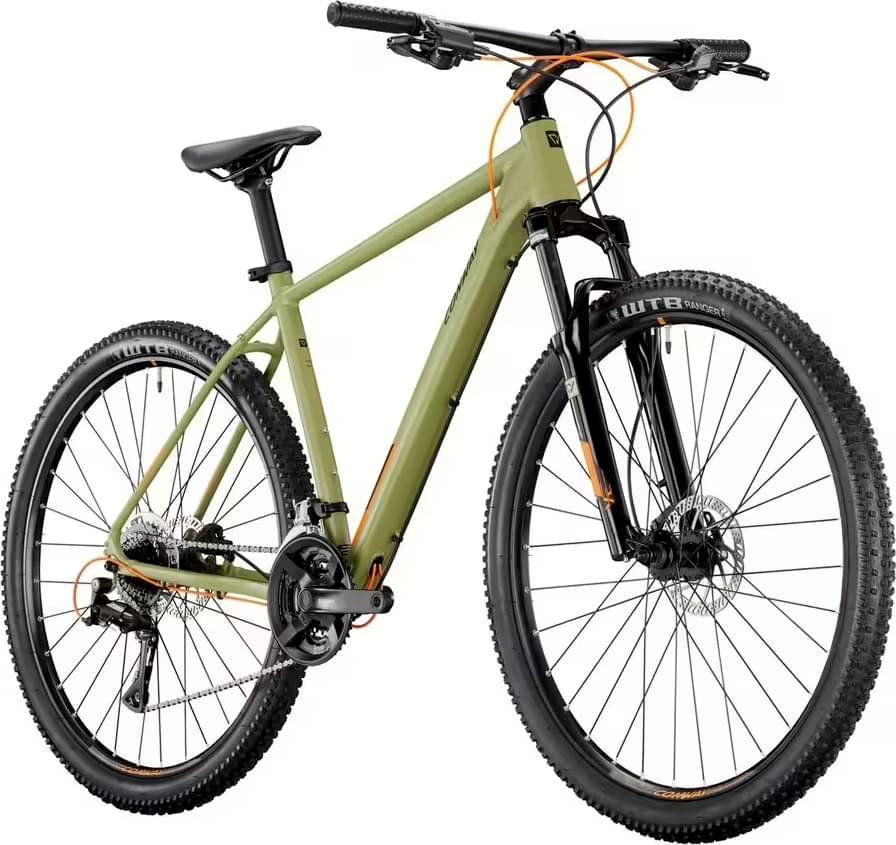

Conway Razz 4.0 Hardtail 2024
2024 Mountain
Estimate price |
687$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RST GILA
-
Groupset Tourney, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY, Alu
Suspension Fork
RST "Gila ML", 100 mm

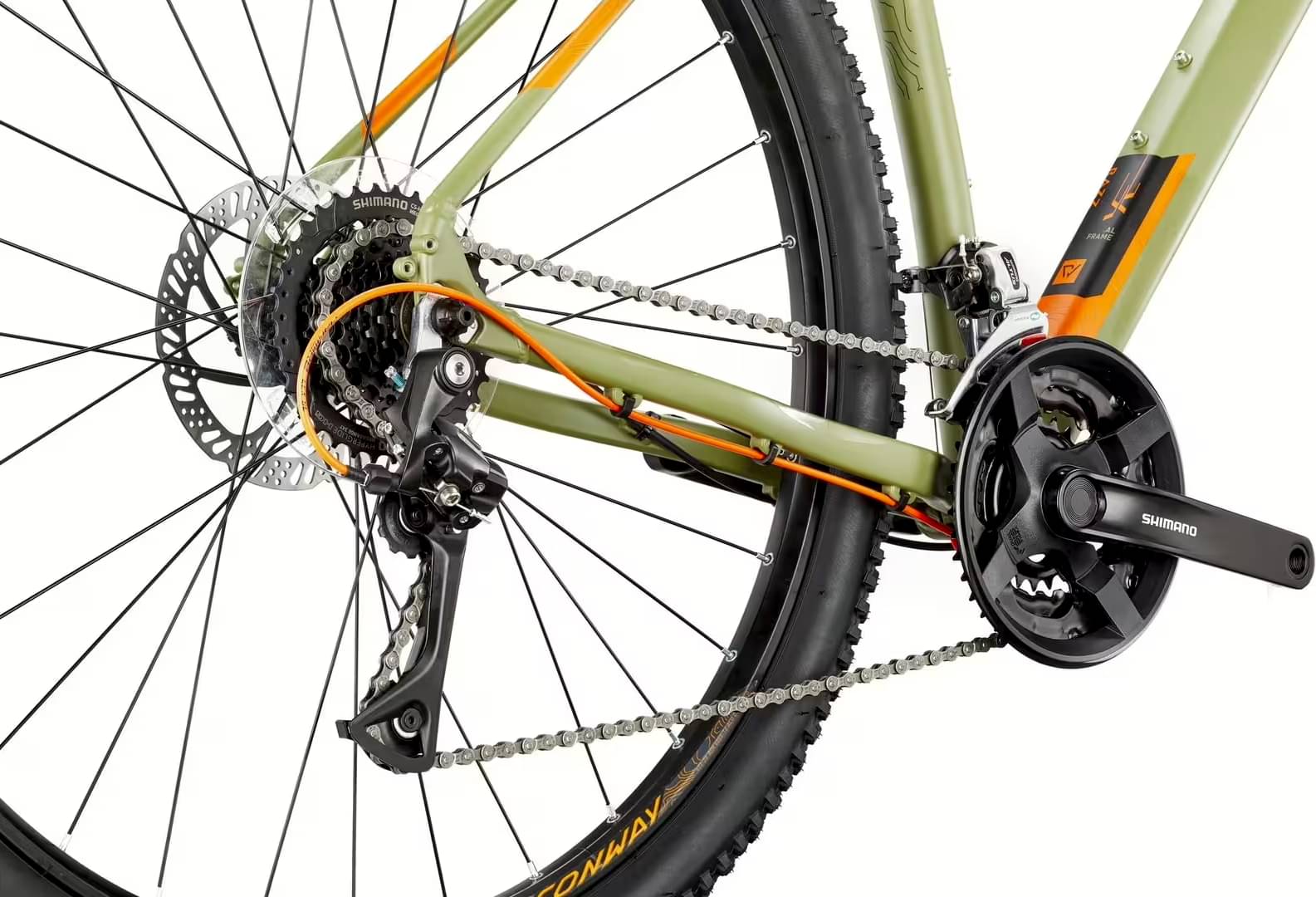

Drivetrain
Rear Derailleur
SHIMANO "Acera RD-360", 8speed
Front Derailleur
SHIMANO "Altus FD-M313"
Shift Levers
SHIMANO "SL-M315"
Cassette
SHIMANO "CS-HG31", 11-34 Z.
Crank
SHIMANO "FC-TY301", 24/34/42 Z. 170 mm
Bottom Bracket
SHIMANO "BB-UN100"
Wheels
Front Hub
CONWAY "Alloy" QR
Rear Hub
CONWAY "Alloy" QR
Rims
CONWAY Hohlkammer
Spokes
Stahl schwarz
Tires
WTB "Ranger", 57-584
Brakes
Brakes
TEKTRO "HD-M280"
Brake Levers
TEKTRO "HD-M280"

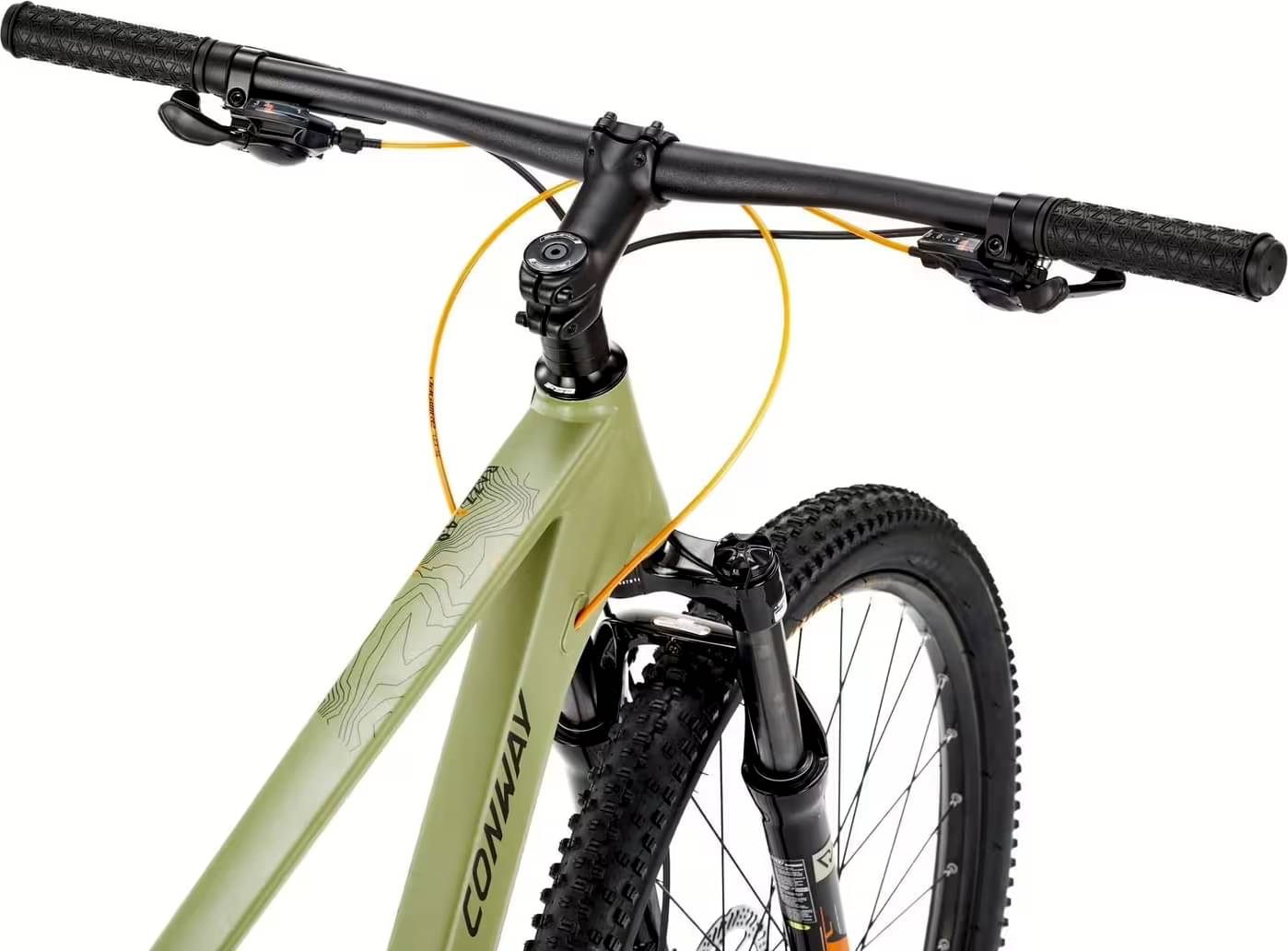

Cockpit
Stem
CONWAY, 31,8, 50 mm
Handlebar
CONWAY Riser, Ø 31,8, 720 mm
Grips
CONWAY "Sport"
Headset
ZS44 / ZS56, Reduzierkonus
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", He
Seatpost
CONWAY "Patent", 31,6 mm, 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.546 mm | 1.718 mm | 1.63 mm | 1.55 mm | 1.541 mm |
| Stack | 589 mm | 634 mm | 634 mm | 634 mm | 652 mm |
| Reach | 381 mm | 369 mm | 389 mm | 409 mm | 423 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 74 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 355 mm | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 435 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 715 mm | 771 mm | 800 mm | 829 mm | 865 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
