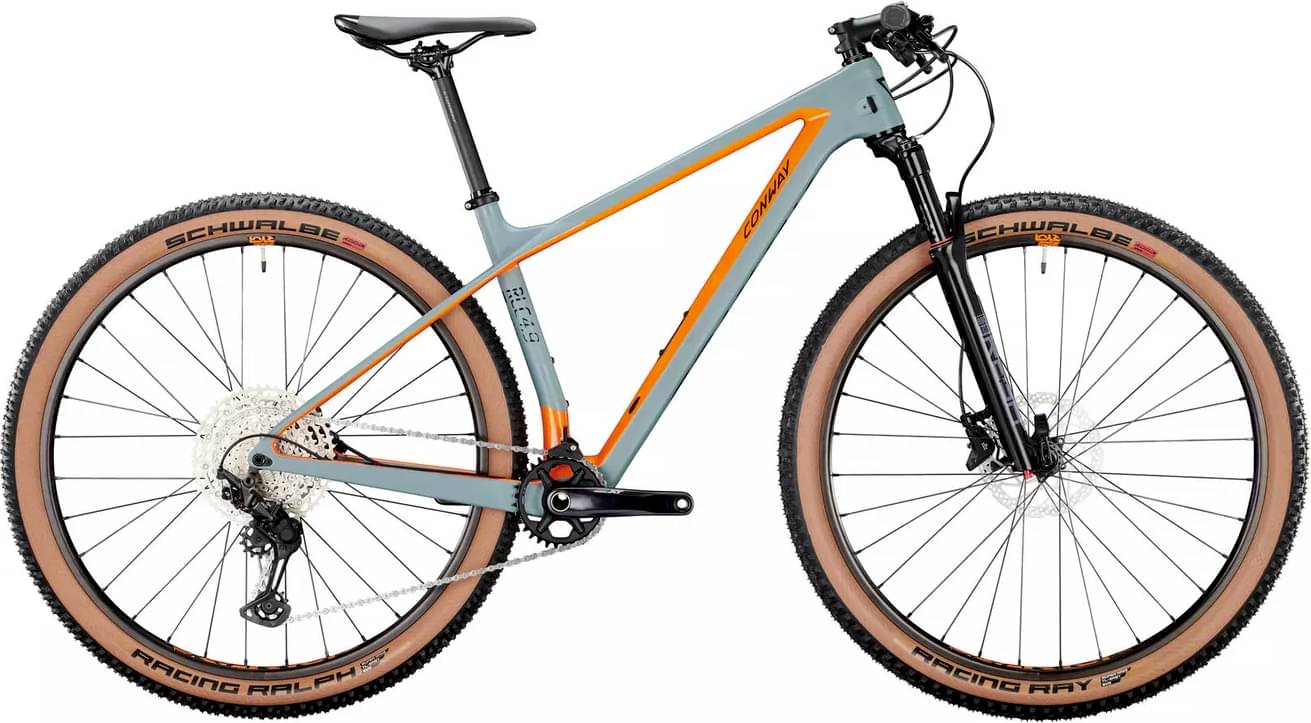

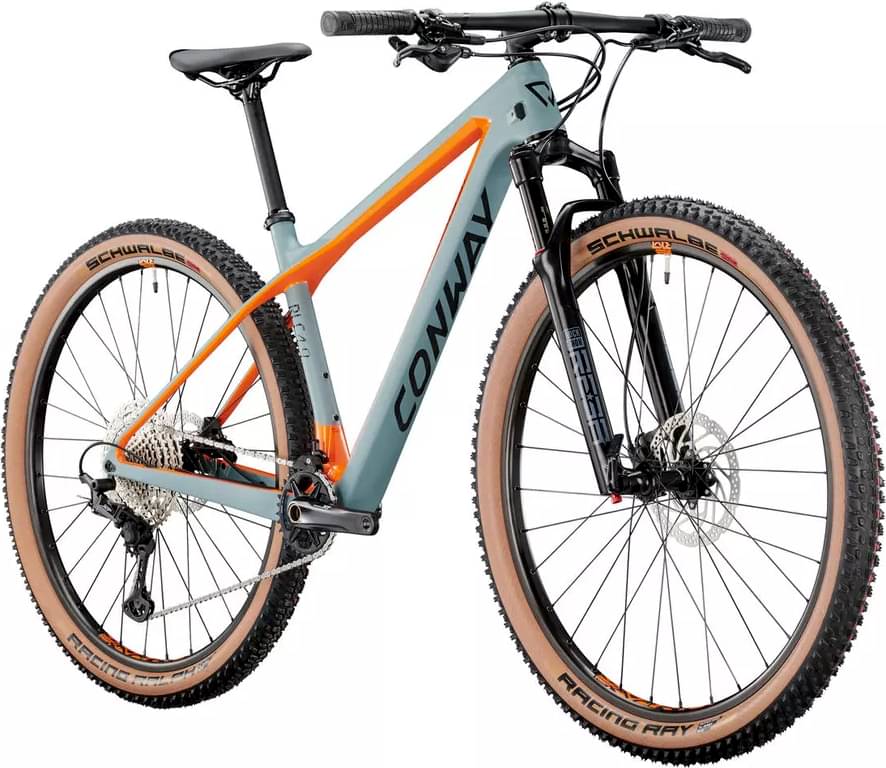

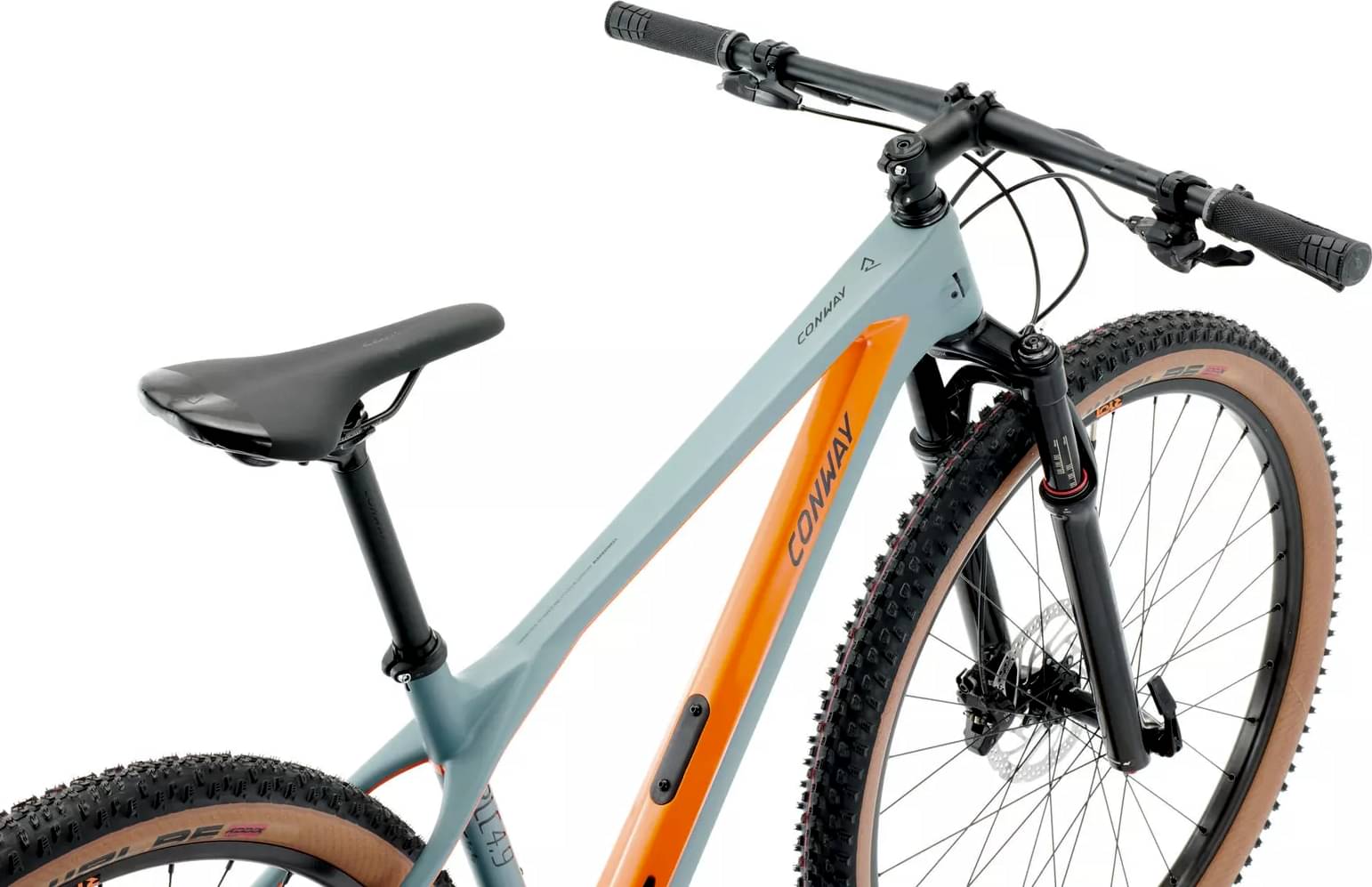

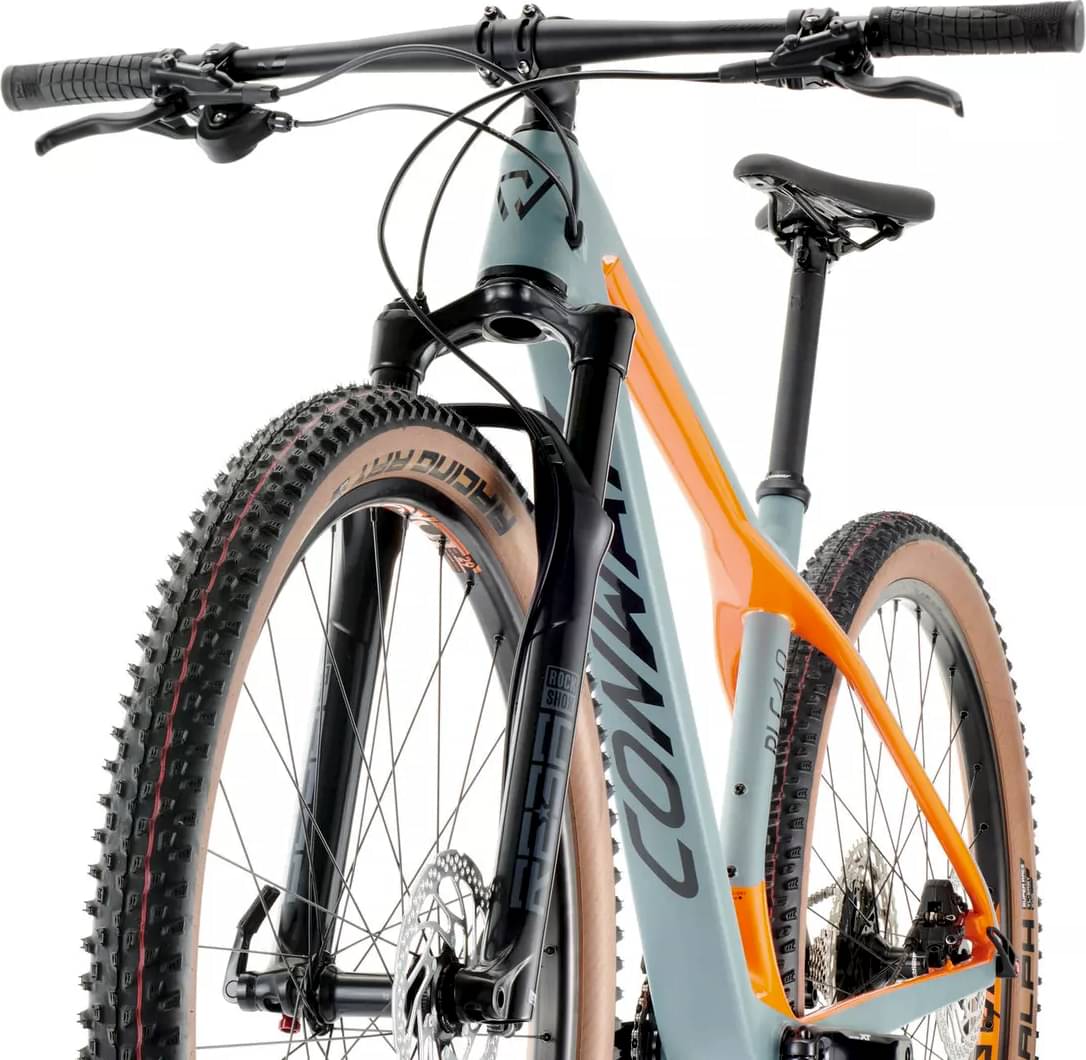

Conway RLC 4.9 Hardtail 2022
2022 Mountain
Estimate price |
2,442$
Weight | 11.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Carbon RLC
Suspension Fork
ROCKSHOX "Reba RL", 100 mm

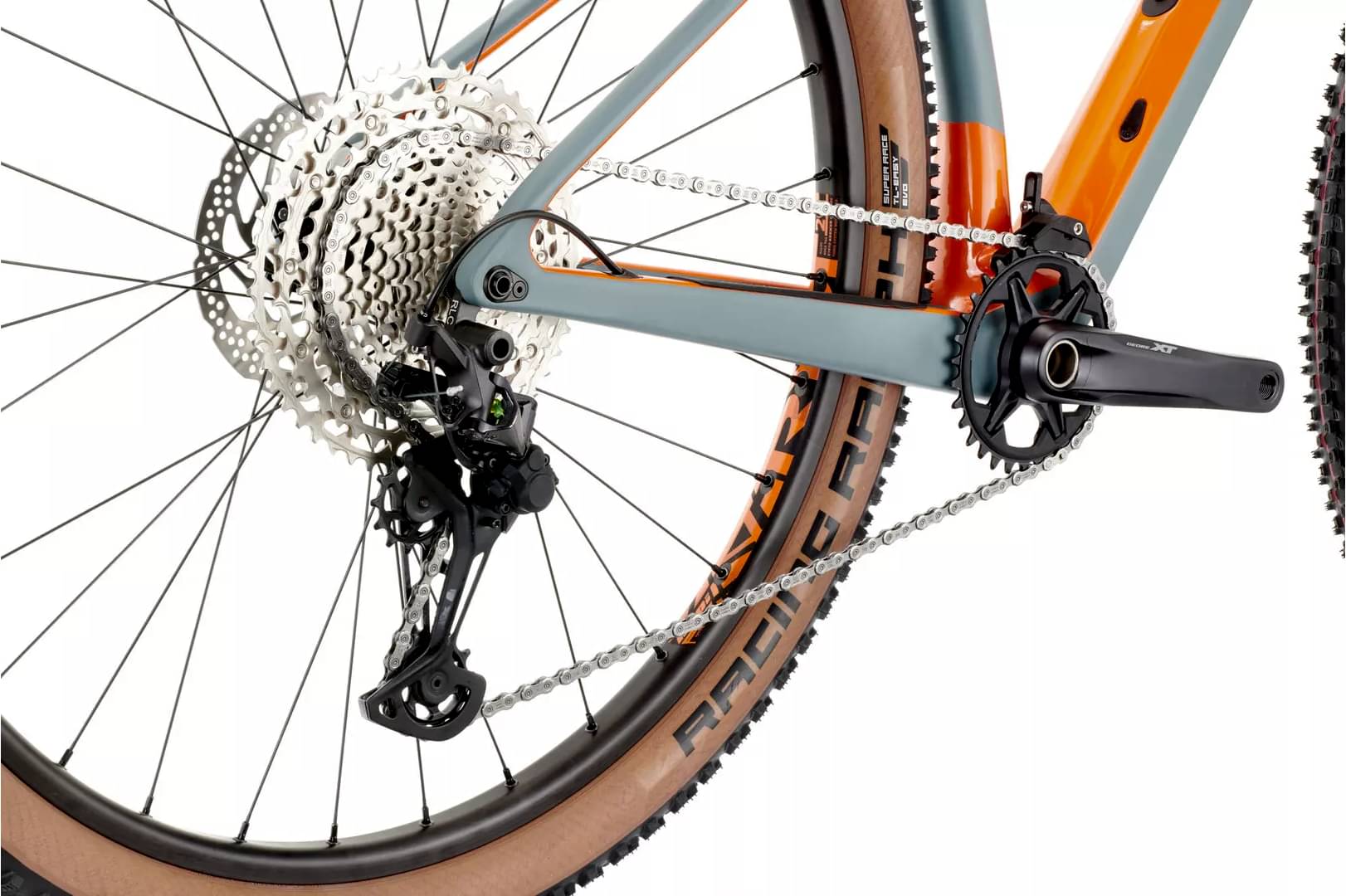

Drivetrain
Rear Derailleur
SHIMANO "Deore XT RD-M8100 Shadow Plus", 12speed
Shift Levers
SHIMANO "Deore SL-M6100"
Cassette
SHIMANO "CS-M6100", 10-51 Z.
Crank
SHIMANO "Deore XT FC-M8100", Boost, 32 Z. 170mm
Bottom Bracket
SHIMANO "BB-MT 800PA"
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110 mm
Rear Hub
SHIMANO "FH-MT400", 12x148 mm
Rims
RODI "Ryot 25"
Spokes
Niro
Tires
SCHWALBE "Racing Ray", EVO Addix, Transparent Skin, 60-622, faltbar
Brakes
Brakes
SHIMANO "BR-MT410"
Brake Levers
SHIMANO "BL-M4100"
Cockpit
Stem
CONWAY "Alloy light", 31,8 mm, 70 mm
Handlebar
CONWAY "Alloy light flat", Ø 31,8, 740 mm
Grips
SQlab "70X"
Headset
IS42 / ZS56, Blocklock
Seat
Saddle
CONWAY "1489 sport light"
Seatpost
CONWAY "Alloy light", 27,2 mm, 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.482 mm | 1.447 mm | 1.412 mm |
| Stack | 609 mm | 618 mm | 628 mm | 637 mm |
| Reach | 400 mm | 417 mm | 434 mm | 451 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
