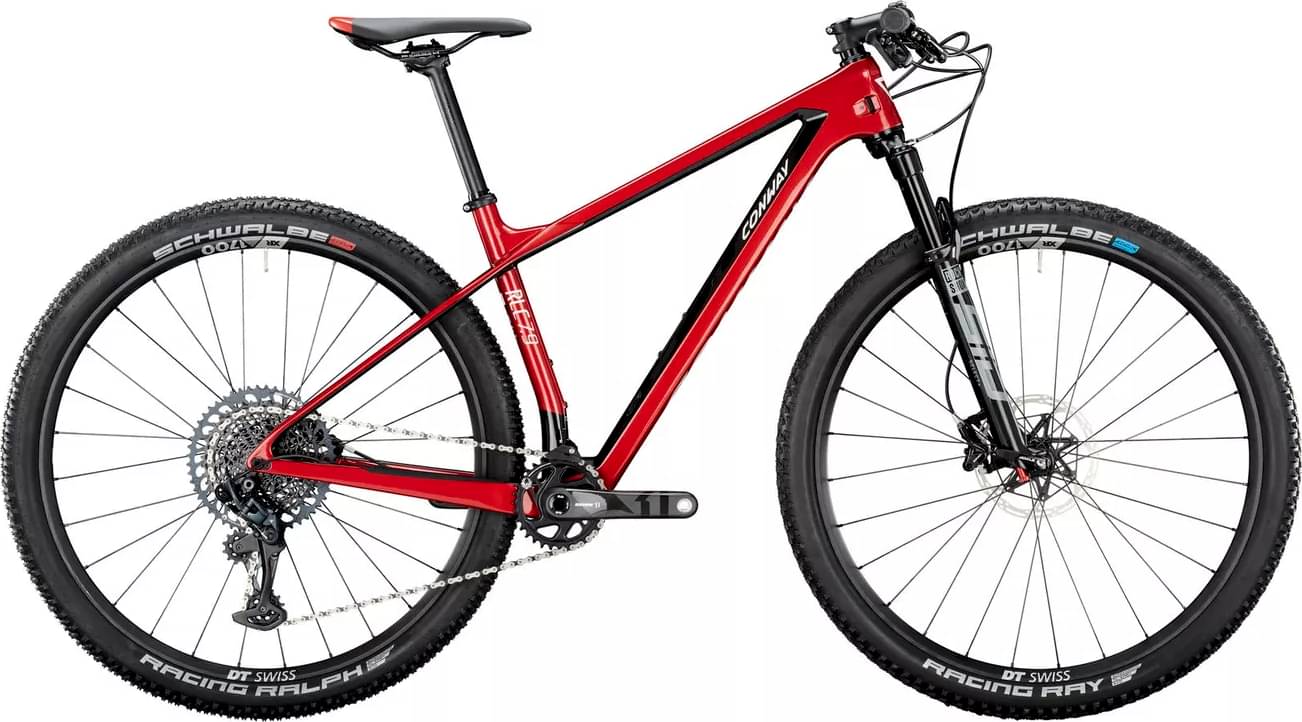

Conway RLC 7.9 Hardtail 2022
2022 Mountain
Estimate price |
4,361$
Weight | 10.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Select
-
Groupset XX1 Eagle, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Carbon RLC
Suspension Fork
ROCKSHOX "SID SL Select +", 100 mm

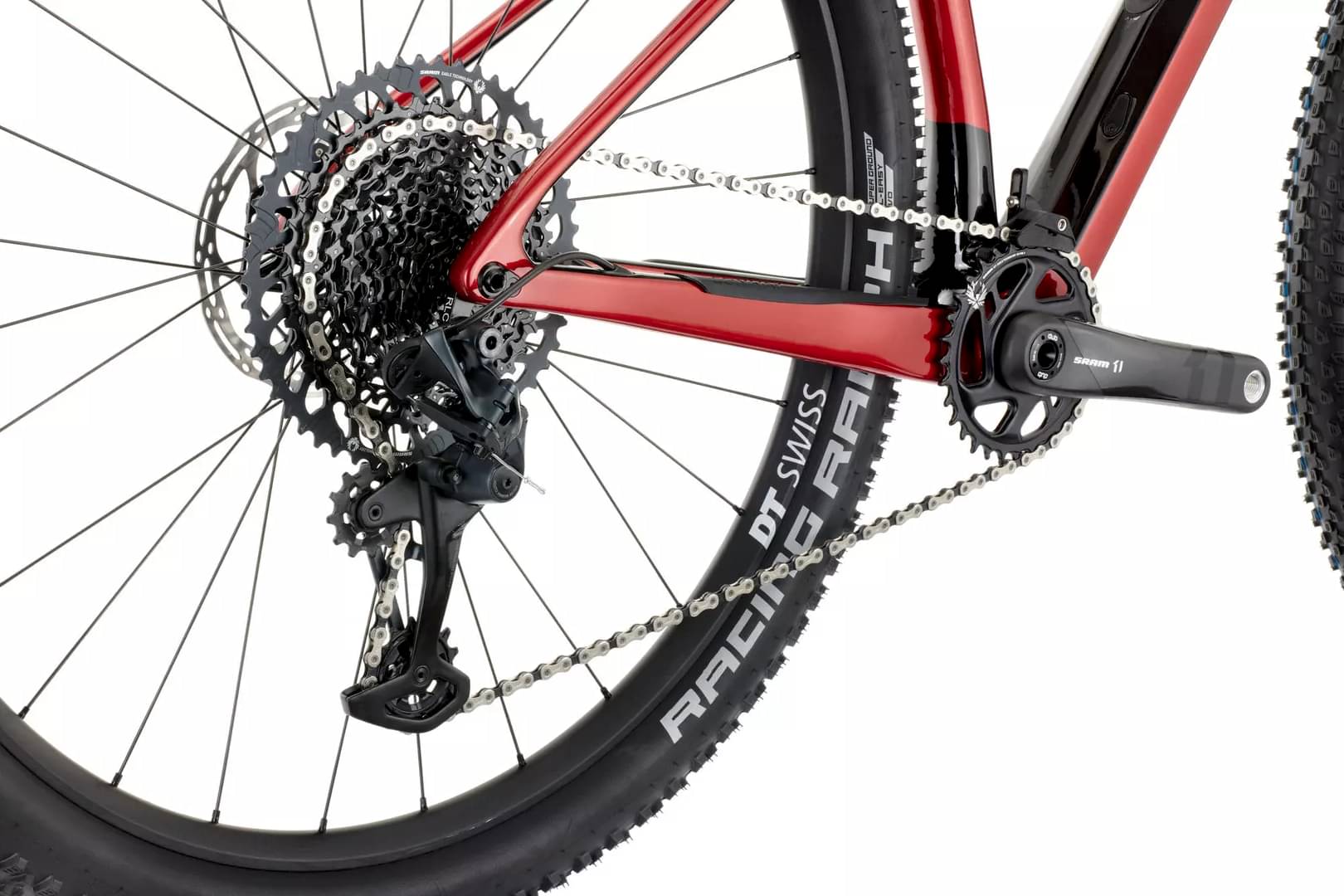

Drivetrain
Rear Derailleur
SRAM "XX1 Eagle", 12speed
Shift Levers
SRAM "XX1 Eagle Trigger"
Cassette
SRAM "PG 1275 Eagle", 10-52 Z.
Crank
SRAM "X1 Carbon", Boost DUB, 32 Z. 170 mm
Bottom Bracket
SRAM "PF 92 DUB"
Wheels
Front Hub
DT SWISS "XR1700", 15x110 mm
Rear Hub
DT SWISS "XR1700", 12x148 mm
Rims
DT SWISS "XR1700"
Spokes
DT SWISS
Tires
SCHWALBE "Racing Ray", EVO Addix, 60-622, faltbar
Brakes
Brakes
SRAM "Level TL"
Brake Levers
SRAM "Level TL"
Cockpit
Stem
CONWAY "Alloy light", 31,8 mm, 70 mm
Handlebar
CONWAY "Alloy light flat", Ø 31,8, 740 mm
Grips
SQlab "70X"
Headset
IS42 / ZS56, Blocklock
Seat
Saddle
CONWAY "1489 sport light"
Seatpost
CONWAY "Alloy light", 27,2 mm, 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.482 mm | 1.447 mm | 1.412 mm |
| Stack | 609 mm | 618 mm | 628 mm | 637 mm |
| Reach | 400 mm | 417 mm | 434 mm | 451 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
