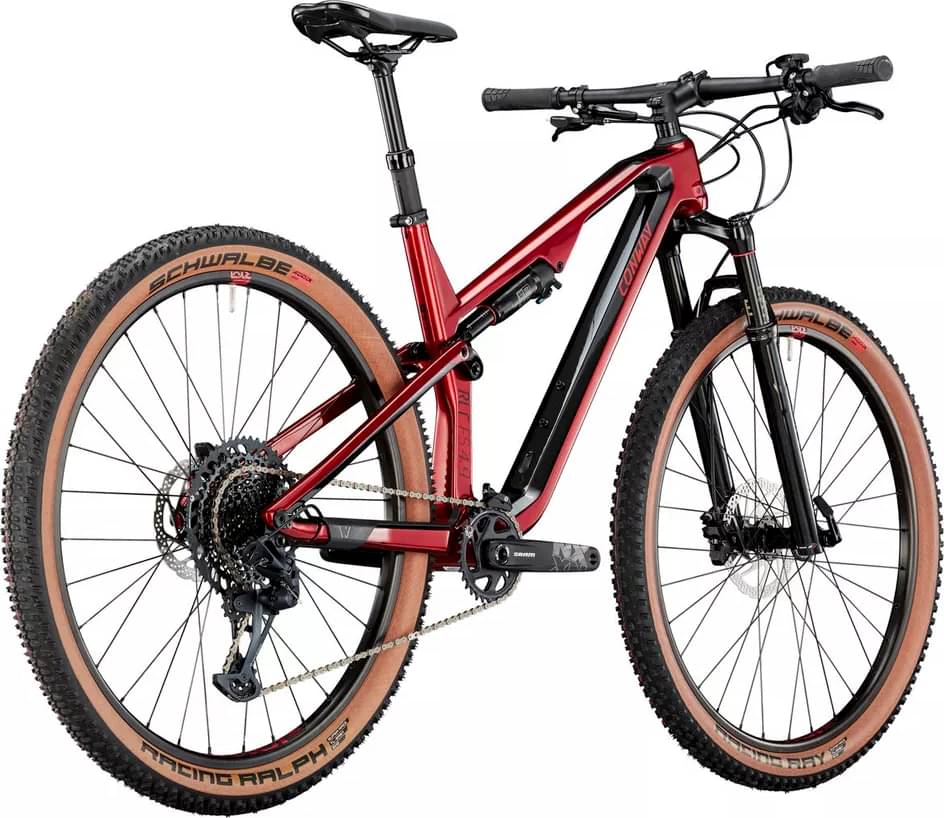

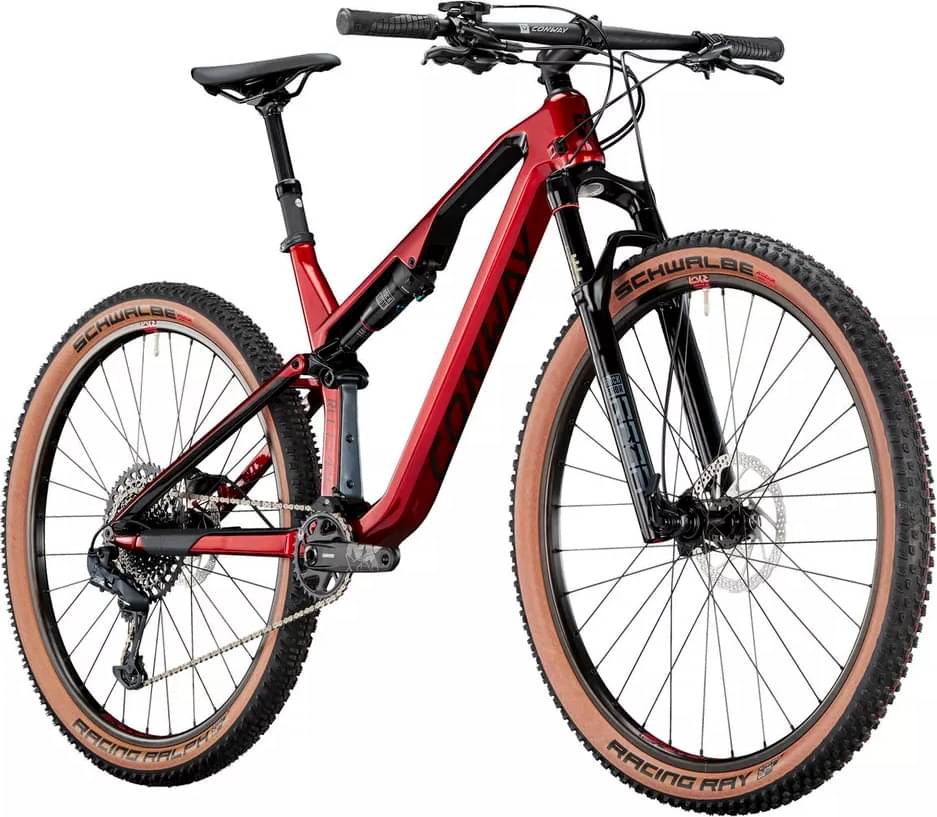

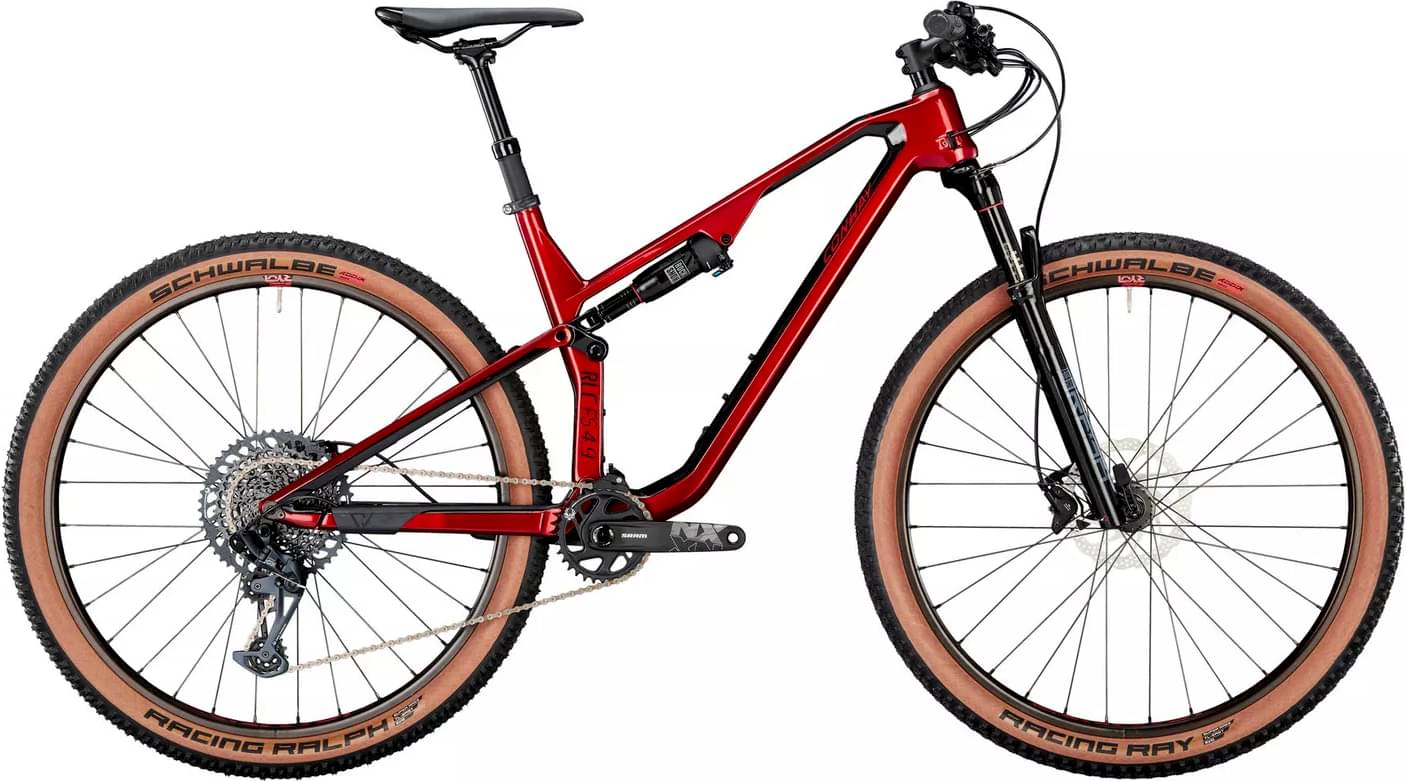

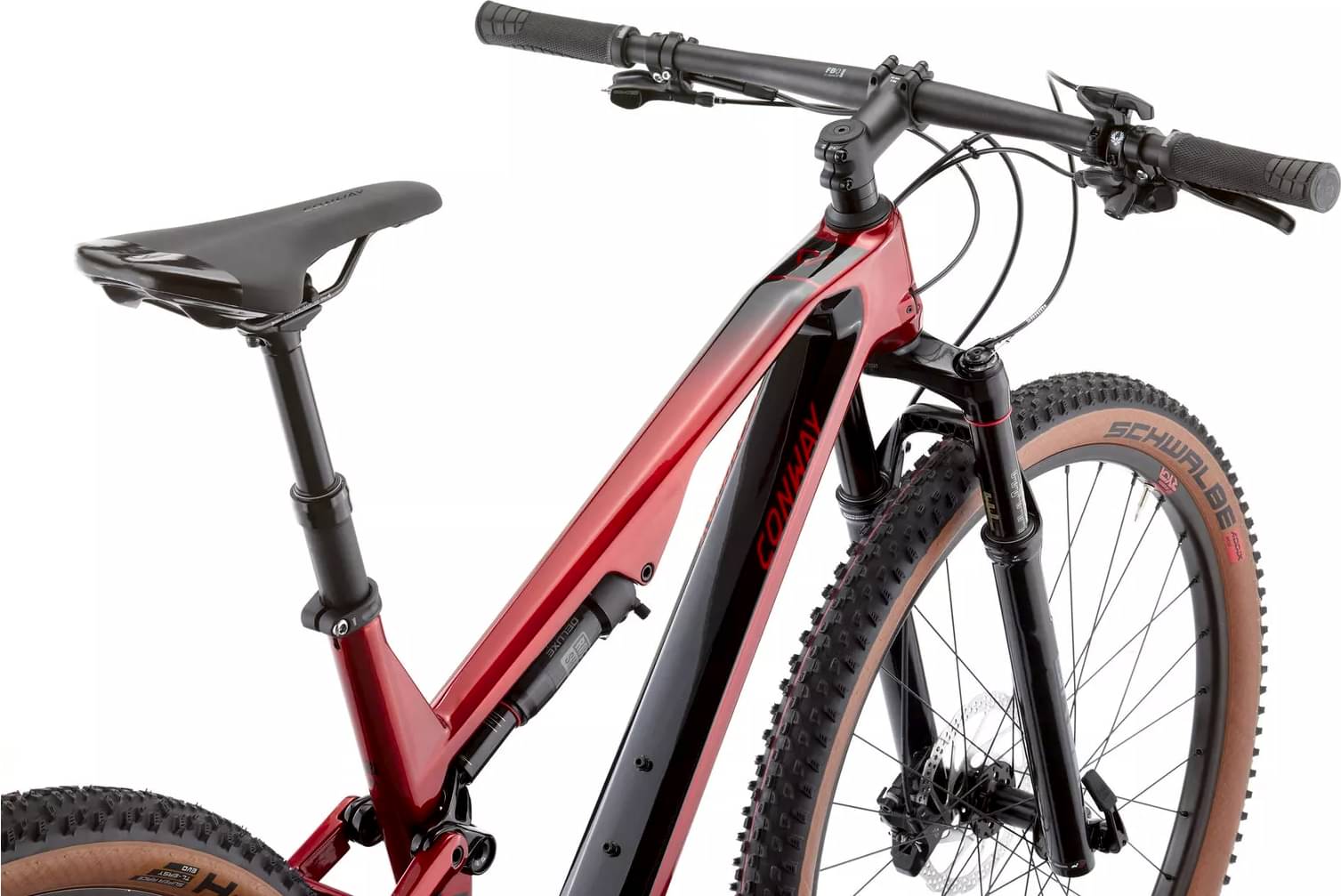

Conway RLC FS 4.9 Full Suspension 2024
2024 Mountain
Estimate price |
3,838$
Weight | 12.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 100mm -
Fork RockShox Reba
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Carbon RLC
Suspension Fork
ROCKSHOX "Reba RL", 110 mm
Rear Shock

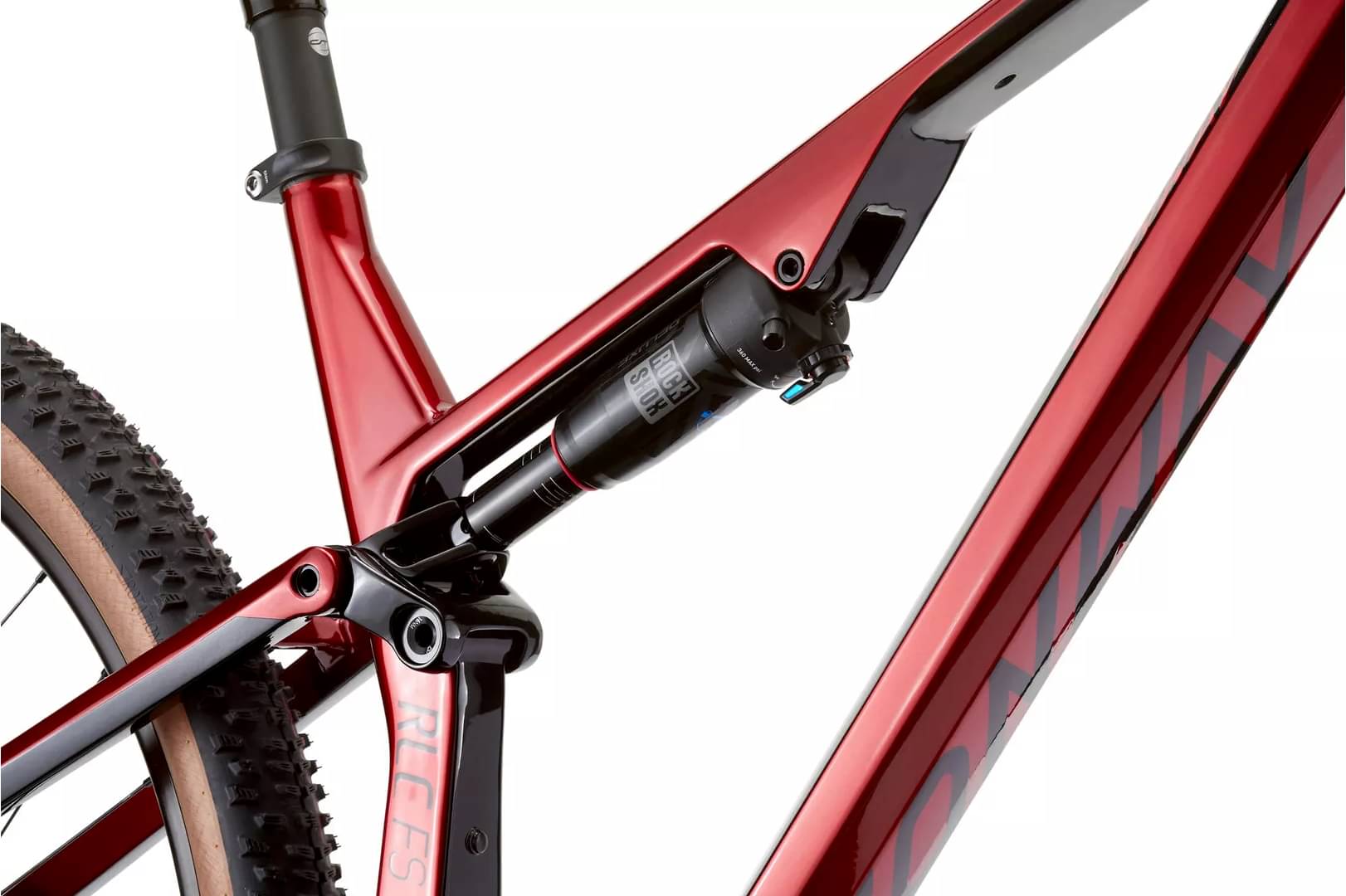

ROCKSHOX "Deluxe Select +" 100 mm
Drivetrain
Rear Derailleur

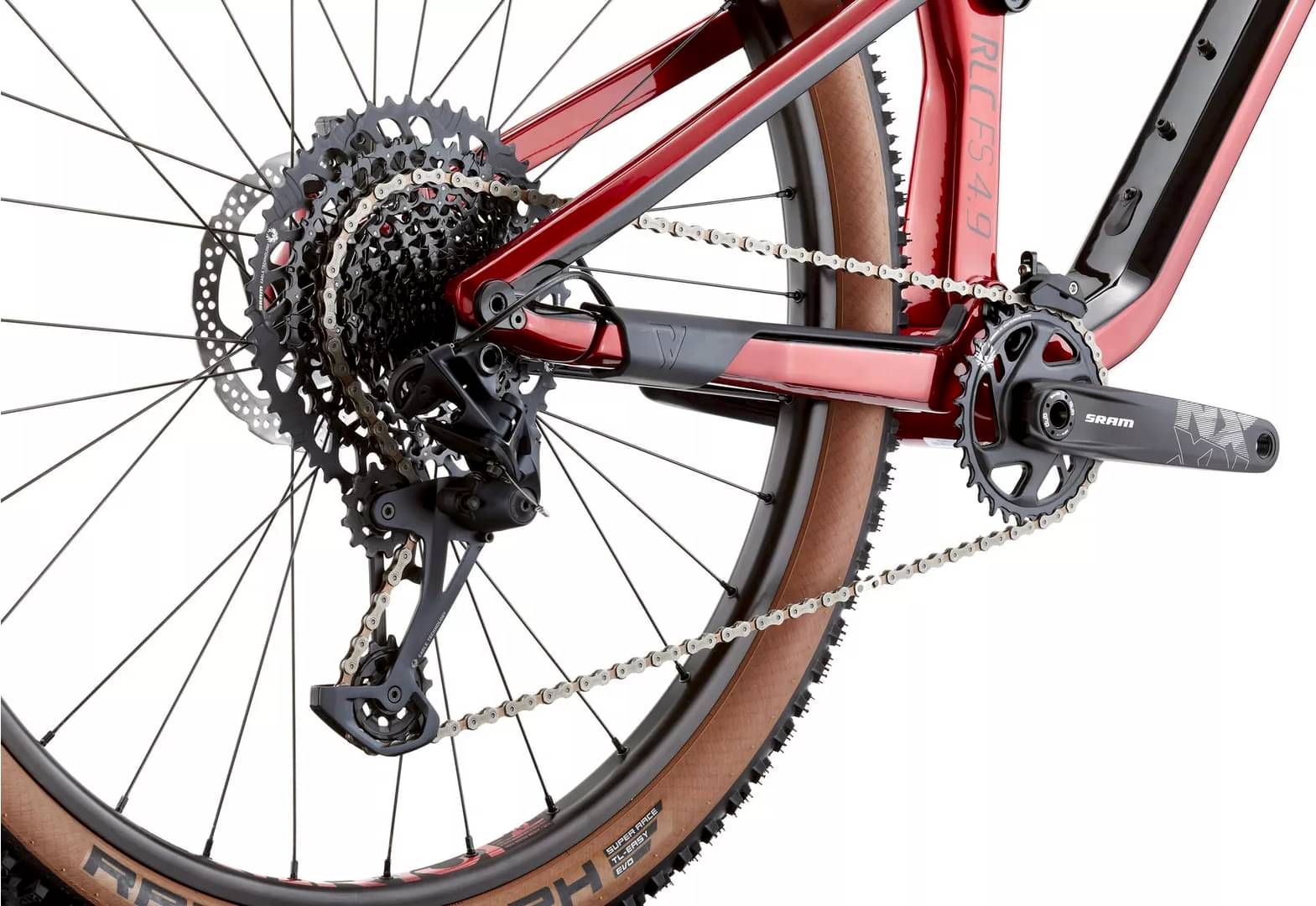

SRAM "GX Eagle", 12speed
Shift Levers
SRAM "NX Eagle Trigger"
Cassette
SRAM "XG 1275 Eagle", 10-52 Z.
Crank
SRAM "NX Eagle DUB Boost", 32 Z. 170mm
Bottom Bracket
SRAM "PF 92 DUB"
Wheels
Front Hub
FORMULA "DC 711", 15x110 mm
Rear Hub
FORMULA "DHT 1481", 12x148 mm
Rims
RODI "Ryot 25"
Spokes
Niro
Tires
SCHWALBE "Racing Ray", EVO Addix, 60-622, faltbar
Brakes
Brakes
SHIMANO "BR-MT410"
Brake Levers
SHIMANO "BL-MT401"
Cockpit
Stem
LEVEL 9 "Race A-Head", 31,8 mm, 60 mm
Handlebar

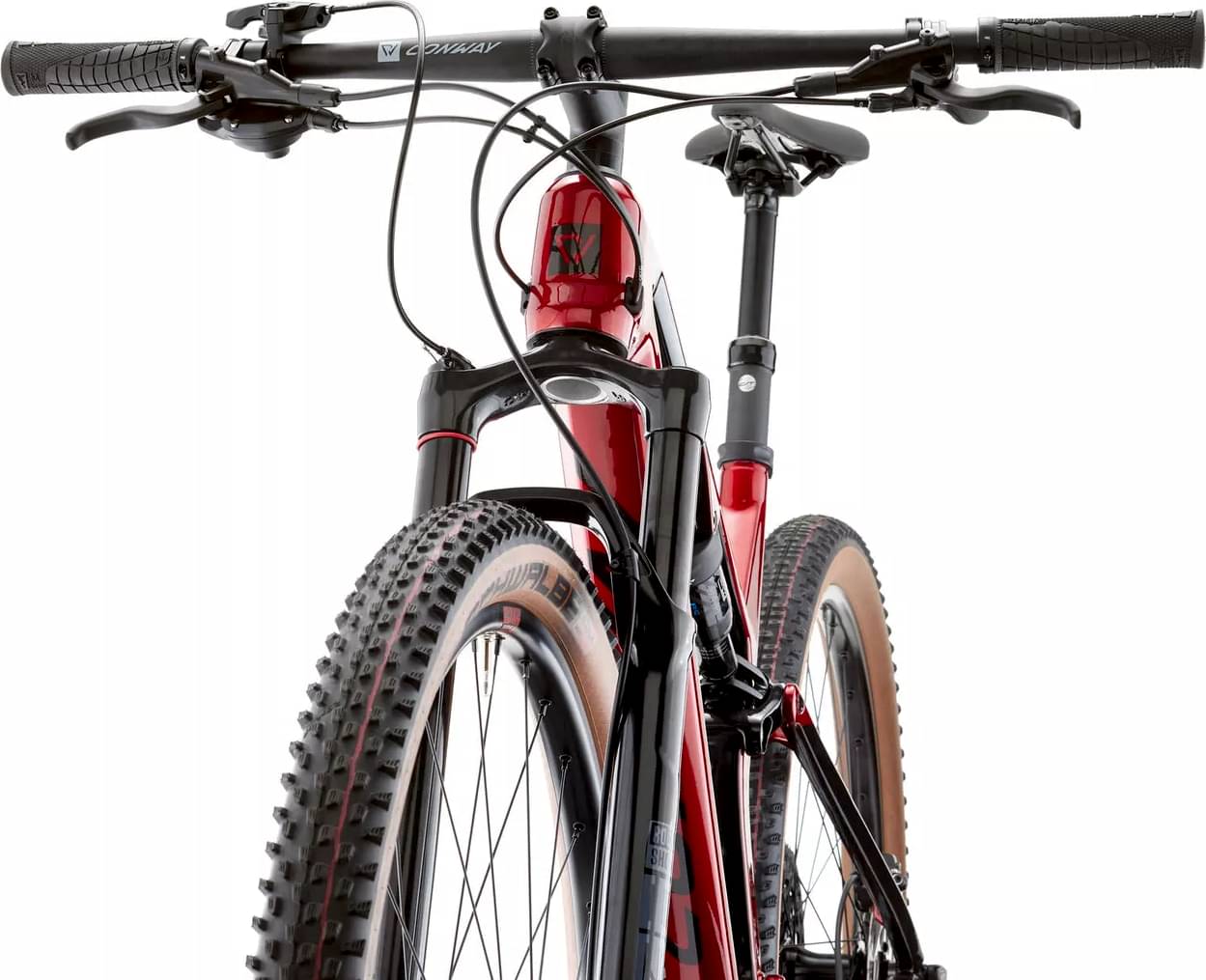

LEVEL 9 "Flat Bar", Ø 31,8, 740 mm
Grips
SQlab "70X"
Headset
ZS44 / ZS56
Seat
Saddle
CONWAY "1489 sport light"
Seatpost
CONTEC "Drop - A - Gogo", 31,6 mm, 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.382 mm | 1.382 mm | 1.325 mm | 1.325 mm | 1.277 mm | 1.248 mm |
| Stack | 586 mm | 586 mm | 595 mm | 595 mm | 604 mm | 618 mm |
| Reach | 424 mm | 424 mm | 449 mm | 449 mm | 473 mm | 495 mm |
| Top Tube Length | 575 mm | 575 mm | 600 mm | 600 mm | 625 mm | 650 |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 425 mm | 425 mm | 465 mm | 465 mm | 505 mm | 545 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 199 cm |
