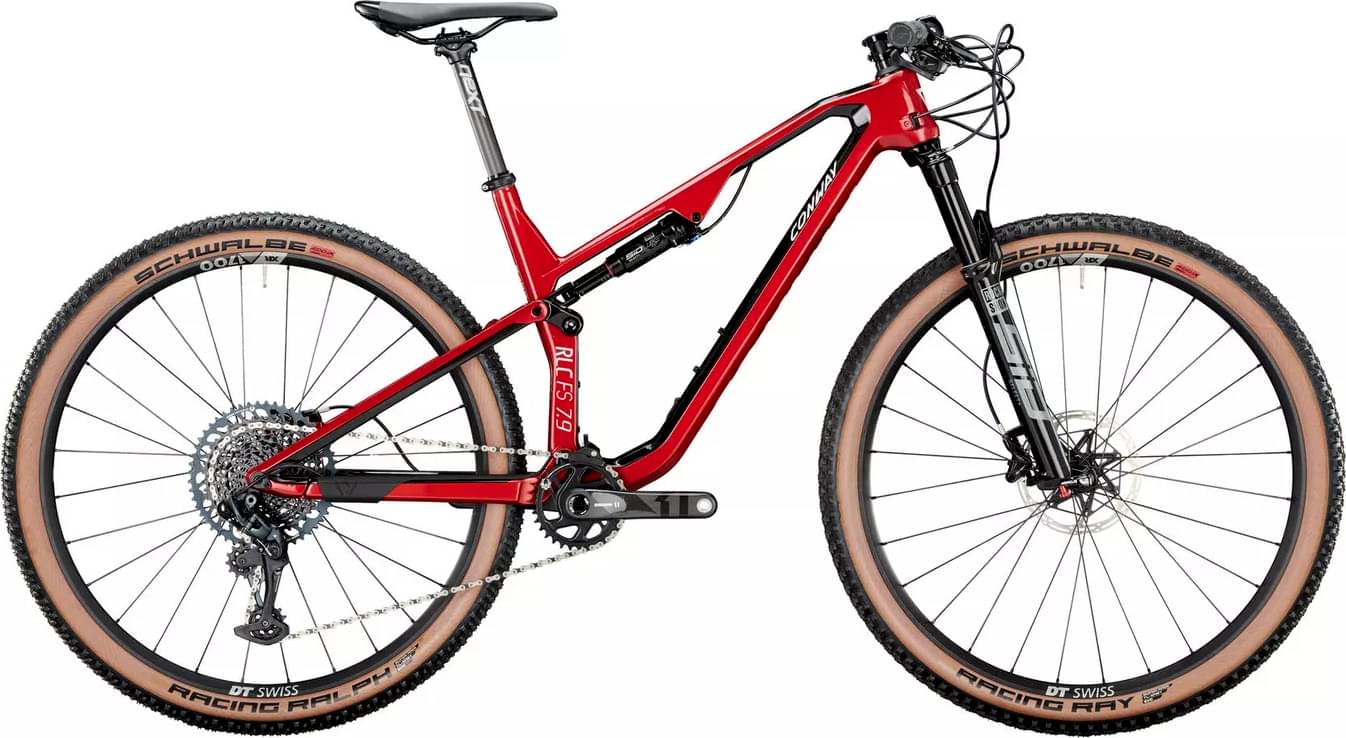

Conway RLC FS 7.9 Full Suspension 2022
2022 Mountain
Estimate price |
5,001$
Weight | 11.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 100mm -
Fork RockShox SID SL Select
-
Groupset XX1 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Carbon RLC
Suspension Fork
ROCKSHOX "SID SL Select +", 110 mm
Rear Shock
ROCKSHOX "SID LUXE Select +" 100 mm
Drivetrain
Rear Derailleur
SRAM "XX1 Eagle", 12speed
Shift Levers
SRAM "XX1 Eagle Trigger"
Cassette
SRAM "PG 1275 Eagle", 10-52 Z.
Crank
SRAM "X1 Carbon", Boost DUB, 32 Z. 170 mm
Bottom Bracket
SRAM "PF 92 DUB"
Wheels
Front Hub
DT SWISS "XR1700", 15x110 mm
Rear Hub
DT SWISS "XR1700", 12x148 mm
Rims
DT SWISS "XR1700"
Spokes
DT SWISS
Tires
SCHWALBE "Racing Ray", EVO Addix, 60-622, faltbar
Brakes
Brakes
SRAM "Level TL"
Brake Levers
SRAM "Level TL"
Cockpit
Stem
RACEFACE "Turbine", 31,8 mm, 60 mm
Handlebar
RACEFACE "Next Carbon", Ø 31,8, 720 mm
Grips
SQlab "70X"
Headset
ZS44 / ZS56
Seat
Saddle
CONWAY "1489 super light"
Seatpost
RACEFACE "Next Carbon", 27,2 mm, 400 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.382 mm | 1.325 mm | 1.277 mm | 1.248 mm |
| Stack | 586 mm | 595 mm | 604 mm | 618 mm |
| Reach | 424 mm | 449 mm | 473 mm | 495 mm |
| Top Tube Length | 575 mm | 600 mm | 625 mm | 650 |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 425 mm | 465 mm | 505 mm | 545 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
