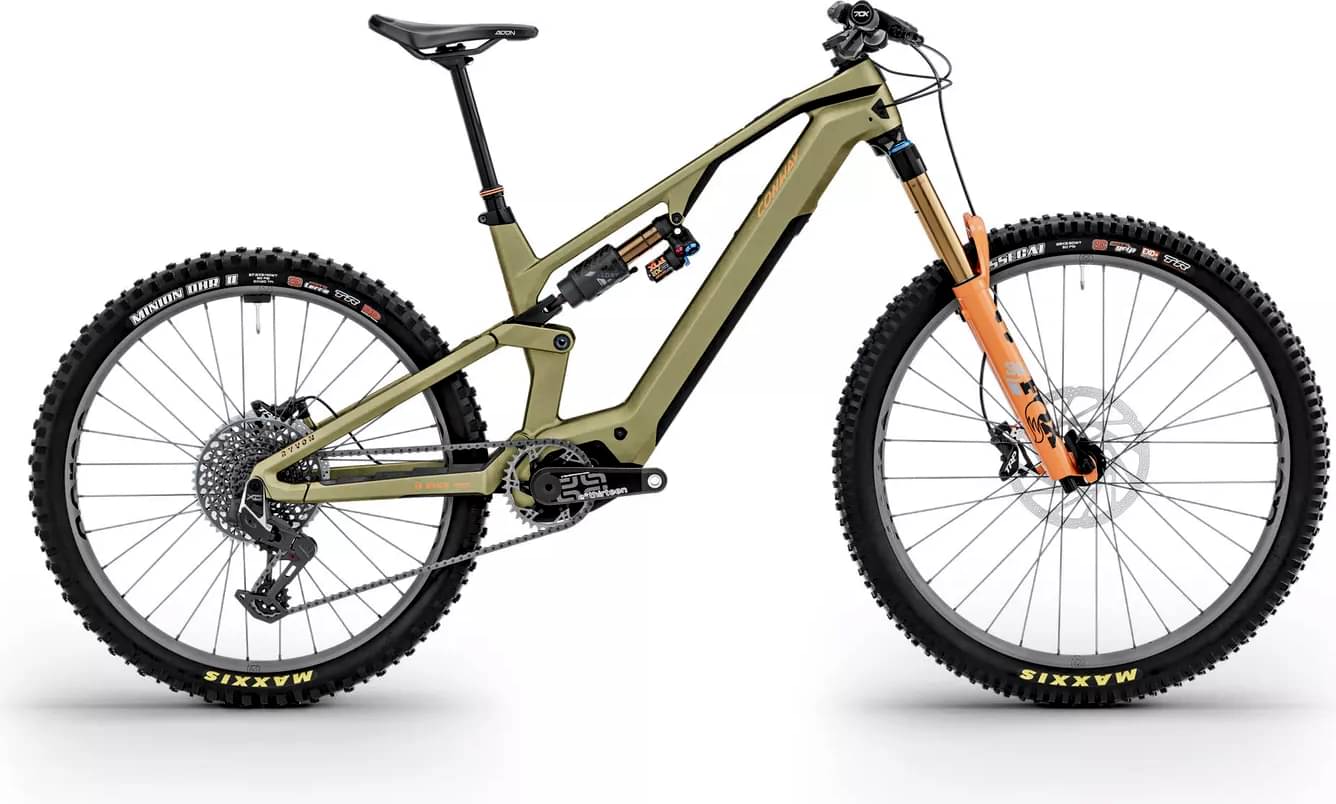

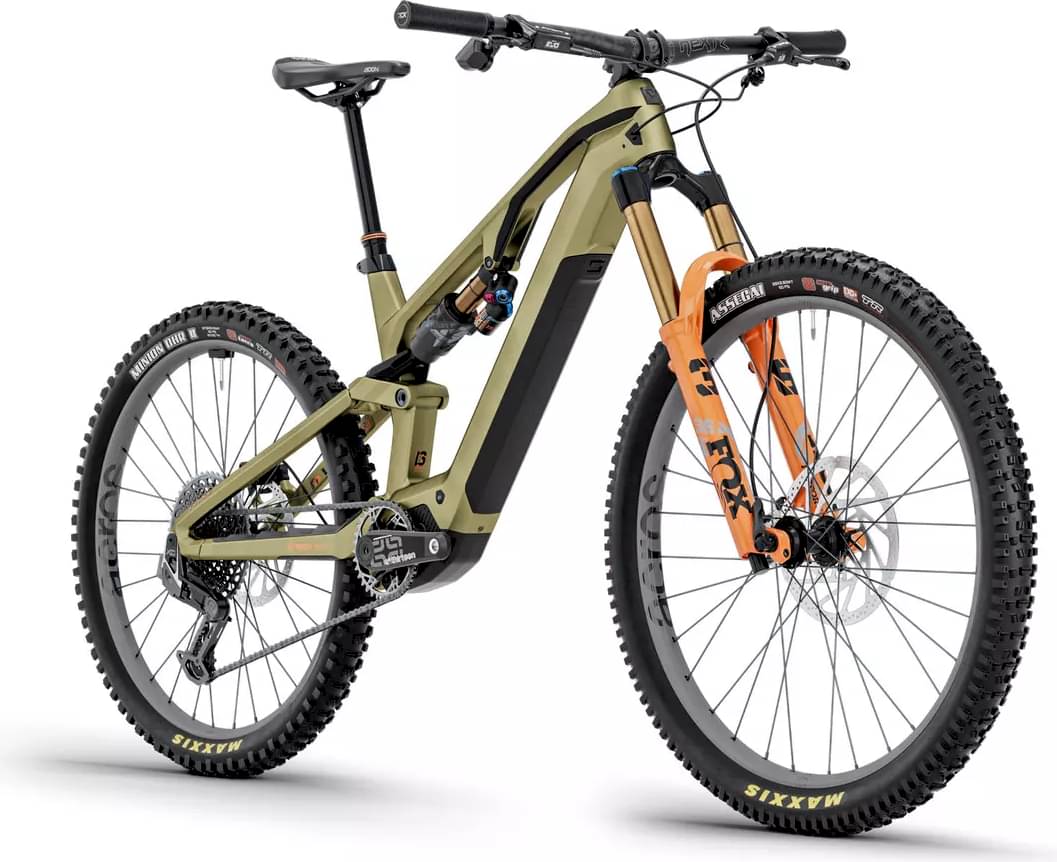

Conway Ryvon LT 10.0 full suspension 2024
2024 E-bike
Estimate price |
11,632$
Weight | 19 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 55Nm mid-drive -
Battery BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY E-Light Fully Intube Bosch, Carbon
Suspension Fork
FOX "Float 36 Factory", 170 mm
Rear Shock
FOX "Float X2 Factory" 170 mm
Drivetrain
Rear Derailleur
SRAM "X0 Eagle AXS T-Type", 12speed
Shift Levers
SRAM "AXS POD"
Cassette
SRAM "XS 1295 Eagle T-Type", 10-52 Z.
Crank
E*THIRTEEN "Helix Race Carbon", 160mm
Bottom Bracket
BOSCH
Wheels
Front Hub
ACROS "Enduro Carbon 29", 15 x 110 mm
Rear Hub
ACROS "Enduro Carbon 27,5", 12 x 148 mm
Rims
ACROS
Spokes
ACROS
Tires
MAXXIS "Assegai EXO+ 3C MaxxGrip", 63-622
Brakes
Brakes
TRP "DH-R EVO HD-M846", 4-Kolben
Brake Levers
TRP "DH-R EVO HD-M846"
Cockpit
Stem
RACEFACE "Turbine-R 35", 32 mm
Handlebar
RACEFACE "NEXT 35", 760 mm, 10 mm Rise, Carbon
Grips
SQlab "70X", S
Headset
ACROS "ZS56 / ZS56", Blocklock
Seat
Saddle
FIZIK "Terra Aidon X1", 145mm
Seatpost
VECNUM "Nivo", 152 mm
Motor & Battery
Motor
BOSCH Mittelmotor "Performance SX", 36 V, 250 W
Battery
BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh
Remote
BOSCH "BRC3300"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.363 mm | 1.335 mm | 1.308 mm |
| Stack | 618 mm | 627 mm | 641 mm | 654 mm |
| Reach | 440 mm | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 573 mm | 595 mm | 619 mm | 642 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
