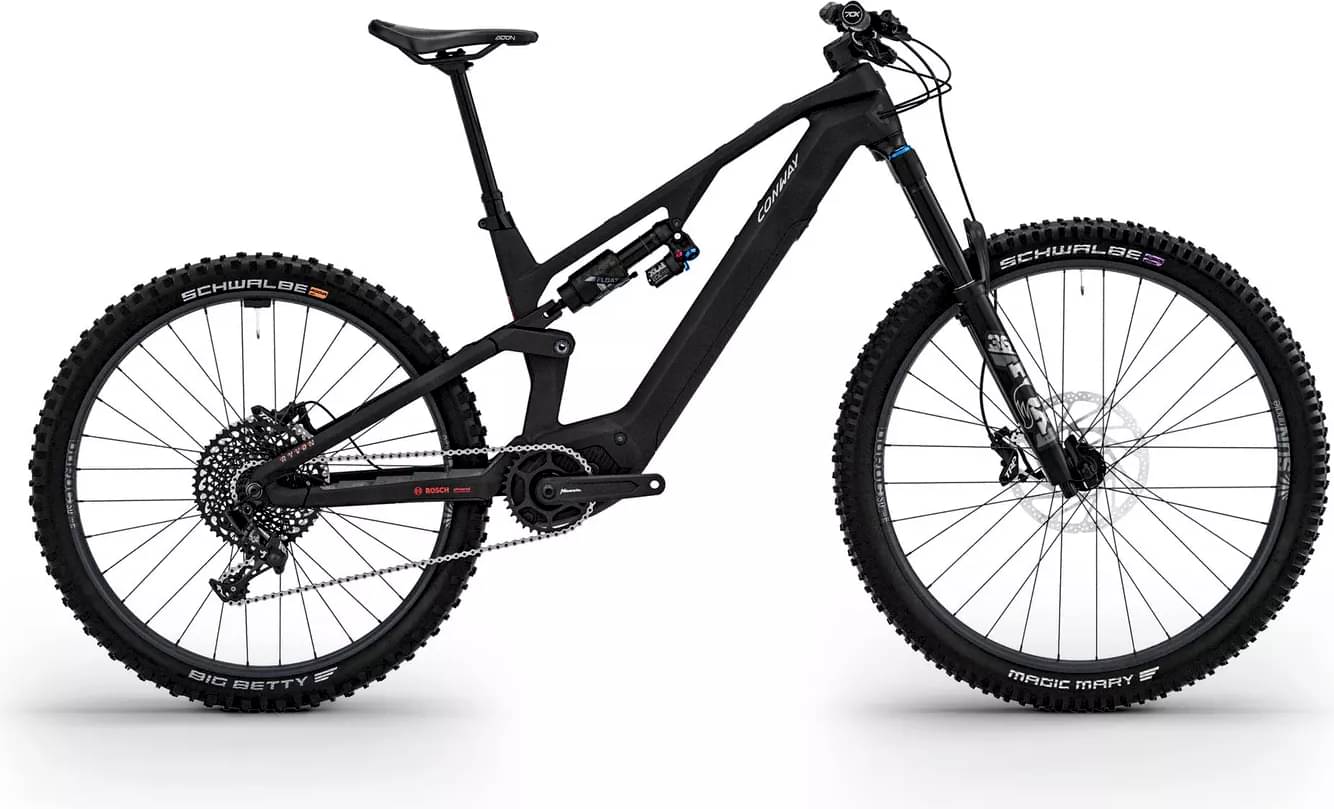

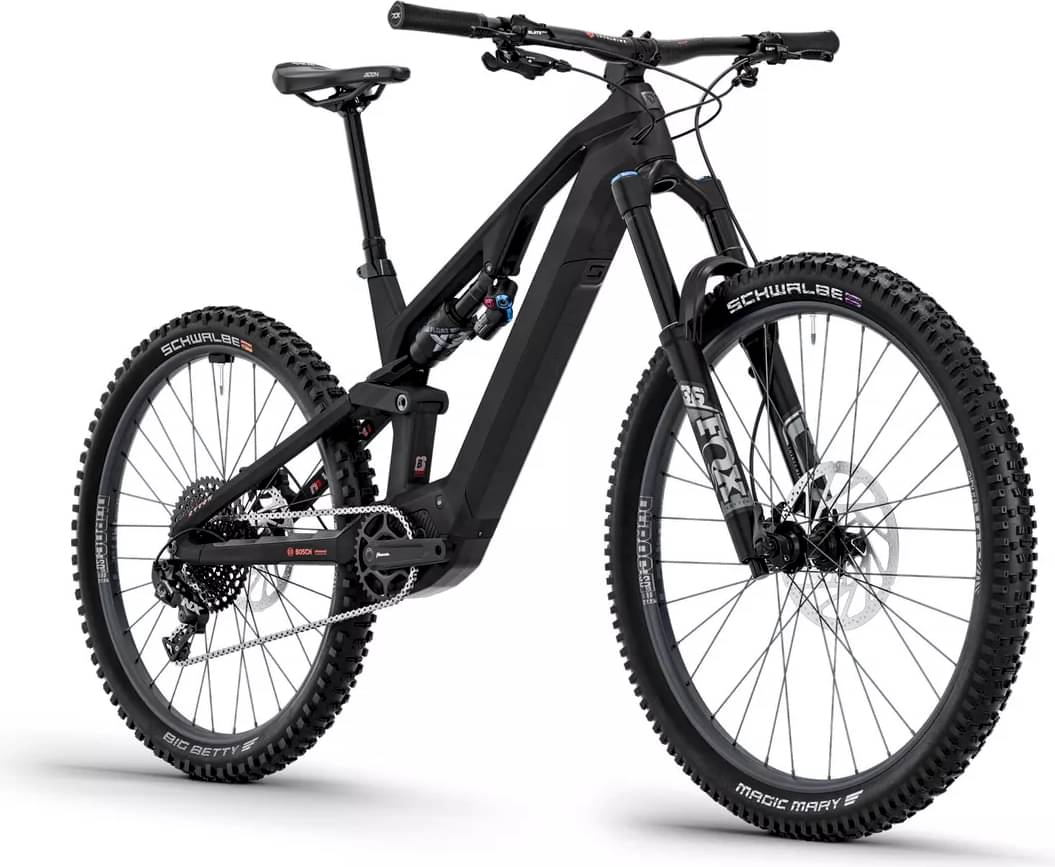

Conway Ryvon LT 4.0 Full Suspension 2024
2024 E-bike
Estimate price |
7,454$
Weight | 20.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Rhythm Float 36
-
Groupset NX Eagle -
Suspension Full -
Motor Bosch 250W 55Nm mid-drive -
Battery BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY E-Light Fully Intube Bosch, Carbon
Suspension Fork
FOX "Float 36 Rhythm", 170 mm
Rear Shock

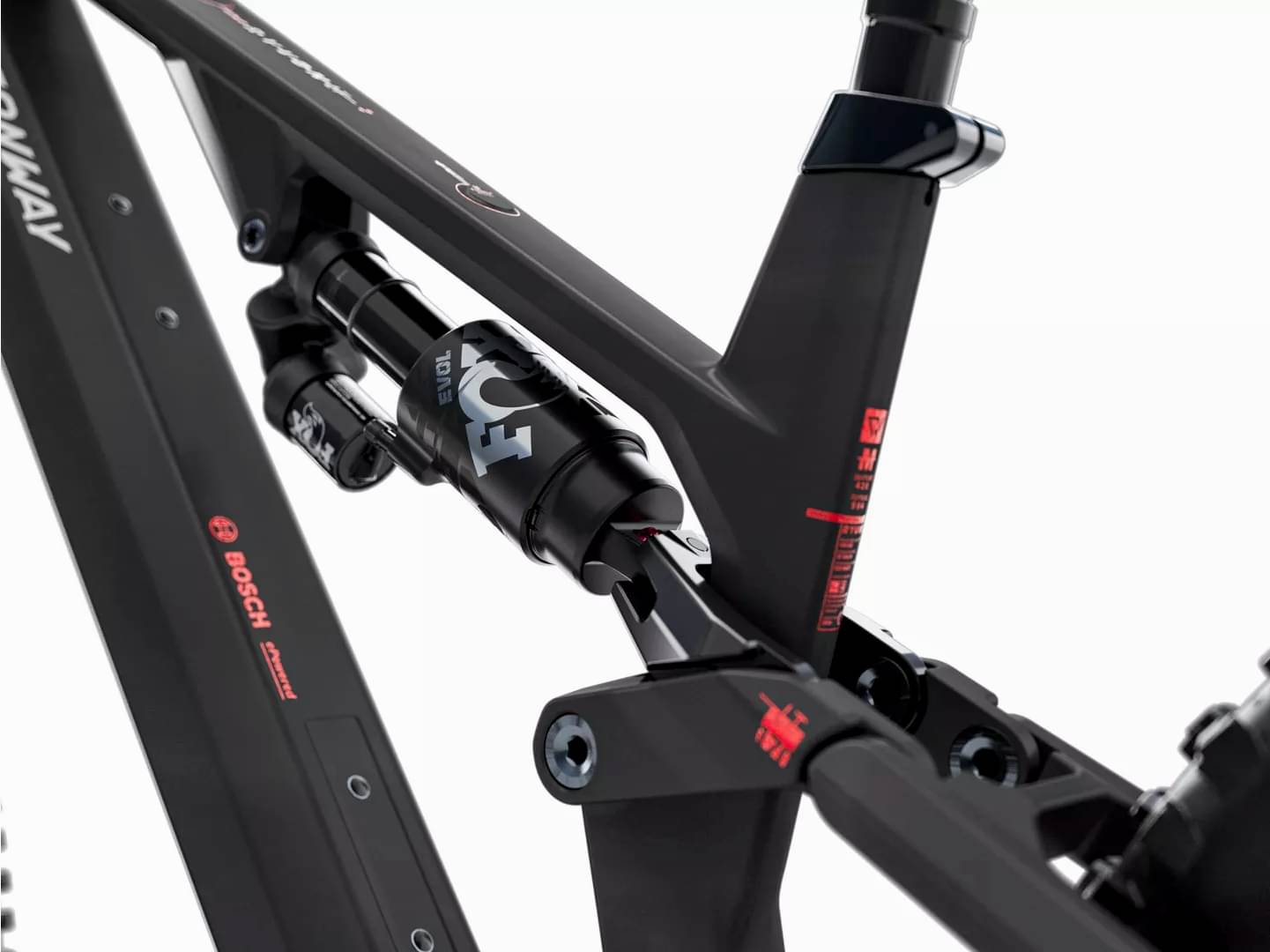

FOX "Float X2 Performance" 170 mm
Drivetrain
Rear Derailleur
SRAM "NX Eagle", 12speed
Shift Levers
SRAM "NX Eagle Trigger", single click
Cassette
SRAM "PG 1230 Eagle", 11-50 Z.
Crank
MIRANDA "OMEGA" 160mm
Bottom Bracket
BOSCH
Wheels
Front Hub
SUN RINGLÉ "Duroc Comp 29", 15 x 110 mm
Rear Hub
SUN RINGLÉ "Duroc Comp 27,5", 12 x 148 mm
Rims
SUN RINGLÉ
Spokes
SUN RINGLÉ
Tires
SCHWALBE "Magic Mary Evo Super Trail", 62-622
Brakes
Brakes
TRP "Slate EVO HD-M807", 4-Kolben
Brake Levers
TRP "Slate EVO HD-M807"
Cockpit
Stem
CONWAY "eMTB 31,8", 40 mm
Handlebar
LEVELNINE "TEAM 31,8", 760 mm, 10 mm Rise
Grips
SQlab "70X", S
Headset
ACROS "ZS56 / ZS56", Blocklock
Seat
Saddle
FIZIK "Terra Aidon X5", 145mm
Seatpost
LIMOTEC "A1L", Offset 0, 150 mm
Motor & Battery
Motor

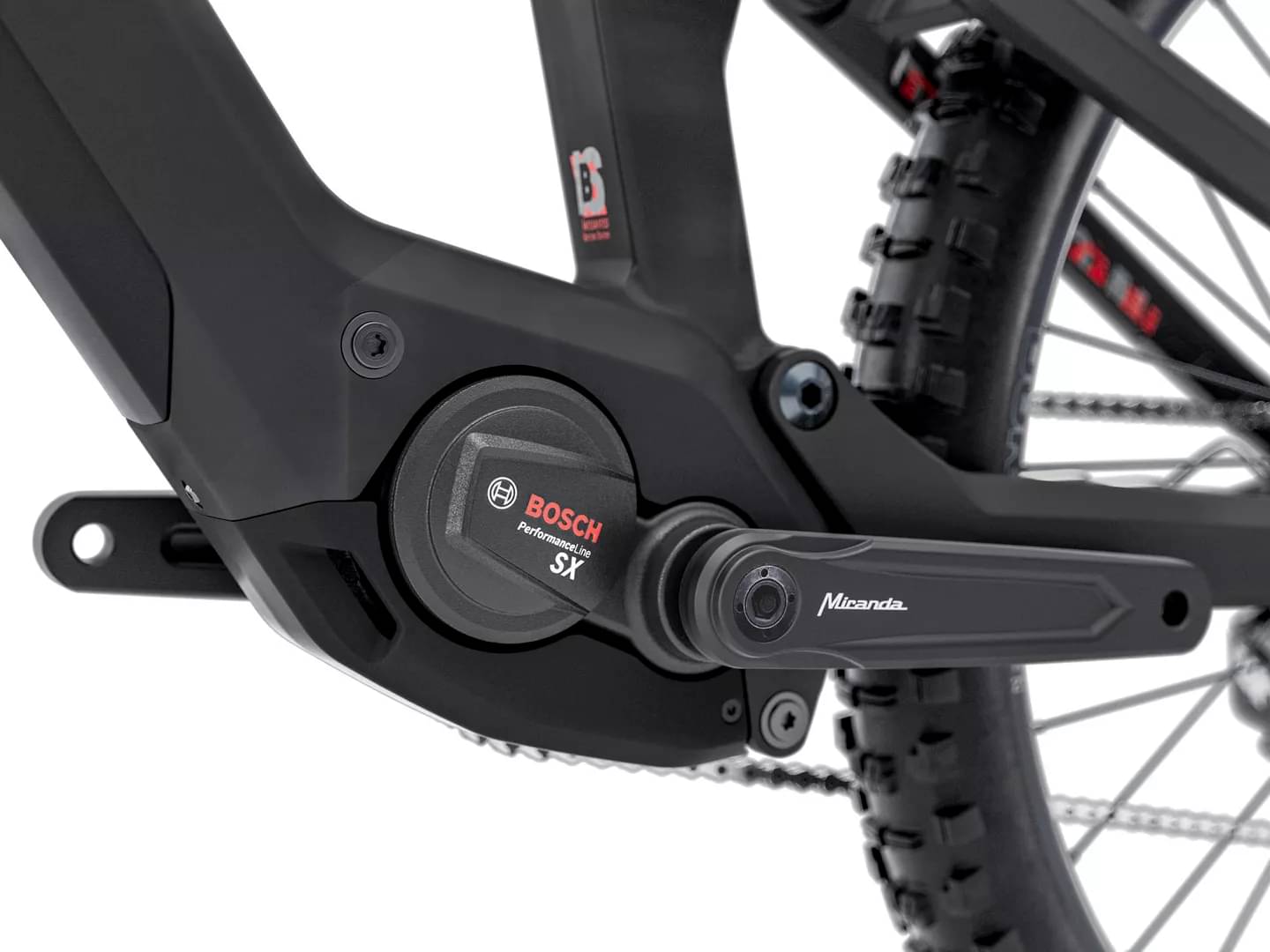

BOSCH Mittelmotor "Performance SX", 36 V, 250 W
Battery
BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh
Remote

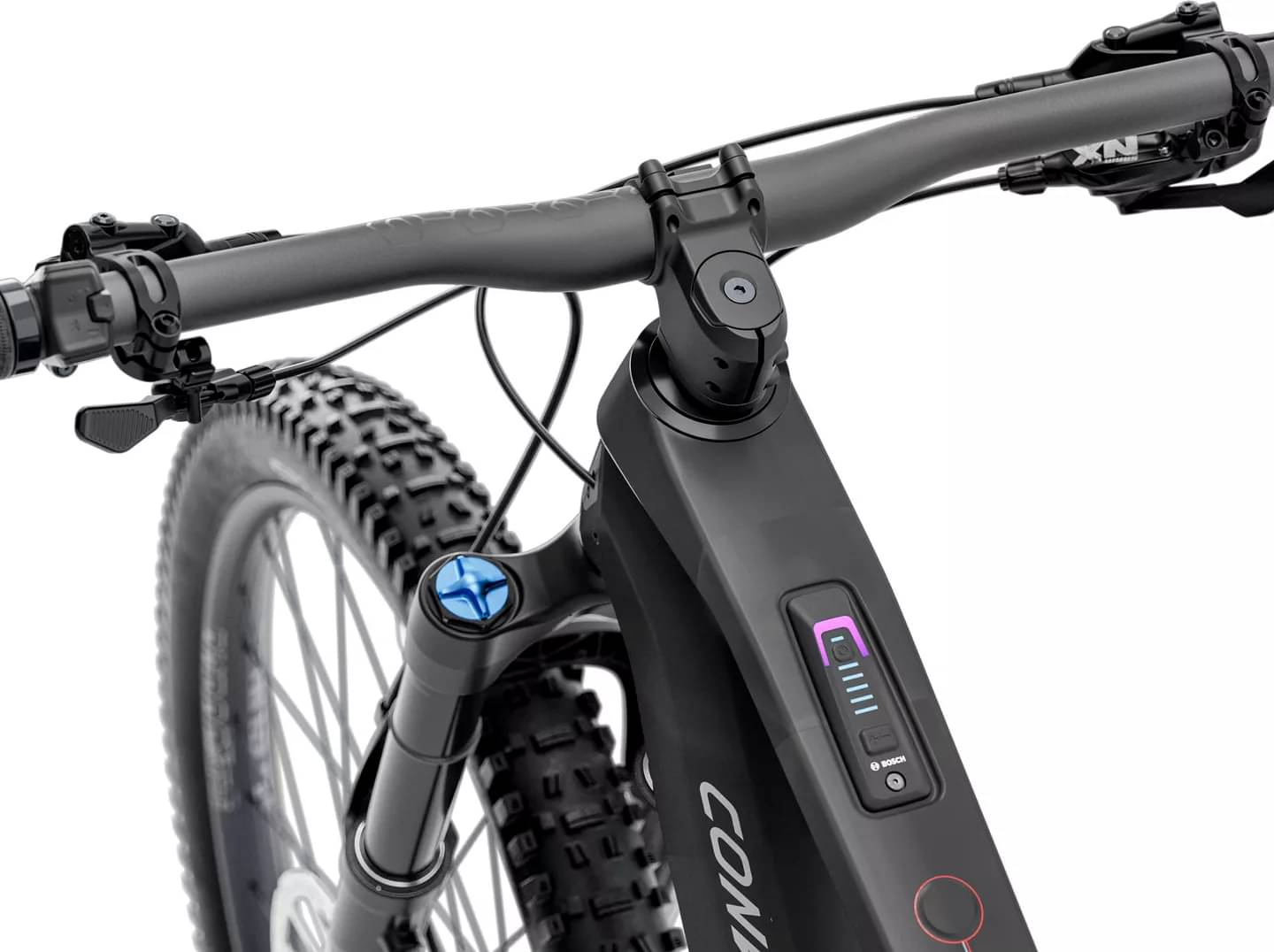

BOSCH "BRC3300"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.363 mm | 1.335 mm | 1.308 mm |
| Stack | 618 mm | 627 mm | 641 mm | 654 mm |
| Reach | 440 mm | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 573 mm | 595 mm | 619 mm | 642 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
