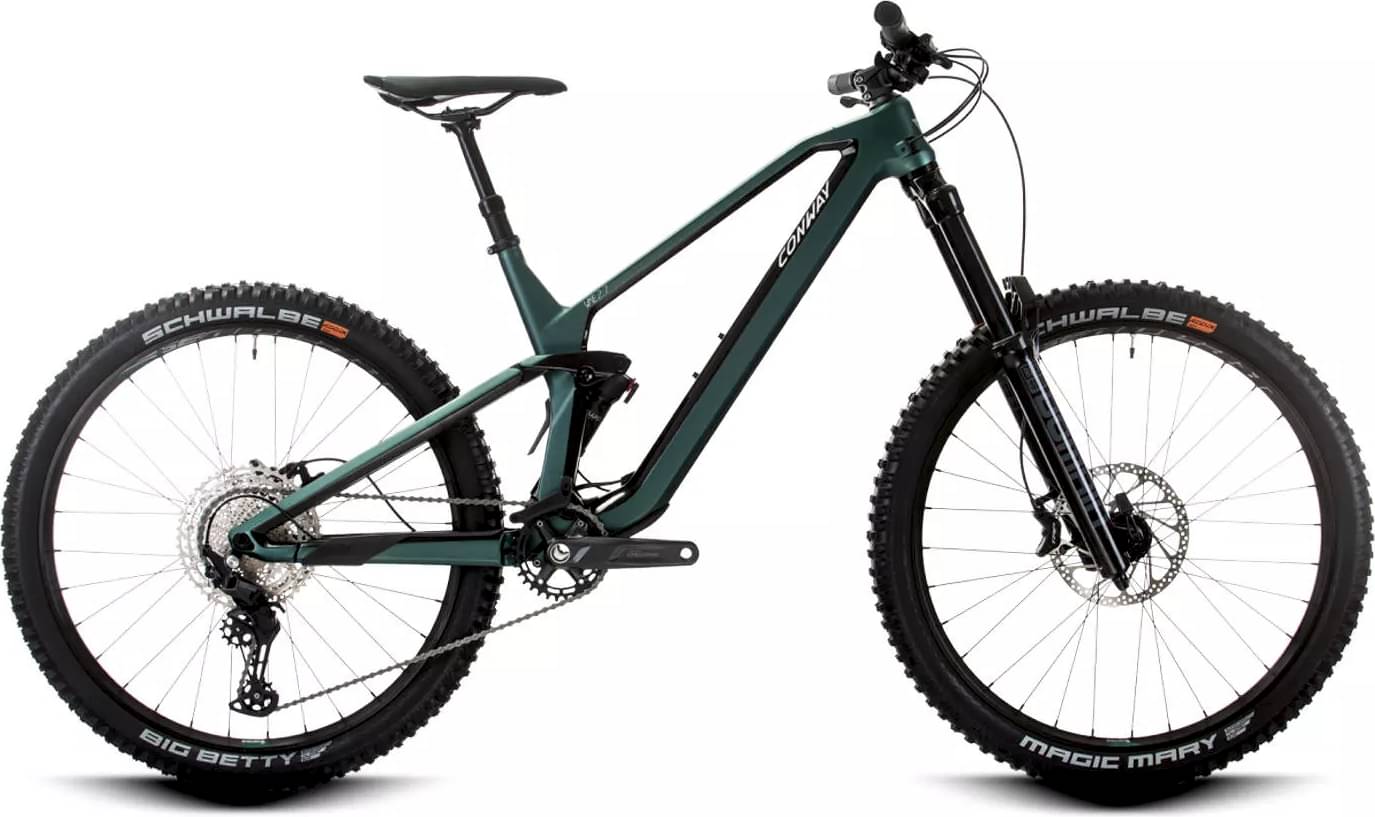

Conway WME 2.7 Full Suspension 2024
2024 Mountain
Estimate price |
3,722$
Weight | 15.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox Domain
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Enduro, Carbon
Suspension Fork
ROCKSHOX "Domain R", 170 mm
Rear Shock
ROCKSHOX "Deluxe Select +" 170 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M5100 Shadow Plus", 11speed
Shift Levers
SHIMANO "Deore SL-M5100"
Cassette
SHIMANO "CS-M5100", 11-51 Z.
Crank
SHIMANO "Deore FC-M5100 Boost", 32 Z. 170 mm
Bottom Bracket
SHIMANO "BB-MT 500"
Wheels
Front Hub
FORMULA "DC 511", 15x110 mm
Rear Hub
FORMULA "DCL 348", 12x148 mm
Rims
RODI „Ready 35"
Spokes
Niro
Tires
SCHWALBE "Magic Mary", Soft, 62-584
Brakes
Brakes
TRP "Slate EVO HD-M807", 4-Kolben
Brake Levers
TRP "Slate EVO HD-M807"
Cockpit
Stem
LEVEL 9 "A-Head 35", 31,8 mm
Handlebar
LEVEL 9 "Team Riser", Ø 31,8, 800 mm
Grips
SQlab "70X"
Headset
ZS44 / ZS56, 10mm Stack
Seat
Saddle
SELLE ROYAL "2315HRN"
Seatpost
CONTEC "Drop - A - Gogo", 31,6 mm, 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.369 mm | 1.321 mm | 1.296 mm |
| Stack | 608 mm | 609 mm | 617 mm | 631 mm |
| Reach | 421 mm | 445 mm | 467 mm | 487 mm |
| Top Tube Length | 569 mm | 594 mm | 619 mm | 644 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
