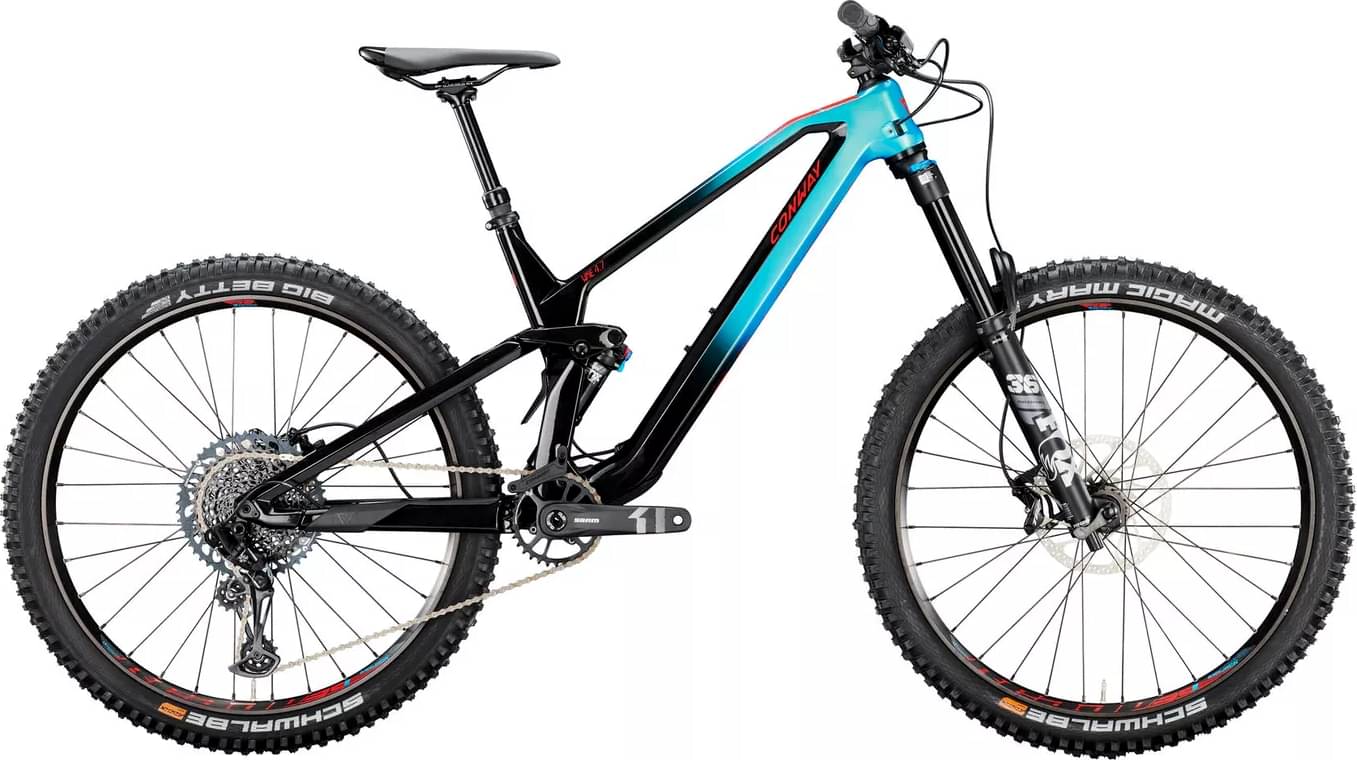

Conway WME 4.7 Full Suspension 2024

2024 Mountain
Estimate price | 4,013$
Weight | 15.3 kg
Open compare Use advisor
Conway Wme 4.7 Full Suspension 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Wheels 27.5"
  • Travel Front 170mm
  • Travel Rear 170mm
  • Fork Fox Performance Float 36
  • Groupset NX Eagle, X1
  • Suspension Full
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 171cm

  • MD

    168cm - 180cm

  • LG

    178cm - 189cm

  • XL

    186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

CONWAY Fully Enduro, Carbon

Suspension Fork

FOX "Performance 36 Float", 170 mm

Rear Shock

FOX "Float DPS" 170 mm

Drivetrain

Rear Derailleur

SRAM "NX Eagle", 12speed

Shift Levers

SRAM "NX Eagle Trigger"

Cassette

SRAM "XG 1275 Eagle", 10-50 Z.

Crank

SRAM "X1 1000", Boost DUB, 32 Z. 170 mm

Bottom Bracket

SRAM "PF 92 DUB"

Wheels

Front Hub

FORMULA "DC 511", 15x110 mm

Rear Hub

FORMULA "DCL 3481", 12x148 mm

Rims

RODI "Ready 35"

Spokes

Niro

Tires

SCHWALBE "Magic Mary", Soft, 62-584

Brakes

Brakes

SHIMANO "BR-MT420", 4-Kolben

Brake Levers

SHIMANO "BL-M4100"

Cockpit

Stem

LEVEL 9 "A-Head 35", 31,8 mm

Handlebar

LEVEL 9 "Team Riser", Ø 31,8, 800 mm

Grips

SQlab "70X"

Headset

ZS44 / ZS56, 10mm Stack

Seat

Saddle

SELLE ROYAL "2315HRN"

Seatpost

CONTEC "Drop - A - Gogo", 31,6 mm, 100 mm

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.444 mm1.369 mm1.321 mm1.296 mm
Stack
608 mm609 mm617 mm631 mm
Reach
421 mm445 mm467 mm487 mm
Top Tube Length
569 mm594 mm619 mm644 mm
Seat Tube Angle
75 °75 °75 °75 °
Seat Tube Length
400 mm430 mm460 mm500 mm
Head Tube Angle
65 °65 °65 °65 °
Head Tube Length
110 mm110 mm120 mm135 mm
Chainstay Length
430 mm430 mm430 mm430 mm
Wheels27"27"27"27"
Rider Min Height158 cm168 cm178 cm186 cm
Rider Max Height171 cm180 cm189 cm199 cm
