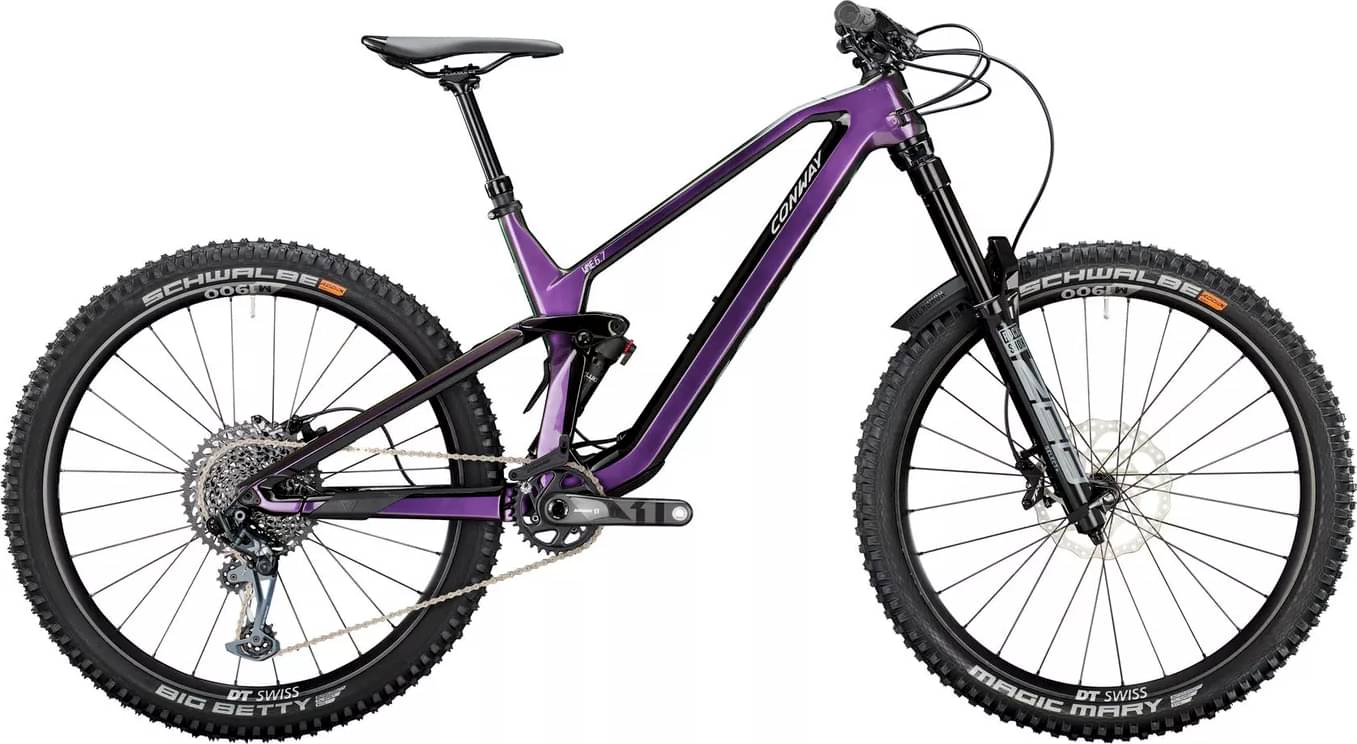

Conway WME 6.7 Full Suspension 2024
2024 Mountain
Estimate price |
5,816$
Weight | 15.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Select+
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Enduro, Carbon
Suspension Fork
ROCKSHOX "ZEB Select +", 170 mm
Rear Shock
ROCKSHOX "Super Deluxe Select" 170 mm
Drivetrain
Rear Derailleur
SRAM "X01 Eagle", 12speed
Shift Levers
SRAM "X01 Eagle Trigger"
Cassette
SRAM "XG 1275 Eagle", 10-50 Z.
Crank
SRAM "X1 Carbon", Boost DUB, 32 Z. 170 mm
Bottom Bracket
SRAM "PF 92 DUB"
Wheels
Front Hub
MAVIC „Deemax″, 15 x 110 mm
Rear Hub
MAVIC „Deemax″, 12 x 148 mm
Rims
MAVIC
Spokes
MAVIC
Tires
SCHWALBE "Magic Mary", Soft, 62-584
Brakes
Brakes
TRP "DH-R EVO HD-M846", 4-Kolben
Brake Levers
TRP "DH-R EVO HD-M846"
Cockpit
Stem
RACEFACE "Turbine R 35", 32 mm
Handlebar
RACEFACE "Next R Carbon", Ø 35, 800 mm
Grips
SQlab "70X"
Headset
ZS44 / ZS56, 10mm Stack
Seat
Saddle
SELLE ROYAL "2315HRN"
Seatpost
CONTEC "Drop - A - Gogo", 31,6 mm, 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.369 mm | 1.321 mm | 1.296 mm |
| Stack | 608 mm | 609 mm | 617 mm | 631 mm |
| Reach | 421 mm | 445 mm | 467 mm | 487 mm |
| Top Tube Length | 569 mm | 594 mm | 619 mm | 644 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
