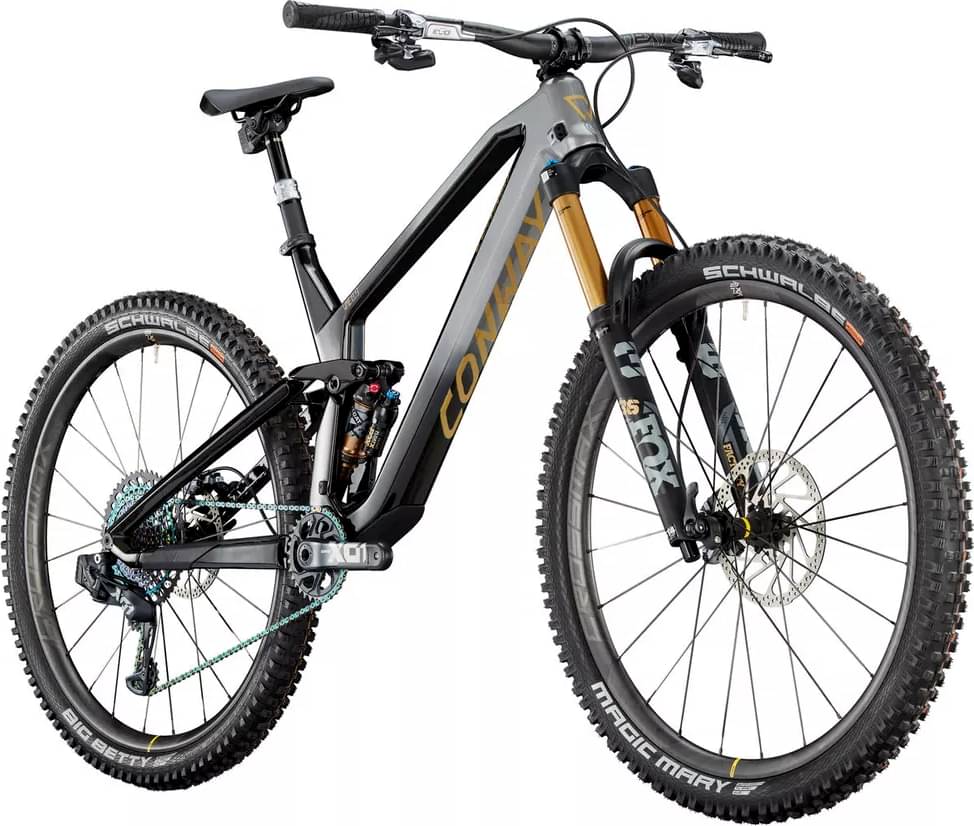

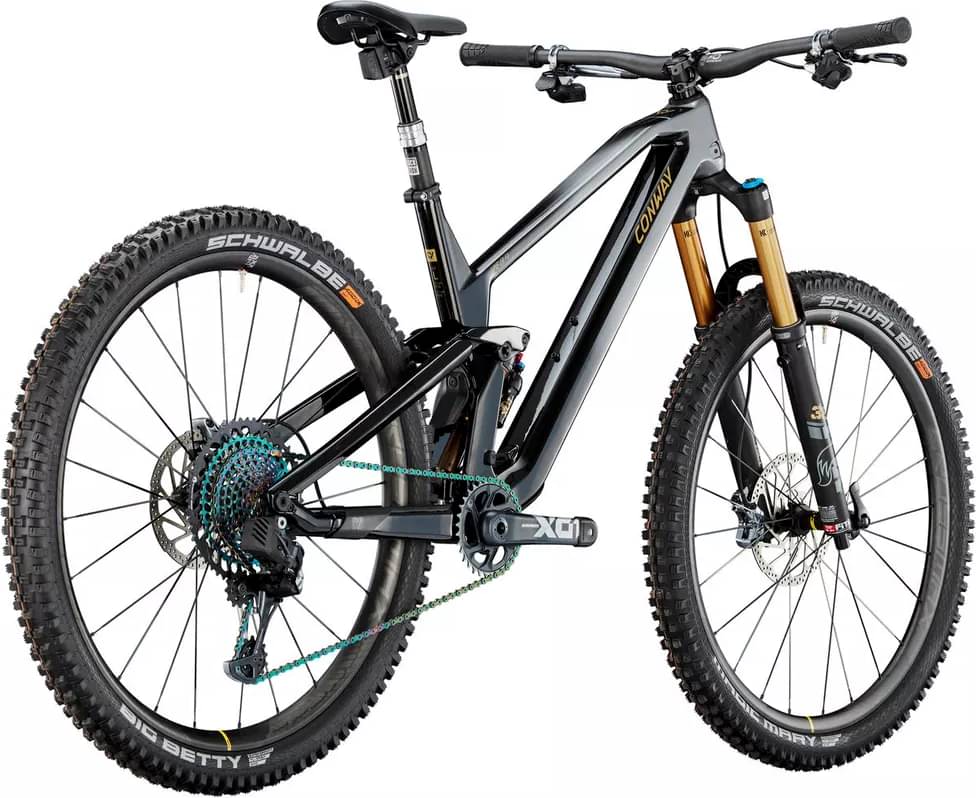

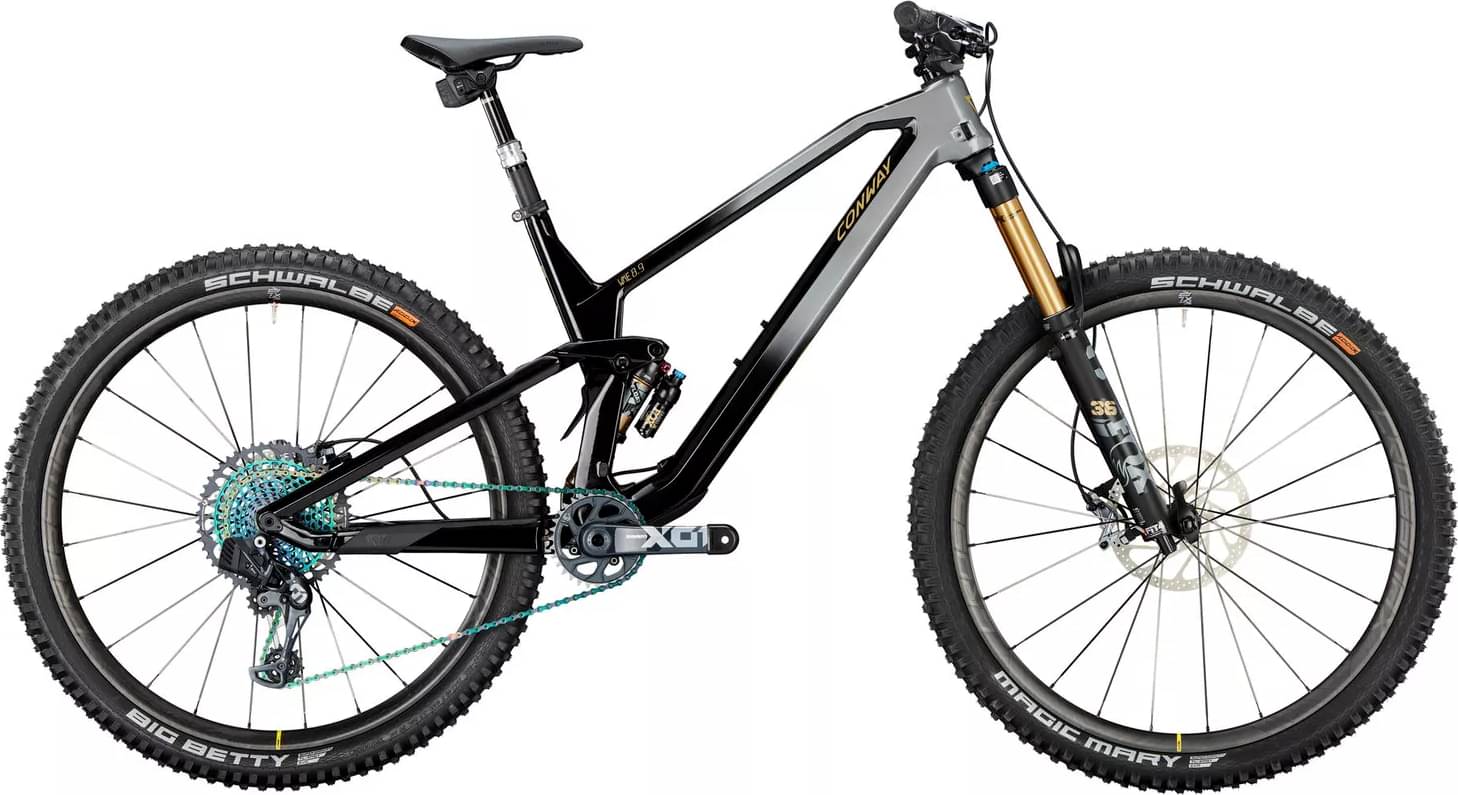

Conway WME 8.9 Full Suspension 2024
2024 Mountain
Estimate price |
8,028$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Trail, Carbon
Suspension Fork
FOX "Factory 36 Float", 150 mm

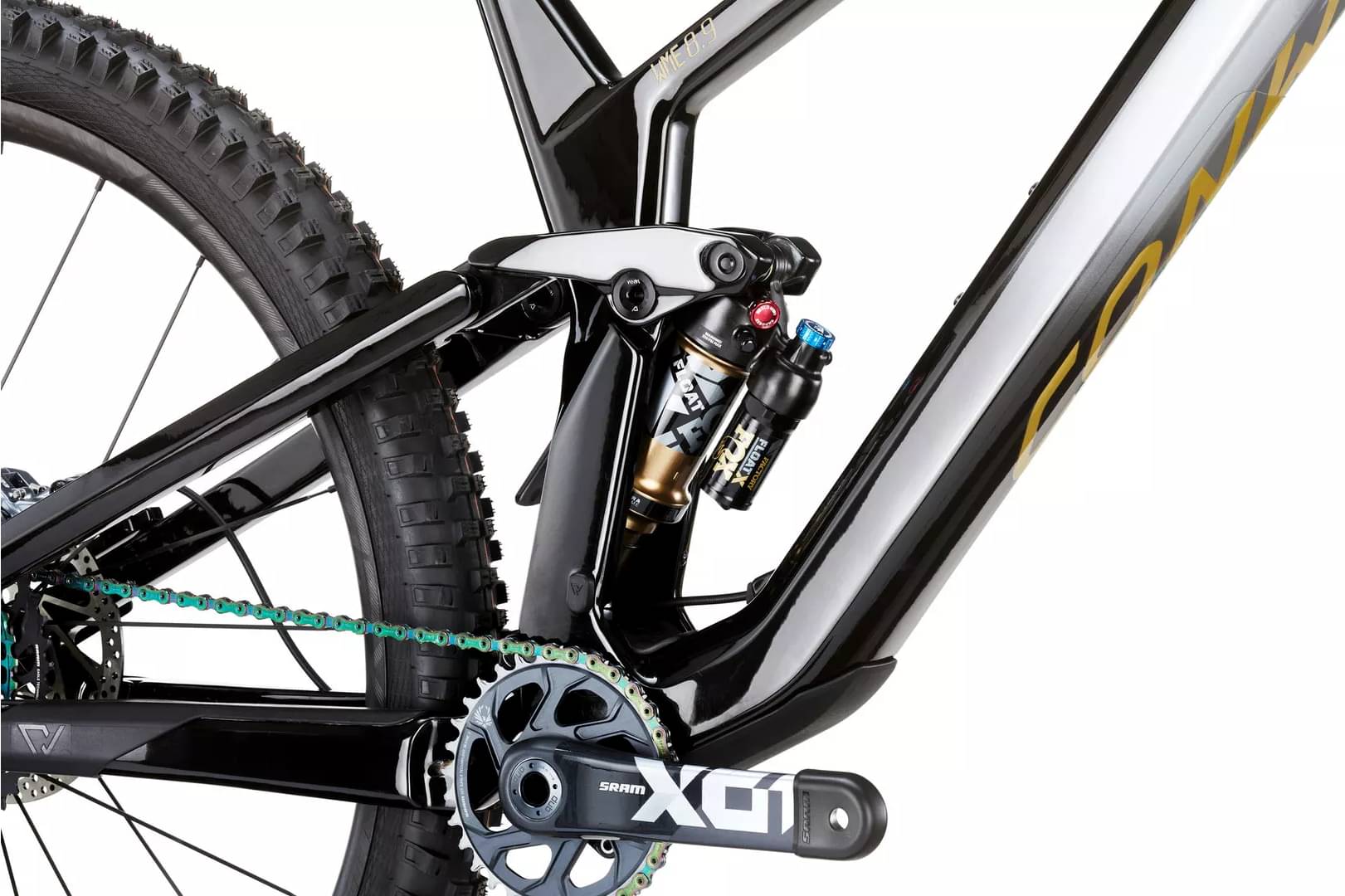

Rear Shock
FOX "Factory Float X" 150 mm

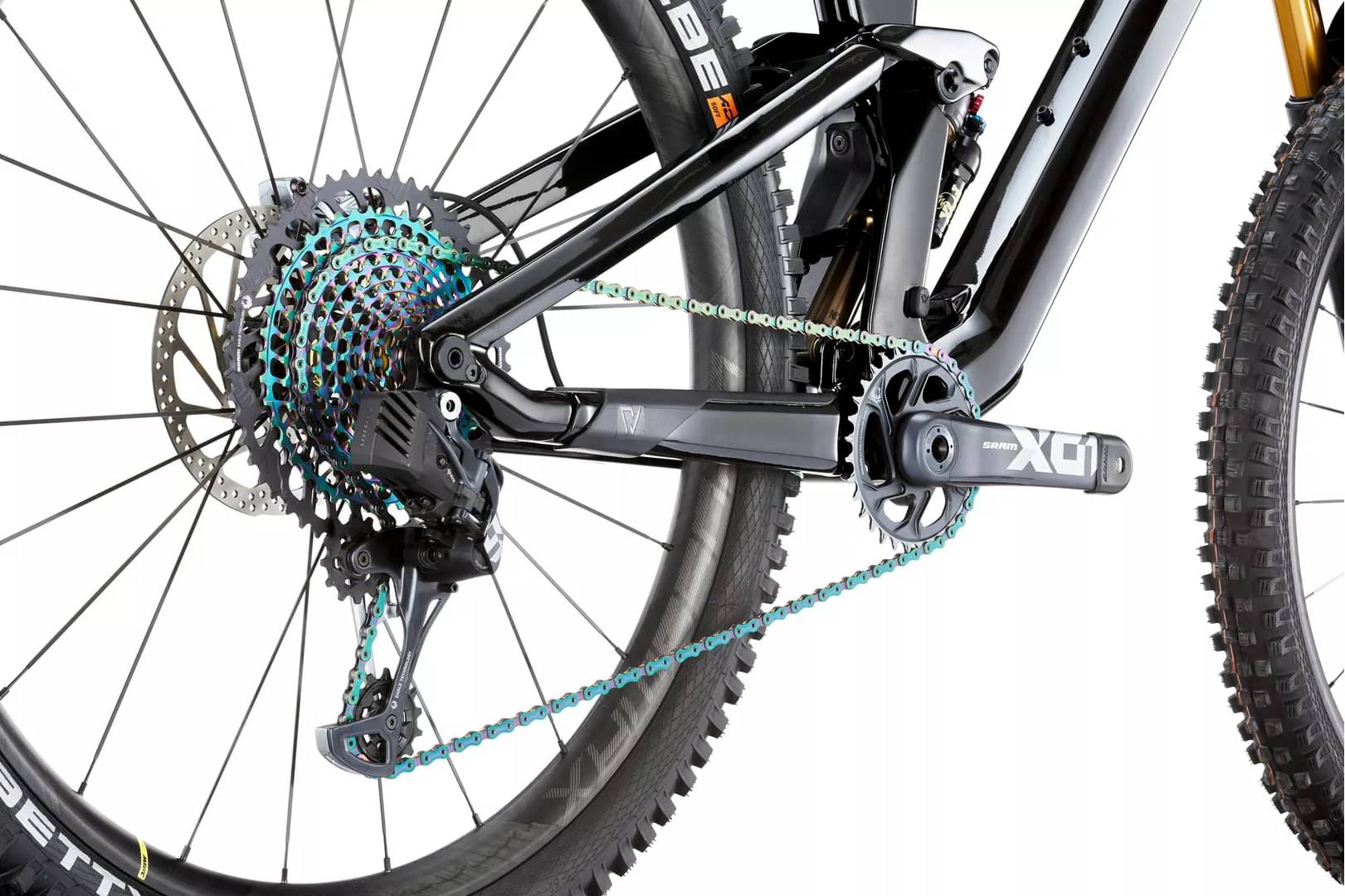

Drivetrain
Rear Derailleur
SRAM "X01 Eagle AXS", 12speed
Shift Levers
SRAM "Eagle AXS"
Cassette
SRAM "XG 1299 Eagle", 10-52 Z. Rainbow
Crank
SRAM "X01 Eagle DUB", 32 Z. 170 mm
Bottom Bracket
SRAM "PF 92 DUB"
Wheels
Front Hub
MAVIC „Crossmax Carbon XL R″, 15 x 110 mm
Rear Hub
MAVIC „Crossmax Carbon XL R″, 12 x 148 mm
Rims
MAVIC
Spokes
MAVIC
Tires
SCHWALBE "Magic Mary", Soft, 62-622
Brakes
Brakes
TRP "DH-R EVO HD-M846", 4-Kolben
Brake Levers
TRP "DH-R EVO HD-M846"

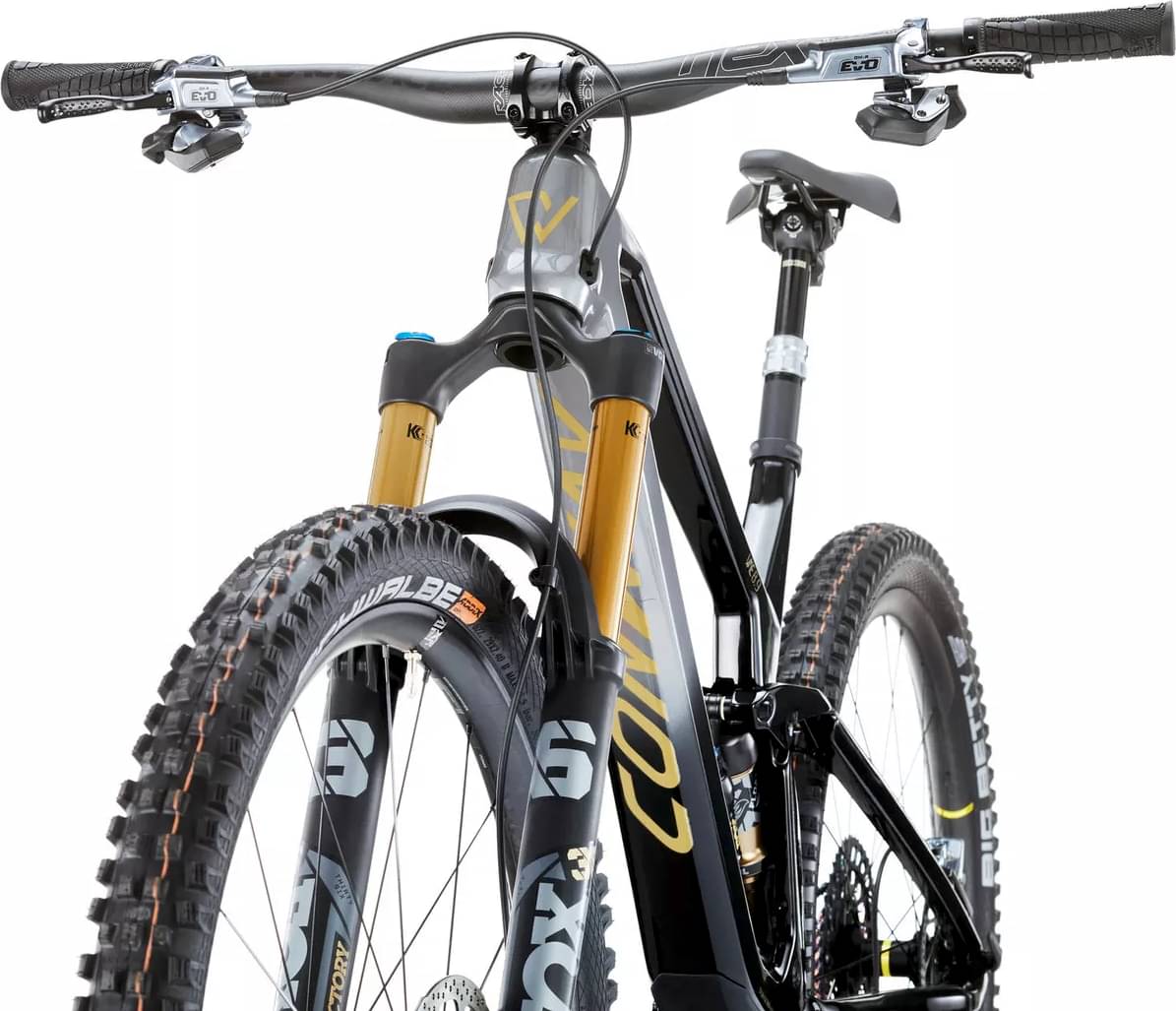

Cockpit
Stem
RACEFACE "Turbine R 35", 32 mm
Handlebar
RACEFACE "Next R Carbon", Ø 35, 800 mm
Grips
SQlab "70X"
Headset
ZS44 / ZS56
Seat
Saddle
FIZIK "Alpace X5"
Seatpost
ROCKSHOX "Reverb AXS", 31,6 mm, 100 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.369 mm | 1.321 mm | 1.296 mm |
| Stack | 608 mm | 609 mm | 617 mm | 631 mm |
| Reach | 421 mm | 445 mm | 467 mm | 487 mm |
| Top Tube Length | 569 mm | 594 mm | 619 mm | 644 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
