Conway Xyron S 2.9 SE Full Suspension 2024
2024 E-bike
Weight | 27.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh, horizontal -
Drivetrain 1 × 12 -
Brakes Tektro Gemini Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Intube Bosch, Alu
Suspension Fork
ROCKSHOX "Recon RL", 150 mm

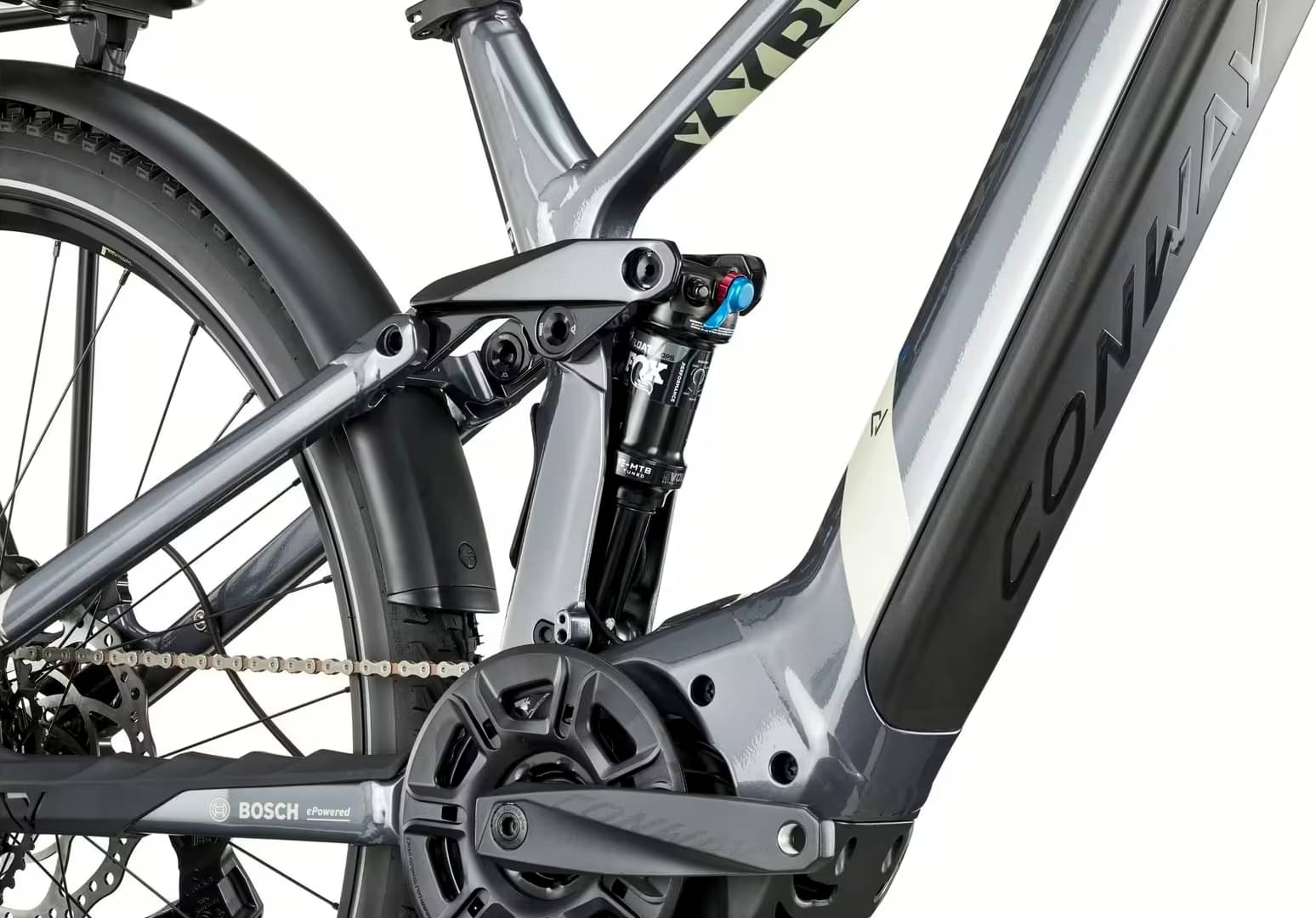

Rear Shock
FOX "Float DPS" 150 mm
Drivetrain
Rear Derailleur
SRAM "SX Eagle", 12speed
Shift Levers
SRAM "SX Eagle Trigger", single click
Cassette
SRAM "PG 1210 Eagle", 11-50 Z.
Crank
MIRANDA "Epsilon", 165 mm
Bottom Bracket
BOSCH
Wheels
Front Hub
FORMULA "DC 511", 15 x 110 mm
Rear Hub
FORMULA "eHL-148 S", 12 x 148 mm
Rims
RODI "Ready 35"
Spokes
MACH 1 "PRO"
Tires
SCHWALBE "Marathon Plus MTB", 57-622, Reflex
Brakes
Brakes
TEKTRO "HD-M535", 4/4-Kolben
Brake Levers
TEKTRO "HD-M535"
Cockpit
Stem
LEVEL 9 "A-Head 35", 31,8 mm
Handlebar
LEVEL 9 "Low Riser", 31,8, 780 mm
Grips
SQlab "70X"
Headset
ZS56 / ZS56, Block Lock
Seat
Saddle
SELLE ROYAL "Herren"
Seatpost
LIMOTEC "A1L", 31,6 mm, 100 mm
Motor & Battery

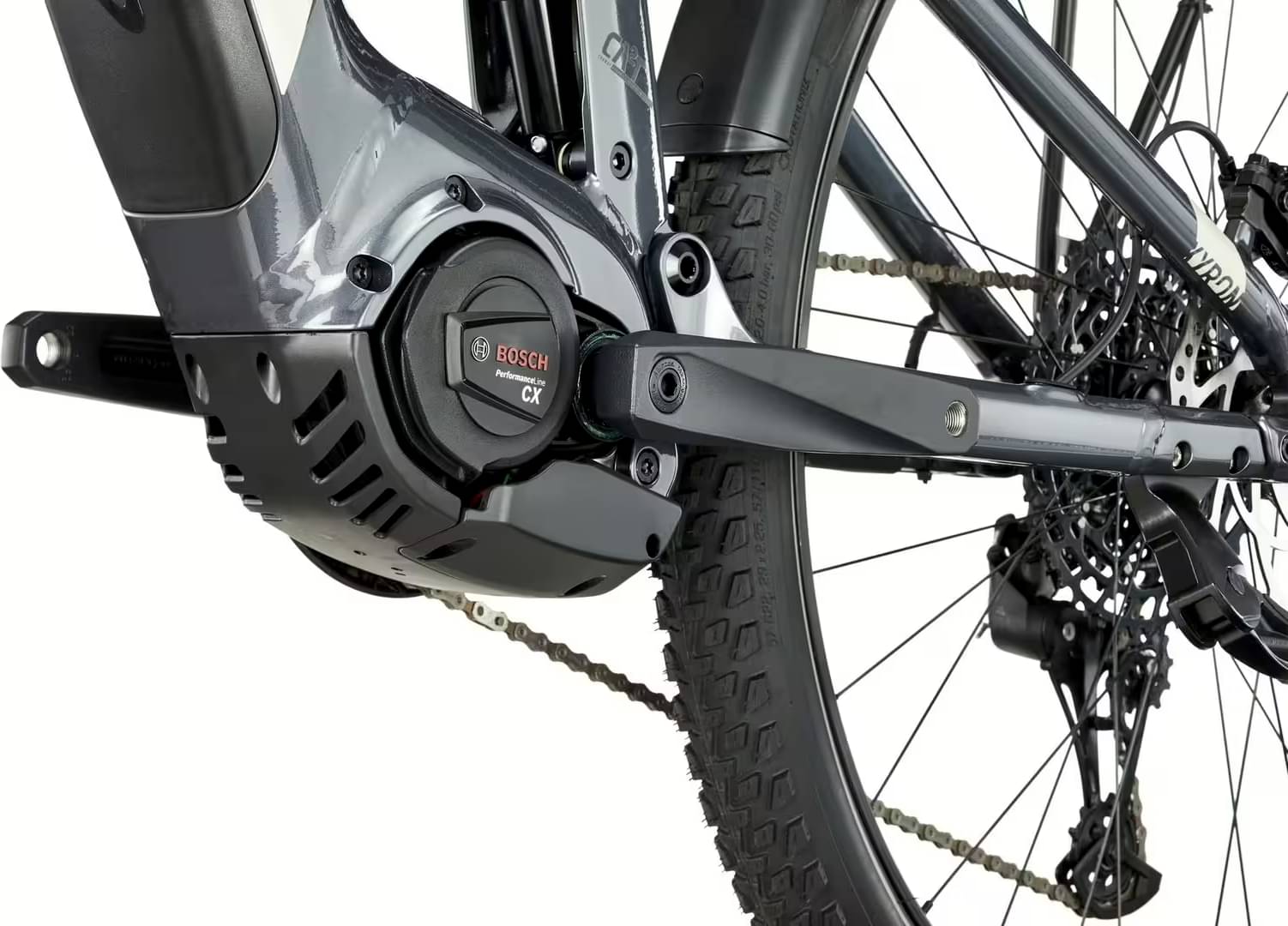

Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh, horizontal
Remote
BOSCH "BRC3300"
Charger
Bosch 4 A, BES3
Fit data
Geometry
