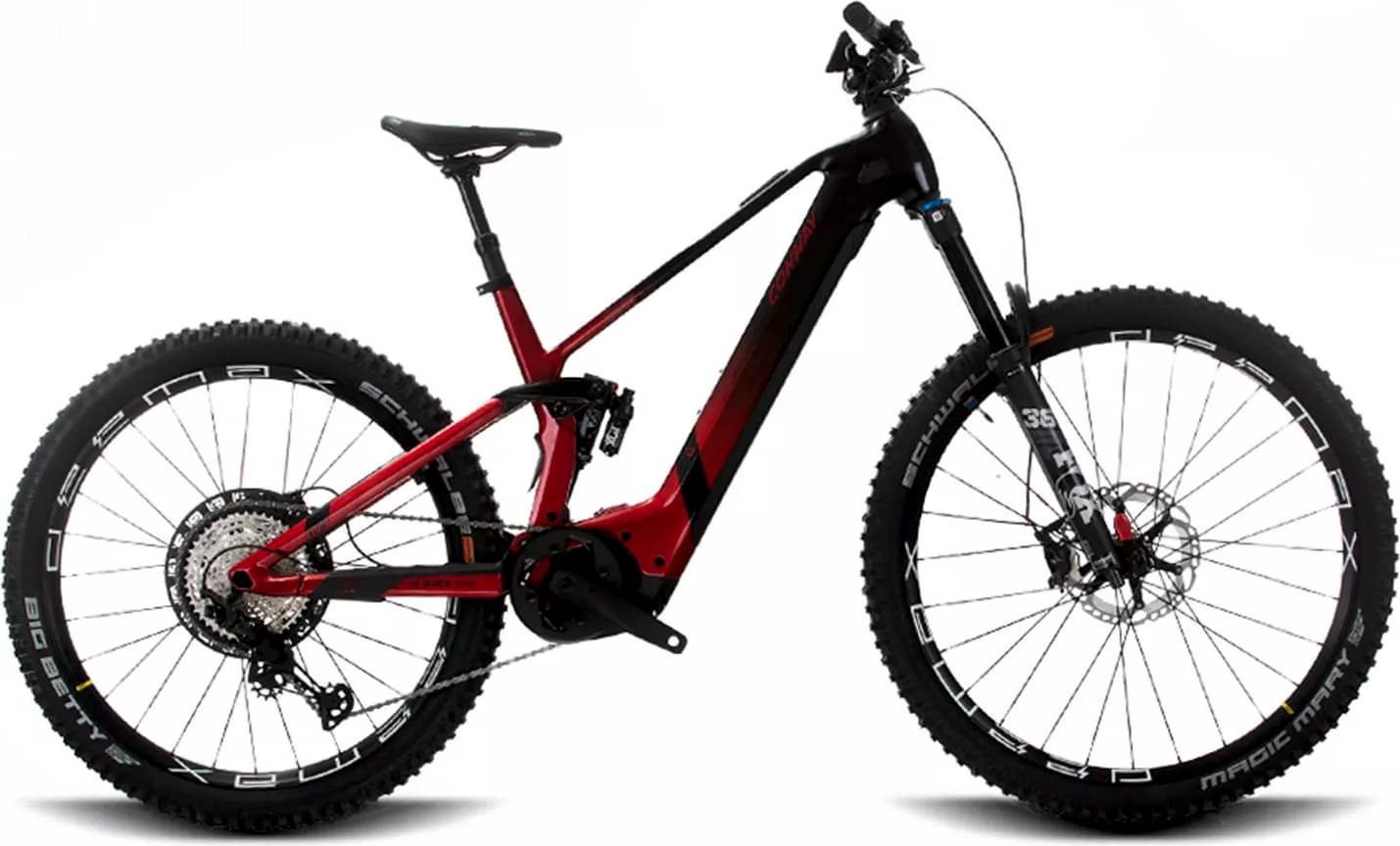

Conway Xyron S 8.9 MX Carbon Full Suspension 2024
2024 E-bike
Estimate price |
8,142$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Intube Bosch, Carbon
Suspension Fork
FOX "Performance 36 Float", 160 mm
Rear Shock
FOX "Float X" 160 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore XT RD-M8100 Shadow Plus", 12speed
Shift Levers
SHIMANO "Deore XT SL-M8100"
Cassette
SHIMANO "CS-M7100", 10-51 Z.
Crank
MIRANDA "Epsilon", 165 mm
Bottom Bracket
BOSCH
Wheels
Front Hub
MAVIC "E-Deemax 30", 15 x 110 mm
Rear Hub
MAVIC "E-Deemax 30", 12 x 148 mm
Rims
MAVIC "E-Deemax 30"
Spokes
MAVIC
Tires
SCHWALBE "Magic Mary", Soft, 62-622
Brakes
Brakes
SHIMANO „Deore XT BR-M8120", 4-Kolben
Brake Levers
SHIMANO "Deore XT BL-M8100"
Cockpit
Stem
LEVEL 9 "Team A-Head ICR", 31,8 mm, 40 mm
Handlebar
LEVEL 9 "Team Riser", Ø 31,8, 800 mm
Grips
SQLAB "70X"
Headset
ZS56 / ZS56, ICR, Blocklock
Seat
Saddle
FIZIK "Aidon"
Seatpost
CONTEC "Drop - A - Gogo", 31,6 mm, 100 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3300"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.528 mm | 1.458 mm | 1.423 mm | 1.388 mm | 1.361 mm |
| Stack | 637 mm | 637 mm | 646 mm | 655 mm | 664 mm |
| Reach | 417 mm | 437 mm | 454 mm | 472 mm | 488 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
