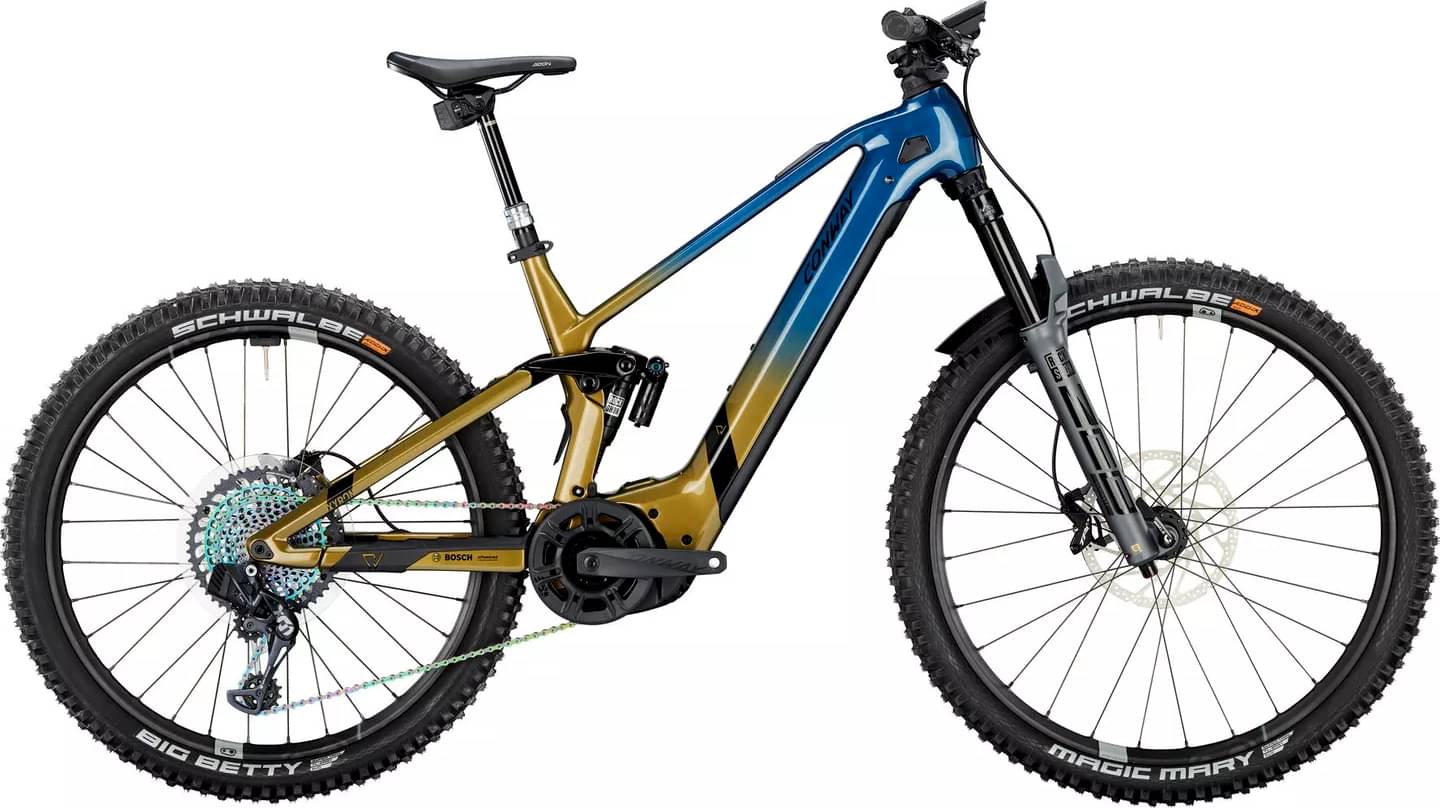

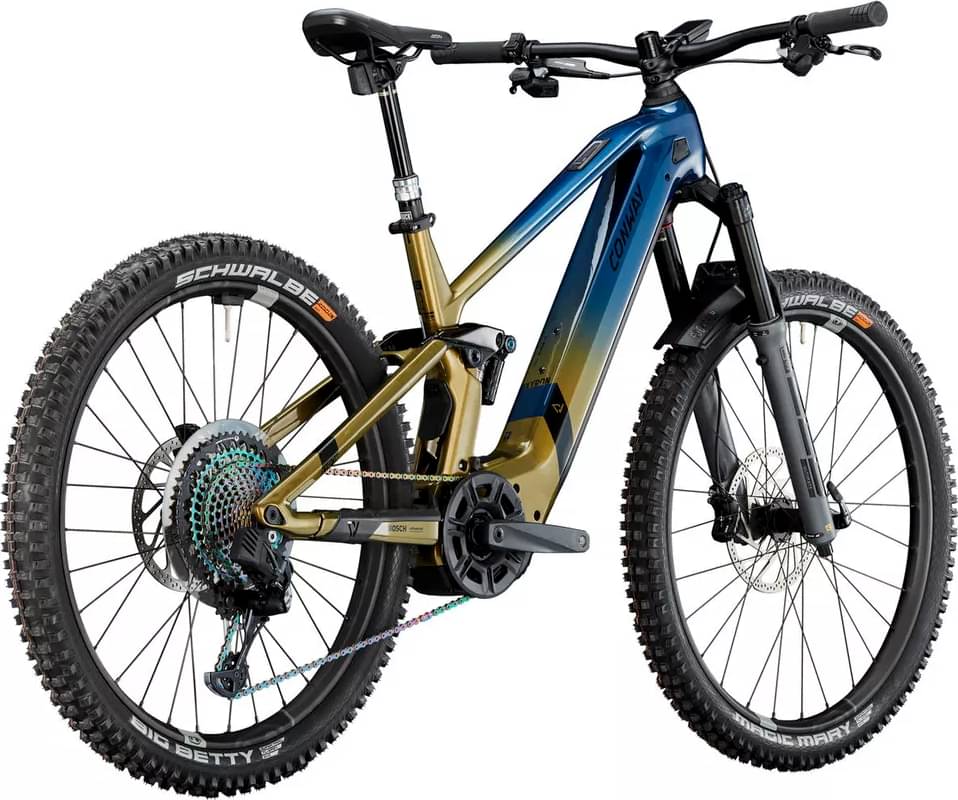

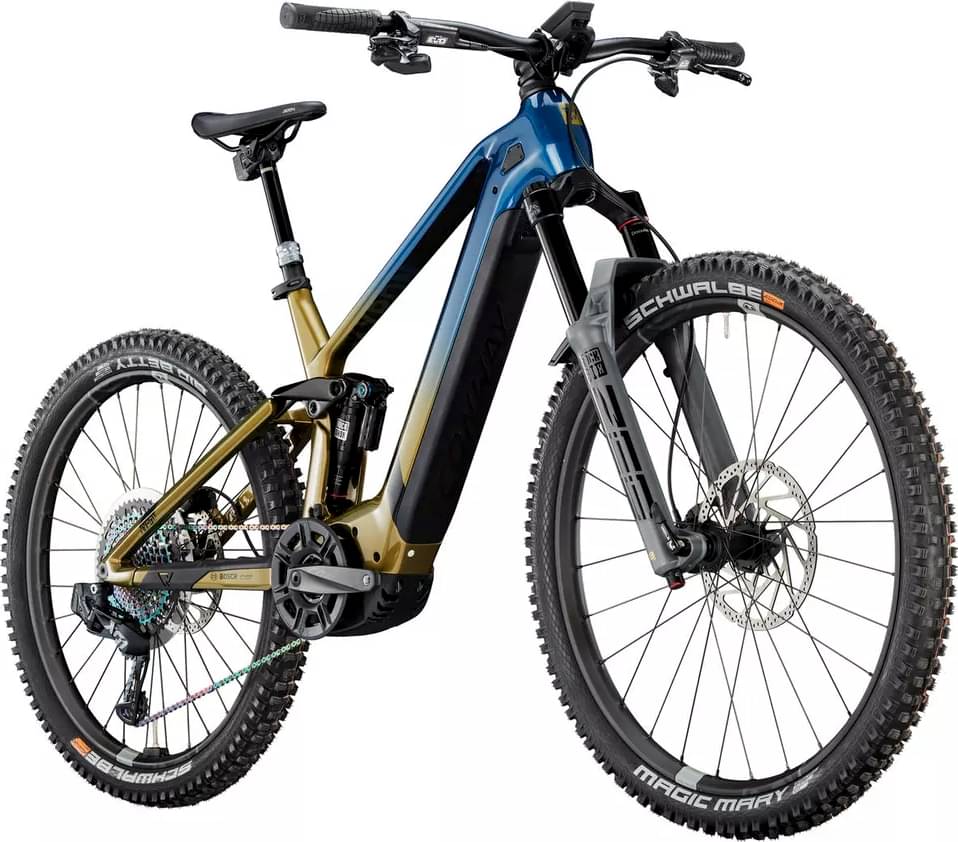

Conway Xyron S 9.9 MX Carbon Full Suspension 2024
2024 E-bike
Estimate price |
11,632$
Weight | 24.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Intube Bosch, Carbon
Suspension Fork
ROCKSHOX "ZEB Ultimate", 160 mm, w Fender

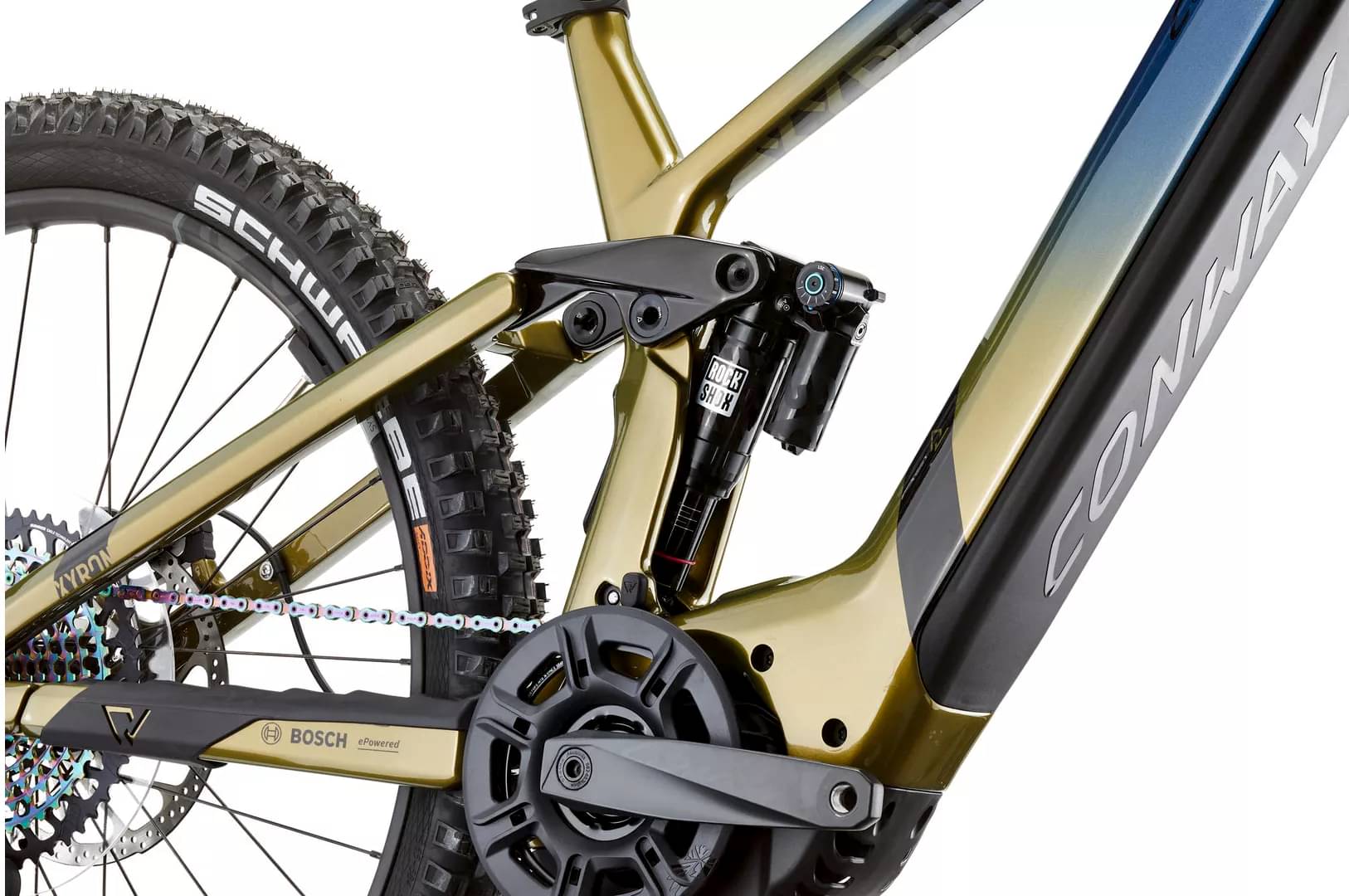

Rear Shock
ROCKSHOX "Super Deluxe Ultimate" 160 mm
Drivetrain
Rear Derailleur
SRAM "X01 Eagle AXS", 12speed
Shift Levers
SRAM "AXS Rocker"
Cassette
SRAM "XG 1299 Eagle", 10-52 Z. Rainbow
Crank
MIRANDA "Epsilon", 165 mm
Bottom Bracket
BOSCH
Wheels
Front Hub
CRANKBROTHERS "Synthesis E-MTB Carbon", 15 x 110 mm
Rear Hub
CRANKBROTHERS "Synthesis E-MTB Carbon", 12 x 148 mm
Rims
CRANKBROTHERS "Synthesis E-MTB Carbon"
Spokes
CRANKBROTHERS
Tires
SCHWALBE "Magic Mary", Soft, 62-622
Brakes
Brakes
TRP "DH-R EVO HD-M846", 4-Kolben
Brake Levers
TRP "DH-R EVO HD-M846"

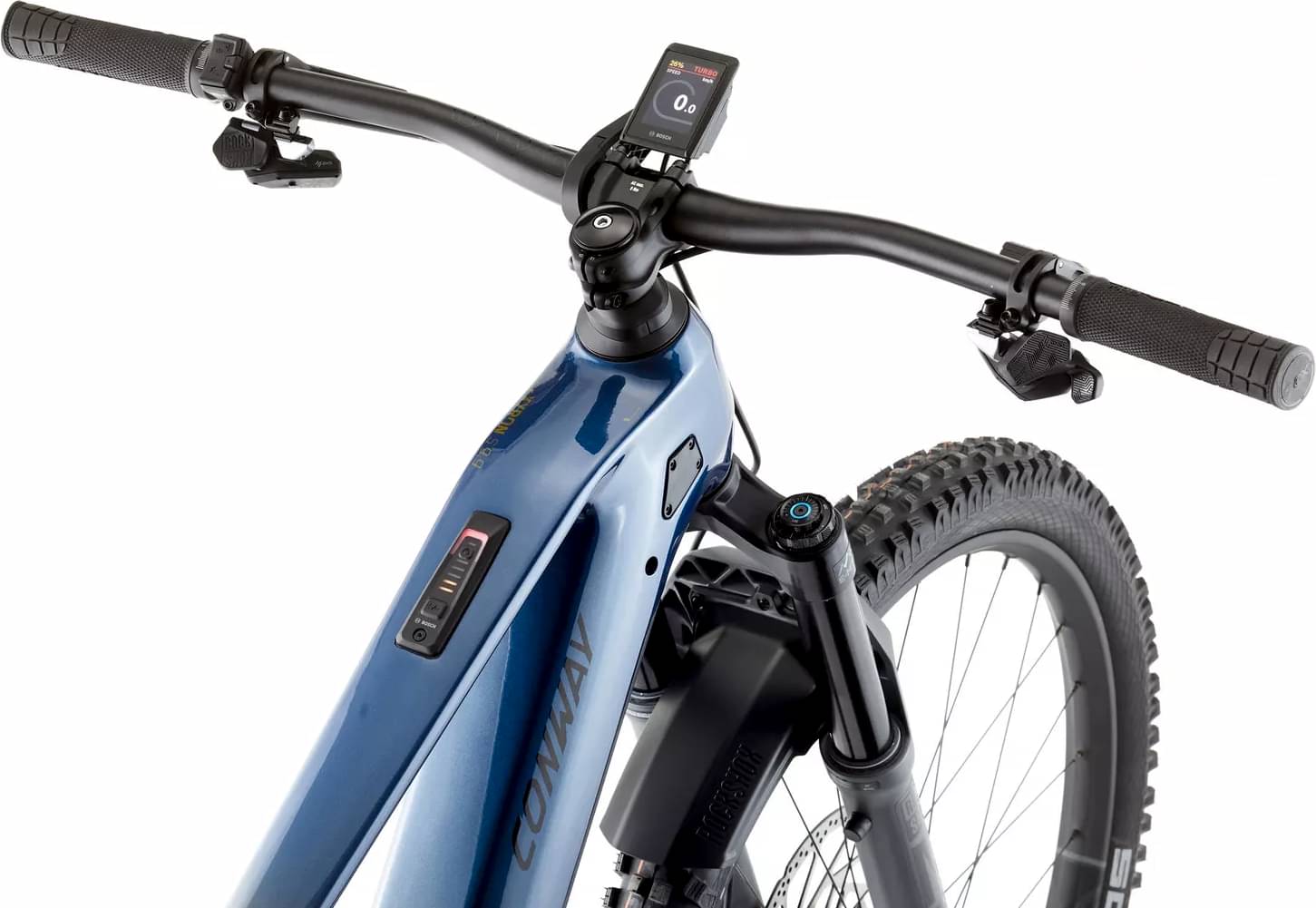

Cockpit
Stem
LEVEL 9 "Team A-Head ICR", 31,8 mm, 40 mm
Handlebar
LEVEL 9 "Team Riser", Ø 31,8, 800 mm
Grips
SQLAB "70X"
Headset
ZS56 / ZS56, ICR, Blocklock
Seat
Saddle
FIZIK "Aidon"
Seatpost
ROCKSHOX "Reverb AXS", 31,6 mm, 100 mm
Motor & Battery

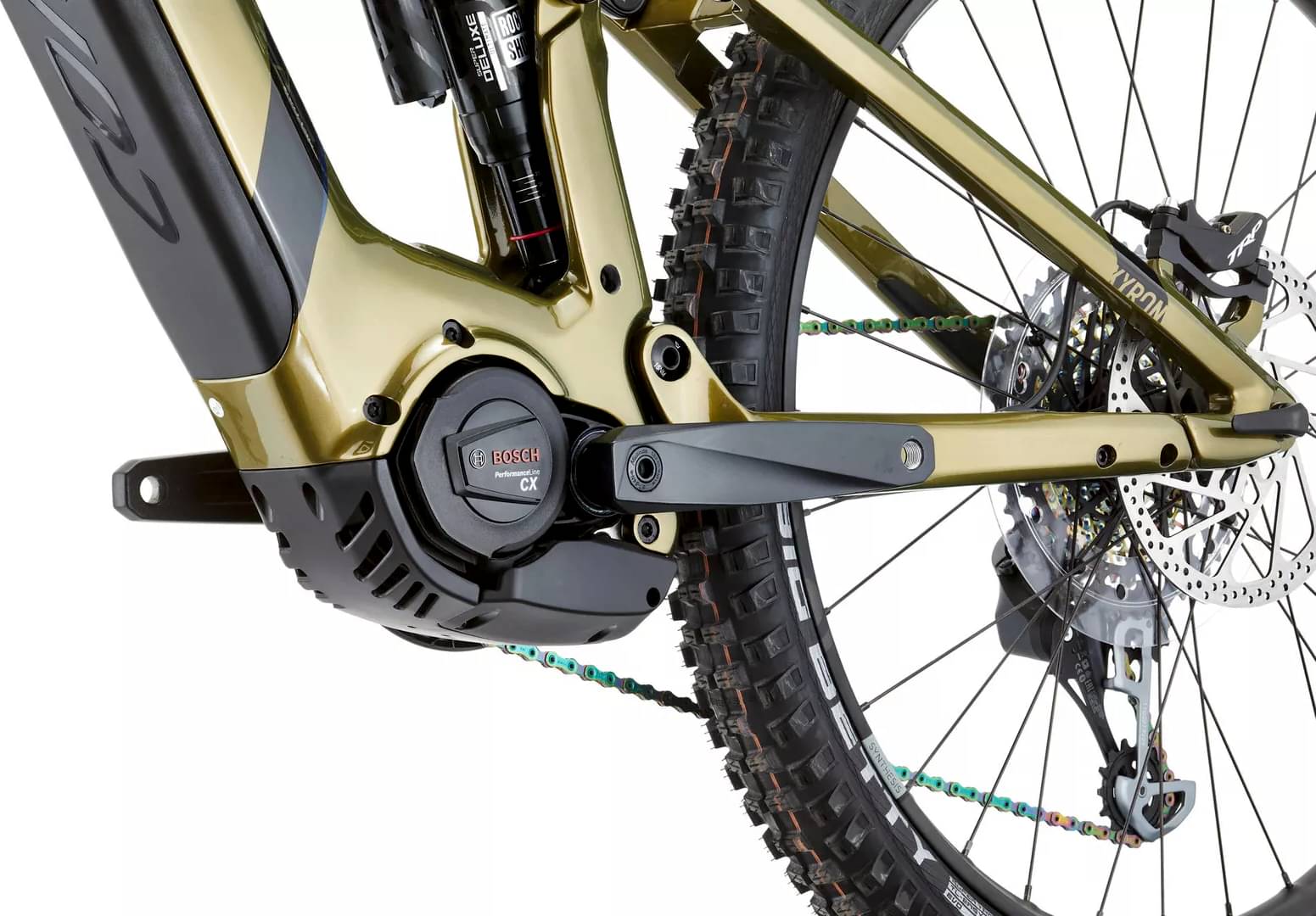

Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3300"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.528 mm | 1.458 mm | 1.423 mm | 1.388 mm | 1.361 mm |
| Stack | 637 mm | 637 mm | 646 mm | 655 mm | 664 mm |
| Reach | 417 mm | 437 mm | 454 mm | 472 mm | 488 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
