Conway Xyron ST 10.0 Full Suspension 2024
2024 E-bike
Estimate price |
9,174$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select+
-
Groupset Eagle AXS, GX Eagle Transmission -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot -
Drivetrain 1 × 12 Electronic -
Brakes Magura Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Intube Bosch, Carbon
Suspension Fork
ROCK SHOX "Lyrik Select+"

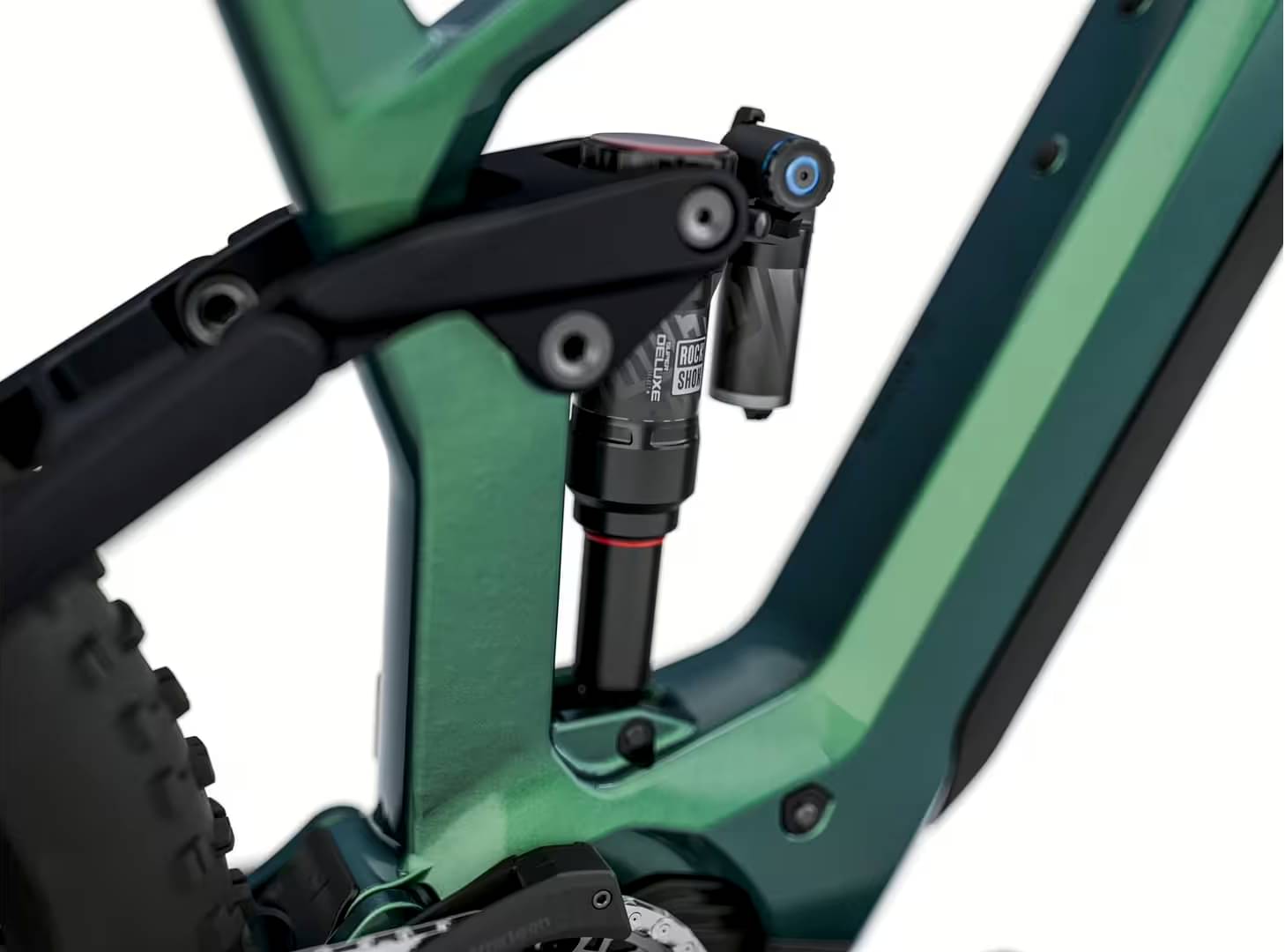

Rear Shock
ROCK SHOX "Super Deluxe Select+" 150 mm
Drivetrain
Rear Derailleur
SRAM "GX Eagle AXS T-Type", 12speed
Shift Levers
SRAM "AXS POD", 12speed
Cassette
SRAM, "XS 1275-EAGLE T-Type", 10-52T
Crank
SRAM "GX", Gen.4, 160 mm
Bottom Bracket
BOSCH
Wheels
Front Hub
DT SWISS "H1900", 15 x 110 mm
Rear Hub
DT SWISS "H1900", 12 x 148 mm, XD
Rims
DT SWISS "H1900"
Spokes
DT SWISS "H1900"
Tires
SCHWALBE "Albert Trail Pro", 63-622, Ultra Soft, Radial
Brakes
Brakes
MAGURA "GUSTAV PRO"
Brake Levers
MAGURA "GUSTAV PRO"
Cockpit
Stem
RACEFACE "TURBINE", 35 mm, 32 mm
Handlebar
RACEFACE "TURBINE", 35 mm, 780 mm
Grips
SQLAB "70x", black, Größe S
Headset
ZS56 / ZS56, Block Lock
Seat
Saddle
FIZIK "Terra Aidon X5", 145 mm
Seatpost
LIMOTEC "A1L", 31,6 mm, 125 mm, 402 mm
Motor & Battery

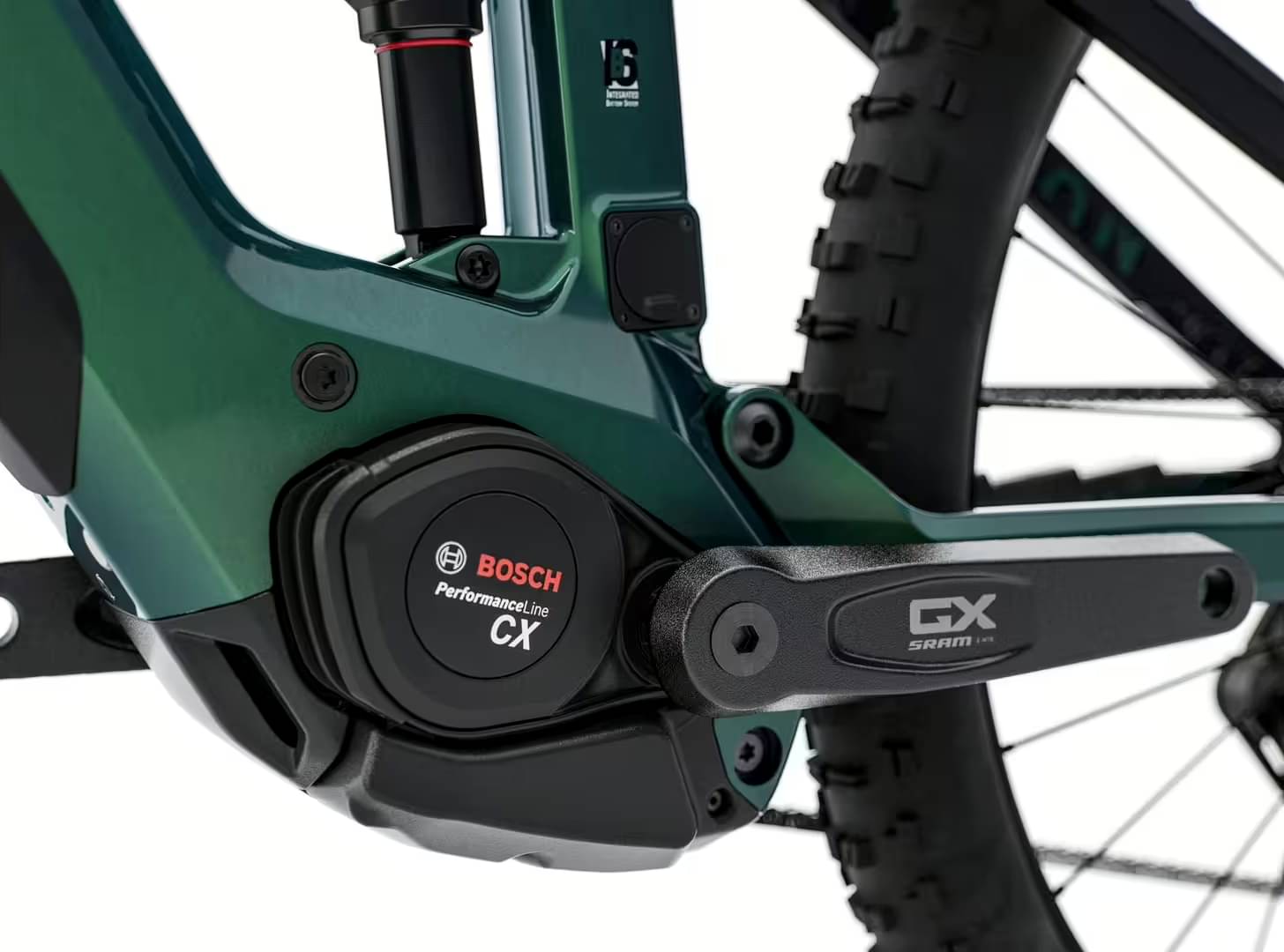

Motor
BOSCH Mittelmotor Gen.5 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot
Remote
BOSCH "BRC3300"
Charger
Bosch 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.313 mm | 1.289 mm |
| Stack | 614 mm | 623 mm | 637 mm | 651 mm |
| Reach | 445 mm | 465 mm | 485 mm | 505 mm |
| Top Tube Length | 570 mm | 592 mm | 615 mm | 638 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
