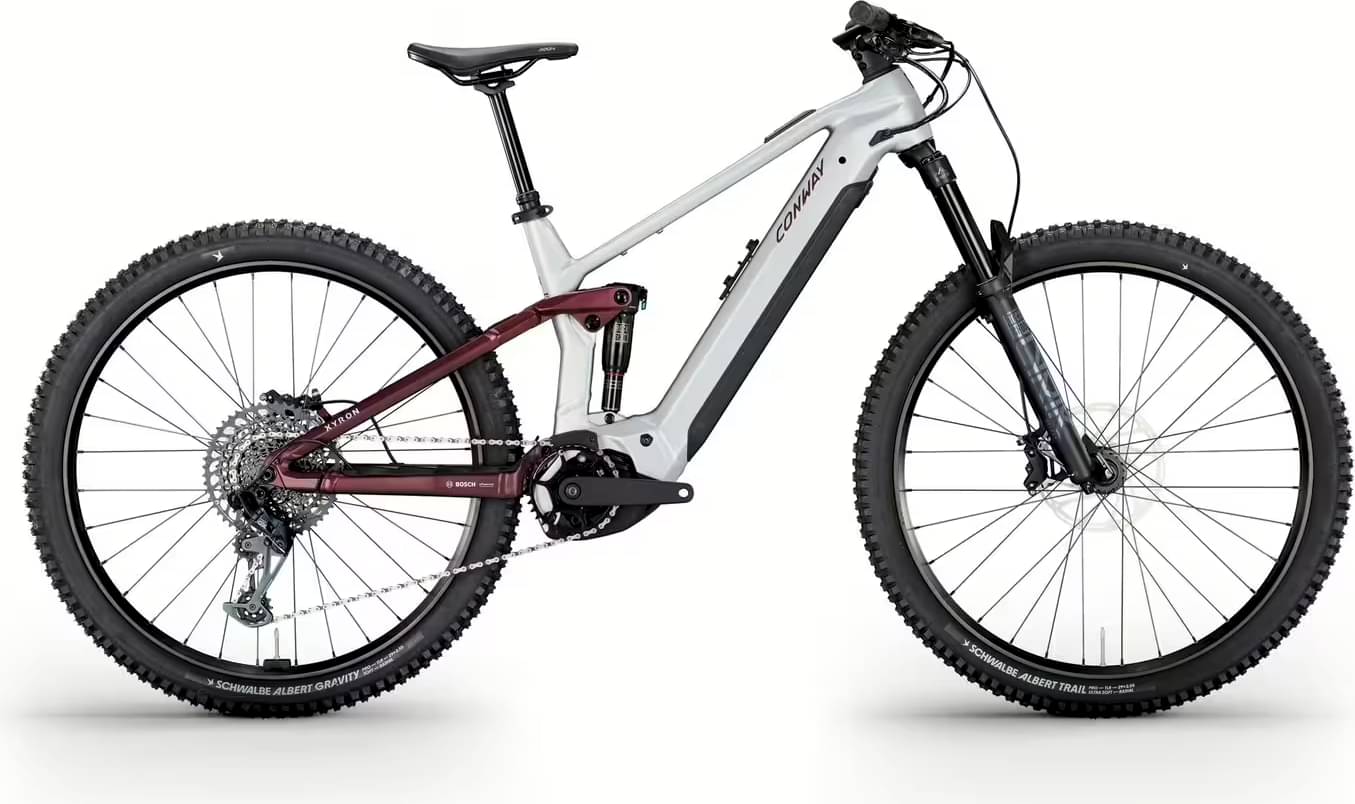

Conway Xyron ST 6.0 Full Suspension 2024
2024 E-bike
Estimate price |
6,630$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select+
-
Groupset SRAM -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot -
Drivetrain 1 × 12 -
Brakes SRAM DB8 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Intube Bosch, Alu
Suspension Fork
ROCK SHOX "Lyrik Select+"
Rear Shock

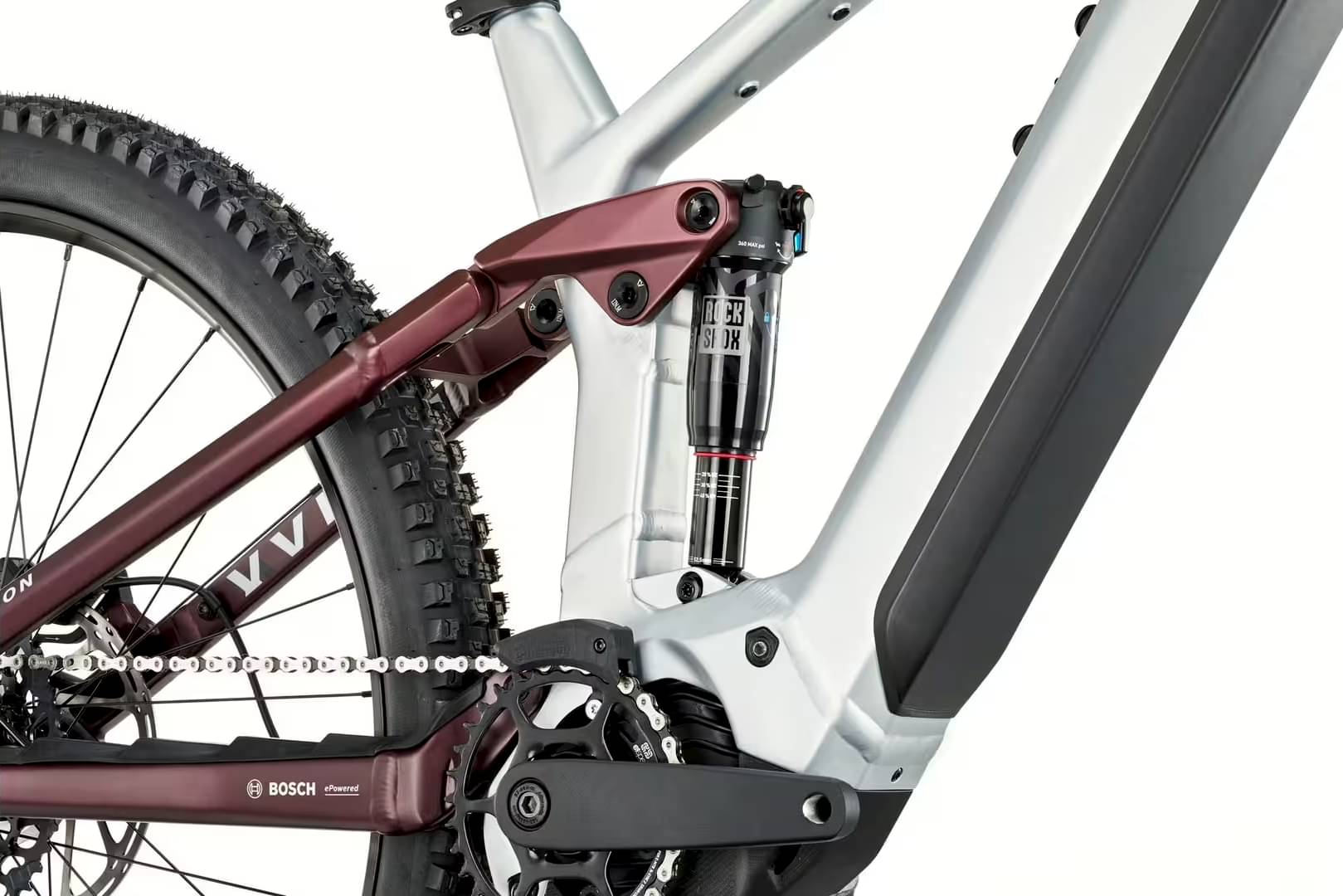

ROCK SHOX "Deluxe Select+" 150 mm
Drivetrain
Rear Derailleur
SRAM "E90", 12speed
Shift Levers
SRAM "E90 Trigger", single click
Cassette
SRAM, "XS 1270", 10-52 Z.
Crank
SRAM "E90", 160 mm
Bottom Bracket
BOSCH
Wheels
Front Hub
NEWMEN "Basic", 15 x 110 mm
Rear Hub
NEWMEN "Basic", 12 x 148 mm, MS
Rims
NEWMEN "Performance 30 Base"
Spokes
SAPIM "black"
Tires
SCHWALBE "Albert Trail Pro", 63-622, Ultra Soft, Radial
Brakes
Brakes
SRAM "DB8"
Brake Levers
SRAM "DB8"
Cockpit
Stem
LEVEL 9, "CONWAY A-Head", 31,8 mm, 40 mm
Handlebar
LEVEL 9 "Low Riser", 31,8, 780 mm
Grips
SQLAB "70X"
Headset
ZS56 / ZS56, Block Lock
Seat
Saddle
FIZIK "Aidon X5", 145 mm
Seatpost
LIMOTEC "A1L", 31,6 mm, 125 mm, 402 mm
Motor & Battery
Motor

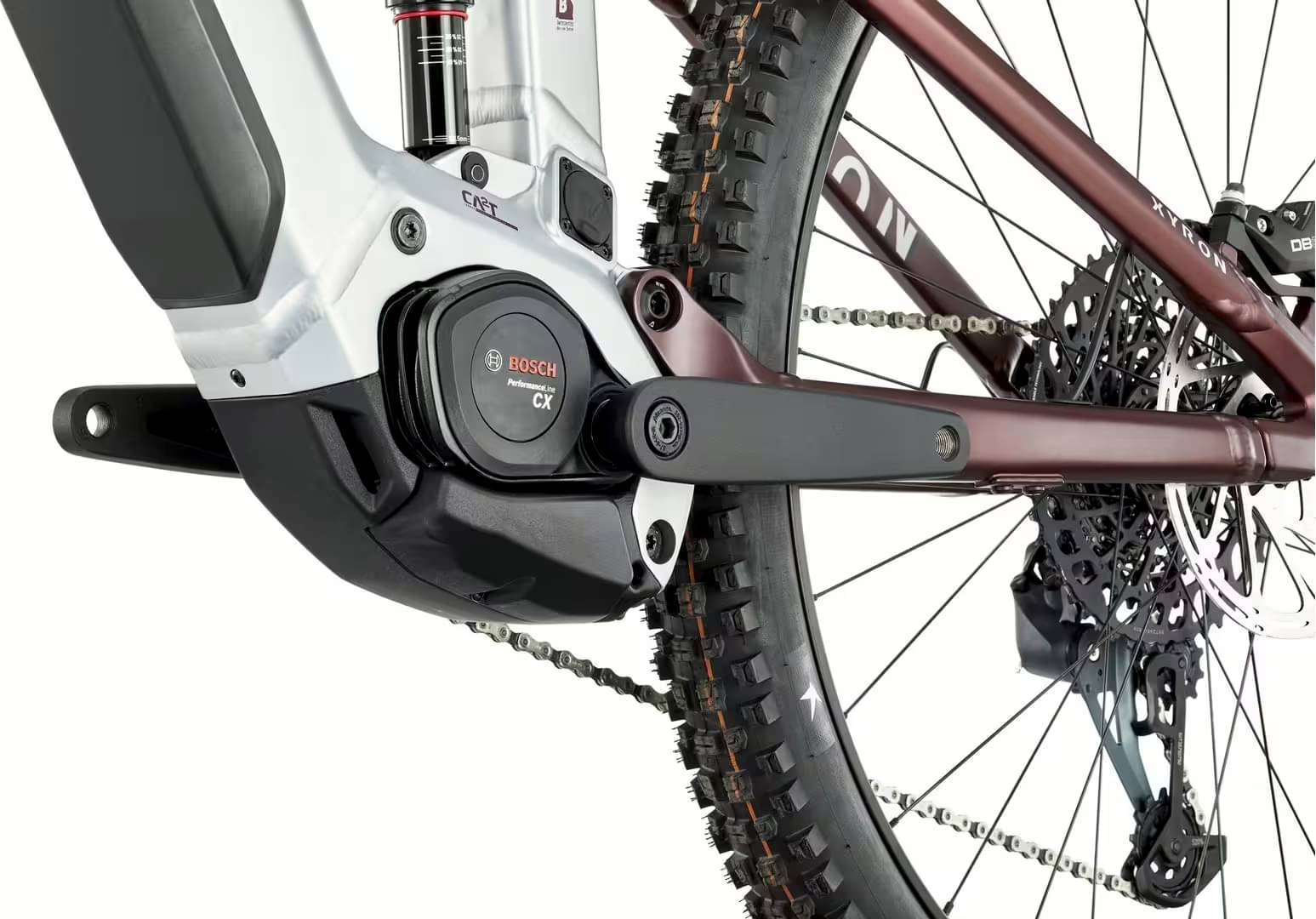

BOSCH Mittelmotor Gen.5 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot
Remote
BOSCH "BRC3300"
Charger
Bosch 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.313 mm | 1.289 mm |
| Stack | 614 mm | 623 mm | 637 mm | 651 mm |
| Reach | 445 mm | 465 mm | 485 mm | 505 mm |
| Top Tube Length | 570 mm | 592 mm | 615 mm | 638 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
