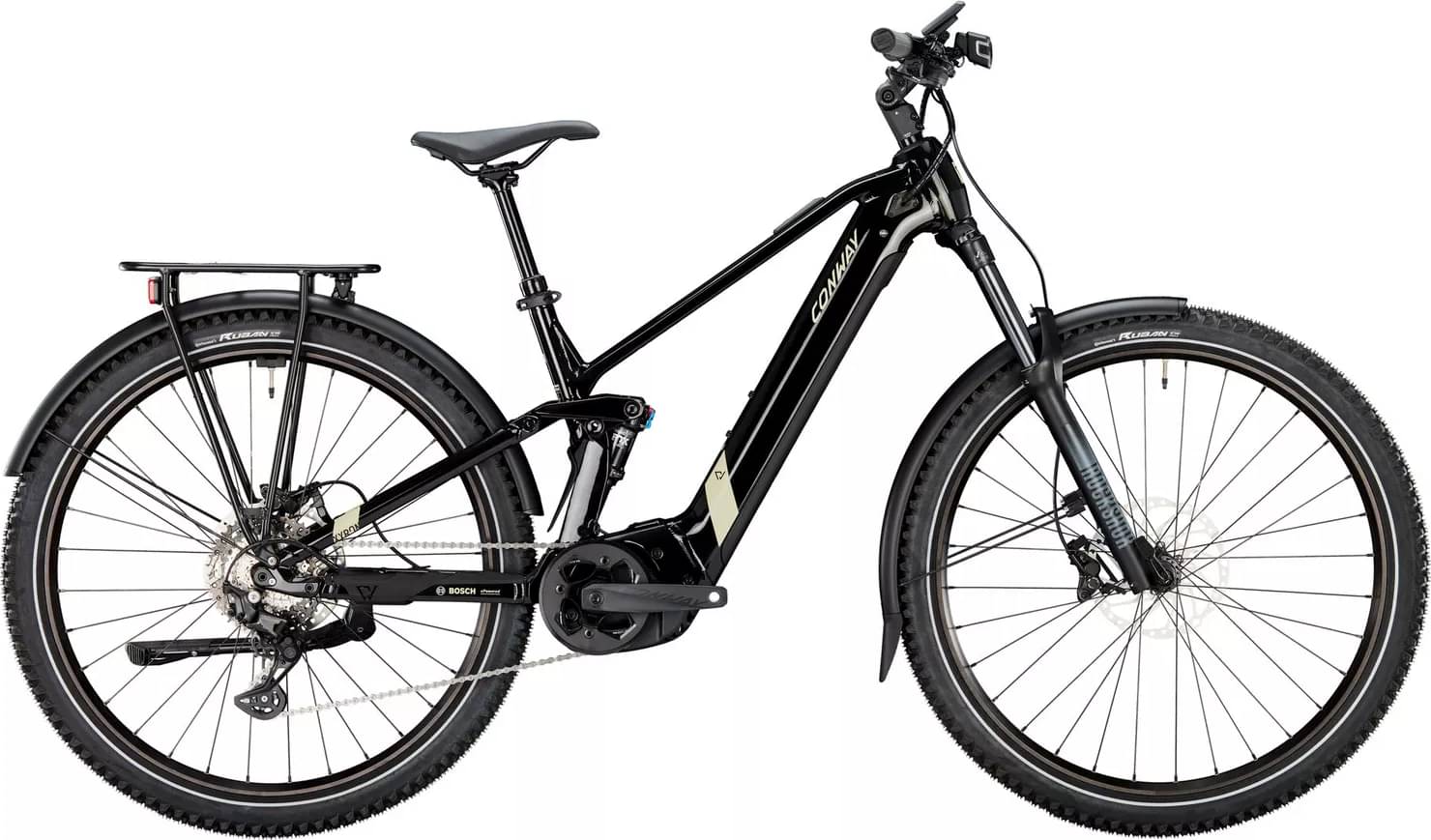

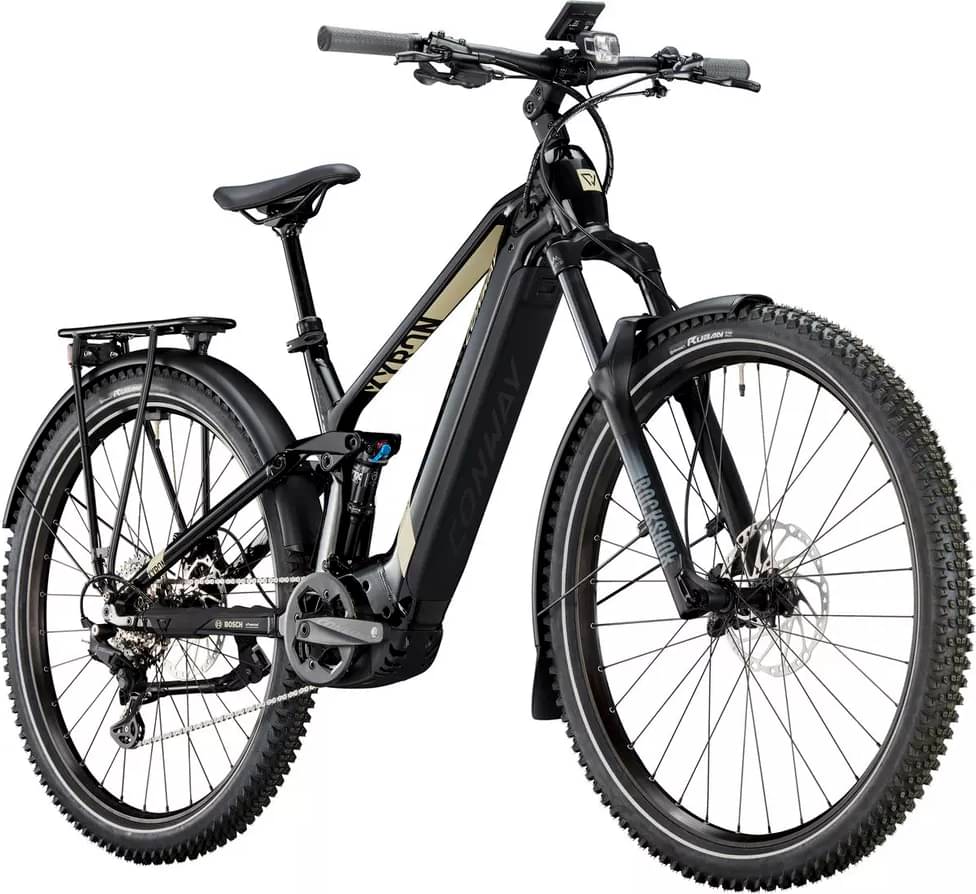

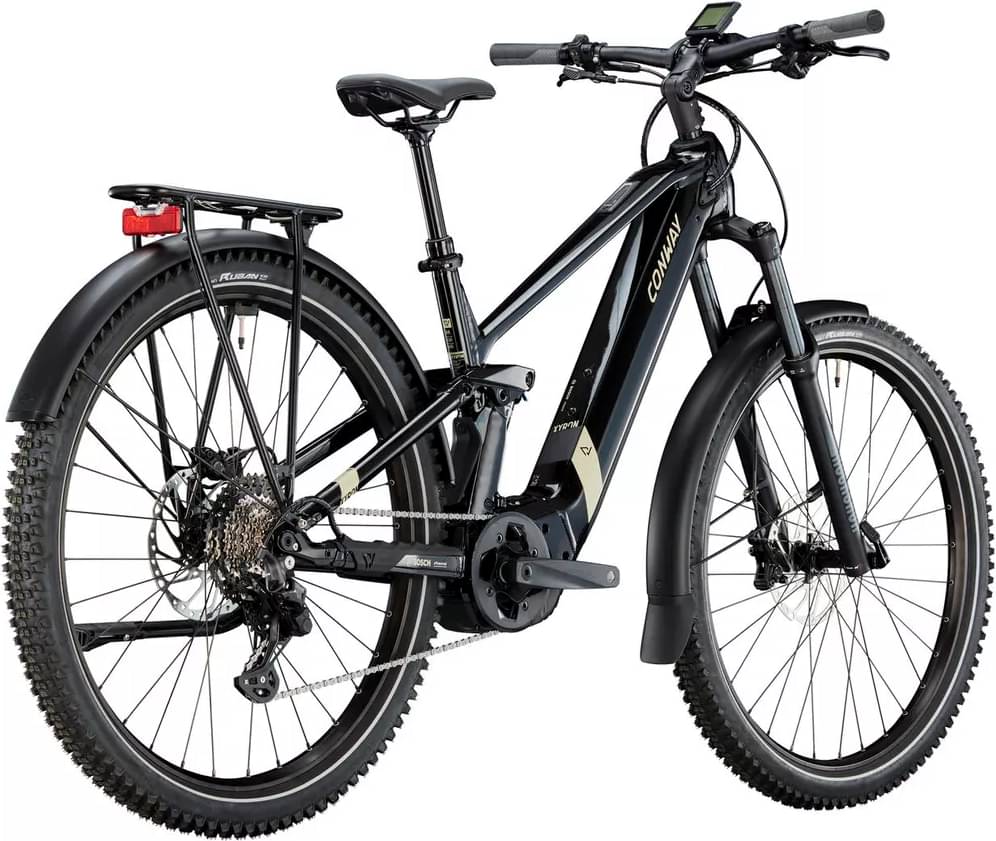

Conway Xyron SUV 2.9 full suspension 2024
2024 E-bike
Estimate price |
5,390$
Weight | 29.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery BOSCH "PowerTube 625", 625 Wh, BES3, horizontal -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen. 4, BES3, aluminium, full suspension, 40cm
Suspension Fork
ROCKSHOX suspension fork "Recon Silver RL", 29", 150mm travel, tapered, post mount, boost, Maxle Lite thru axle, 42mm offset, black

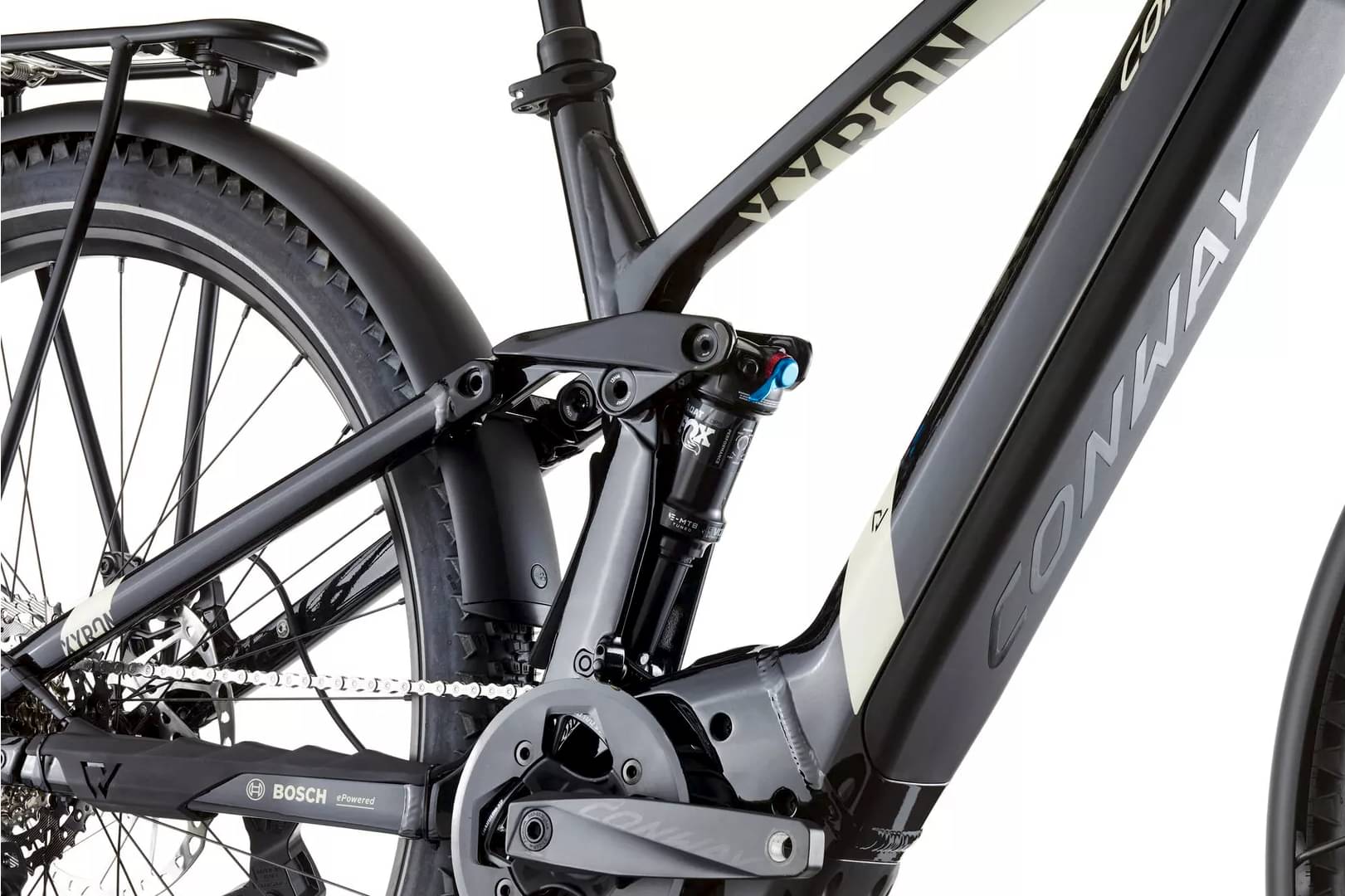

Rear Shock
FOX "Float DPS", 185 x 50mm 140 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M5130-GS", LINKGLIDE, medium cage
Shift Levers
SHIMANO "Deore SL-M5130-R10", LINKGLIDE, 10-speed
Cassette
SHIMANO "CS-LG600", LINKGLIDE, 10-speed, 11-43 teeth
Crank
MIRANDA "Epsilon", boost, 165mm, 36 teeth, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "Altus HB-MT400-B", 15 x 110mm, Center Lock, 32 holes, thru axle, black
Rear Hub
SHIMANO "Alivio FH-MT400-B", 12 x 148mm, Center Lock, 8-/9-/10-speed (11-speed MTB), 32 holes, thru axle, black
Rims
RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black
Spokes
Niro, schwarz
Tires
CONTINENTAL "Ruban", 58-622, reflex
Brakes
Brakes
hydraulic disc brake

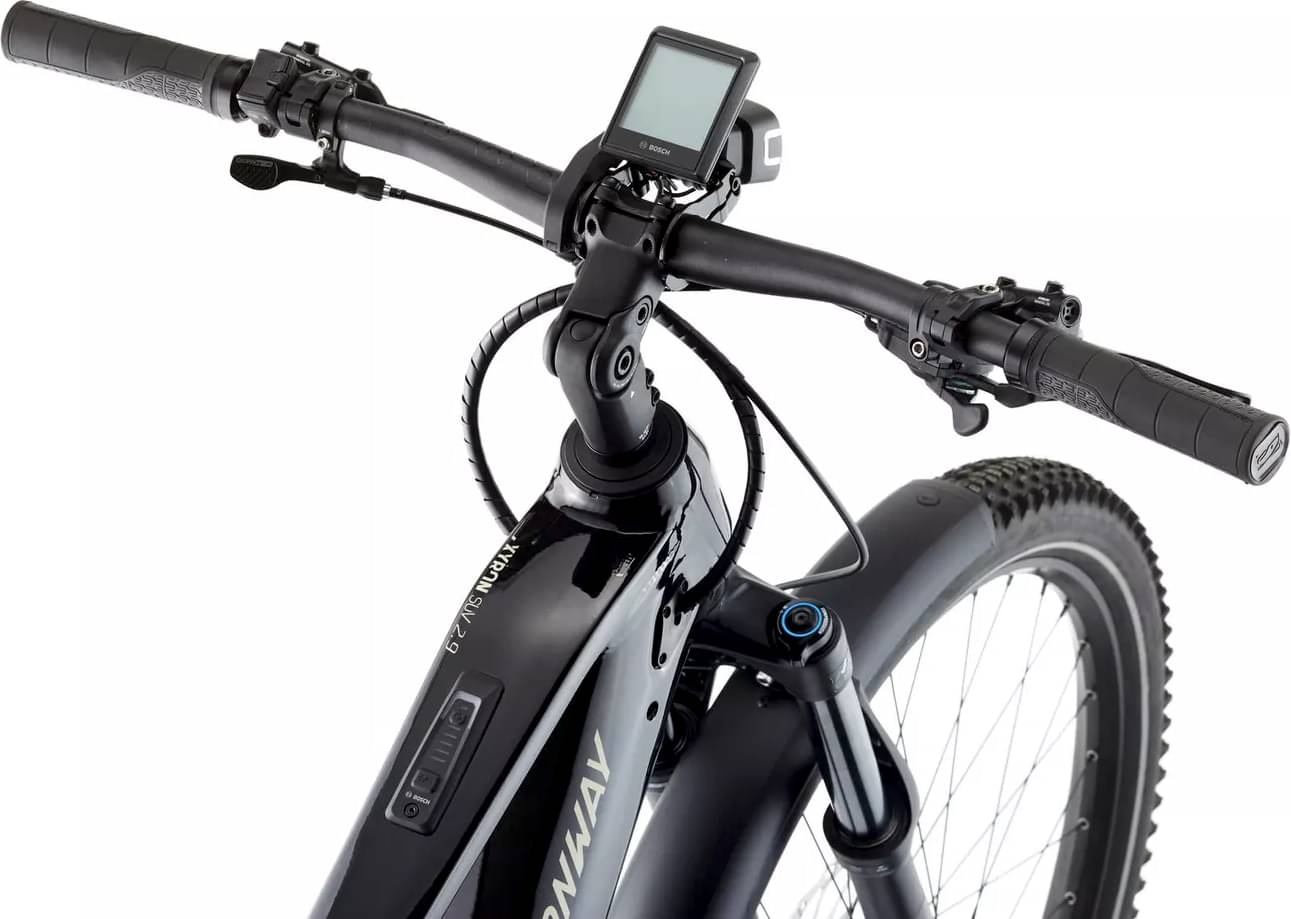

Cockpit
Stem
LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
Handlebar
LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
Grips
CONTEC "MERGE Mountain Straight", 140mm, G-Link, black / grey
Headset
ACROS ZS56/28,6 / ZS56/40, 1 1/8" - 1,5" tapered, 120° blocklock below
Seat
Saddle
SELLE ROYAL "2315HRN"
Seatpost
CONTEC dropper seatpost "Drop-A-Gogo", aluminium, Ø 31,6mm, 340mm long, 100mm adjustable range, black
Motor & Battery

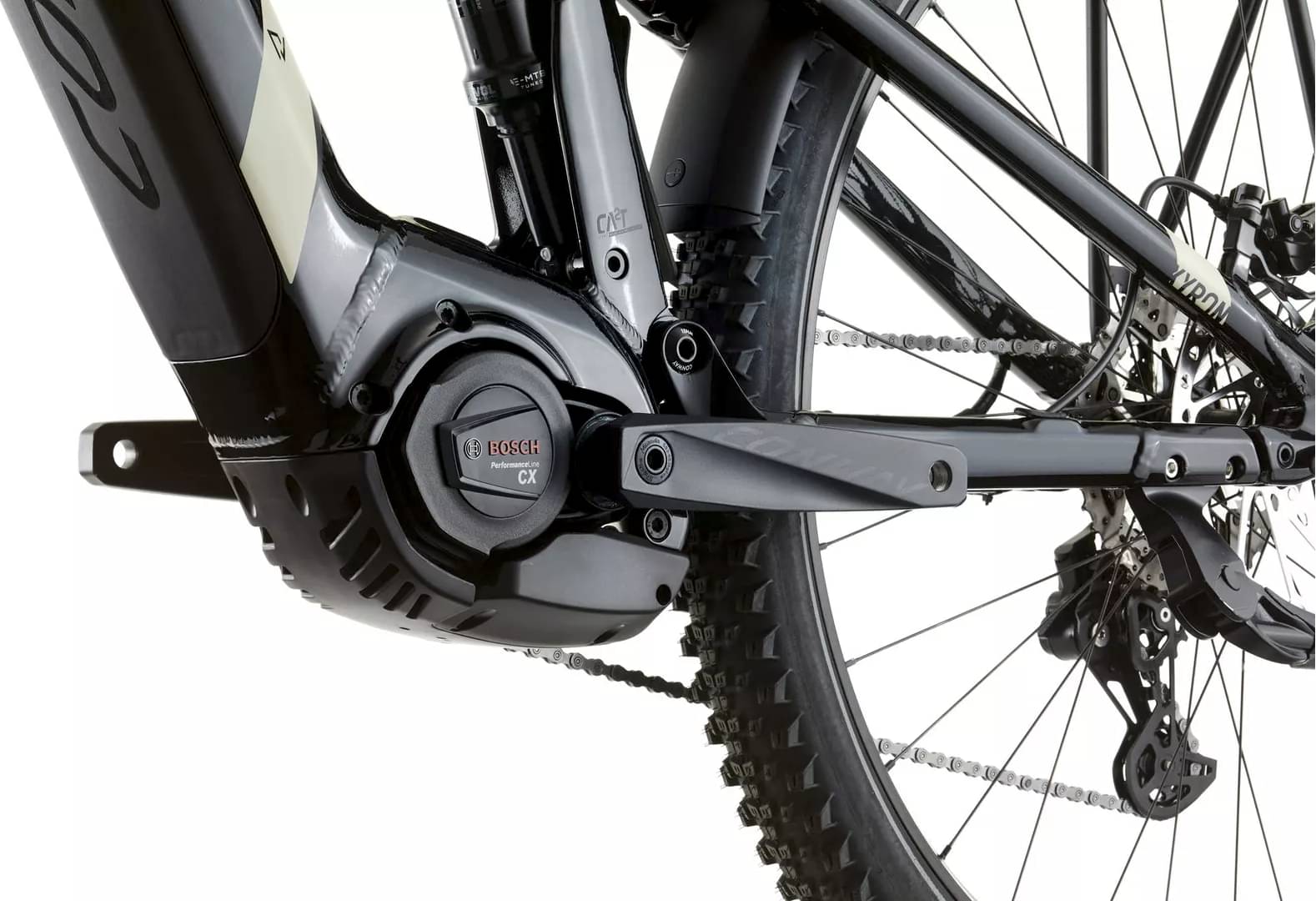

Motor
BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 625", 625 Wh, BES3, horizontal
Remote
BOSCH "BRC3300", mini remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.432 mm | 1.399 mm | 1.368 mm | 1.339 mm |
| Stack | 633 mm | 633 mm | 642 mm | 651 mm | 660 mm |
| Reach | 422 mm | 442 mm | 459 mm | 476 mm | 493 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
