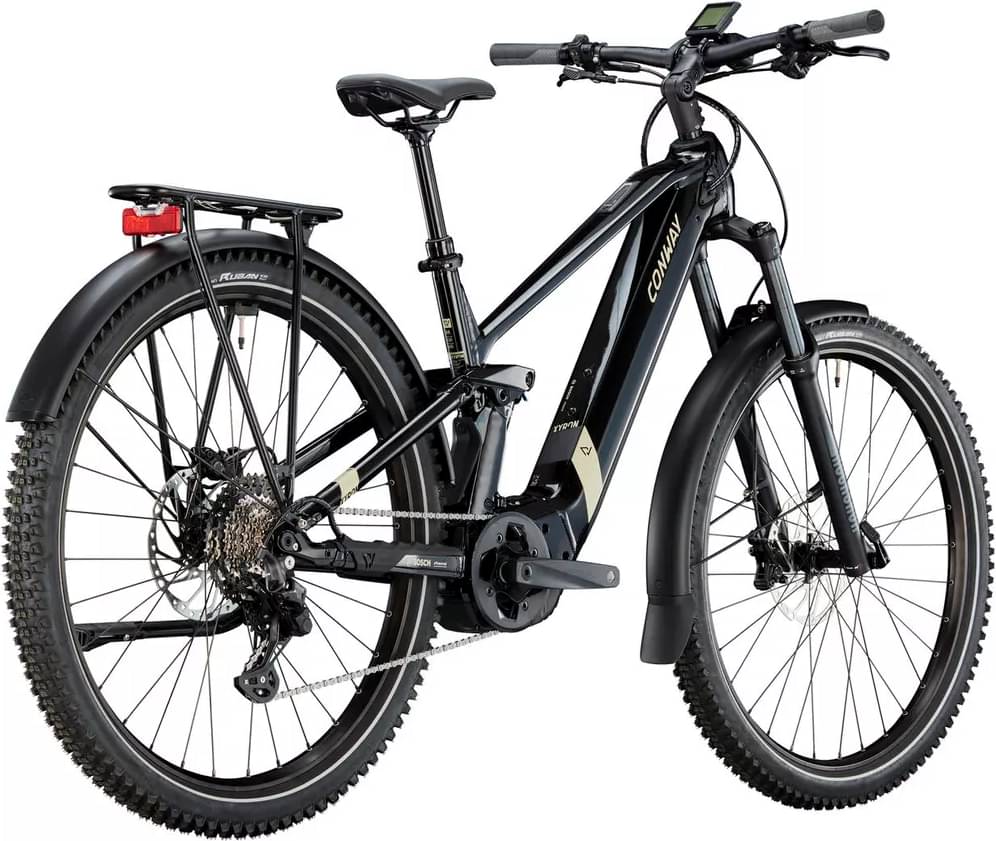

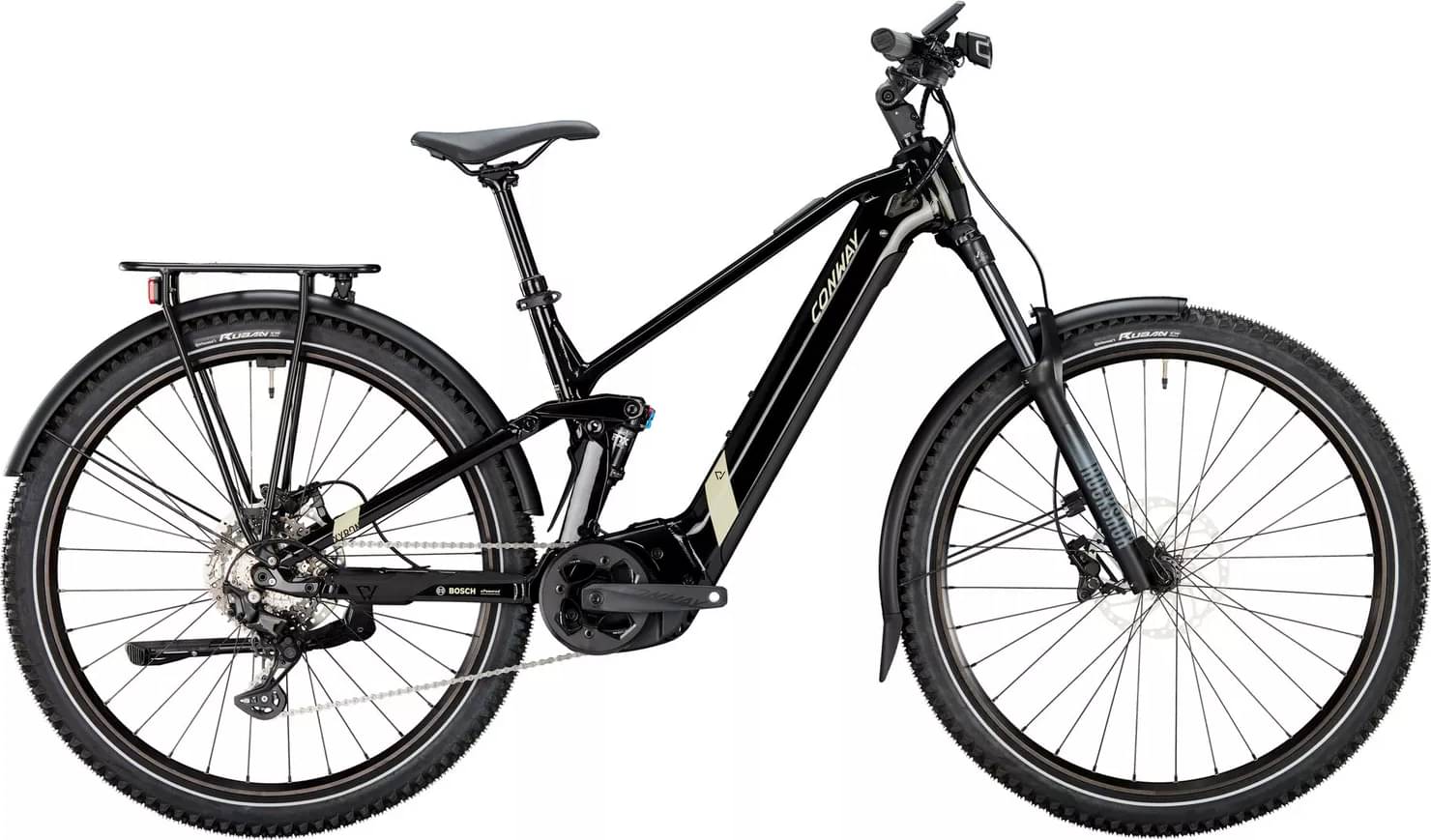

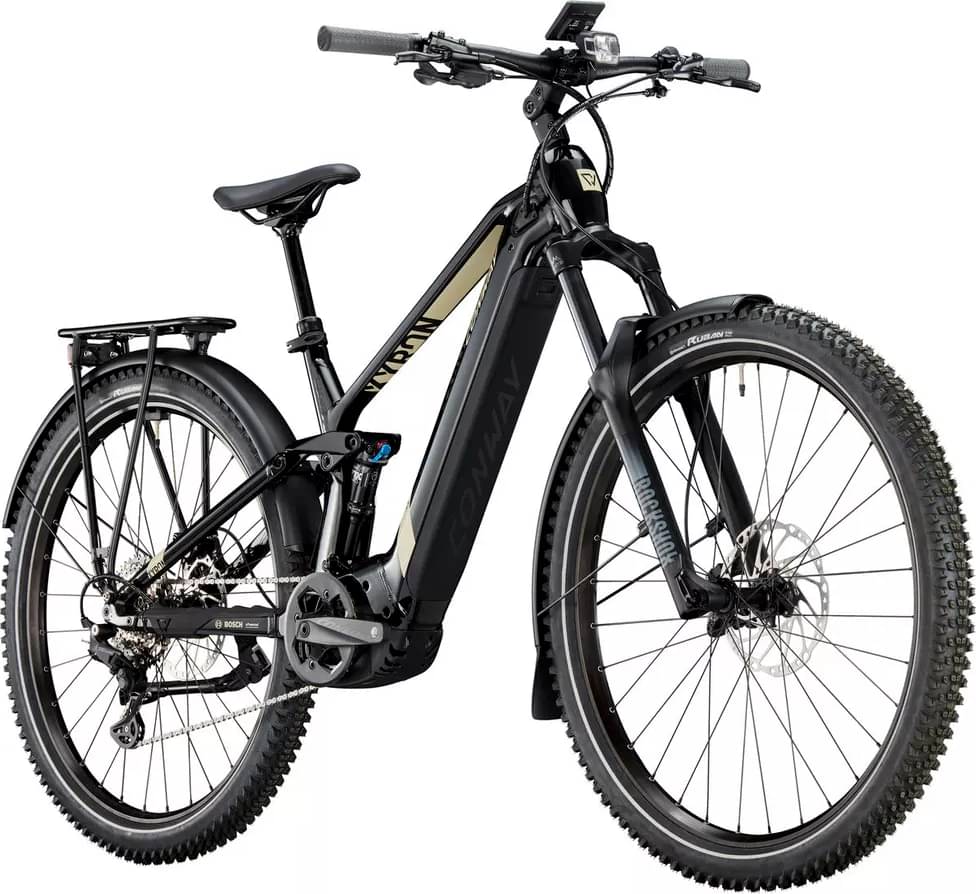

Conway Xyron SUV 2.9 SUV 2024
2024 E-bike
Estimate price |
5,390$
Weight | 29.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Intube Bosch, Alu
Suspension Fork
ROCKSHOX "Recon Silver RL", 150 mm
Rear Shock
FOX "Float DPS" 140 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M5130 Shadow Plus", 10speed
Shift Levers
SHIMANO "Deore SL-M5130"
Cassette
SHIMANO "CS-LG600-10", 11-43 Z.
Crank
MIRANDA "Epsilon", 165 mm
Bottom Bracket
BOSCH
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110mm
Rear Hub
SHIMANO "FH-MT400", 12x148 mm
Rims
RODI "Ready 30"
Spokes
Niro
Tires
CONTINENTAL "Ruban", 58-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT420", 4-Kolben
Brake Levers
SHIMANO "BL-M4100"
Cockpit
Stem
LEVEL 9 "Adjustable", 65mm
Handlebar
LEVEL 9 "Low Riser", Ø 31,8, 720 mm
Grips
CONTEC "MERGE Mountain Straight"
Headset
ZS56 / ZS56, Blocklock
Seat
Saddle
SELLE ROYAL "2315HRN"
Seatpost
CONTEC "Drop - A - Gogo", 31,6 mm, 100 mm
Motor & Battery
Motor

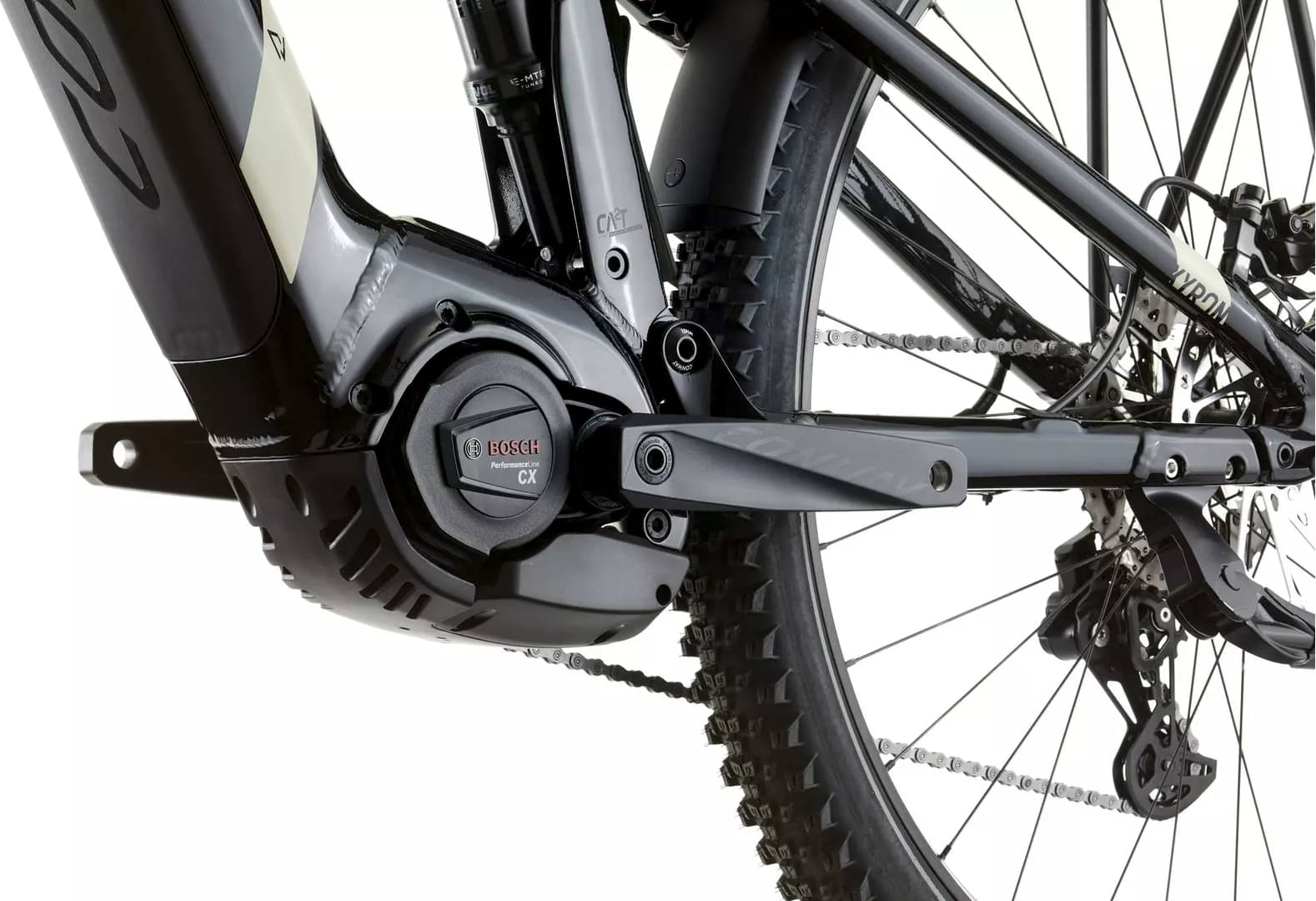

BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Remote
BOSCH "BRC3300"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.432 mm | 1.399 mm | 1.368 mm | 1.339 mm |
| Stack | 633 mm | 633 mm | 642 mm | 651 mm | 660 mm |
| Reach | 422 mm | 442 mm | 459 mm | 476 mm | 493 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
