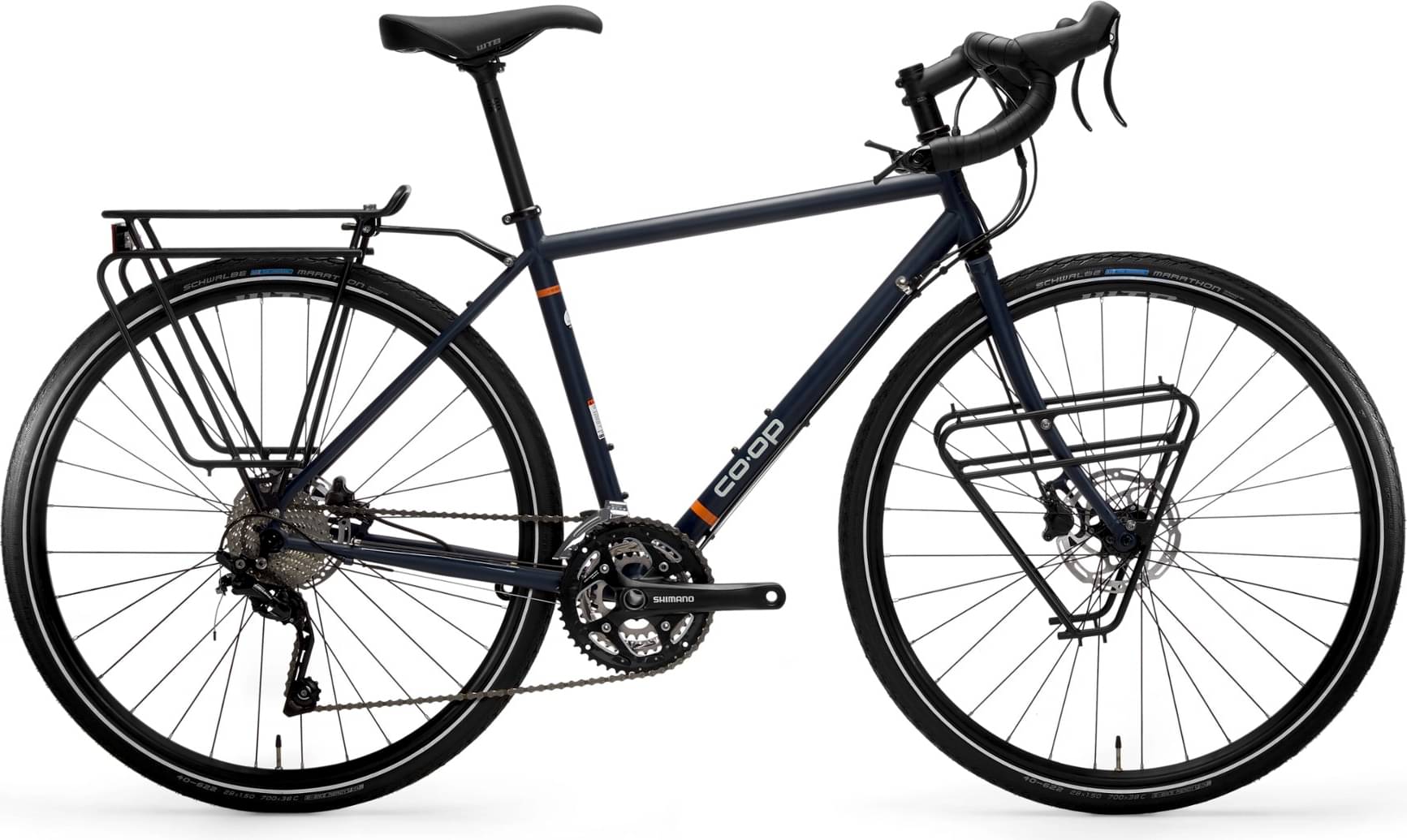

coop Co-op ADV 1.1 2024
2024 Road
Estimate price |
1,699$
Weight | 13.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Deore -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 192cm
XXL
189cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Double-butted chromoly steel
Suspension Fork
Chromoly steel with 15 mm thru axle
Drivetrain
Rear Derailleur
Shimano Deore RD-T6000
Front Derailleur
Shimano Deore FD-T6000
Shift Levers
Microshift bar-end shifters
Cassette
Shimano HG500, 11-34T, 10-speed
Crank
Shimano FC-T551 48/36/26T
Bottom Bracket
Shimano Outboard 24 mm
Chain
Shimano CN-HG54
Pedals
Not included
Wheels
Front Hub
Shimano Deore HB-M6010
Rear Hub
Shimano Deore FH-M6000
Rims
WTB STP i23
Tires
Schwalbe Marathon with puncture protection, 700c x 38 mm
Brakes
Brakes
TRP Hylex RS hydraulic disc Hydraulic Disc Brake
Brake Levers
TRP aluminum
Cockpit
Stem
Co-op Cycles aluminum
Handlebar
Co-op Cycles aluminum
Headset
FPD
Seat
Saddle
WTB Pure V Sport
Seatpost
Co-op Cycles aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.542 mm | 1.542 mm | 1.591 mm | 1.68 mm | 1.724 mm |
| Rake | 55 mm | 55 mm | 50 mm | 50 mm | 50 mm |
| Stack | 562 mm | 571.5 mm | 599.4 mm | 643.8 mm | 670.3 mm |
| Reach | 364.4 mm | 370.7 mm | 376.8 mm | 383.2 mm | 388.7 mm |
| Top Tube Length | 515 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Seat Tube Angle | 75 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 500 mm | 540 mm | 580 mm | 620 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1044 mm | 1053 mm | 1059 mm | 1080 mm | 1095 mm |
| Standover Height | 725 mm | 761 mm | 795 mm | 836 mm | 868 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 166 cm | 174 cm | 181 cm | 189 cm |
| Rider Max Height | 169 cm | 177 cm | 184 cm | 192 cm | 198 cm |
