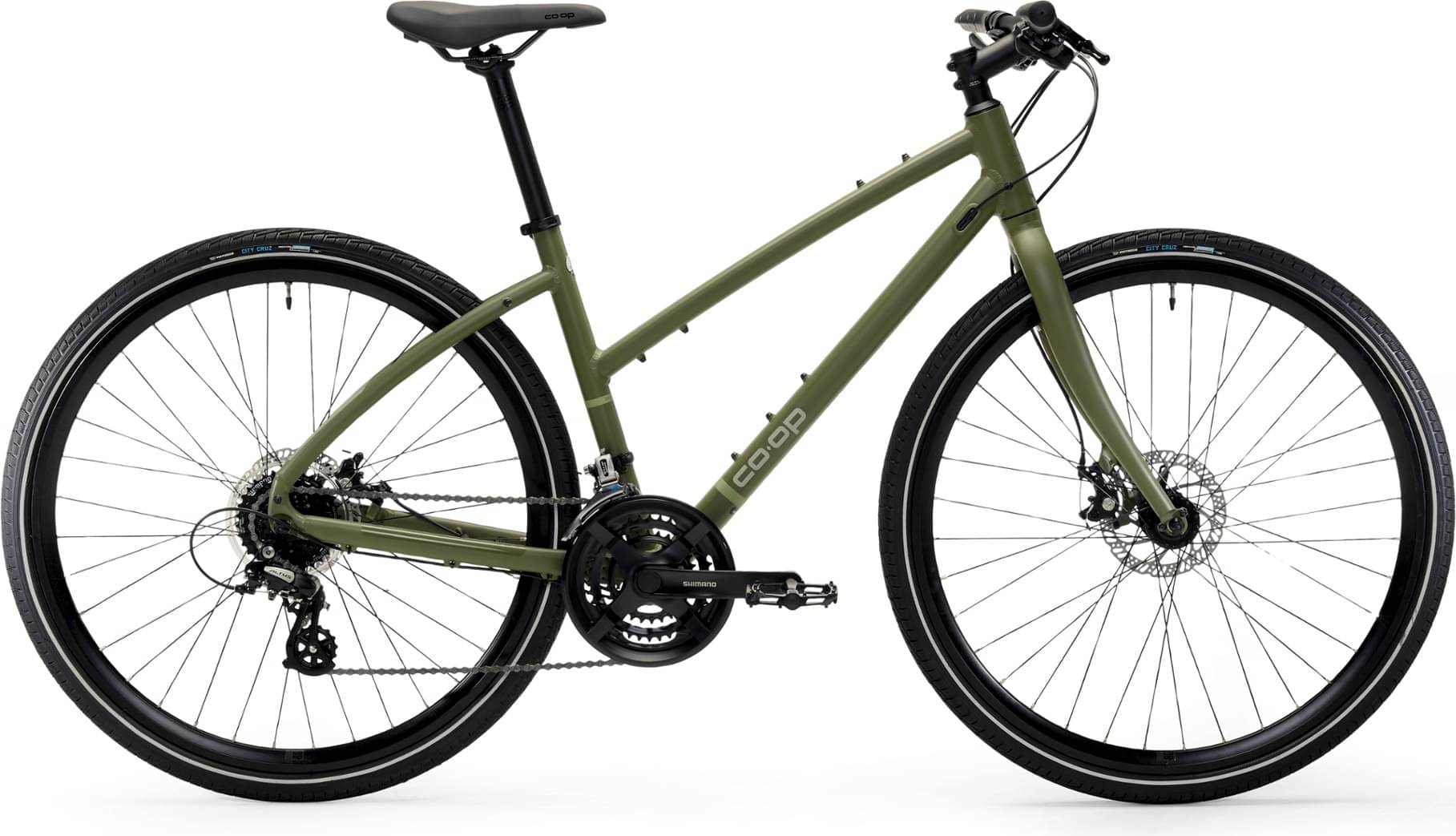

coop Co-op CTY 1.1 2024
2024 Urban
Estimate price |
599$
Weight | 13.69 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum
Suspension Fork
Chromoly steerer with 6061 aluminum blades, Not Applicable
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus 8-speed Rapidfire with Optical Gear Display
Cassette
Shimano HG200 8-Speed 12-32T
Crank
Shimano TY301 48/38/28T
Bottom Bracket
FSA Cartridge
Chain
KMC 8-Speed
Pedals
Wellgo Alloy platform, chromoly spindle
Wheels
Front Hub
Solon 100 mm quick-release
Rear Hub
Solon 135 mm quick-release
Rims
Co-op aluminum double-wall
Tires
Vee City Cruz 700c x 40 mm wire bead
Brakes
Brakes
Tektro mechanical disc Mechanical Disc Brake
Brake Levers
Tektro 4-finger mechanical disc
Cockpit
Stem
Forged aluminum
Handlebar
Co-op Riser, 20 mm rise, 10-degree sweep; 31.8 mm diameter at center
Headset
1-1/8 in. threadless; semi-integrated
Seat
Saddle
Comfort Plus with memory foam
Seatpost
Co-op aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.423 mm | 1.423 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Stack | 545 mm | 555 mm | 569 mm |
| Reach | 380 mm | 390 mm | 400 mm |
| Top Tube Length | 541 mm | 559 mm | 573 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1045 mm | 1072 mm | 1075 mm |
| Standover Height | 625 mm | 616 mm | 632 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 159 cm | 166 cm |
| Rider Max Height | 161 cm | 169 cm | 175 cm |
