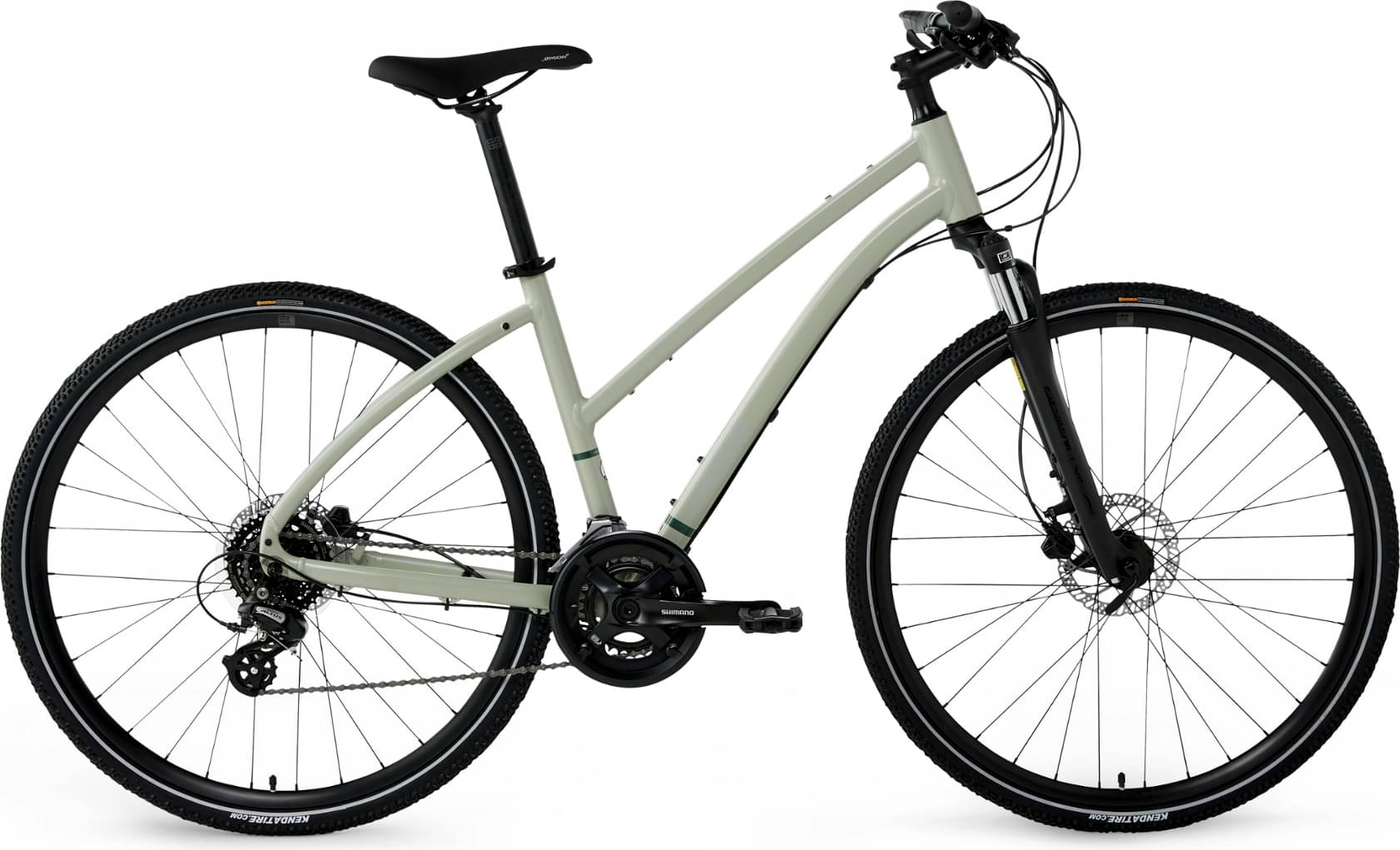

coop Co-op CTY 2.1 2024
2024 Urban
Estimate price |
799$
Weight | 14.77 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Nex DS, 63 millimeters
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Tourney FD-TY606-L; top-swing; dual-pull
Shift Levers
Shimano Altus 8-speed Rapidfire Plus
Cassette
Shimano CS-HG31; 8-speed 11-34T
Crank
Shimano 46/30T
Bottom Bracket
Shimano Square Taper
Chain
KMC HG40 8-speed
Pedals
Platform
Wheels
Front Hub
Shimano, 32h
Rear Hub
Shimano, 32h
Rims
Co-op Cycles
Tires
Kenda Kick-Back, 700c x 40 mm with reflective sidewall and K-Shield
Brakes
Brakes
Tektro HD-M275 hydraulic disc brake Hydraulic Disc Brake
Brake Levers
Tektro 2-finger
Cockpit
Stem
6061 aluminum; 6 deg. rise
Handlebar
Co-op Cycles riser bar; 6 deg. upsweep; 8 deg. backsweep; 25 mm rise; 31. 8 mm diameter at center; 6061 aluminum
Headset
Semi-integrated threadless
Seat
Saddle
Selle Royal Shadow+ with gel
Seatpost
Co-op Cycles 6061 aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.657 mm | 1.615 mm | 1.622 mm |
| Stack | 588.2 mm | 588.2 mm | 607 mm |
| Reach | 354.9 mm | 364.3 mm | 374.2 mm |
| Top Tube Length | 518 mm | 533 mm | 554 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1039 mm | 1049 mm | 1065 mm |
| Standover Height | 682 mm | 681 mm | 683 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 159 cm | 166 cm |
| Rider Max Height | 161 cm | 169 cm | 175 cm |
