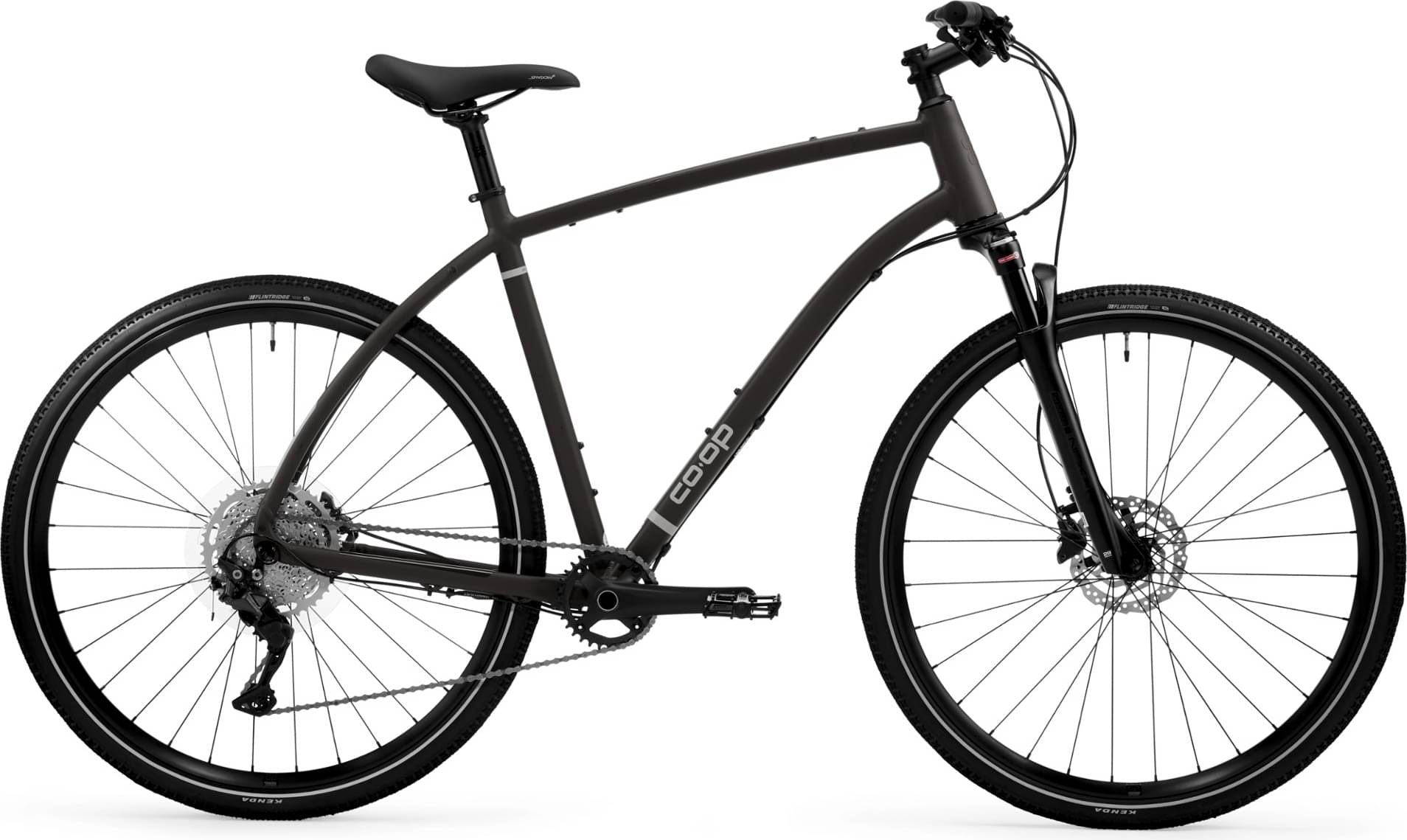

coop Co-op CTY 2.2 2024
2024 Urban
Estimate price |
999$
Weight | 13.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum
Suspension Fork
SR Suntour NCX32 E-Air with lockout, 63 millimeters
Drivetrain
Rear Derailleur
Shimano Cues Shadow RD+
Shift Levers
Shimano Cues Rapidfire Plus 10-speed
Cassette
Shimano Cues 10-speed; 11-48T
Crank
XS: Shimano Cues 32T, 170 mm, S: Shimano Cues 32T, 170 mm, L: Shimano Cues 32T, 175mm, XL: Shimano Cues 32T, 175 mm
Bottom Bracket
Shimano
Chain
Shimano CN-LG500; 10-speed
Pedals
Wellgo aluminum platform with steel spindle
Wheels
Front Hub
Shimano 32h; 100 mm quick-release
Rear Hub
Shimano 32h; 135 mm quick-release
Rims
Co-op aluminum tubeless
Tires
Kenda Flintridge, 700c x 40 mm
Brakes
Brakes
Shimano Altus hydraulic disc Hydraulic Disc Brake
Brake Levers
Shimano Altus
Cockpit
Stem
XS: Alloy 6061, 31.8 x 80 mm, S: Alloy 6061, 31.8 x 80 mm, L: Alloy 6061, 31.8 x 100 mm, XL: Alloy 6061, 31.8 x 100 mm
Handlebar
Co-op Riser, 31.8 mm, 25 mm rise, 8 degree sweep
Headset
1-1/8 to 1-1/2 in. threadless
Seat
Saddle
Selle Royal Shadow+ with gel
Seatpost
XS: Co-op aluminum, 31.6 x 300 mm, S: Co-op aluminum, 31.6 x 300 mm, L: Co-op aluminum, 31.6 x 350 mm, XL: Co-op aluminum, 31.6 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.541 mm | 1.417 mm | 1.502 mm | 1.513 mm | 1.533 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 580 mm | 579.9 mm | 599.6 mm | 618.4 mm | 641.9 mm |
| Reach | 376.5 mm | 409.2 mm | 399.3 mm | 408.8 mm | 418.7 mm |
| Top Tube Length | 537.6 mm | 556.6 mm | 576.9 mm | 597.9 mm | 615 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1056 mm | 1069 mm | 1085 mm | 1101 mm | 1120 mm |
| Standover Height | 718 mm | 746 mm | 781 mm | 803 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 159 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 190 cm |
