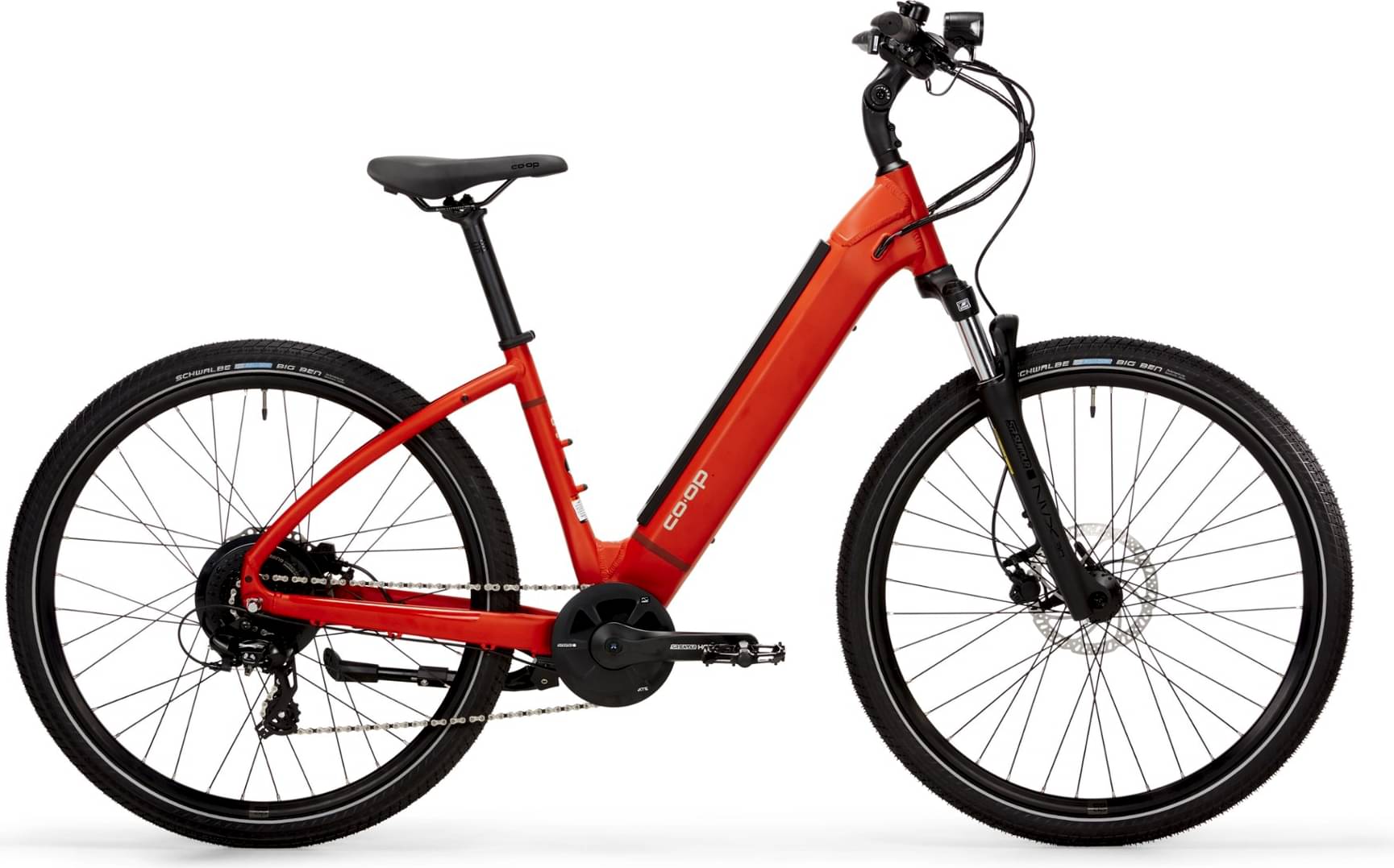

coop Co-op CTY e2.1 2024
2024 E-bike
Estimate price |
1,799$
Weight | 24.72 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour NVX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Motor 250W hub-drive -
Battery Lithium Ion, 418 watt hours -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 169cm
MD
166cm - 175cm
LG
167cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum
Suspension Fork
SR Suntour SF22 NVX30, 80 millimeters
Drivetrain
Rear Derailleur
Shimano TX55 8-speed
Shift Levers
Shimano Altus 8-Speed with Optical Gear Display
Cassette
Shimano CS-HG31; 8-speed 11-34T
Crank
Alloy with 38T chainring
Chain
KMC E-Bike
Pedals
Wellgo alloy platform with chromoly spindle
Wheels
Front Hub
Shimano 100 mm with quick-release axle
Rear Hub
SR Suntour HESC hub motor
Rims
Co-op alloy double-wall for disc
Tires
Schwalbe Big Ben Wire Bead with Greenguard, Snake-Skin, Reflective Sidewall 27.5 x 2.0 in.
Brakes
Brakes
Tektro hydraulic with 180 mm rotors Hydraulic Disc Brake
Brake Levers
Tektro 2-finger hydraulic with reach adjust
Cockpit
Stem
31.8 mm adjustable
Handlebar
Co-op Riser; 18 mm rise; 4 deg. sweep; 31.8 mm at center
Headset
1-1/8 to 1-1/2 in. threadless steel
Seat
Saddle
Co-op Comfort Plus with memory foam
Seatpost
Co-op Aluminum 2-bolt; 8 mm offset; 31.6 mm
Motor & Battery
Motor
SR Suntour HESC Hub Motor 250W
Battery
Lithium Ion, 418 watt hours
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.654 mm | 1.634 mm | 1.664 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Stack | 612 mm | 621 mm | 649 mm |
| Reach | 370 mm | 380 mm | 390 mm |
| Top Tube Length | 558 mm | 577 mm | 602 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 375 mm | 425 mm | 475 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 145 mm | 175 mm |
| Standover Height | 676 mm | 755 mm | 790 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 166 cm | 167 cm |
| Rider Max Height | 169 cm | 175 cm | 190 cm |
